SPECTRA OWNER GUIDE
Trace the booster, filter stages, magnetic-drive feed pump and MPC-5000 controls. Use the labeled drawings to identify the component before choosing a replacement or upgrade.
Mk II MPC generation · 24V DC / 110V AC / 220V AC layoutsHave a Newport 700 Mk II? Open its guide →
Original MPC or a later Mk II-Z / Connect? Choose your generation first.
Separate the main motor supply from the controls and fitted service hardware.
Motor voltage does not identify the board or valve supply.
Identify the pump label before selecting a ratio-specific block or kit.
Standard and commercial cartridge families differ.
Confirm actual dimensions, count and end caps.
Choose only confirmed labels; unknowns do not select an upgrade.
MATCH THE MODULES AND THE INSTALLED GENERATION
The manufacturer index separates Mk II from original MPC, Mk II-Z and Connect. The February 2012 manual identifies MPC-5000, a separate intake booster, a 240MAG5 main feed head and clear three-piece prefilter bowls. Compare the actual module labels after any retrofit.
Manufacturer generation index ↗The documented DC main motor is 24V. AC machines have a separate DC controls inlet and VFD motor output. The DC parts drawing also names a 12V DC/DC converter. Read what actually reaches the board and valves; a motor label alone must not select a controls kit or solenoid.
DC layout ↗ · AC / separate DC layout ↗ · Converter callout ↗The boost pump primes the feed path. Fine filters protect the main magnetic-drive pump. The Clark Pump recovers pressure energy, and the membrane separates product water from brine. The salinity probe and diversion valve decide which product water reaches the tank.
Mk II system plumbing ↗DIMENSIONS AND HOUSING FAMILIES
Main Mk II diagram: sea strainer → boost pump → 20-micron filter → 5-micron filter → magnetic-drive main feed pump → Clark Pump / membranes. The carbon cartridge belongs to freshwater flushing.
| Stage | Part and nominal size | Purpose / installed location |
|---|---|---|
| First fine sediment | FT-FTC-20 10 in long × 2.5 in diameter | After the booster; before the 5-micron cartridge and main feed pump. |
| Second fine sediment | FT-FTC-5 10 in long × 2.5 in diameter | After the 20-micron cartridge; before the 240MAG5 feed head. |
| Freshwater-flush carbon | FT-FTC-CC 10 in long × 2.5 in diameter | Separate domestic flush path; protects the membrane from chlorine. |
These are nominal cartridge dimensions, not a measured end-to-end tolerance. Match end style and actual housing after modifications. Clear bowl shape alone does not establish every cartridge or seal.
The drawings name clear three-piece 10L3PCS housings for the fine filters and carbon module. The matrix pairs 3PCS10 seal with 3PCS wrench. Black 10H and Big Blue bowls use different service hardware.
Fine-filter bowls ↗ · Carbon bowl ↗Commercial dual-filter upgrade kit is an optional retrofit. Confirm module, space, mounting, hoses and current contents with Spectra. Its 20-micron / 5-micron Big Blue candidates are a different diameter family from the standard cartridges; confirm actual measured diameter and ends before ordering.
A housing’s 10¾-inch label in the matrix is not its cartridge length. Do not select a 20-inch Big Blue element just because a seal or wrench code contains 20BB.
Manufacturer upgrade listing ↗The appended PF-4 bulletin dated June 2004 mentions a 50-micron element before the booster. The main Mk II diagram and labeled parts page do not identify that additional housing. Confirm the actual fitted intake and current arrangement with Spectra before adding or omitting a stage.
Exact 50-micron or oil/water element dimensions are not independently specified here; provide measured length, diameter and end style for confirmation.
Dated PF-4 bulletin ↗Oil/water element appears in the spares list, which does not specify its retrofit plumbing. Confirm the fitted separator housing and approved placement with Spectra. Do not remove the 20-then-5 pair from an assumed older-system substitution instruction.
Mk II spares references ↗
Use the exact column for the installed housing family. Cartridge nominal sizes and physical housing length are different measurements.
Open full-size source ↗MATCH THE INSTALLED ELEMENT AND VESSEL
KIT-MB-40F supplies one confirmed 2.5 × 40-inch element and replacement seals. The shared Mk II illustrations show both two- and three-vessel arrangements without an explicit model-specific element-size/count table. Confirm actual dimensions, count and membrane labels with Spectra; a full-system quantity is not chosen automatically.
Later Newport 1000 layouts use 3 long elements, which is a comparison reference, not proof of an older modified module.
Manufacturer single-element kit ↗Vessel retaining ring is separate from the membrane. The manual labels an older FT-PV-EP end plug; the later end-plug kit requires actual cap/ring/electrode confirmation with Spectra. Bracket ends support the module and are not pressure-vessel plugs.
Optional Z-Brane electrodes need their original fitting and electrical procedure. Do not infer a modern cap conversion from a similar-looking vessel.
Vessel and bracket callouts ↗ · Second vessel illustration ↗BOOSTER, MAIN HEAD AND DRIVE ARE SEPARATE
Laing intake booster feeds the prefilters; its impeller services that booster, not the vane head. The centrifugal pump must prime below the waterline. The Mk II wiring documents a two-pump/four-wire layout on 12V controls; do not derive order quantity from a current production photo.
Confirm actual pump count, cable pairs, ports and mounting with Spectra.
Placement ↗ · Two-pump wiring ↗ · Booster callouts ↗Factory Mk II feed head is named in DC and AC diagrams. Match head stamp, coupling and fittings. It is distinct from the original MPC mechanical-drive 240250 head and the Newport 400 140MAG head.
Remanufactured MAG package candidate requires current package and core-term confirmation with Spectra; it does not automatically include motor, drive or booster.
DC head ↗ · AC head ↗One-HP 24V DC motor is named in the model diagram. Confirm manufacturer plate, shaft/frame and coupling. That diagram specifies EL-MTR-PWMA24; the differently named catalog PWM candidate needs high-current/output confirmation with Spectra.
Leeson brush-kit candidate is only for a positively identified matching motor. The Newport 400 half-HP conversion and Bodine brush kits are not used here.
DC motor and drive labels ↗Page 62 names a three-quarter-HP three-phase motor and separate 110/220-input VFDs; page 63 instead labels a 1.5HP motor in a shared photo. Confirm installed motor, VFD, frame and coupling with Spectra before using the 3/4HP link.
The VFD produces three-phase motor power. Boat AC input voltage is not a direct replacement-motor connection instruction.
AC electrical labels ↗ · Alternate motor photo ↗Absolute inlet sensor monitors the intake; 250-PSI transducer monitors main-feed pressure. Rotoflo measures product flow. None is the salinity probe. Match range, location, connector and board calibration with Spectra before ordering.
Sensor locations ↗CONTROLLER GENERATION AND ACTUAL SUPPLY
This Mk II manual documents MPC-5000 and a legacy SP3 probe, which is now obsolete. Read the installed board chip before selecting SP4. The MPC-3000 conversion is only for an actually identified earlier or changed control box; a factory Mk II does not need that conversion merely because its probe is obsolete. SP1 is obsolete; SP4 alone does not work on MPC-3000.
Identify the installed controller.
Identify the DC control supply, including the separate supply on AC versions. The AC motor label does not select the conversion kit.
12V DC controls: Review the 12V MPC conversion
Confirm the installed Newport motor/controller, wiring re-termination and system programming with Spectra. The kit includes A40 board, SP4, Rotoflo and fittings; the 24V kit also includes a 12V flush solenoid.
24V DC controls: Review the 24V MPC conversion
Confirm the installed Newport motor/controller, wiring re-termination and system programming with Spectra. The kit includes A40 board, SP4, Rotoflo and fittings; the 24V kit also includes a 12V flush solenoid.
No conversion kit is selected until the DC control supply is identified.
The existing MPC display is retained. A40’s lowered flush output may change the required solenoid. This is a controls conversion, not a feed-pump or motor upgrade.
Spectra lists A40 board plus SP4 probe. Confirm wiring and system programming. The standalone board is not the whole MPC-3000 conversion.
SP4 needs the EL-MPC-SPCBA daughter board, or the A40 board plus SP4 route. The daughter board has no exact listing in this catalog. Confirm its availability and the actual interface with Spectra; the probe alone is insufficient.
SP4 is listed as compatible. Match actual connector and 15-foot cable reach. A36 is listed with or without the daughter board. The shorter SP4N suffix remains a separate confirmation.
| Installed controls | Current route | Before ordering |
|---|---|---|
| MPC-3000 | Eligible MPC-5000 conversion first | Confirm DC controls supply, wiring, motor interface and kit contents with Spectra. |
| MPC-5000 B## / A31 | A40 board plus SP4 | Confirm system programming and wiring. |
| MPC-5000 A34 / A35 | SP4 with daughter board, or A40 plus SP4 | Daughter board is required for the retained-board path. |
| MPC-5000 A36 / A37 / A39 / A40 | SP4 compatible | Check exact connector, cable reach and actual chip. |
| Unknown / unlisted chip | No automatic recommendation | Identify the installed board with Spectra. |
After the complete installation, use the calibration procedure for the installed controller and compare with a calibrated independent salinity meter. The Mk II manual calibrates salinity through the MPC software/display against an independent meter. A controller conversion may change the calibration and programming procedure.
Mk II salinity calibration ↗ · Current chip / probe table ↗ · Current conversion contents ↗ · Wiring conversion instructions ↗MATCH THE BODY AND THE ELECTRICAL OUTPUT
The factory Mk II drawing names INT. Select later bodies by the actual hole pattern and solenoid opening; the year or a Z suffix alone does not identify preservation equipment.
| Actual intake body | Manufacturer chart reference | Required check |
|---|---|---|
| 5 fitting holes; about 1-inch opening | SUB-NP-MK2-INT | Match actual valve, adapter, mounting and fittings with Spectra. |
| 6 fitting holes; about 1-inch opening | SUB-NP-MK2-INEZ | Match actual valve, adapter, mounting and fittings with Spectra. |
| 6 fitting holes; about 3/4-inch Spartan opening | SUB-NP-MK2-INTZ | Match actual valve, adapter, mounting and fittings with Spectra. |
Count external fitting holes and identify the solenoid opening and required adapter before selecting a body.
Open full-size source ↗Legacy ECI/Alcon coil conversion retains the old body. Spartan Newport coil without body and with-body assembly have different installation scopes. Confirm actual body/adapter, connectors and controller output with Spectra.
The Mk II drawing labels a 12V O12VB valve. A main DC24 motor does not identify a 24V flush coil.
The manual labels a 12V D12M valve on the product path. Diversion manifold, later Spartan manifold and Burkert conversion kit differ in body, plumbing and supply scope. Confirm actual valve, output and approved fittings with Spectra.
This circuit protects tank water quality; it is not the freshwater-flush valve.
Product sensing / valve ↗THE INSTALLED RATIO SETS THE SERVICE FAMILY
Confirm the installed ratio before ordering. The shared manual’s shipping list and membrane module photos name 20%, but its exterior drawing labels CB15 for Newport 700 and CB20 for Newport 1000. These labels conflict for the 700.
The NP1000 CB20 label agrees with the 20% shipping/module references. Still identify the actual installed pump after any rebuild or retrofit; another ratio requires a separate Spectra service route.
Shipping list ↗ · Historical block labels ↗Current 20% hardware uses CB20 block, two 7/8-inch rods and four PR10 rod-seal locations. The older generic single-rod illustration is not the current quantity reference. Match installed revision and supplied pack quantity with Spectra.
Current twin-rod callout ↗A / B blocks use the current one-inch HP-TB-VSP1 spool piston / seal pair. Old 10VS20 / VSP20 labels require revision confirmation. The larger 7%/10% A1/B1 family is excluded.
Current piston / seal reference ↗20% distributor rebuild kit excludes spacer rings and top-end spool pistons. 20% seal/O-ring kit has a different scope. 20% offshore kit includes tools and cleaners but excludes rods and cylinder pistons.
Confirm actual ratio and current contents with Spectra before ordering overlapping loose pieces. The older generic offshore code is not the current 7%/10% kit.
LOCATE THE COMPONENT BEFORE CHOOSING A PART
Choose a section; open a drawing for full-size manufacturer callouts. These are the actual published illustrations. Historical conflicts and current 20% revision checks remain next to the drawing.
Showing all Mk II assembly drawings.
The booster feeds the 20-then-5 micron prefilter pair before the magnetic-drive main pump. The carbon flush path is separate.
Open full-size source ↗

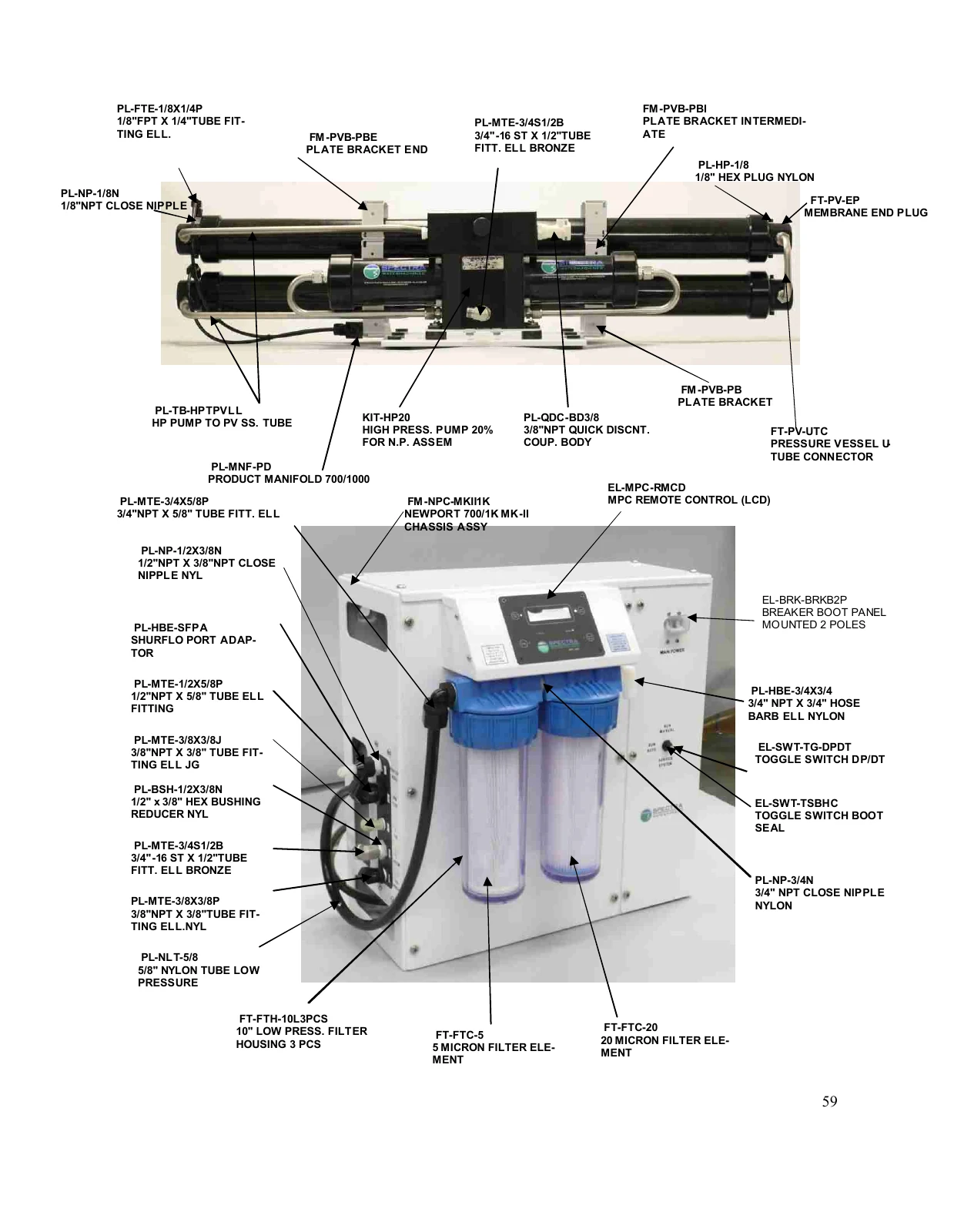

Clear three-piece filter bowls hold the 20- and 5-micron cartridges. The shared vessel photo is an identification example, not a model-specific order quantity.
Open full-size source ↗

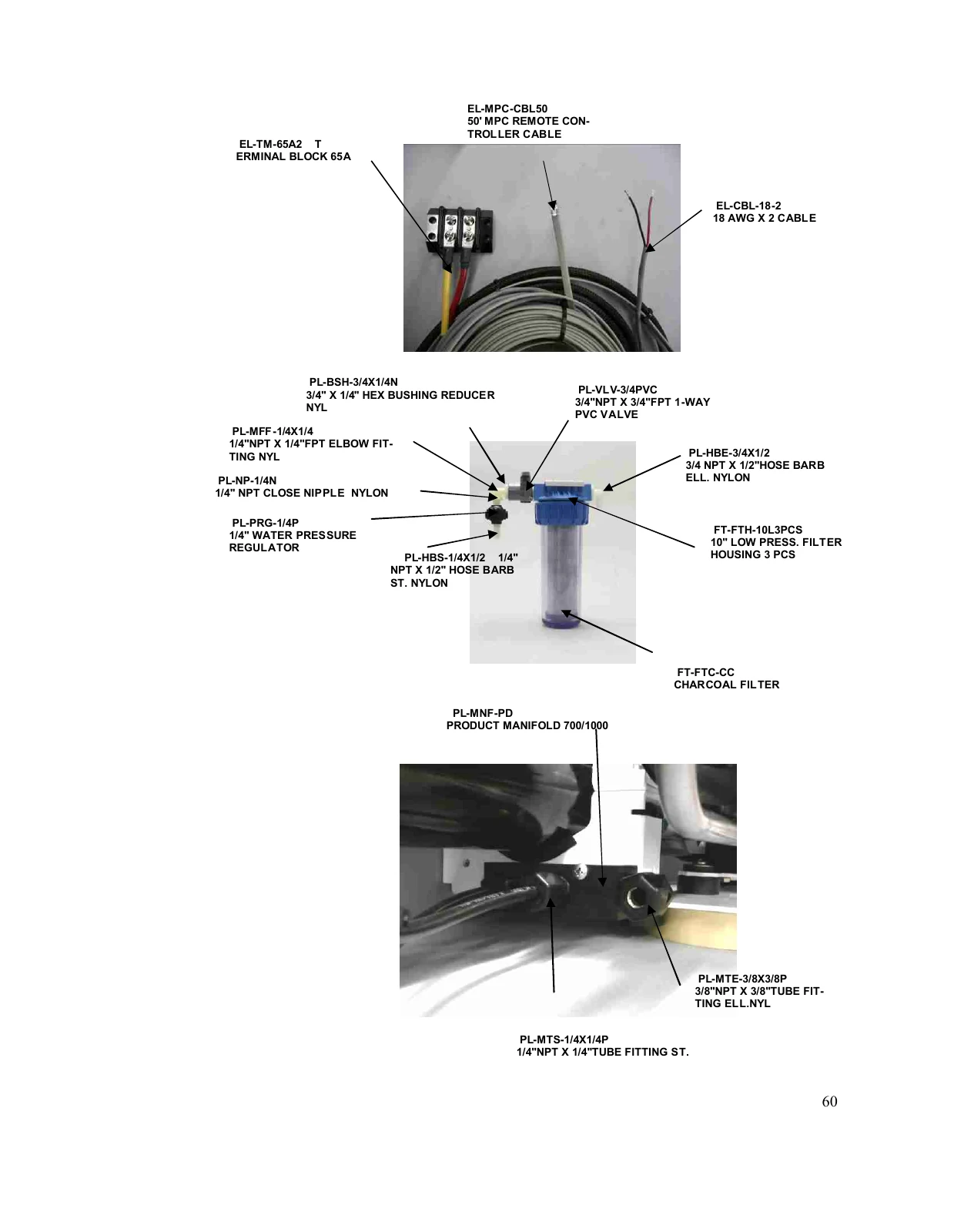

Identify the carbon element, three-piece bowl and flush-water regulator independently of seawater filtration.
Open full-size source ↗

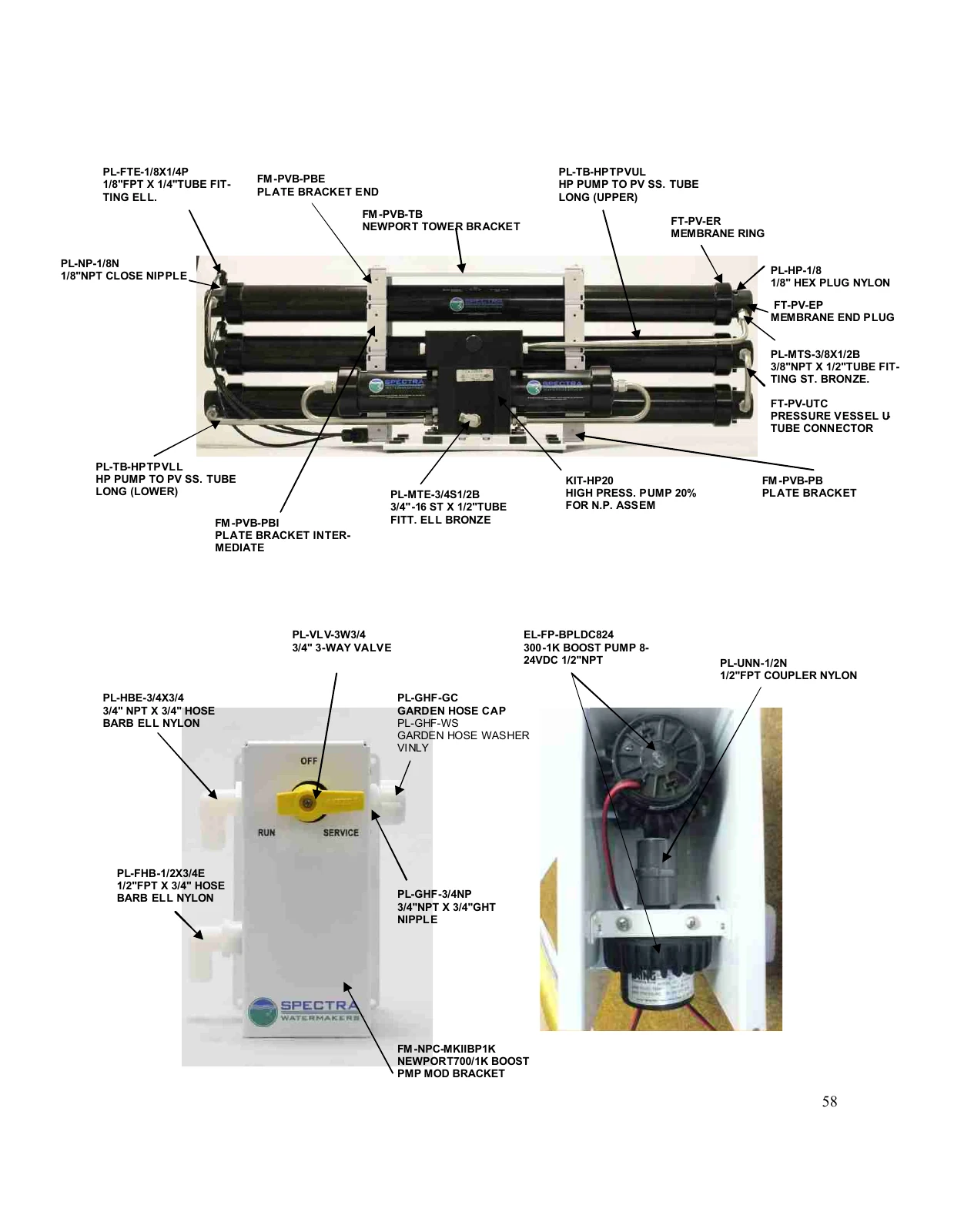

The lower drawing identifies the boost pump and service valve. Verify actual booster count and wiring; the upper shared picture does not set membrane quantities.
Open full-size source ↗

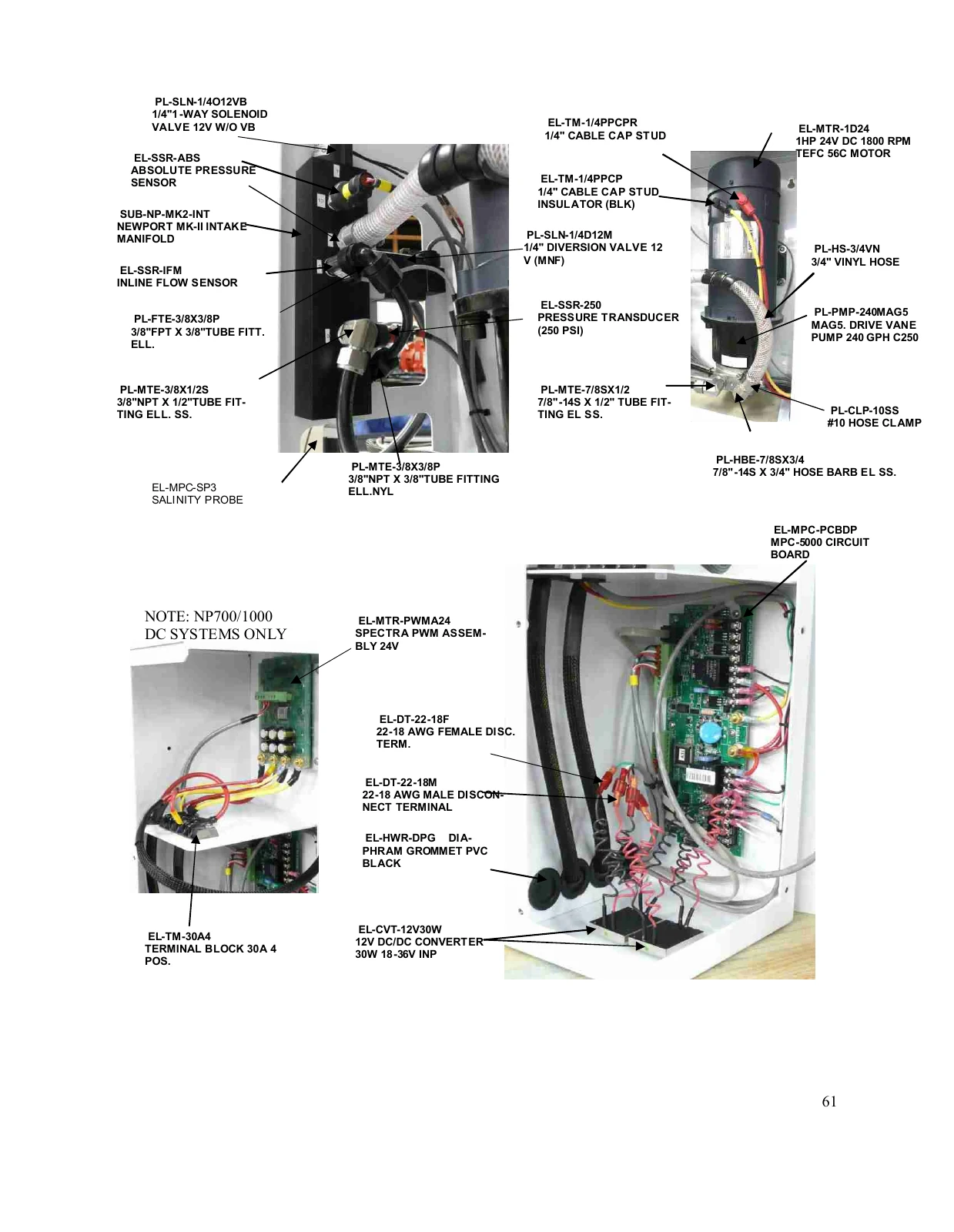

One-HP motor and its high-current speed control are separate from MPC controls. Identify any DC/DC converter and actual control supply.
Open full-size source ↗

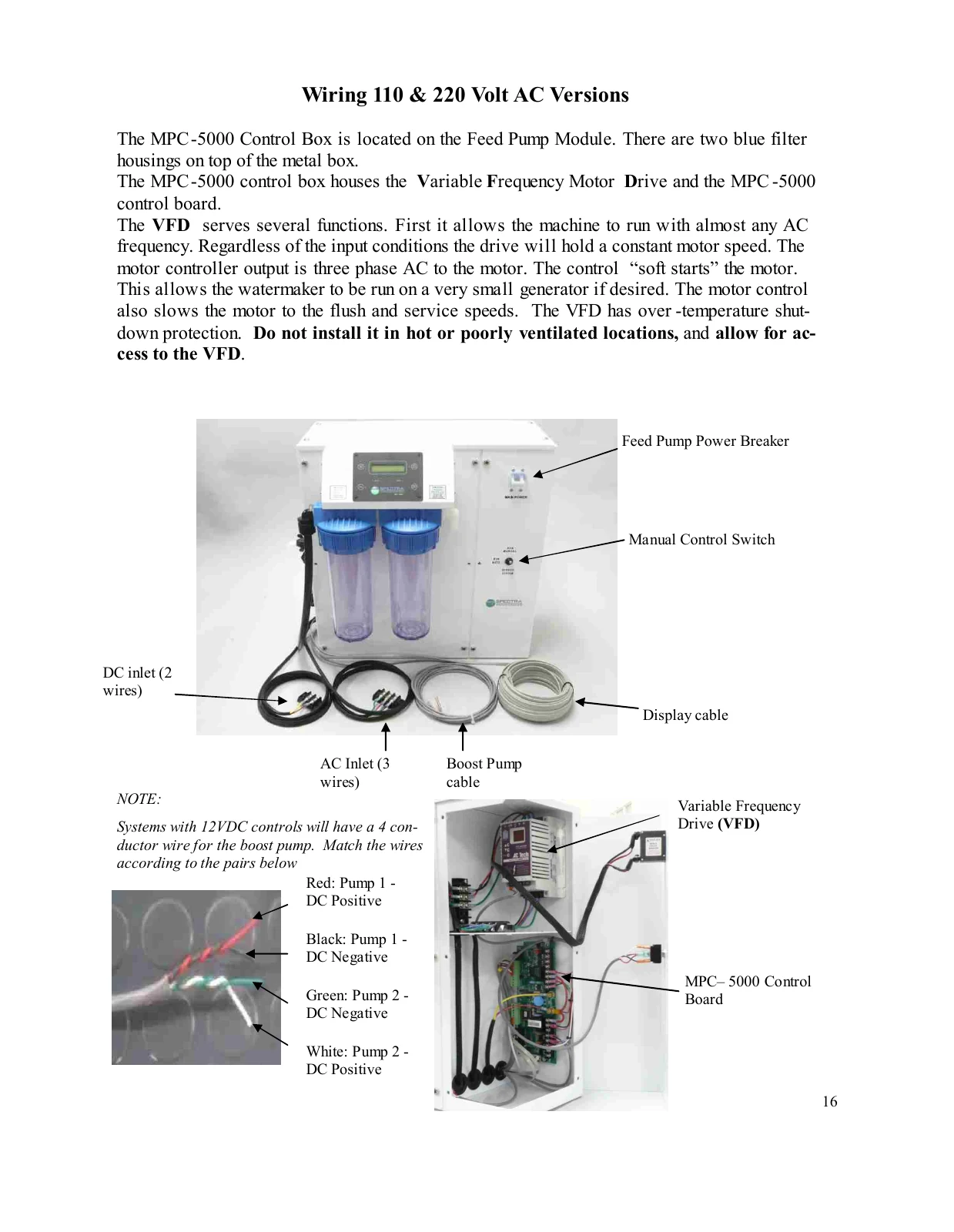

AC input feeds a VFD with three-phase motor output. The drawing specifically notes a four-wire/two-booster arrangement on 12V control versions.
Open full-size source ↗
EL-SSR-ABS, EL-SSR-250, Rotoflo and legacy SP3 measure different functions. DC motor is one HP; PWMA24 suffix needs current-controller confirmation.
Open full-size source ↗

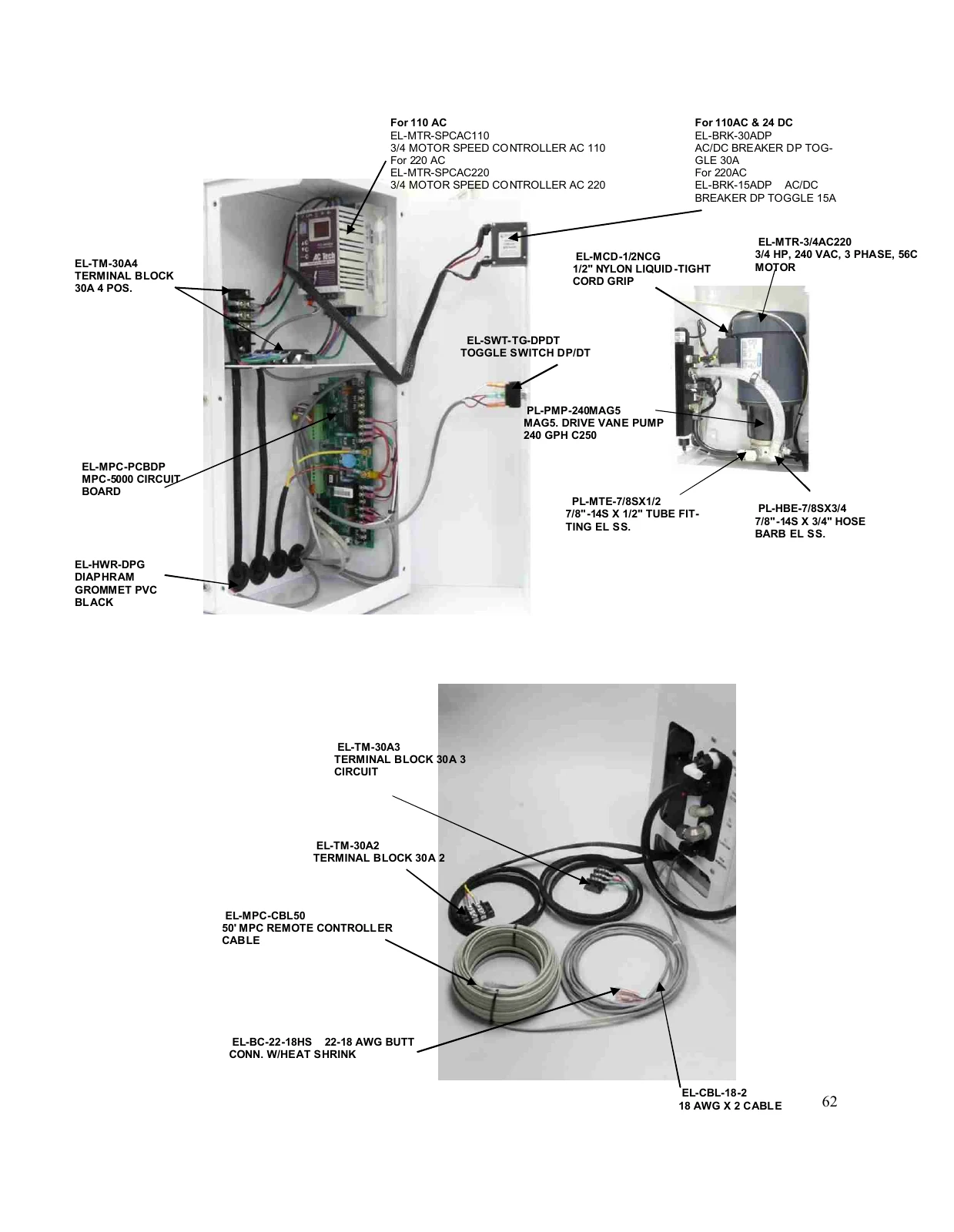

The AC drawing names a three-quarter-HP three-phase motor; another shared photo names 1.5HP. Confirm the installed motor plate and VFD.
Open full-size source ↗

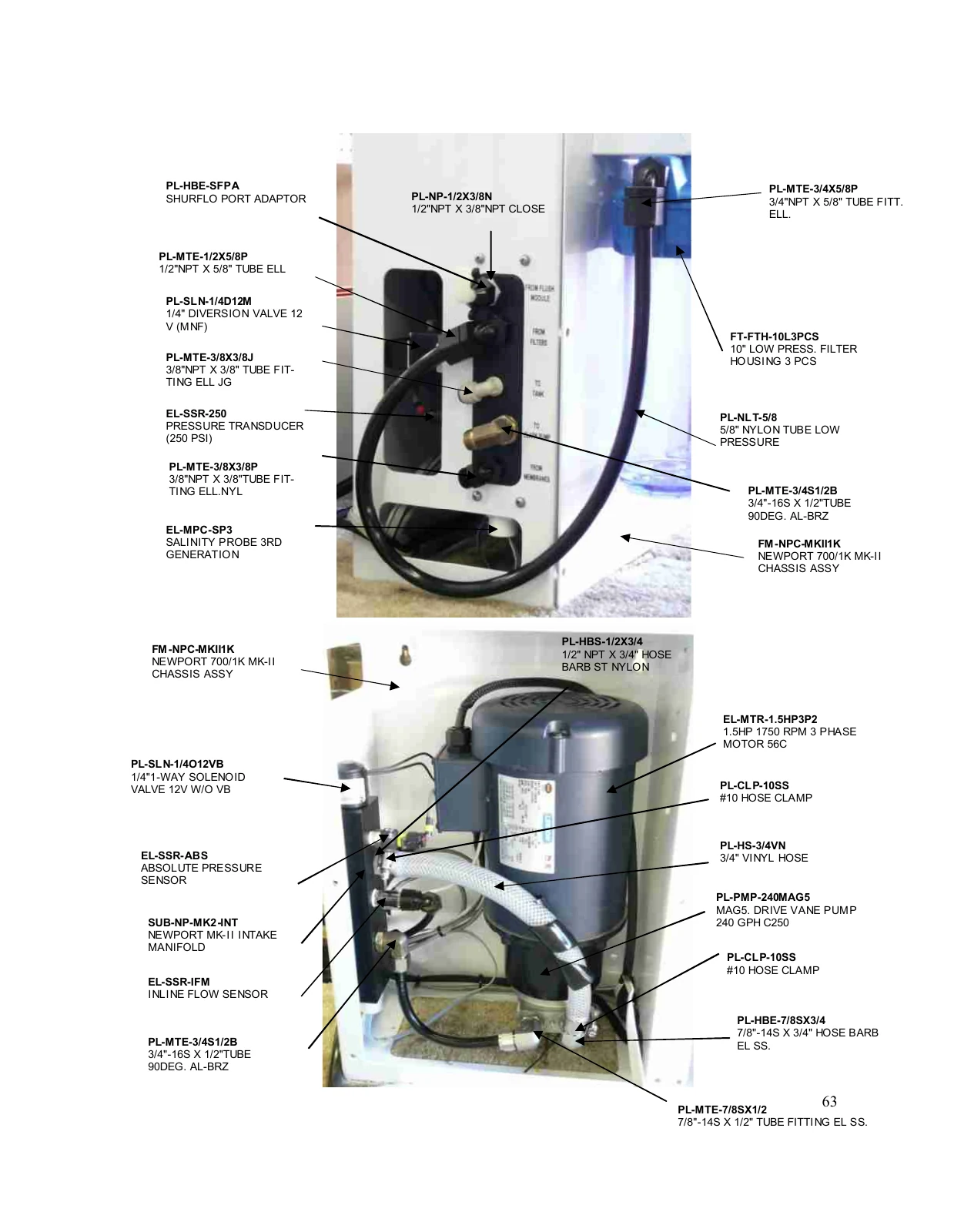

This page labels a 1.5HP three-phase motor. Its photo does not override the actual installed motor or establish a universal replacement.
Open full-size source ↗

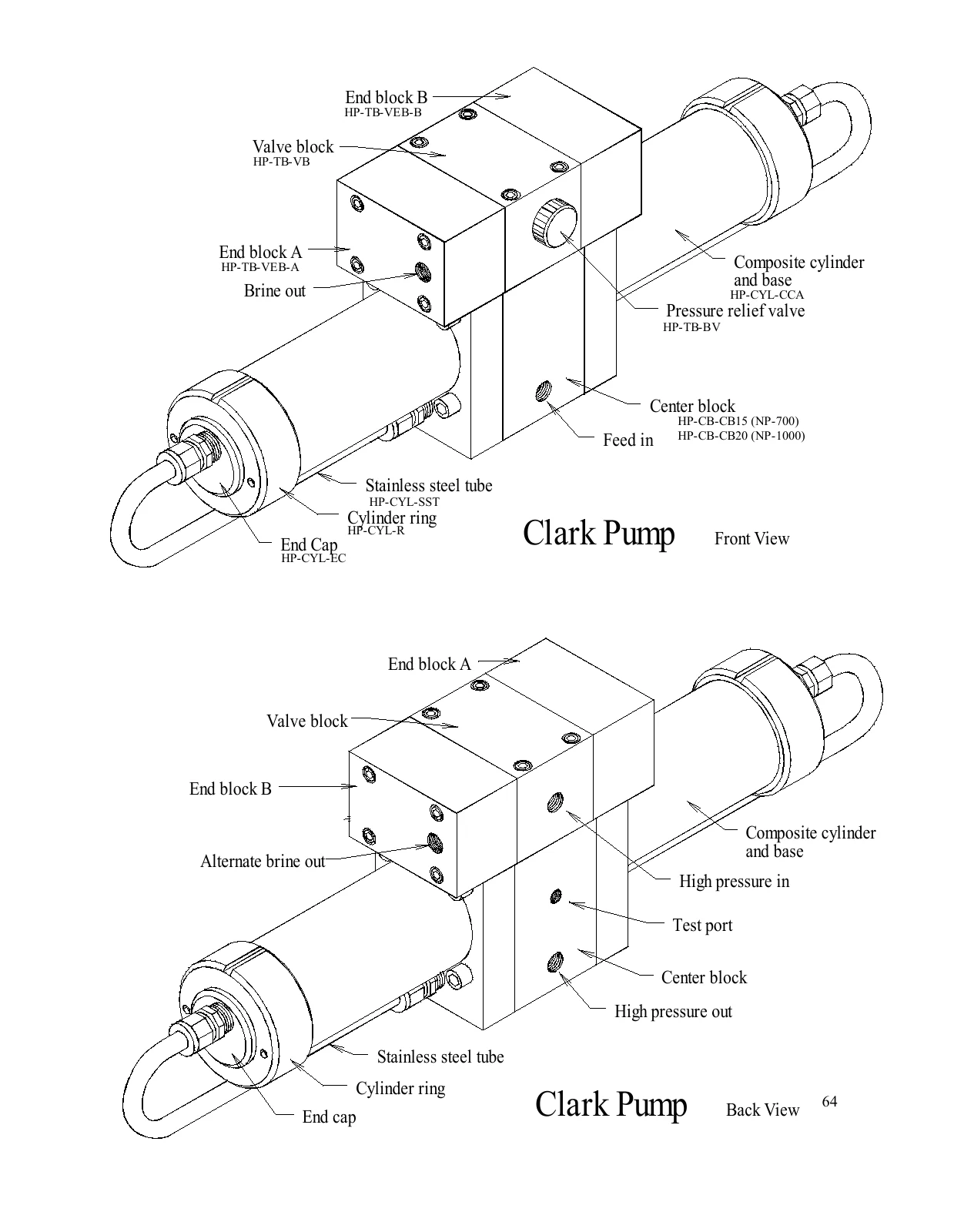

This page labels CB15 for NP700 and CB20 for NP1000, while the shipping list and module photos name 20%. Confirm the actual ratio before choosing a block or kit.
Open full-size source ↗

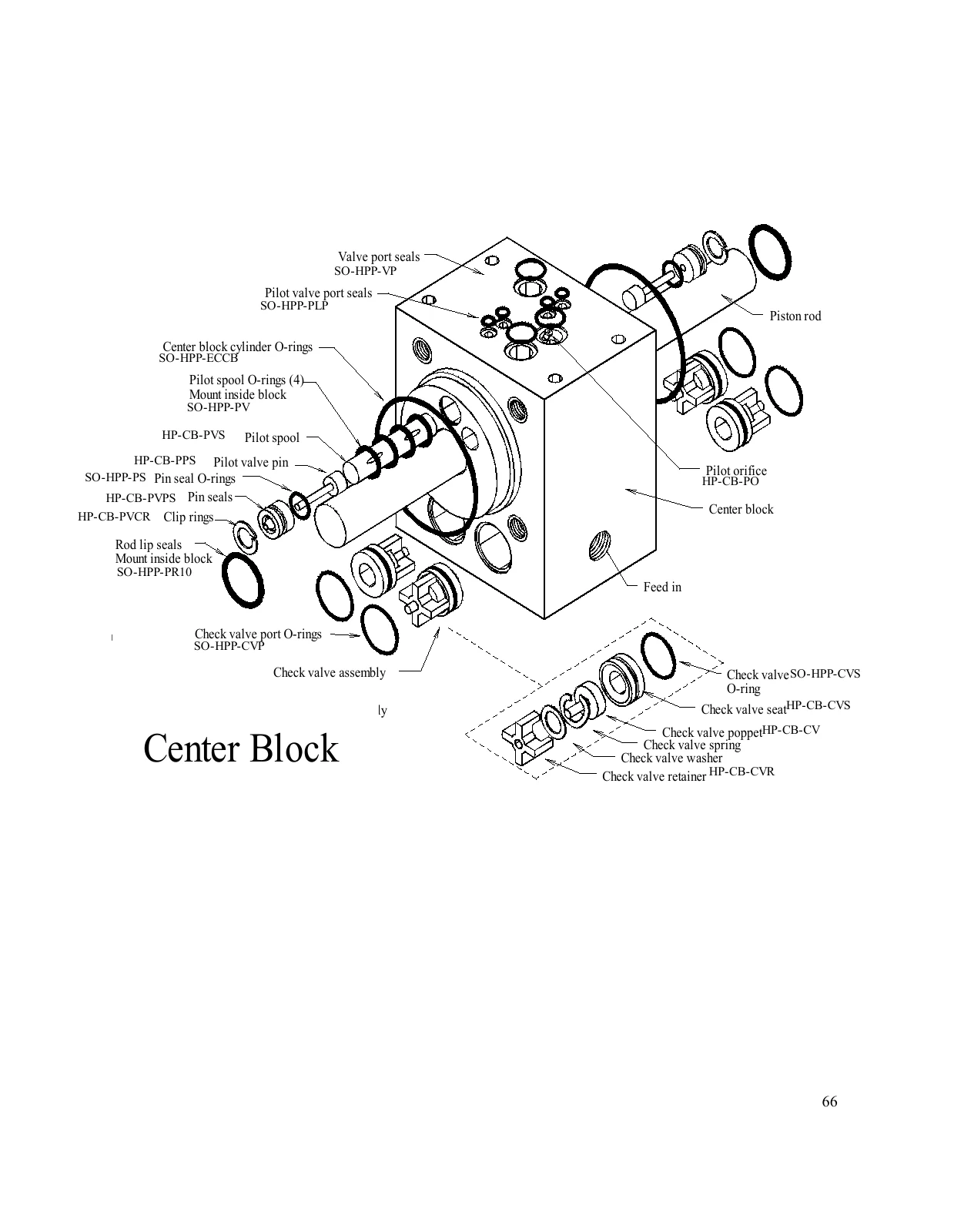

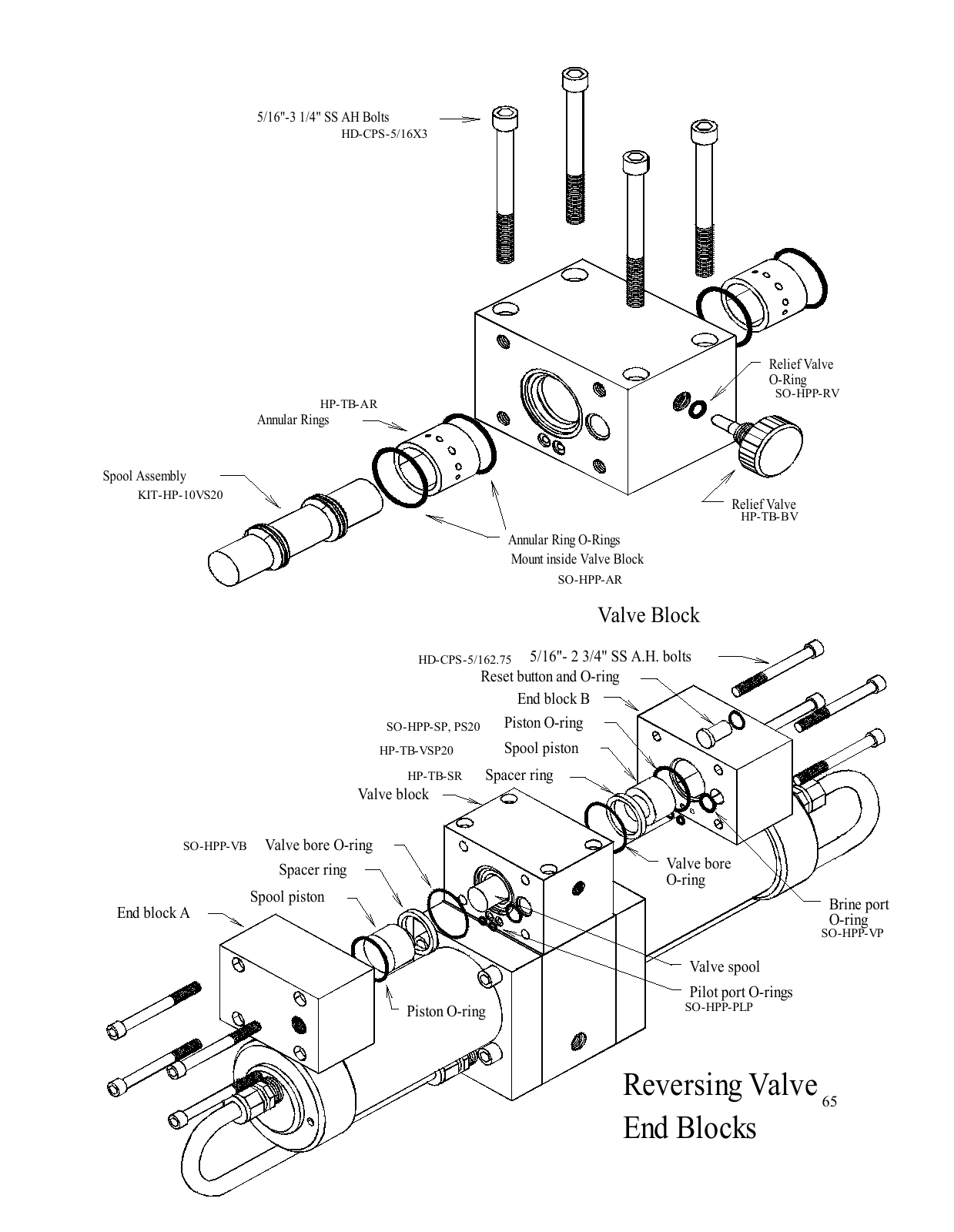

Old KIT-HP-10VS20 and VSP20 / PS20 suffixes are not automatically current aliases. For confirmed 20%, use the current one-inch bore/piston/seal reference.
Open full-size source ↗
For confirmed current 20% hardware, HP-TB-VSP1 and SO-HPP-SP1 differ from the larger 7%/10% pair. Match actual bore and revision.
Open full-size source ↗
The older generic single-rod drawing does not establish current 20% rod quantity or the internal arrangement of a 15% pump.
Open full-size source ↗
The current manufacturer rebuild manual identifies two 7/8-inch rods for 20%. Do not apply this callout to an unconfirmed historical 15% pump.
Open full-size source ↗

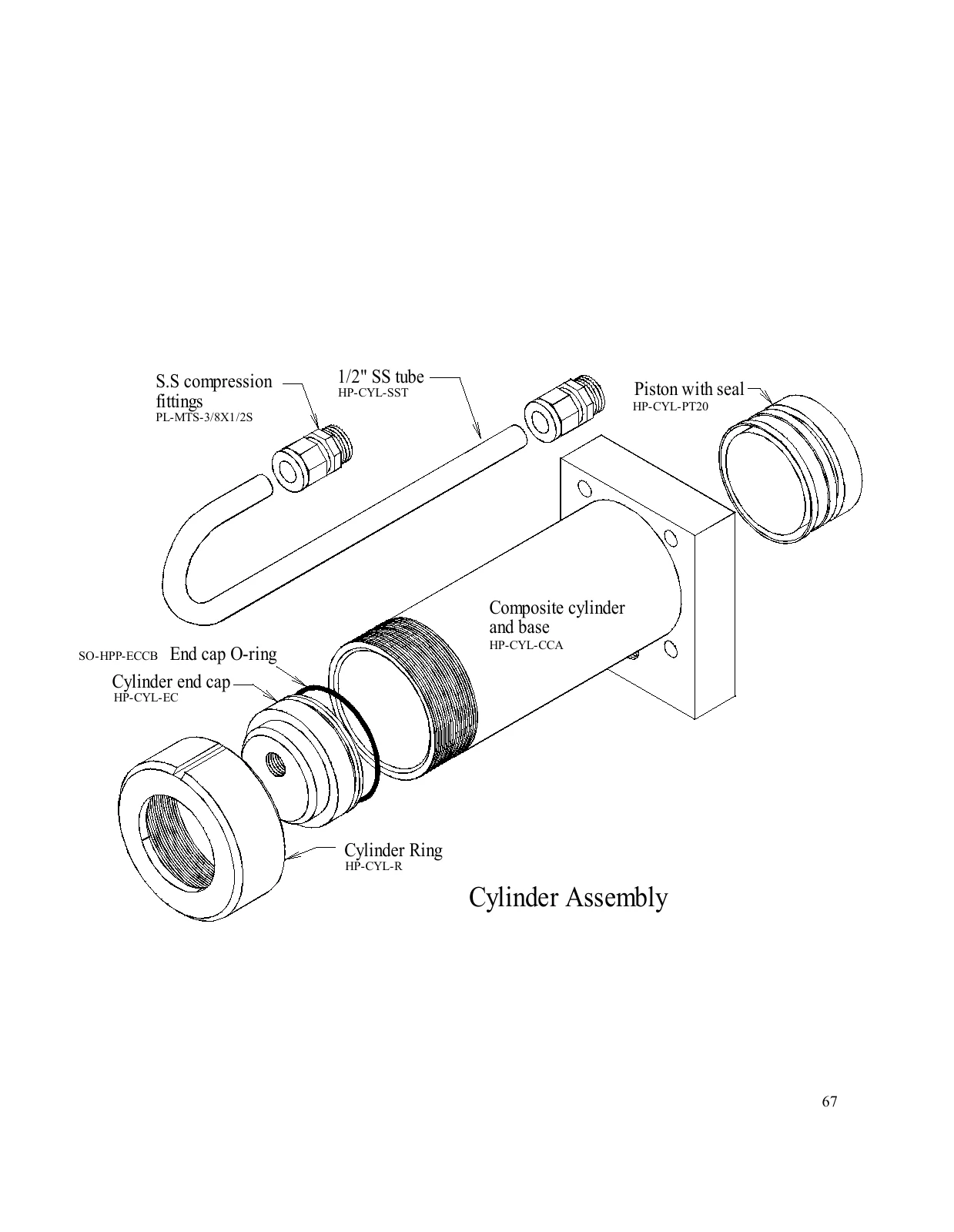

PT20 is distinct from the one-piece smaller-ratio piston. Verify the actual piston, seal/bushing pieces and present package contents.
Open full-size source ↗KEEP ROUTINE SERVICE AND CORRECTIVE REPAIRS SEPARATE
Service the fitted sediment stages according to condition and current cartridge instructions. Old wash/reuse advice does not establish that every current element can be washed. Carbon cannot be restored by cleaning; the Mk II manual specifies replacement at least every six months.
Maintenance ↗ · Carbon service bulletin ↗SC-1 storage compound is for preservation, not membrane cleaning or freeze protection. The Mk II storage procedure uses two containers and accounts for water already in the system. Follow the complete instructions for the installed plumbing; do not mix a bucket dose without the retained-volume calculation.
Storage quantities ↗ · Full pickling procedure ↗SC-2 alkaline cleaner and SC-3 acid cleaner target different fouling. Low output can also result from intake restrictions, voltage, feed-pump delivery or Clark Pump faults. Compare with an independent salinity meter and follow the manufacturer’s diagnostic procedure before buying a membrane or cleaner.
Membrane assessment ↗ · Current flow-test guidance ↗The Mk II spares page calls the package Basic Cruise Kit B but prints KIT-BCK-C. Confirm current B / C contents with Spectra against your fitted elements and storage supplies. Kit letters alone do not settle this mismatch. Confirm pump ratio before adding an offshore kit.
Spares list ↗This Mk II manual describes optional pressure-vessel Z-Brane equipment. A later Z-Ion generator bowl and control retrofit is different hardware. The Z suffix on a modern intake body does not supply the generator or prove a complete conversion. Confirm all preservation equipment with Spectra before using a changed-plumbing service procedure.
Z-Brane section ↗ANSWERS THAT CHANGE YOUR PART CHOICE
The 20- and 5-micron sediment elements and the carbon flush element have manufacturer nominal dimensions of 10 inches long × 2.5 inches diameter. A commercial Big Blue upgrade uses a different diameter family. Match actual ends and bowls; physical housing length is not the cartridge length.
The main Mk II plumbing shows the booster ahead of the 20/5 pair, but an older dated PF-4 appendix mentions an added 50-micron stage. Confirm the actual fitted inlet equipment and current guidance with Spectra before adding or removing a stage.
The shared Mk II manual conflicts: shipping/module pages say 20%, while the exterior page labels CB15 for NP700. Use the installed ratio label and Spectra serial-number confirmation. The guide does not treat 15% and 20% blocks or kits as interchangeable.
No. The DC diagram includes a 12V converter, and AC versions have a separate DC inlet. Read the actual board supply and valve output before selecting electrical parts. A40 controller conversions may also change flush output.
The factory Mk II manual specifies MPC-5000. Select the probe/interface path by its actual chip. The MPC-3000 conversion is only for an identified earlier or changed controller, not every old probe.
One KIT-MB-40F replaces one positively identified 2.5 × 40-inch element. Later Newport 1000 layouts use 3 elements, but the shared Mk II pictures alone do not establish this installation’s size and count. Confirm the actual module, elements and end caps with Spectra.
That half-HP conversion is not established for the larger Mk II 700/1000 module. Its DC diagram names a one-HP motor and PWMA24 drive. Confirm exact motor, current rating, coupling and programming with Spectra.
MODEL-SCOPED REFERENCES WITH THEIR REQUIREMENTS
Named model and current manufacturer references appear first. Changed-hardware candidates remain separate and conditional. A selection does not verify a retrofit, live stock or price.
138 references.
No matching references. Clear search or check your selections above.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies SC-1 (Storage Compound) in the Mk II service reference, page 6. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies SC-2 (Alkaline Cleaning Compound) in the Mk II service reference, page 6. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies SC-3 (Acid Cleaning Chemical) in the Mk II service reference, page 6. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-MPC-CBL50 (50' MPC Remote Controller Cable) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. 250-PSI transducer on the main pump outlet/feed-pressure path, not the absolute-pressure inlet sensor or a 150-PSI Newport 400 sensor. Match range, socket, cable and installed MPC calibration with Spectra before replacing it. The labeled drawing location matters even when two sensors look alike.
250-PSI transducer on the main pump outlet/feed-pressure path, not the absolute-pressure inlet sensor or a 150-PSI Newport 400 sensor. Match range, socket, cable and installed MPC calibration with Spectra before replacing it. The labeled drawing location matters even when two sensors look alike.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Absolute-pressure sensor on the intake manifold; the controller uses inlet information to detect restrictions. It is a different measurement from the 250-PSI main-feed sensor. Match cable, connector and controller calibration with Spectra; do not substitute the pressure range by appearance.
Absolute-pressure sensor on the intake manifold; the controller uses inlet information to detect restrictions. It is a different measurement from the 250-PSI main-feed sensor. Match cable, connector and controller calibration with Spectra; do not substitute the pressure range by appearance.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Rotoflo product-water flow sensor, separate from pressure and salinity sensing. The Mk II drawing names IFM, not every low-range IFMLR revision. Confirm actual flow range/units, pulse signal, plumbing and installed-board settings with Spectra before ordering. This flow display does not independently establish water quality.
Rotoflo product-water flow sensor, separate from pressure and salinity sensing. The Mk II drawing names IFM, not every low-range IFMLR revision. Confirm actual flow range/units, pulse signal, plumbing and installed-board settings with Spectra before ordering. This flow display does not independently establish water quality.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-SWT-TG-DPDT (Toggle Switch DP/DT) in the AC drive/electrical enclosure, page 62. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-TM-1/4PPCP (1/4" Cable Cap Stud Insulator (Black)) in the 24V DC feed module, page 61. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · standard prefilter arrangement · Named in model manual
First fine-sediment element, after the boost pump and before the 5-micron stage and main magnetic-drive feed pump. Current manufacturer nominal cartridge dimensions: 10 inches long × 2.5 inches diameter. Match actual housing and end style; nominal size is not an exact measured end-to-end tolerance.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · standard prefilter arrangement · Named in model manual
Second fine-sediment element, after the 20-micron stage and before the main magnetic-drive feed pump. Current manufacturer nominal cartridge dimensions: 10 inches long × 2.5 inches diameter. Match actual housing and end style; nominal size is not an exact measured end-to-end tolerance.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Carbon element on the independent domestic freshwater-flush path; it removes chlorine before flush water reaches the membrane. Replace at least every six months. Current manufacturer nominal cartridge dimensions: 10 inches long × 2.5 inches diameter. Match actual housing and end style; nominal size is not an exact measured end-to-end tolerance.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Optional oil/water element is named in the Mk II spares list. That list does not establish an installation sequence or exact cartridge dimensions for an added assembly. Confirm the installed separator housing, measured length/diameter, service fittings and approved upstream placement with Spectra. Do not remove the documented 20-then-5 stages from an assumed older procedure.
Optional oil/water element is named in the Mk II spares list. That list does not establish an installation sequence or exact cartridge dimensions for an added assembly. Confirm the installed separator housing, measured length/diameter, service fittings and approved upstream placement with Spectra. Do not remove the documented 20-then-5 stages from an assumed older procedure.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The Mk II main prefilters and separate carbon flush unit use clear three-piece FT-FTH-10L3PCS housings. The manufacturer matrix pairs this family with SO-FHS-3PCS10 seals and FT-FHW-3PCS wrench. Identify the actual ring/bowl; a black 10H or Big Blue housing uses different service hardware.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Membrane vessel retaining hardware is separate from the replacement element. Mk II diagrams label the older FT-PV-EP end plug and FT-PV-ER ring; optional Z-Brane electrodes use dedicated end-plug fittings. Confirm actual plug, retaining ring and electrode revision with Spectra before using the later KIT-PV-25EP1 route. A mounting-bracket end is another part.
Membrane vessel retaining hardware is separate from the replacement element. Mk II diagrams label the older FT-PV-EP end plug and FT-PV-ER ring; optional Z-Brane electrodes use dedicated end-plug fittings. Confirm actual plug, retaining ring and electrode revision with Spectra before using the later KIT-PV-25EP1 route. A mounting-bracket end is another part.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-BRK-15ADP (15A Double-Pole AC/DC Breaker) in the AC drive/electrical enclosure, page 62. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-BRK-30ADP (30A Double-Pole AC/DC Breaker) in the AC drive/electrical enclosure, page 62. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies EL-TM-30A2 (Terminal Block 30A 2 POS.) in the AC drive/electrical enclosure, page 62. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies FT-PV-UTC (Pressure Vessel U-Tube Connector) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CB-PPS (Pilot Valve Pin) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CB-PPS (Pilot Valve Pin) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CB-PVCR (Pilot Valve Clip Ring) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CB-PVCR (Pilot Valve Clip Ring) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CB-PVS (Pilot Valve Spool) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CB-PVS (Pilot Valve Spool) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CYL-CCA (Cylinder Assembly (G‐10 BASE)) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CYL-CCA (Cylinder Assembly (G‐10 BASE)) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CYL-EC (Cylinder End Cap) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CYL-EC (Cylinder End Cap) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CYL-R (Cylinder End Ring) in the cylinder assembly, page 67. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CYL-R (Cylinder End Ring) in the cylinder assembly, page 67. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CYL-SST (Stainless Tube) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CYL-SST (Stainless Tube) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-TB-BV (Bleed Valve) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-TB-BV (Bleed Valve) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-TB-VB (Valve Body) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-TB-VB (Valve Body) in the Clark Pump exterior, page 64. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-BSH-1/2X3/8N (Fitting 1/2" x 3/8" Hex Bushing Reducer Nylon PL-BHF-3/8TPIEJ) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-BSH-3/4X1/4N (3/4" X 1/4" Hex Bushing Reducer Nyl) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-FHB-1/2X3/4E (Nylon Hose Barb Elbow, 1/2 in FPT x 3/4 in Barb) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-FTE-1/8X1/4P (1/8" Female NPT x 1/4" Tube Elbow Fitting) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HBE-3/4X1/2 (3/4" Npt X 1/2"Hose Barb Ell. Nylon) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HBE-3/4X3/4 (3/4" Npt X 3/4" Hose Barb Ell Nylon) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HBE-7/8SX3/4 (7/8"-14S X 3/4" Hose Barb El Ss.) in the 24V DC feed module, page 61. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HBS-1/2X3/4 (1/2" Npt X 3/4" Hose Barb St Nylon) in the product-sensing and feed module, page 63. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HBS-1/4X1/2 (1/4" Npt X 1/2" Hose Barb St. Nylon) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HP-1/8 (1/8" Hex Plug Nylon) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-HS-3/4VN (3/4" Vinyl Hose) in the 24V DC feed module, page 61. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTE-1/2X5/8P (Pl-Mte-1/2X5/8P) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTE-3/4S1/2B (Pl-Mte-3/4S1/2B) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTE-3/4X5/8P (Pl-Mte-3/4X5/8P) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTE-3/8X3/8J (John Guest Elbow, 3/8 in NPT x 3/8 in Tube) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTS-1/4X1/4P (1/4" Male NPT x 1/4" Tube Straight) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTS-3/8X1/2S (Pl-Mts-3/8X1/2S) in the cylinder assembly, page 67. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-NP-1/2X3/8N (1/2"Npt X 3/8"Npt Close Nipple Nyl) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-NP-1/4N (Pl-Np-1/4N) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-NP-1/8N (1/8"Npt Close Nipple Nylon) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-NP-3/4N (3/4" Npt Close Nipple Nylon) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-PRG-1/4P (1/4" Water Pressure Regulator) in the carbon flush module, page 60. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-QDC-BD3/8 (3/8"Npt Quick Discnt. Coup. Body) in the membrane and prefilter module, page 59. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-UNN-1/2N (1/2"Fpt Coupler Nylon) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
24V DC / 110V AC / 220V AC layout references · Named in model manual
Confirm with Spectra before ordering. Laing intake boost pump ahead of the 20/5 prefilters, separate from the 240MAG5 main feed pump. The drawing names an 8–24VDC pump; the wiring section also shows a two-pump/four-wire arrangement for 12VDC controls. Current production uses two pumps, which is not proof of every Mk II package quantity. Confirm actual pump count, supply, cable pairs, mounting and ports with Spectra; the centrifugal booster must prime below the waterline.
Laing intake boost pump ahead of the 20/5 prefilters, separate from the 240MAG5 main feed pump. The drawing names an 8–24VDC pump; the wiring section also shows a two-pump/four-wire arrangement for 12VDC controls. Current production uses two pumps, which is not proof of every Mk II package quantity. Confirm actual pump count, supply, cable pairs, mounting and ports with Spectra; the centrifugal booster must prime below the waterline.
Existing fitment requirements
24V DC feed-power candidate · Named in model manual
Confirm with Spectra before ordering. Named Mk II DC main-feed motor: one HP, 24V DC, 1800 RPM, TEFC 56C. Match actual manufacturer plate, shaft/frame and magnetic-drive coupling with Spectra. The drawing separately names EL-MTR-PWMA24; the motor listing does not include that controller. The Newport 400 half-HP motor conversion is not a replacement route for this larger module.
Named Mk II DC main-feed motor: one HP, 24V DC, 1800 RPM, TEFC 56C. Match actual manufacturer plate, shaft/frame and magnetic-drive coupling with Spectra. The drawing separately names EL-MTR-PWMA24; the motor listing does not include that controller. The Newport 400 half-HP motor conversion is not a replacement route for this larger module.
Existing fitment requirements
110V / 220V AC feed-power layouts · Named in model manual
Confirm with Spectra before ordering. AC electrical drawing names a three-quarter-HP 240VAC three-phase 56C motor with EL-MTR-SPCAC110/220 VFDs. Another shared photo on page 63 labels a 1.5HP three-phase motor. Confirm installed motor plate, VFD, frame and coupling with Spectra before selecting this 3/4HP link. The 110/220V boat input is not the motor output; never connect this three-phase motor directly to single-phase mains.
AC electrical drawing names a three-quarter-HP 240VAC three-phase 56C motor with EL-MTR-SPCAC110/220 VFDs. Another shared photo on page 63 labels a 1.5HP three-phase motor. Confirm installed motor plate, VFD, frame and coupling with Spectra before selecting this 3/4HP link. The 110/220V boat input is not the motor output; never connect this three-phase motor directly to single-phase mains.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
Factory Mk II 240MAG5 magnetic-drive feed-pump head, named in both DC and AC module drawings. This head is separate from the booster, motor and PWM/VFD drive. Match the installed C250 head stamp, magnetic coupling and inlet/outlet fittings; do not substitute the mechanically coupled original-MPC 240250 head or a Newport 400 140MAG head.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-TB-HPTPVLL (Hp Pump To Pv Ss. Tube Long (Lower)) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-TB-HPTPVUL (Hp Pump To Pv Ss. Tube Long (Upper)) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies HP-CB-PVPS (Pilot Valve Pin Seal) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies HP-CB-PVPS (Pilot Valve Pin Seal) in the pilot/check-valve center block, page 66. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Named in model manual
The February 2012 Mk II manual identifies PL-MTS-3/8X1/2B (High Pressure 3/8" NPT x 1/2" Tube Bronze w/ O-ring Straight) in the membrane/boost-pump module, page 58. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Named in model manual
Confirm with Spectra before ordering. The February 2012 Mk II manual identifies SO-HPP-ECCB (End Cap Center Block Seal) in the cylinder assembly, page 67. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
The February 2012 Mk II manual identifies SO-HPP-ECCB (End Cap Center Block Seal) in the cylinder assembly, page 67. Match its labeled assembly position, connection and installed revision. The product page determines present package contents; repeated drawing locations do not set order quantity. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-CV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-CV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-CVR in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-CVR in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-CVS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-CVS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-CVSW in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-CVSW in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-INS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-INS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CB-SPR in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CB-SPR in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. 20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CYL-PTB20 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CYL-PTB20 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-TB-ARP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-TB-ARP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. 20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. 20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-CVP1 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-CVP1 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for HP-CYL-PTS20 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for HP-CYL-PTS20 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-AR1 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-AR1 in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-CVS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-CVS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-PLP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-PLP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Confirmed current 20% arrangement: CB20 center block, two 7/8-inch rods and four PR10 rod-seal locations. Installed quantities are not supplied pack quantities. The Mk II 700 exterior also labels CB15; confirm pump ratio and actual revision with Spectra before applying this twin-rod reference. CB10, CB15 and CB20 are not interchangeable by model name.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-PS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-PS in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. 20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
20% piston/spool service reference for the confirmed current pump family. Delrin cylinder pistons have separate seal/bushing pieces; the 20PTA package and loose PT20 piston differ in scope. Old KIT-HP-10VS20 and VSP20 labels are not established aliases for the current 20VSA or one-inch top-end piston. Confirm actual revision and current contents with Spectra before duplicating hard parts or seals.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-PV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-PV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-RV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-RV in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
Current 20% top-end family uses A/B end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SO-HPP-SP1 seals. The old Mk II reversing-valve page contains mixed VSP20 / PS20 labels. Confirm actual installed bore and revision with Spectra rather than assuming the old suffix establishes the current part. The larger 7%/10% A1/B1 family is excluded.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-VB in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-VB in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current Clark Pump rebuild identification for SO-HPP-VP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Current Clark Pump rebuild identification for SO-HPP-VP in a confirmed 20% pump. Match the exact seal location or hardware callout, installed ratio and revision. The older Mk II drawing has mixed ratio labels; confirm any 15% arrangement with Spectra before selecting these 20% internal references. This reference is limited to a confirmed 20% installed arrangement; confirm any historical 15% pump with Spectra.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Current A40 MPC-5000 board route for an identified older MPC-5000 installation. B-series/A31 require board plus SP4; A34/A35 can instead retain their board with the required daughter interface. Confirm wiring/output and system programming with Spectra. This standalone board is not a complete MPC-3000 conversion or a Connect touchscreen.
Current A40 MPC-5000 board route for an identified older MPC-5000 installation. B-series/A31 require board plus SP4; A34/A35 can instead retain their board with the required daughter interface. Confirm wiring/output and system programming with Spectra. This standalone board is not a complete MPC-3000 conversion or a Connect touchscreen.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. MPC LCD remote display reference named in the Mk II manual. Match the installed MPC generation, Spectra cable and connector. The manual installation text specifies 75 feet but its parts list labels CBL50; confirm actual cable length with Spectra. Connect touchscreen displays and ordinary LAN cables are not replacements.
MPC LCD remote display reference named in the Mk II manual. Match the installed MPC generation, Spectra cable and connector. The manual installation text specifies 75 feet but its parts list labels CBL50; confirm actual cable length with Spectra. Connect touchscreen displays and ordinary LAN cables are not replacements.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Current SP4 15-foot probe reference for confirmed eligible MPC-5000 chips. A34/A35 need a daughter board or A40 upgrade; A36/A37/A39/A40 support SP4. The Mk II SP3 is obsolete. Confirm connector, cable reach and calibration with Spectra; an unknown chip does not establish direct fit.
Current SP4 15-foot probe reference for confirmed eligible MPC-5000 chips. A34/A35 need a daughter board or A40 upgrade; A36/A37/A39/A40 support SP4. The Mk II SP3 is obsolete. Confirm connector, cable reach and calibration with Spectra; an unknown chip does not establish direct fit.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. The Mk II main prefilters and separate carbon flush unit use clear three-piece FT-FTH-10L3PCS housings. The manufacturer matrix pairs this family with SO-FHS-3PCS10 seals and FT-FHW-3PCS wrench. Identify the actual ring/bowl; a black 10H or Big Blue housing uses different service hardware.
The Mk II main prefilters and separate carbon flush unit use clear three-piece FT-FTH-10L3PCS housings. The manufacturer matrix pairs this family with SO-FHS-3PCS10 seals and FT-FHW-3PCS wrench. Identify the actual ring/bowl; a black 10H or Big Blue housing uses different service hardware.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. The Mk II main prefilters and separate carbon flush unit use clear three-piece FT-FTH-10L3PCS housings. The manufacturer matrix pairs this family with SO-FHS-3PCS10 seals and FT-FHW-3PCS wrench. Identify the actual ring/bowl; a black 10H or Big Blue housing uses different service hardware.
The Mk II main prefilters and separate carbon flush unit use clear three-piece FT-FTH-10L3PCS housings. The manufacturer matrix pairs this family with SO-FHS-3PCS10 seals and FT-FHW-3PCS wrench. Identify the actual ring/bowl; a black 10H or Big Blue housing uses different service hardware.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Manufacturer commercial dual-intake filter upgrade reference, separate from replacing the original small cartridges. Confirm the actual Mk II module, installation space, mounting, plumbing, fittings and current kit contents with Spectra; the code alone does not establish everything needed for this retrofit.
Manufacturer commercial dual-intake filter upgrade reference, separate from replacing the original small cartridges. Confirm the actual Mk II module, installation space, mounting, plumbing, fittings and current kit contents with Spectra; the code alone does not establish everything needed for this retrofit.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Current manufacturer reference
Confirm with Spectra before ordering. 20% offshore kit includes service tools, seals and cleaning supplies; manufacturer says it does not include piston rods or cylinder pistons. The manual generic KIT-OFFSH label is not the present 7%/10% listing. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
20% offshore kit includes service tools, seals and cleaning supplies; manufacturer says it does not include piston rods or cylinder pistons. The manual generic KIT-OFFSH label is not the present 7%/10% listing. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Current body selector: six fitting holes and approximately 1-inch solenoid opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Current body selector: six fitting holes and approximately 1-inch solenoid opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Current body selector: five fitting holes and approximately 1-inch solenoid opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Current body selector: five fitting holes and approximately 1-inch solenoid opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Current body selector: six fitting holes and approximately 3/4-inch Spartan opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Current body selector: six fitting holes and approximately 3/4-inch Spartan opening. The Mk II drawing names INT. Count actual holes and identify valve/adapter before using a later body. Confirm mounting and fittings with Spectra after changes; this intake manifold is separate from product-water diversion. A Z-suffix body is not proof that a Z-Ion generator is installed.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Manufacturer identifies this impeller for the EL-FP-BPLDC824 Laing boost pump. Identify the actual booster body and service revision with Spectra before selecting it; this is not an impeller for the magnetic-drive vane head and does not replace an entire boost module or electrical fault.
Manufacturer identifies this impeller for the EL-FP-BPLDC824 Laing boost pump. Identify the actual booster body and service revision with Spectra before selecting it; this is not an impeller for the magnetic-drive vane head and does not replace an entire boost module or electrical fault.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Current manufacturer reference
Confirm with Spectra before ordering. 20% seal/O-ring kit; it is distinct from the 7%/10% kit and the distributor hard-parts rebuild kit. The manufacturer page currently names KIT-S&OH, while this catalog uses KIT-HP-S&OH. Confirm the code and present contents before assuming suffix equivalence. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
20% seal/O-ring kit; it is distinct from the 7%/10% kit and the distributor hard-parts rebuild kit. The manufacturer page currently names KIT-S&OH, while this catalog uses KIT-HP-S&OH. Confirm the code and present contents before assuming suffix equivalence. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Current manufacturer reference
Confirm with Spectra before ordering. 20% distributor rebuild kit. Manufacturer contents exclude spacer rings and top-end spool pistons; tools and instructions are not supplied. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
20% distributor rebuild kit. Manufacturer contents exclude spacer rings and top-end spool pistons; tools and instructions are not supplied. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
Product-water diversion valve/manifold reference, separate from intake and freshwater flush. The Mk II drawing names a 12V D12M valve; later Spartan and Burkert conversion routes differ in body, output and fittings. Confirm actual valve, MPC output and conversion contents with Spectra; 24V main-feed power does not establish a 24V diversion coil.
24V DC / 110V AC / 220V AC layout references · 12V DC controls — identify separately · Current manufacturer reference
Confirm with Spectra before ordering. Conditional MPC-3000 to MPC-5000 conversion only for an actually identified earlier or changed control box; the factory Mk II manual already specifies MPC-5000. Select by confirmed controls supply at the board, including any DC/DC converter, not the main DC24 motor or AC input. Kit includes A40, SP4, Rotoflo and fittings; 24V kit also includes a 12V flush solenoid. Confirm Newport wiring re-termination, output circuits, speed-control interface and programming with Spectra. Retained display and motor conversions are separate scopes.
Conditional MPC-3000 to MPC-5000 conversion only for an actually identified earlier or changed control box; the factory Mk II manual already specifies MPC-5000. Select by confirmed controls supply at the board, including any DC/DC converter, not the main DC24 motor or AC input. Kit includes A40, SP4, Rotoflo and fittings; 24V kit also includes a 12V flush solenoid. Confirm Newport wiring re-termination, output circuits, speed-control interface and programming with Spectra. Retained display and motor conversions are separate scopes.
24V DC / 110V AC / 220V AC layout references · 24V DC controls — identify separately · Current manufacturer reference
Confirm with Spectra before ordering. Conditional MPC-3000 to MPC-5000 conversion only for an actually identified earlier or changed control box; the factory Mk II manual already specifies MPC-5000. Select by confirmed controls supply at the board, including any DC/DC converter, not the main DC24 motor or AC input. Kit includes A40, SP4, Rotoflo and fittings; 24V kit also includes a 12V flush solenoid. Confirm Newport wiring re-termination, output circuits, speed-control interface and programming with Spectra. Retained display and motor conversions are separate scopes.
Conditional MPC-3000 to MPC-5000 conversion only for an actually identified earlier or changed control box; the factory Mk II manual already specifies MPC-5000. Select by confirmed controls supply at the board, including any DC/DC converter, not the main DC24 motor or AC input. Kit includes A40, SP4, Rotoflo and fittings; 24V kit also includes a 12V flush solenoid. Confirm Newport wiring re-termination, output circuits, speed-control interface and programming with Spectra. Retained display and motor conversions are separate scopes.
24V DC / 110V AC / 220V AC layout references · Current manufacturer reference
Confirm with Spectra before ordering. Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
Freshwater-flush valve reference, separate from product diversion. Mk II drawings label O12VB for the retained legacy body; ECI/Alcon coil conversion, Spartan Newport coil without body and with-body assembly have different scopes. Confirm actual body, adapter, connector and measured controller output with Spectra; a 24V main motor does not establish a 24V flush coil.
Confirm these specific links with Spectra before ordering. The source does not prove direct interchangeability, exact current revision or complete conversion contents.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Short-cable SP4N catalog candidate. Current chip guidance explicitly names SP4, not every N-suffix connector/length revision. Confirm the actual probe socket, three-foot reach and required interface with Spectra. This is not an automatic interchangeable alias for the 15-foot SP4.
Short-cable SP4N catalog candidate. Current chip guidance explicitly names SP4, not every N-suffix connector/length revision. Confirm the actual probe socket, three-foot reach and required interface with Spectra. This is not an automatic interchangeable alias for the 15-foot SP4.
24V DC feed-power candidate · Installed-hardware review
Confirm with Spectra before ordering. The Mk II 700/1000 DC drawing specifies EL-MTR-PWMA24 for its one-HP motor; this catalog listing has a different suffix/scope. Confirm high-current compatibility, heat sink, terminals and Spectra programming with the actual motor/controller before ordering. A generic 12/24V PWM name does not prove it is the required larger-motor controller.
The Mk II 700/1000 DC drawing specifies EL-MTR-PWMA24 for its one-HP motor; this catalog listing has a different suffix/scope. Confirm high-current compatibility, heat sink, terminals and Spectra programming with the actual motor/controller before ordering. A generic 12/24V PWM name does not prove it is the required larger-motor controller.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
24V DC / 110V AC / 220V AC layout references · commercial prefilter arrangement · Installed-hardware review
Confirm with Spectra before ordering. 10-inch nominal Big Blue cartridge candidate for an actually installed commercial dual-filter upgrade. It is a different diameter family from the standard 10 × 2.5-inch elements. Confirm measured diameter, end style and actual housing/kit with Spectra. The matrix housing length is not the cartridge length; do not substitute a 20-inch BB element.
10-inch nominal Big Blue cartridge candidate for an actually installed commercial dual-filter upgrade. It is a different diameter family from the standard 10 × 2.5-inch elements. Confirm measured diameter, end style and actual housing/kit with Spectra. The matrix housing length is not the cartridge length; do not substitute a 20-inch BB element.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. A dated June 2004 PF-4 bulletin appended to the 2012 manual describes an additional 50-micron stage before the booster. The main Mk II plumbing and labeled intake drawing do not identify that extra housing. Confirm whether it is actually fitted and required on this installation with Spectra. Exact cartridge length, diameter and end style are not independently established here; do not add the older stage by model name alone.
A dated June 2004 PF-4 bulletin appended to the 2012 manual describes an additional 50-micron stage before the booster. The main Mk II plumbing and labeled intake drawing do not identify that extra housing. Confirm whether it is actually fitted and required on this installation with Spectra. Exact cartridge length, diameter and end style are not independently established here; do not add the older stage by model name alone.
24V DC / 110V AC / 220V AC layout references · commercial prefilter arrangement · Installed-hardware review
Confirm with Spectra before ordering. 10-inch nominal Big Blue cartridge candidate for an actually installed commercial dual-filter upgrade. It is a different diameter family from the standard 10 × 2.5-inch elements. Confirm measured diameter, end style and actual housing/kit with Spectra. The matrix housing length is not the cartridge length; do not substitute a 20-inch BB element.
10-inch nominal Big Blue cartridge candidate for an actually installed commercial dual-filter upgrade. It is a different diameter family from the standard 10 × 2.5-inch elements. Confirm measured diameter, end style and actual housing/kit with Spectra. The matrix housing length is not the cartridge length; do not substitute a 20-inch BB element.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. 6" Strainer Screen (Large) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
6" Strainer Screen (Large) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 2.5 × 40-inch element; system count requires confirmation · Installed-hardware review
Confirm with Spectra before ordering. One kit supplies one 2.5 × 40-inch seawater element and replacement seals. The shared Mk II diagrams show both two- and three-vessel assemblies without an explicit model-specific element-dimension/count table. Later Newport 1000 layouts use 3 long elements; confirm actual Mk II element size, count and end caps with Spectra before treating that as this installation. No full-system quantity is selected automatically.
One kit supplies one 2.5 × 40-inch seawater element and replacement seals. The shared Mk II diagrams show both two- and three-vessel assemblies without an explicit model-specific element-dimension/count table. Later Newport 1000 layouts use 3 long elements; confirm actual Mk II element size, count and end caps with Spectra before treating that as this installation. No full-system quantity is selected automatically.
24V DC feed-power candidate · Installed-hardware review
Confirm with Spectra before ordering. The Mk II 700/1000 DC drawing specifies EL-MTR-PWMA24 for its one-HP motor; this catalog listing has a different suffix/scope. Confirm high-current compatibility, heat sink, terminals and Spectra programming with the actual motor/controller before ordering. A generic 12/24V PWM name does not prove it is the required larger-motor controller.
The Mk II 700/1000 DC drawing specifies EL-MTR-PWMA24 for its one-HP motor; this catalog listing has a different suffix/scope. Confirm high-current compatibility, heat sink, terminals and Spectra programming with the actual motor/controller before ordering. A generic 12/24V PWM name does not prove it is the required larger-motor controller.
24V DC feed-power candidate · Installed-hardware review
Confirm with Spectra before ordering. Leeson DC motor service candidate for a positively identified motor, not a universal Newport motor part. Confirm the installed motor manufacturer/model and the exact brush/spring set with Spectra. A current 56C frame or 24V rating alone does not establish the same brush geometry; Bodine and AC motor parts are different.
Leeson DC motor service candidate for a positively identified motor, not a universal Newport motor part. Confirm the installed motor manufacturer/model and the exact brush/spring set with Spectra. A current 56C frame or 24V rating alone does not establish the same brush geometry; Bodine and AC motor parts are different.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Membrane vessel retaining hardware is separate from the replacement element. Mk II diagrams label the older FT-PV-EP end plug and FT-PV-ER ring; optional Z-Brane electrodes use dedicated end-plug fittings. Confirm actual plug, retaining ring and electrode revision with Spectra before using the later KIT-PV-25EP1 route. A mounting-bracket end is another part.
Membrane vessel retaining hardware is separate from the replacement element. Mk II diagrams label the older FT-PV-EP end plug and FT-PV-ER ring; optional Z-Brane electrodes use dedicated end-plug fittings. Confirm actual plug, retaining ring and electrode revision with Spectra before using the later KIT-PV-25EP1 route. A mounting-bracket end is another part.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. 1/4"Npt X 1/4" Fpt Elbow Fitting Nyl is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
1/4"Npt X 1/4" Fpt Elbow Fitting Nyl is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. 5/8" Nylon Tube Low Pressure (Per Foot) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
5/8" Nylon Tube Low Pressure (Per Foot) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. 3/4"Npt X 3/4"Fpt 1-Way Pvc Valve is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
3/4"Npt X 3/4"Fpt 1-Way Pvc Valve is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Np Mk-Ii 700/1K Inlet Hose Assembly is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Np Mk-Ii 700/1K Inlet Hose Assembly is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. The Mk II spares list calls its two-sediment-filter package Basic Cruise Kit B but prints KIT-BCK-C; current store kit names differ. Confirm present kit contents and quantities with Spectra against the actual 20- and 5-micron cartridges and SC-1 supplies. Kit name/letter alone does not resolve this historical mismatch; carry-on quantities are not installed filter quantities.
The Mk II spares list calls its two-sediment-filter package Basic Cruise Kit B but prints KIT-BCK-C; current store kit names differ. Confirm present kit contents and quantities with Spectra against the actual 20- and 5-micron cartridges and SC-1 supplies. Kit name/letter alone does not resolve this historical mismatch; carry-on quantities are not installed filter quantities.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. The Mk II spares list calls its two-sediment-filter package Basic Cruise Kit B but prints KIT-BCK-C; current store kit names differ. Confirm present kit contents and quantities with Spectra against the actual 20- and 5-micron cartridges and SC-1 supplies. Kit name/letter alone does not resolve this historical mismatch; carry-on quantities are not installed filter quantities.
The Mk II spares list calls its two-sediment-filter package Basic Cruise Kit B but prints KIT-BCK-C; current store kit names differ. Confirm present kit contents and quantities with Spectra against the actual 20- and 5-micron cartridges and SC-1 supplies. Kit name/letter alone does not resolve this historical mismatch; carry-on quantities are not installed filter quantities.
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Installed-hardware review
Confirm with Spectra before ordering. Remanufactured 20% pump route; confirm actual exchange/core terms, pump revision and supplied fittings. It is separate from loose rebuild parts. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Remanufactured 20% pump route; confirm actual exchange/core terms, pump revision and supplied fittings. It is separate from loose rebuild parts. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Installed-hardware review
Confirm with Spectra before ordering. Factory service/upgrade of a customer-owned 20% pump; confirm eligibility, handling and actual work scope. It is separate from an exchange assembly. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Factory service/upgrade of a customer-owned 20% pump; confirm eligibility, handling and actual work scope. It is separate from an exchange assembly. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · confirmed 20% Clark Pump · Installed-hardware review
Confirm with Spectra before ordering. Complete 20% Clark Pump assembly named in the Mk II module drawings. Confirm mounting, fittings and supplied contents; it is not just a center block or rebuild kit. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
Complete 20% Clark Pump assembly named in the Mk II module drawings. Confirm mounting, fittings and supplied contents; it is not just a center block or rebuild kit. Confirm installed ratio and revision with Spectra, particularly on a Newport 700 with the conflicting historical CB15 callout. Compare current contents before ordering overlapping loose items.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Current remanufactured 240 MAG package candidate, separate from the named bare PL-PMP-240MAG5 head. Confirm head revision, package components, coupling and current core/exchange terms with Spectra. This listing does not automatically include the Mk II motor, speed controller or booster.
Current remanufactured 240 MAG package candidate, separate from the named bare PL-PMP-240MAG5 head. Confirm head revision, package components, coupling and current core/exchange terms with Spectra. This listing does not automatically include the Mk II motor, speed controller or booster.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Toggle Switch Boot Seal is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Toggle Switch Boot Seal is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
Black high-pressure 10H housing family: FT-FTH-10H, SO-FHS-10H seal and FT-FHW-10H or 10HSS wrench. These are changed-housing references; the factory Mk II diagrams show clear three-piece bowls. Confirm actual bowl, ring and pressure rating with Spectra; the black-housing seal is not the three-piece seal.
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. 6" Strainer Seal (Big) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
6" Strainer Seal (Big) is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
24V DC / 110V AC / 220V AC layout references · Installed-hardware review
Confirm with Spectra before ordering. Z-Ion For Auto System is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Z-Ion For Auto System is an installed-hardware candidate retained for the Mk II reference list. The model manual does not establish this exact present code as a complete direct replacement. Confirm the original assembly label, part location, connectors and required companion pieces with Spectra before ordering.
Existing fitment requirements
KEEP THE ORIGINAL AND CURRENT REFERENCES TOGETHER
