SPECTRA OWNER GUIDE
Identify the dual boosters, revised flush plumbing, magnetic-drive feed pump and MPC-5000/SP4 controls. Check optional Z-Ion equipment and the installed 20% Clark Pump before choosing service parts.
Mk II-Z MPC generation · 24V DC / 110V AC / 220V ACMatch power, controls and fitted equipment independently.
Factory AC versions contain a 24V supply. Identify actual board and valve outputs after changes.
Both model-specific modules identify a 20% Clark Pump.
Match sediment housings separately from the carbon flush module.
Mk II-Z means Z-Ion ready; the optional generator may not be installed.
Factory drawing shows 2 vessels; confirm actual element labels and count.
Identify main power and controls.
GENERATION AND ACTUAL EQUIPMENT
The manufacturer index distinguishes Mk II-Z MPC from earlier Mk II and later Connect. This guide uses the November 2015 manual. It names MPC-5000 and SP4, revised flush-to-strainer plumbing and a 20% Clark Pump.
Manufacturer generation index ↗ · Shipping list ↗Z-Ion was optional. Look for the generator bowl, separate control box, connector and correct flush plumbing. The Mk II-Z suffix or a Z-suffix manifold does not supply these components.
Optional system ↗ · Connections ↗DC models document a one-HP 24V motor. AC models use a VFD for three-phase motor power and an internal AC-to-24V supply for controls and boosters. Actual solenoid output can differ from main or board supply.
DC layout ↗ · AC layout ↗CARTRIDGES AND THEIR HOUSINGS
Seawater: sea strainer → two boost pumps → 20-micron filter → 5-micron filter → 240MAG5 main feed head → Clark Pump / membranes. Freshwater flushing uses its own carbon module and a return to the top of the strainer.
| Stage | Part / nominal dimensions | Location and purpose |
|---|---|---|
| First sediment | FT-FTC-20 Nominal 10 in long × 2.5 in diameter | After the two boost pumps and before the 5-micron cartridge. |
| Second sediment | FT-FTC-5 Nominal 10 in long × 2.5 in diameter | After 20 micron and before the main magnetic-drive feed pump. |
| Carbon freshwater flush | FT-FTC-CC Nominal 10 in long × 2.5 in diameter | Separate domestic-water flush path; chlorine protection for the membrane. |
Cartridge dimensions are nominal. Identify actual ends and housings before substituting a different make; bowl height is not cartridge length.
10L3PCS housings pair with 3PCS10 seals and 3PCS wrench. The drawings show this family for sediment and separate carbon flushing. Changed black 10H and commercial Big Blue use different hardware.
Sediment housings ↗ · Carbon module ↗Commercial dual-filter kit candidate requires module, space, mounting, plumbing and current-contents confirmation with Spectra. Its 20-micron / 5-micron Big Blue candidates are a different diameter family. Match measured ends and diameter; a 10¾-inch housing label does not establish element length.
Manufacturer upgrade reference ↗The Mk II-Z maintenance section places an optional oil/water separator element in an additional housing upstream of the 20- and 5-micron housings. Keep the documented 20/5 pair. Confirm its position relative to the boosters, actual separator, cartridge dimensions, fittings and current installation requirements with Spectra.
Optional separator arrangement ↗
Use the exact column for the installed housing. Physical bowl length and nominal cartridge size are different measurements.
Open full-size source ↗MODEL-SPECIFIC VESSELS AND ACTUAL ELEMENT LABELS

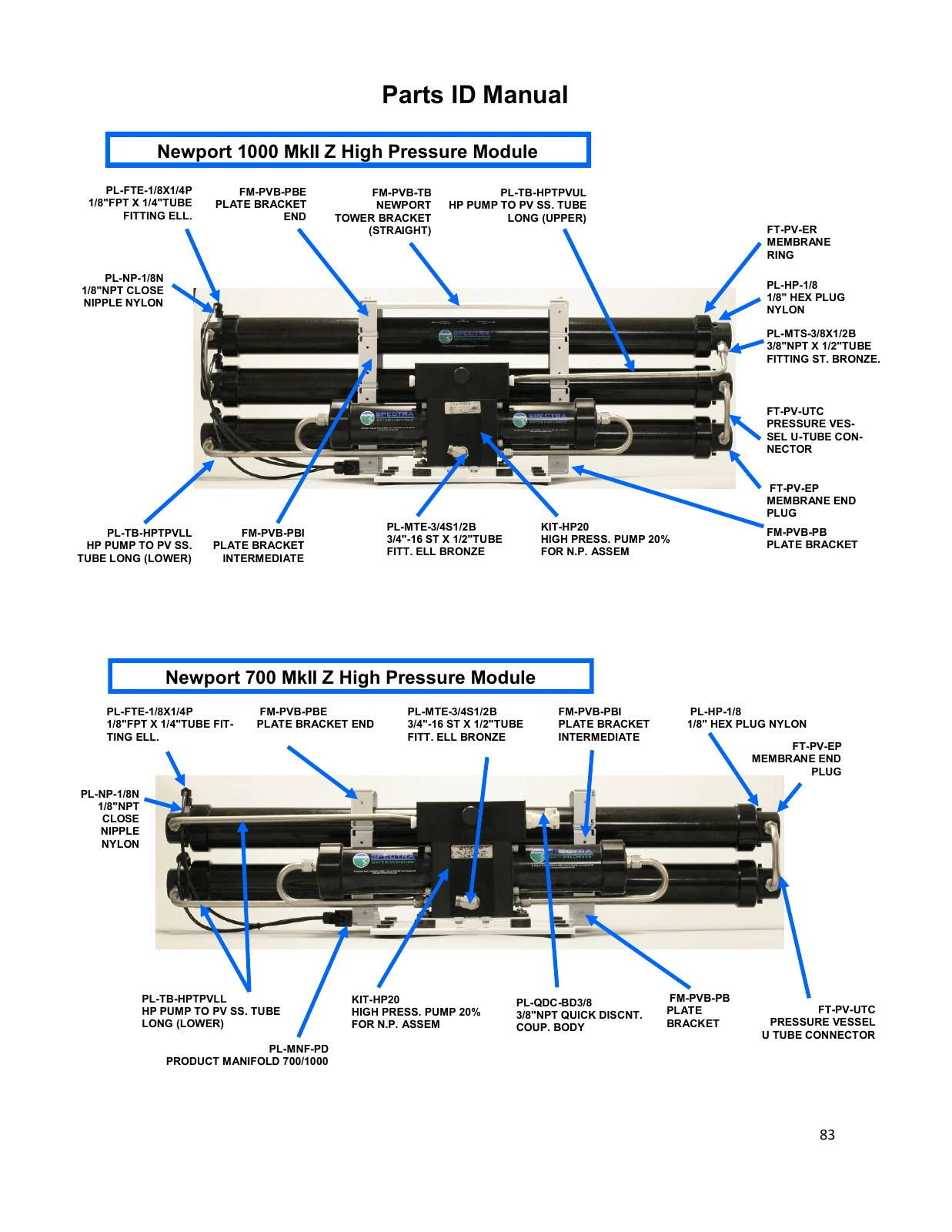

The model-specific page 83 drawing shows 2 pressure vessels for Newport 700 Mk II-Z. Use that named module to identify the factory stack. Confirm the actual installed elements and any modifications; vessel count alone does not establish every replacement element’s dimensions.
Named 700 and 1000 modules ↗2.5 × 40-inch membrane kit supplies one element and seals. Select the confirmed long element above only after checking its label and dimensions. The guide does not automatically select a whole-system order quantity.
Single-element kit ↗Vessel ring and later end-plug kit candidate are separate from the element. The manual labels FT-PV-EP plugs. Match cap, ring and any changed electrode hardware with Spectra before substituting a later kit. Z-Ion is flush hardware, distinct from Z-Brane vessel equipment.
Vessel / bracket parts ↗BOOSTERS, MAIN HEAD, MOTOR AND POWER SUPPLY
The wiring section explicitly documents two Laing boost pumps. A pump listing may supply one unit, not the complete module. Confirm both actual pumps, electrical supply, ports, mounting and connectors with Spectra. The module must stay below the waterline to prime.
Booster impeller serves the booster, not the main vane head.
Two-pump wiring ↗ · Boost module ↗Factory magnetic-drive head is separate from motor, drive and boosters. Match C250 head, coupling and ports. Remanufactured MAG package candidate needs current scope/core confirmation with Spectra. Original MPC mechanical-drive and Newport 400 heads are excluded.
Head and coupling ↗Main DC motor is one HP, 24V, 1800 RPM, 56C. The drawing separately names PWMA24; catalog PWM candidate and controller without heat sink candidate need exact high-current/heat-sink and programming confirmation.
Leeson brush kit is conditional on a matching actual motor. Generic 12/24V PWM text does not establish a 12V main motor or a Newport 400 conversion.
DC labels ↗Three-quarter-HP three-phase motor receives the VFD output. The boat’s 110/220V input does not connect directly as single-phase motor power. 24V 6.5A AC-input supply serves controls and boosters; it is separate from the VFD and from DC/DC step-up equipment.
Confirm actual plates, settings, input/outputs and installed revision with Spectra.
AC function ↗ · Motor / power-supply labels ↗Absolute inlet sensor monitors intake conditions; 250-PSI feed transducer monitors outlet pressure; Rotoflo measures product flow. The SP4 measures salinity. Match location, range, signal and board calibration with Spectra.
Product sensing ↗ · Intake sensing ↗OPTIONAL EQUIPMENT AND ITS SERVICE SCOPE

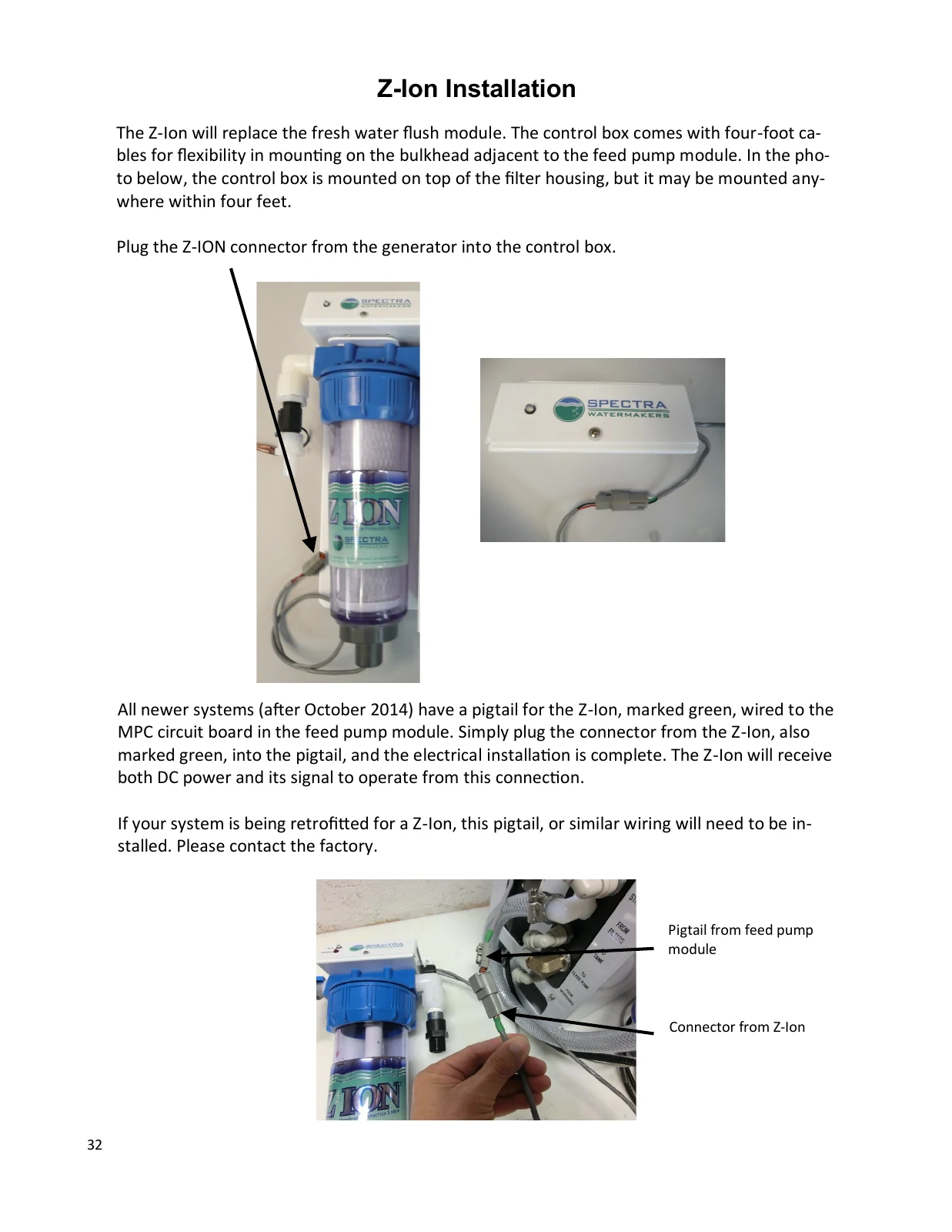

For an actually identified MPC installation, current automated Z-Ion system candidate is the manufacturer route. Analog ZION-MAN is a different version. A complete retrofit needs the correct control/generator, plumbing, connector and current kit scope.
The manual says newer systems after October 2014 have the green pigtail. Confirm an earlier unit’s wiring with Spectra before adding a plug assembly candidate. The historical Newport Z-Ion listing is not assumed to be a universal alias for the current kit.
Pigtail / installation ↗ · Current system selector ↗Current generator bowl-and-rod assembly is separate from a complete system/control box. The bare-bowl candidate and separate rod candidate have different scopes; confirm exact connector/revision and avoid duplicating the rod included in the combined assembly.
Manufacturer combined service assembly ↗Identify the installed generator and verify its operation using the model procedure before relying on its preservation interval. The manual distinguishes ordinary flushing from a tested Z-Ion system, and still requires storage treatment for extended shutdown and freeze protection when needed. Z-Ion does not protect against freezing.
Protection limits ↗ · Commissioning / test procedure ↗CONTROLLER GENERATION AND ACTUAL SUPPLY
The November 2015 Mk II-Z manual names MPC-5000 and the current SP4 probe. Read the actual chip, connector and cable reach before selecting a replacement. Earlier SP1/SP2/SP3 hardware is obsolete. A complete MPC-3000 conversion applies only to an actually identified earlier or changed control box; SP4 alone does not work on MPC-3000.
Identify the installed controller.

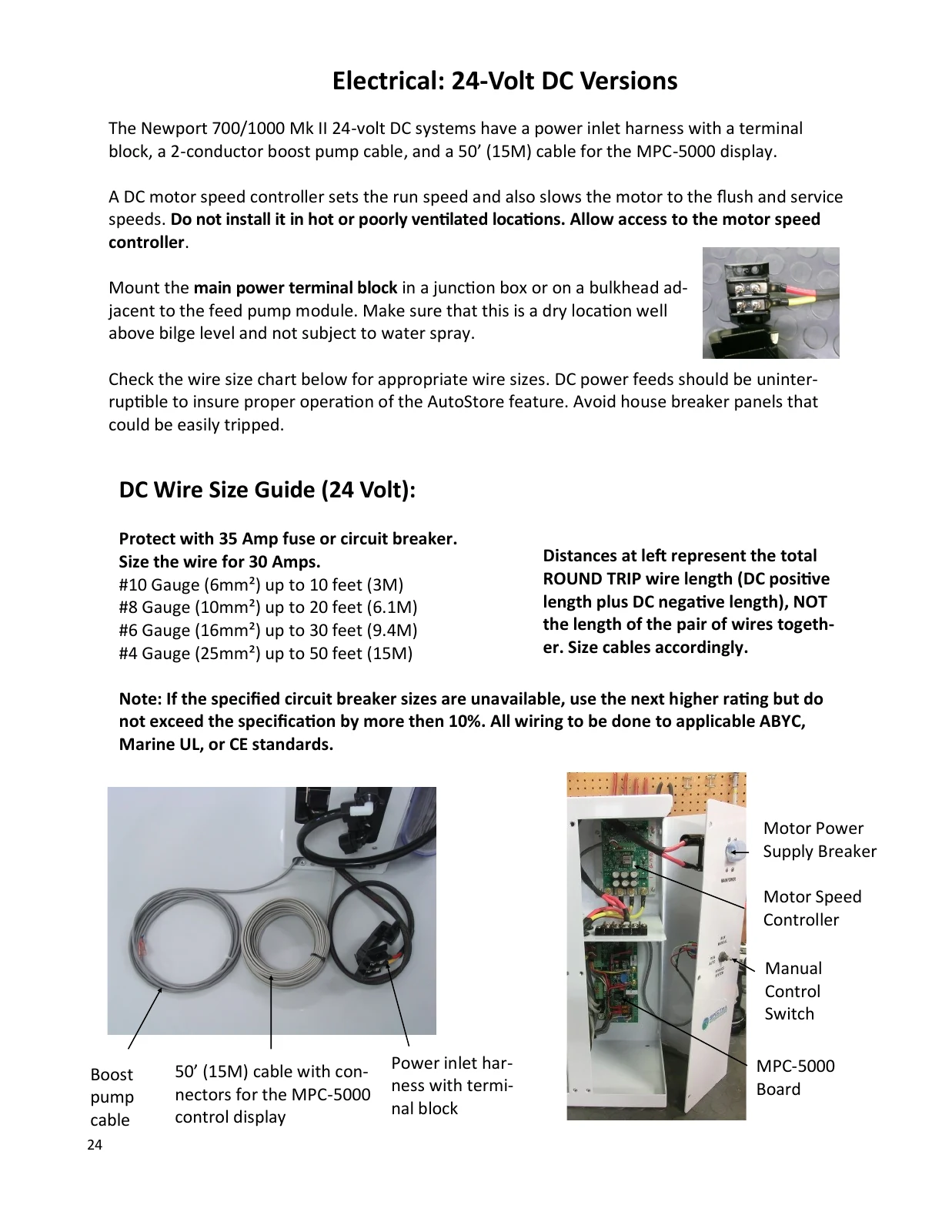

Identify the DC control supply, including the separate supply on AC versions. The AC motor label does not select the conversion kit.
12V DC controls: Review the 12V MPC conversion
Confirm the installed Newport motor/controller, wiring re-termination and system programming with Spectra. The kit includes A40 board, SP4, Rotoflo and fittings; the 24V kit also includes a 12V flush solenoid.
24V DC controls: Review the 24V MPC conversion
Confirm the installed Newport motor/controller, wiring re-termination and system programming with Spectra. The kit includes A40 board, SP4, Rotoflo and fittings; the 24V kit also includes a 12V flush solenoid.
No conversion kit is selected until the DC control supply is identified.
The existing MPC display is retained. A40’s lowered flush output may change the required solenoid. This is a controls conversion, not a feed-pump or motor upgrade.
Spectra lists A40 board plus SP4 probe. Confirm wiring and system programming. The standalone board is not the whole MPC-3000 conversion.
SP4 needs the EL-MPC-SPCBA daughter board, or the A40 board plus SP4 route. The daughter board has no exact listing in this catalog. Confirm its availability and the actual interface with Spectra; the probe alone is insufficient.
SP4 is listed as compatible. Match actual connector and 15-foot cable reach. A36 is listed with or without the daughter board. The shorter SP4N suffix remains a separate confirmation.
| Installed controls | Current route | Before ordering |
|---|---|---|
| MPC-3000 | Eligible MPC-5000 conversion first | Confirm DC controls supply, wiring, motor interface and kit contents with Spectra. |
| MPC-5000 B## / A31 | A40 board plus SP4 | Confirm system programming and wiring. |
| MPC-5000 A34 / A35 | SP4 with daughter board, or A40 plus SP4 | Daughter board is required for the retained-board path. |
| MPC-5000 A36 / A37 / A39 / A40 | SP4 compatible | Check exact connector, cable reach and actual chip. |
| Unknown / unlisted chip | No automatic recommendation | Identify the installed board with Spectra. |
After the complete installation, use the calibration procedure for the installed controller and compare with a calibrated independent salinity meter. The Mk II-Z manual calibrates salinity through the MPC software/display against an independent meter. A controller conversion may change the calibration and programming procedure.
Mk II-Z salinity calibration ↗ · Current chip / probe table ↗ · Current conversion contents ↗ · Wiring conversion instructions ↗REVISED FLUSH PATH AND ACTUAL VALVE OUTPUT
| Actual body | Current reference | Before choosing |
|---|---|---|
| 5 holes; about 1-inch legacy opening | SUB-NP-MK2-INT | Confirm actual ports, valve/adapter and flush return. |
| 6 holes; about 1-inch legacy opening | SUB-NP-MK2-INEZ | Confirm actual ports, valve/adapter and flush return. |
| 6 holes; about 3/4-inch Spartan opening | SUB-NP-MK2-INTZ | Confirm actual ports, valve/adapter and flush return. |
Select by actual hole count and valve opening. A Z suffix is not proof of a fitted preservation generator.
Open full-size source ↗The model names 12V Spartan flush coil without body. With-body assembly and legacy ECI/Alcon coil conversion have different scopes. Identify actual body, adapter, connector and controller output with Spectra. A 24V supply does not establish a 24V coil.
Flush valve ↗The model labels D12M. Diversion manifold, later Spartan manifold and Burkert conversion require body, wiring/output and fittings confirmation with Spectra. This circuit is separate from freshwater flushing.
Product valve ↗Ten-foot Clark Pump inlet assembly damps pressure spikes; the manual says it must not be shortened. The to-strainer quick-disconnect pigtail and service connector have different roles. Confirm changed plumbing before buying a similar-looking Newport 400 hose.
Damping hose ↗ · Pigtail / hose callouts ↗CURRENT 20% SERVICE DRAWINGS OVERRIDE GENERIC APPENDIX LABELS
Both model-specific high-pressure modules and the shipping list identify KIT-HP20, a 20% Clark Pump. The generic appendix includes a CB7 label, 10VSA and smaller-ratio piston callouts. These do not establish correct replacements for the model 20% pump. Read the installed label and revision before choosing internal parts.
Shipping list ↗ · Both named model modules ↗CB20 block, two 7/8-inch rods and four PR10 seal locations describe the current 20% arrangement. The 20% top-end family uses A / B top end blocks with one-inch bores, HP-TB-VSP1 spool pistons and SP1 seals.
Drawing quantities differ from supplied pack quantities. Confirm actual revision with Spectra.
Twin rods ↗ · One-inch piston / seal ↗20% piston assembly, distributor rebuild kit, seal/O-ring kit and offshore kit have different scopes. The distributor kit excludes spacer rings and top-end spool pistons; the offshore kit excludes rods and cylinder pistons.
Confirm current code/contents and avoid overlapping loose parts. CB7/CB10/CB15, A1/B1, smaller-ratio piston and 7%/10% kits are excluded.
Distributor contents ↗ · Offshore contents ↗OPEN THE ORIGINAL SOURCE FOR READABLE CALLOUTS
Choose a section. Drawings link to their full-size manufacturer PDF. Generic historical conflicts are explained beside the image; current 20% service diagrams identify the supported pump family.
Showing all Mk II-Z assembly drawings.

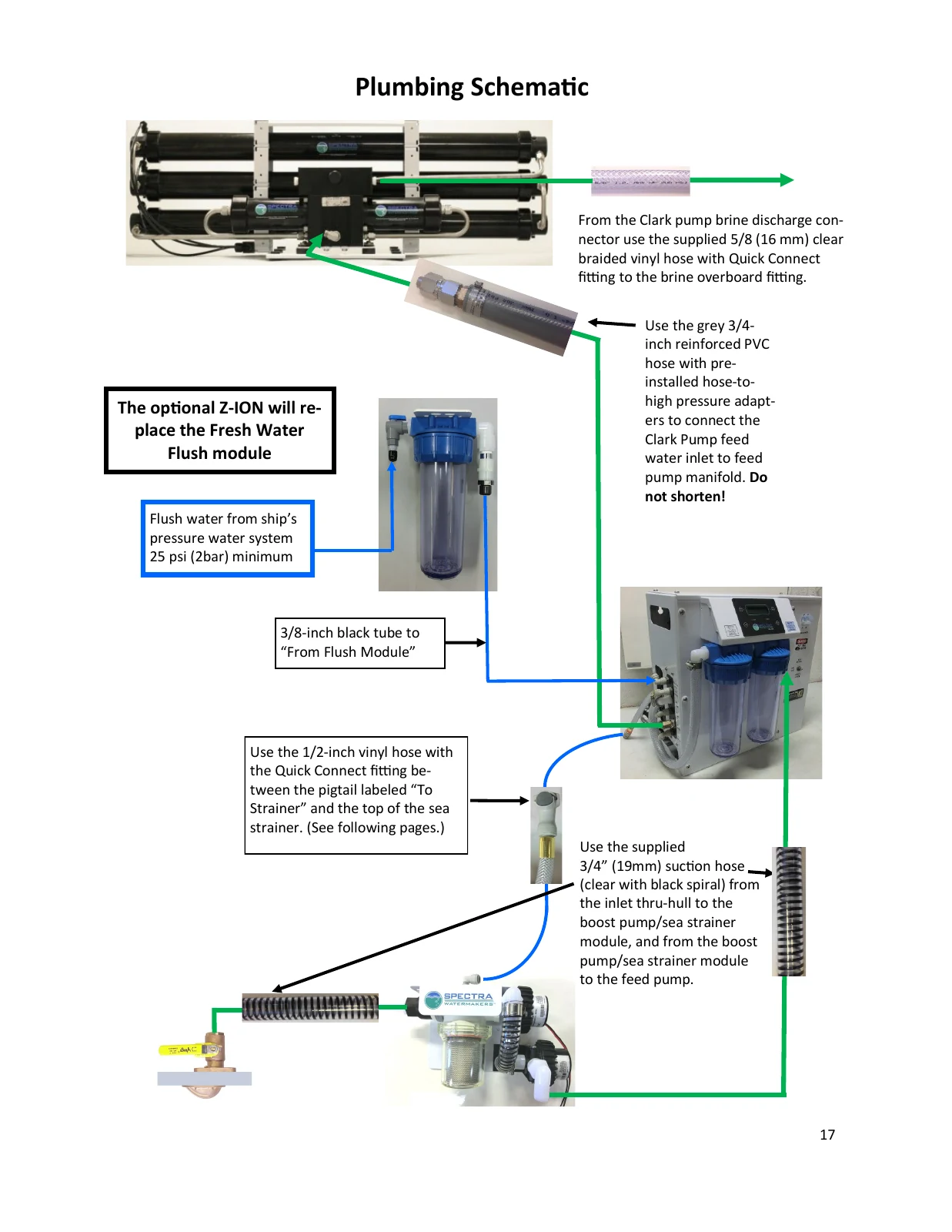

Trace the flush return to the top of the sea strainer. Optional Z-Ion replaces the separate flush module; it is not automatically fitted.
Open full-size source ↗

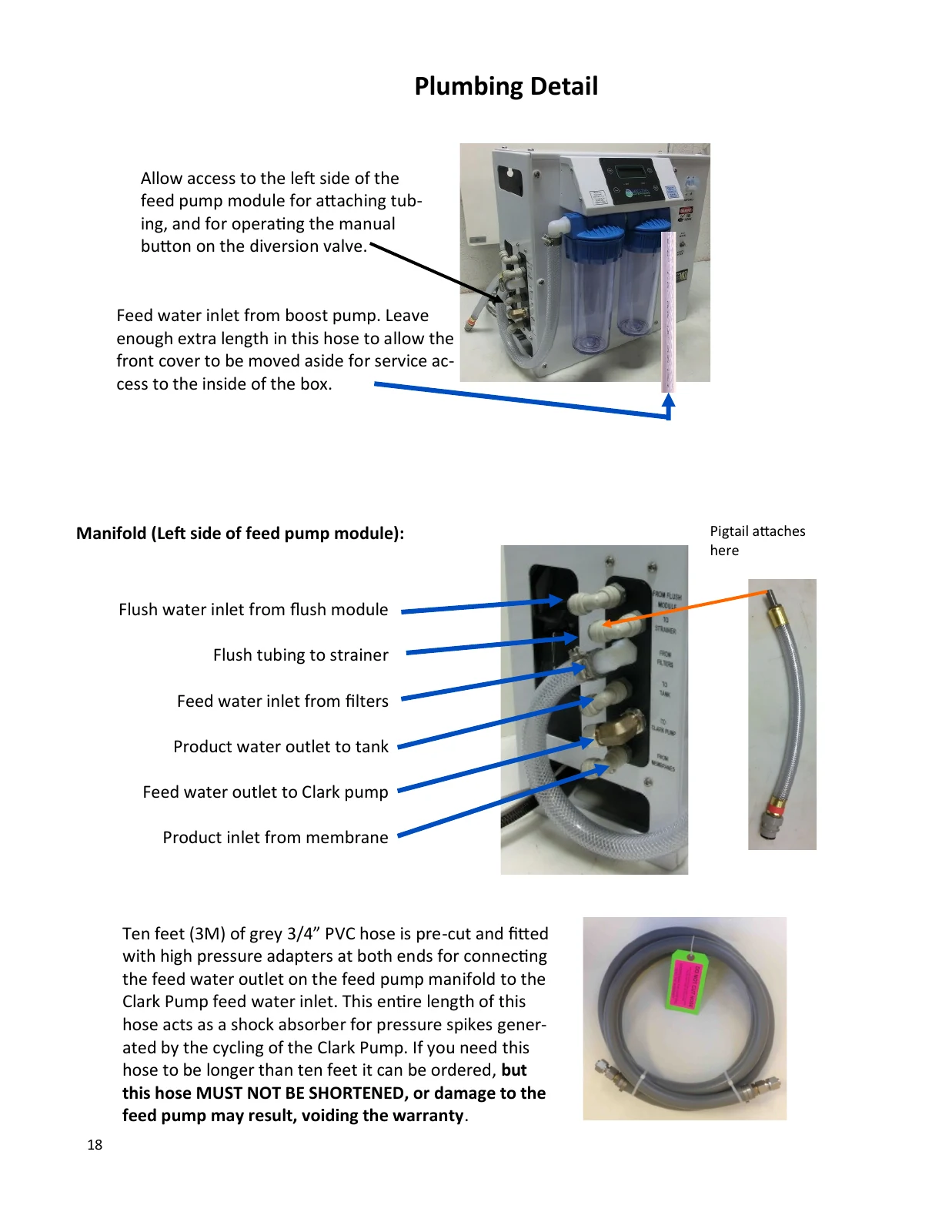

The ten-foot Clark Pump inlet hose damps pressure spikes and must not be shortened. Identify the flush-return pigtail and actual ports.
Open full-size source ↗

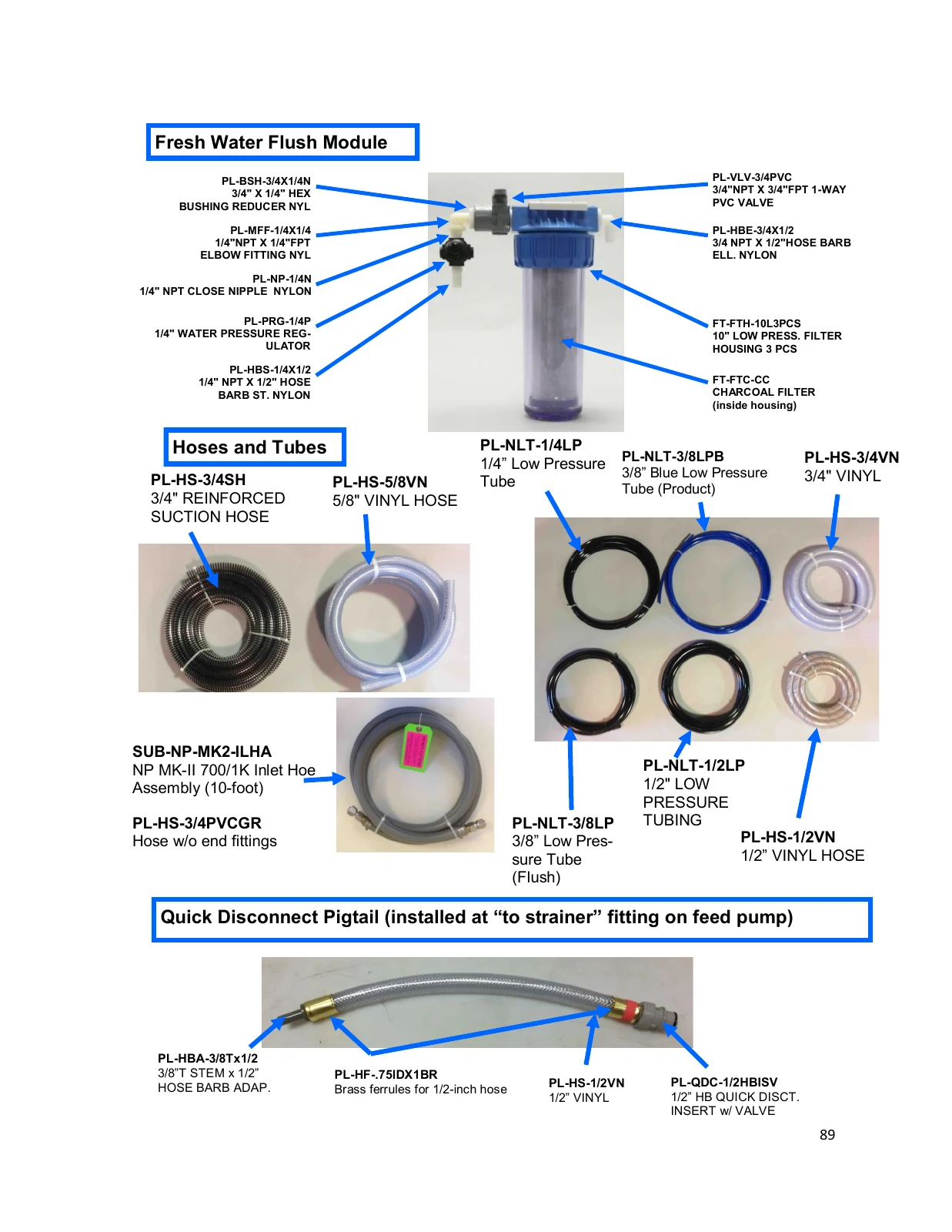

Carbon bowl, regulator, shutoff, inlet assembly and quick-disconnect pigtail have separate functions. Confirm modified plumbing before service.
Open full-size source ↗

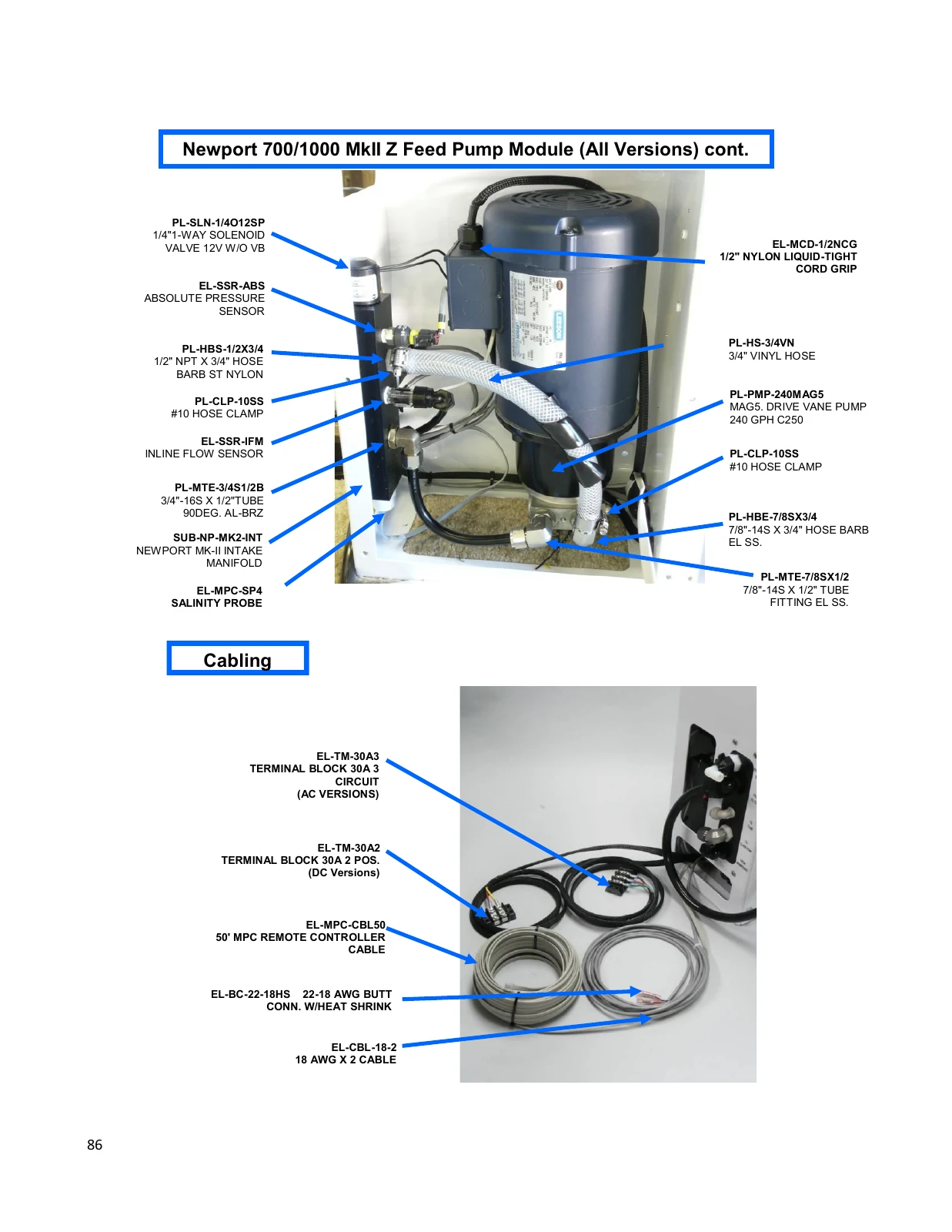

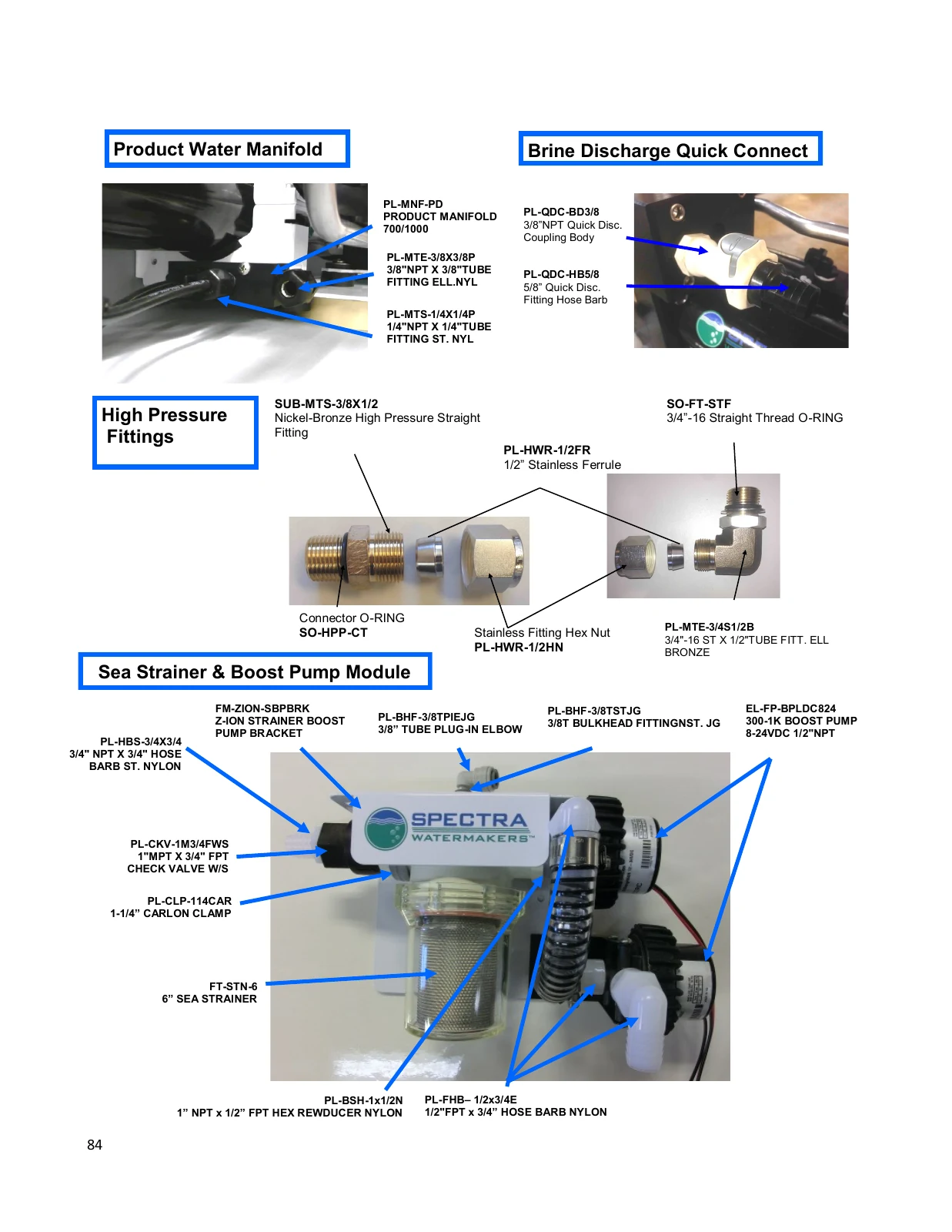

The manual documents two booster pumps on all versions. Pump listing quantity is separate from the installed module count.
Open full-size source ↗

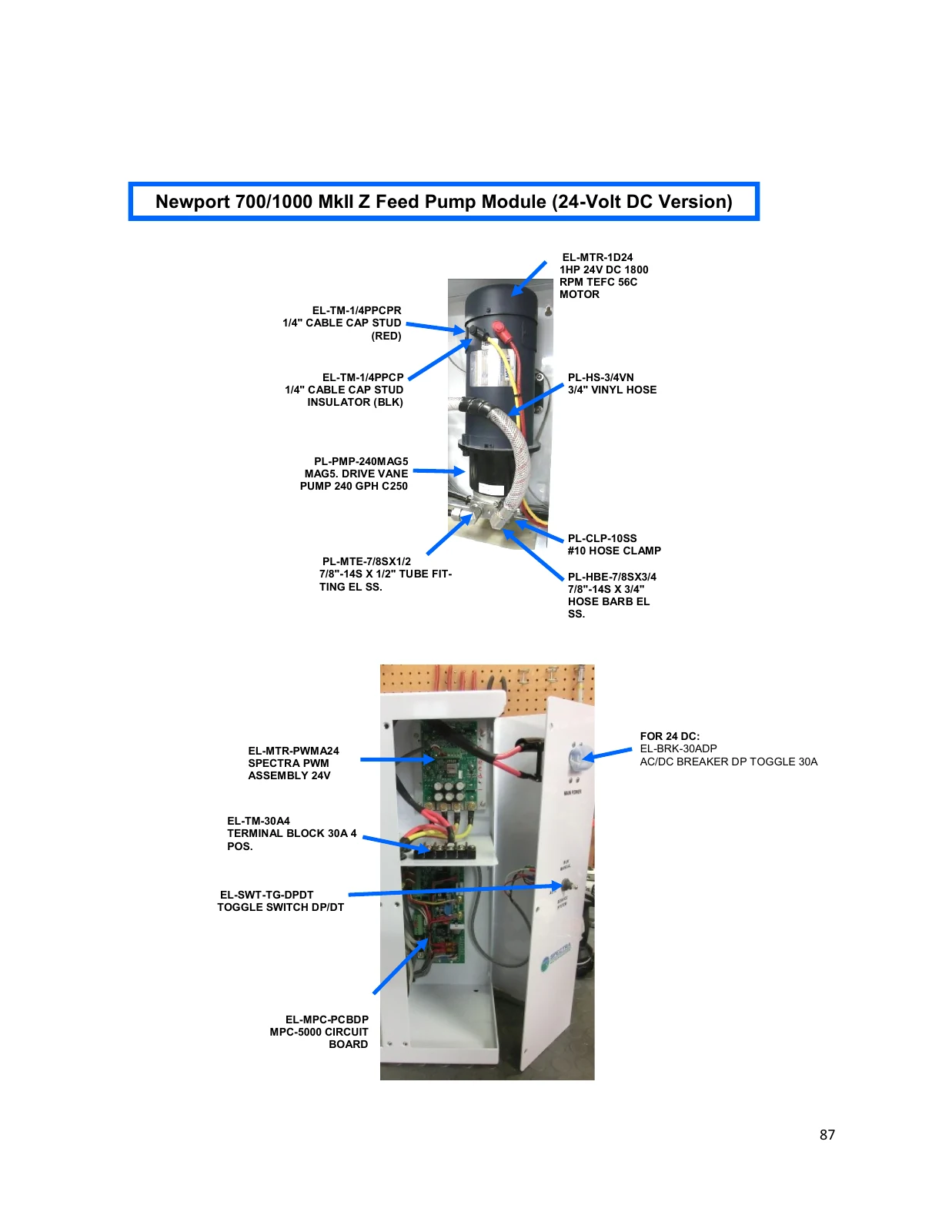

Main motor uses its DC speed controller. The drawing does not establish a 12V main-feed option from generic PWM text.
Open full-size source ↗

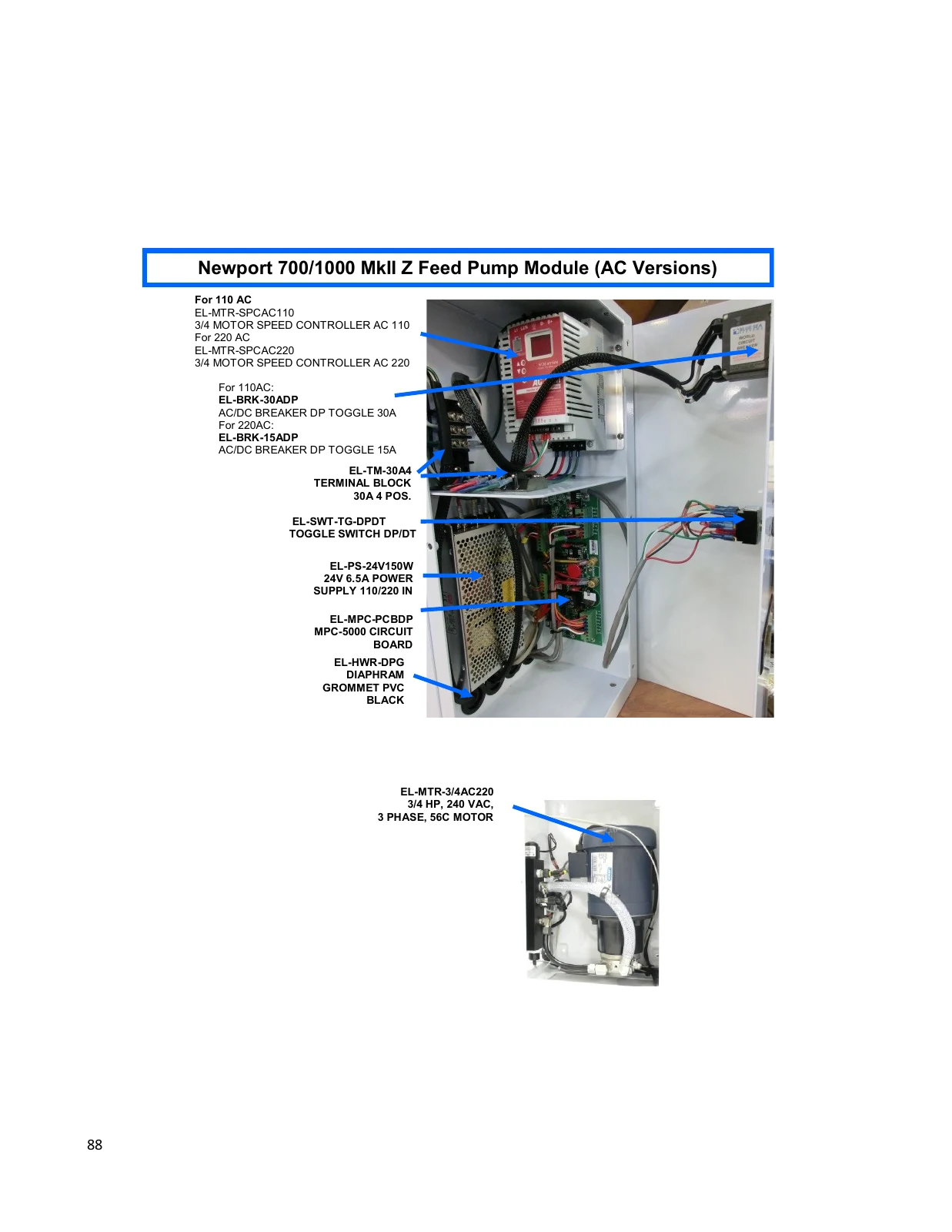

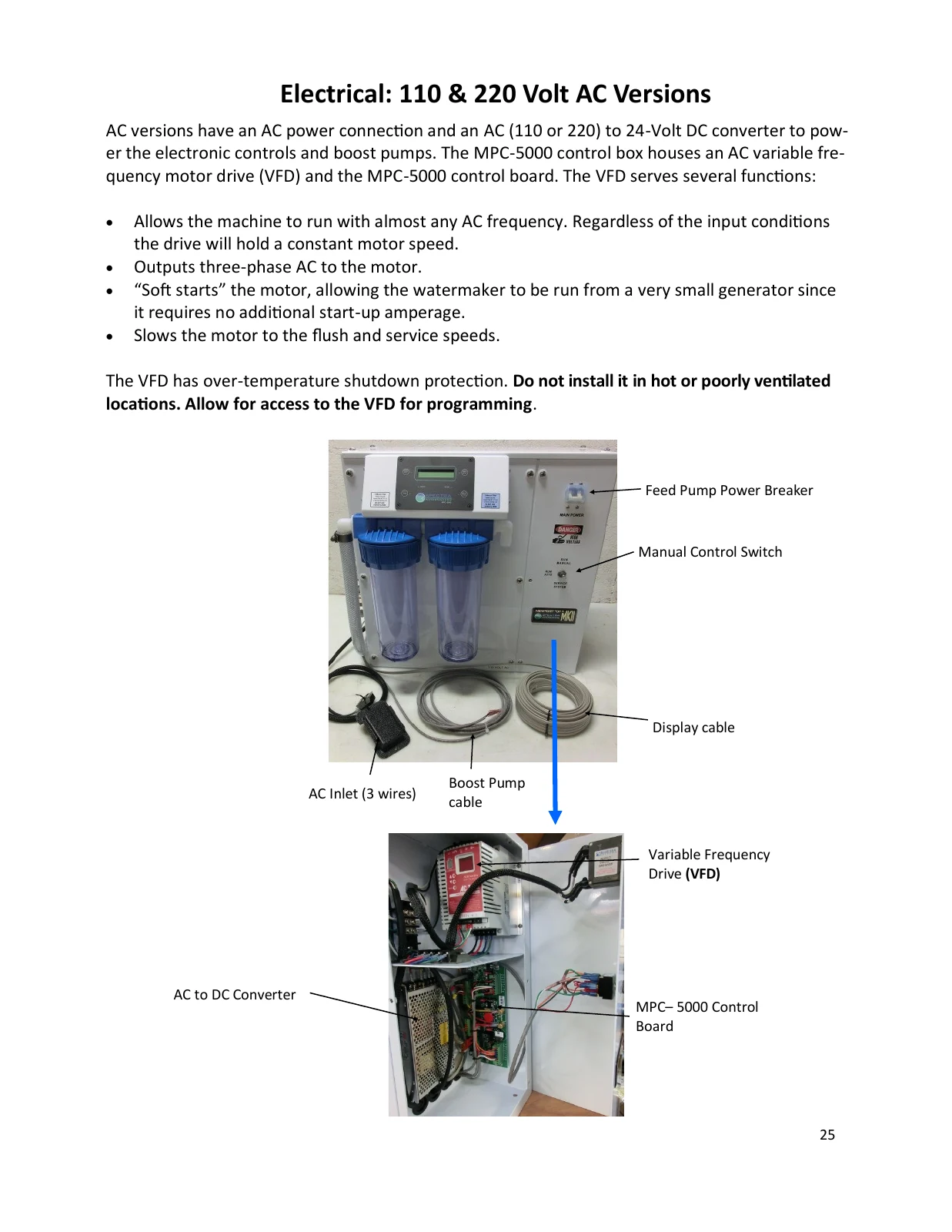

AC input powers a VFD and a separate internal AC-to-24V supply for controls and boosters. VFD motor output is three-phase.
Open full-size source ↗

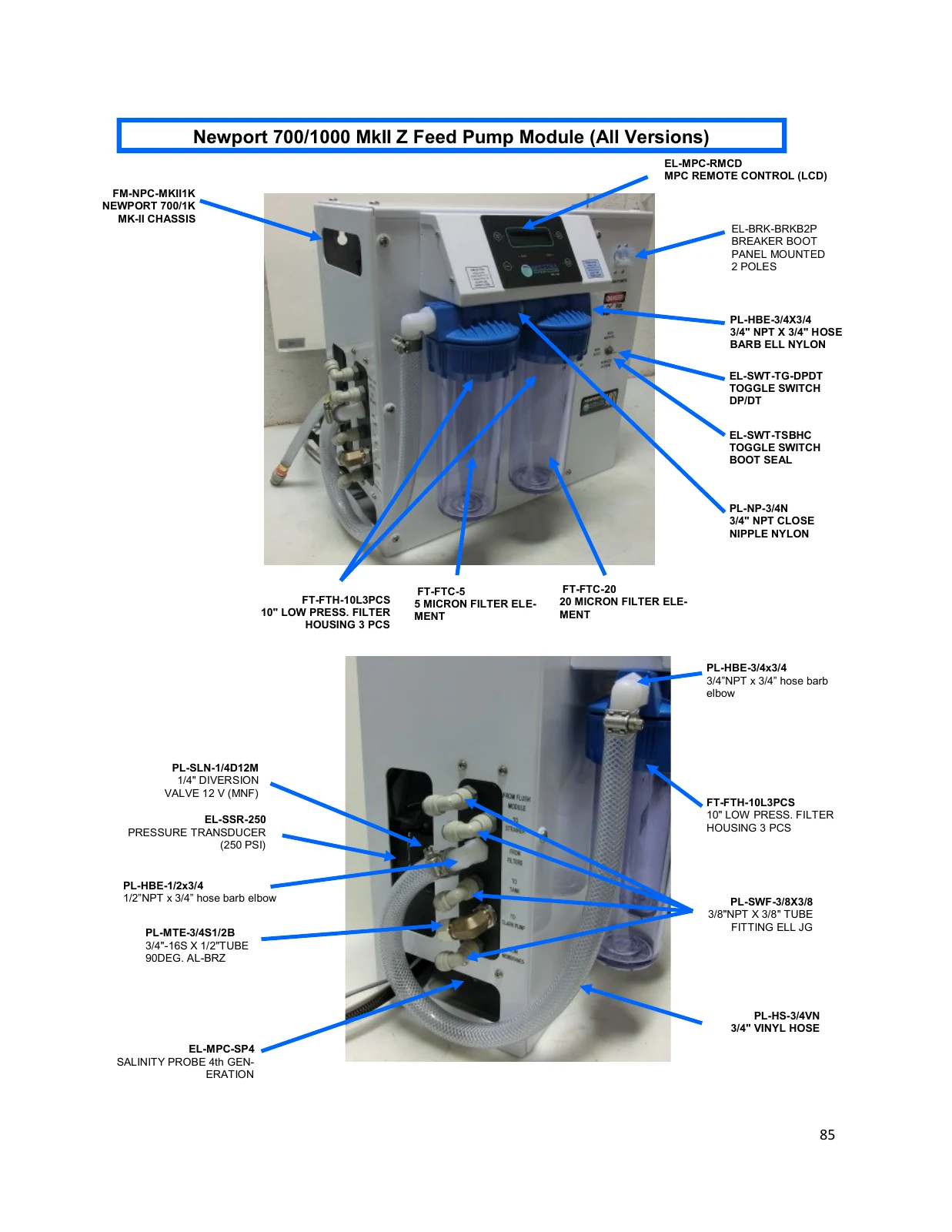

The SP4 probe, 250-PSI feed sensor and D12M diversion valve are different components. Filter/carbon service remains separate.
Open full-size source ↗
This shared picture still labels INT; identify actual manifold holes and valve opening. The flush valve is separate from product diversion.
Open full-size source ↗
Motor, magnetic-drive pump head and high-current controller are separate purchases. Generic PWM catalog codes require revision confirmation.
Open full-size source ↗
The model drawing names a three-quarter-HP motor and internal 24V supply. Match actual VFD input, motor nameplate and power-supply revision.
Open full-size source ↗
Upper Newport 1000 drawing shows three vessels; lower Newport 700 drawing shows two. Both label KIT-HP20. Confirm actual elements and any changed stack.
Open full-size source ↗
Readiness does not establish an installed Z-Ion. The manual identifies an October 2014 pigtail change; earlier units may require factory-approved wiring.
Open full-size source ↗

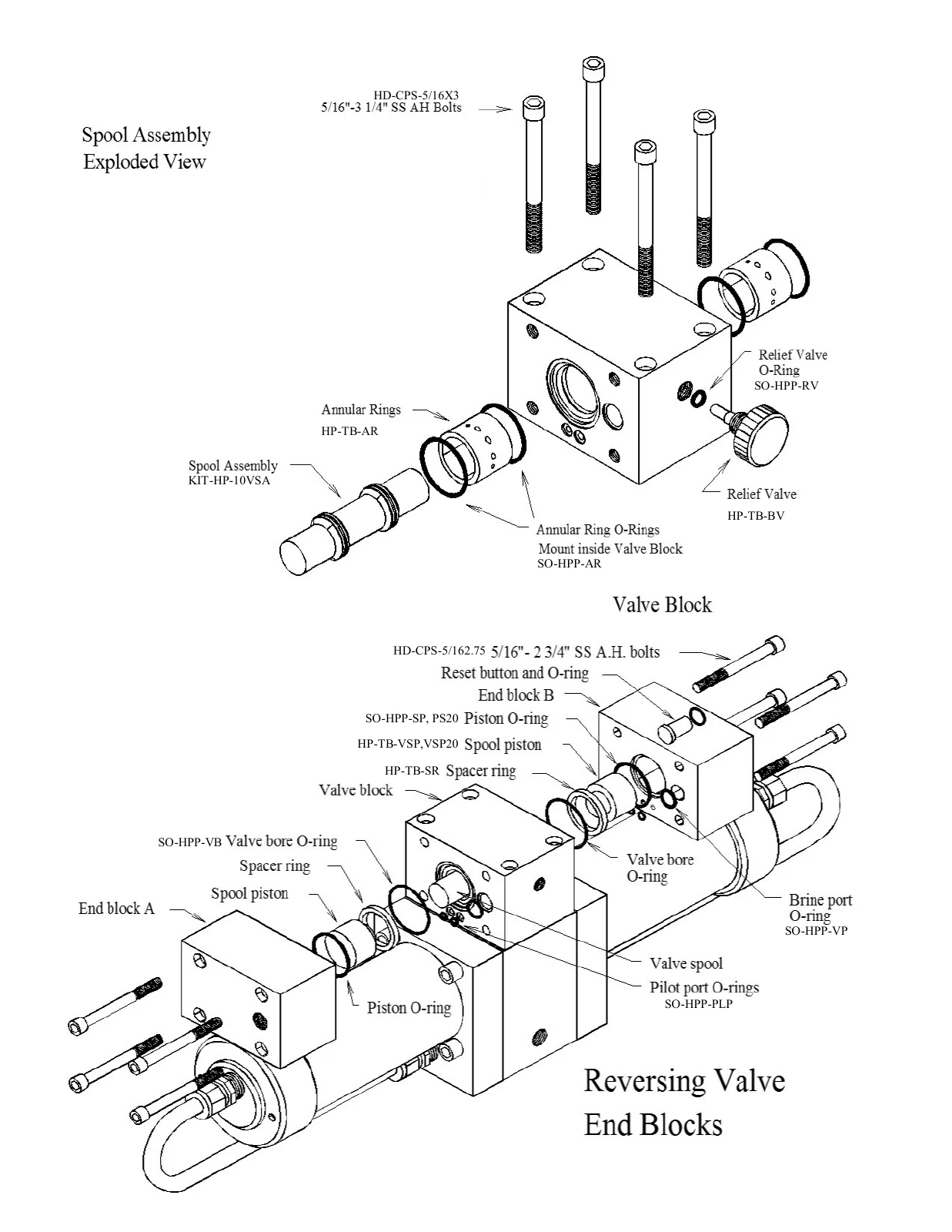

The generic appendix includes 10VSA, SP and VSP suffixes from other ratios. These do not establish replacements for the model 20% pump. Use the current one-inch family below.
Open full-size source ↗
Confirmed 20% pumps use HP-TB-VSP1 and SO-HPP-SP1. Larger 7%/10% spool parts and kits are excluded.
Open full-size source ↗

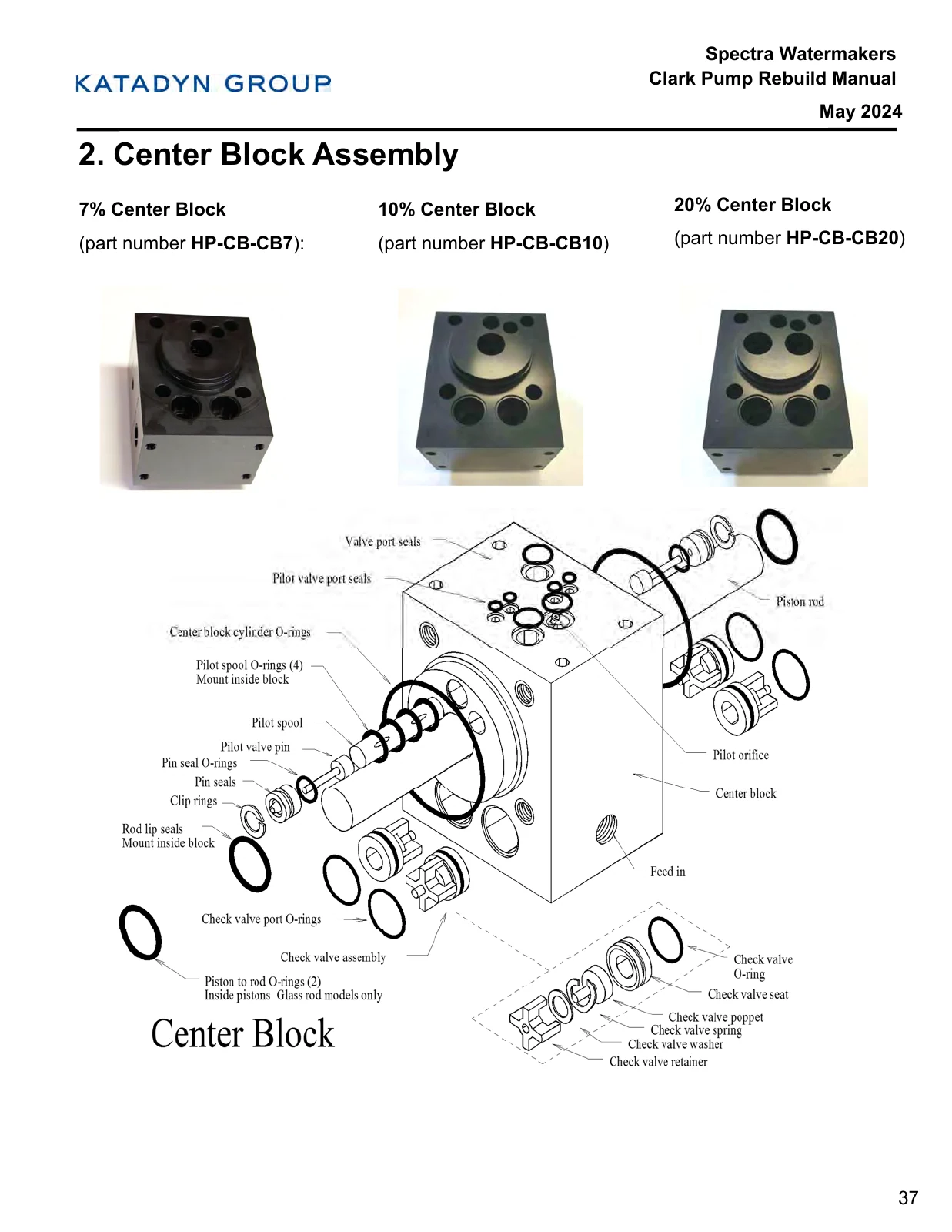

Use the actual 20% CB20 block and installed insert/valve revision. The inherited CB7 appendix label is not applied to these models.
Open full-size source ↗
Two 7/8-inch rods and their seal locations are specific to the current 20% arrangement. Drawing quantity does not prove supplied pack quantity.
Open full-size source ↗

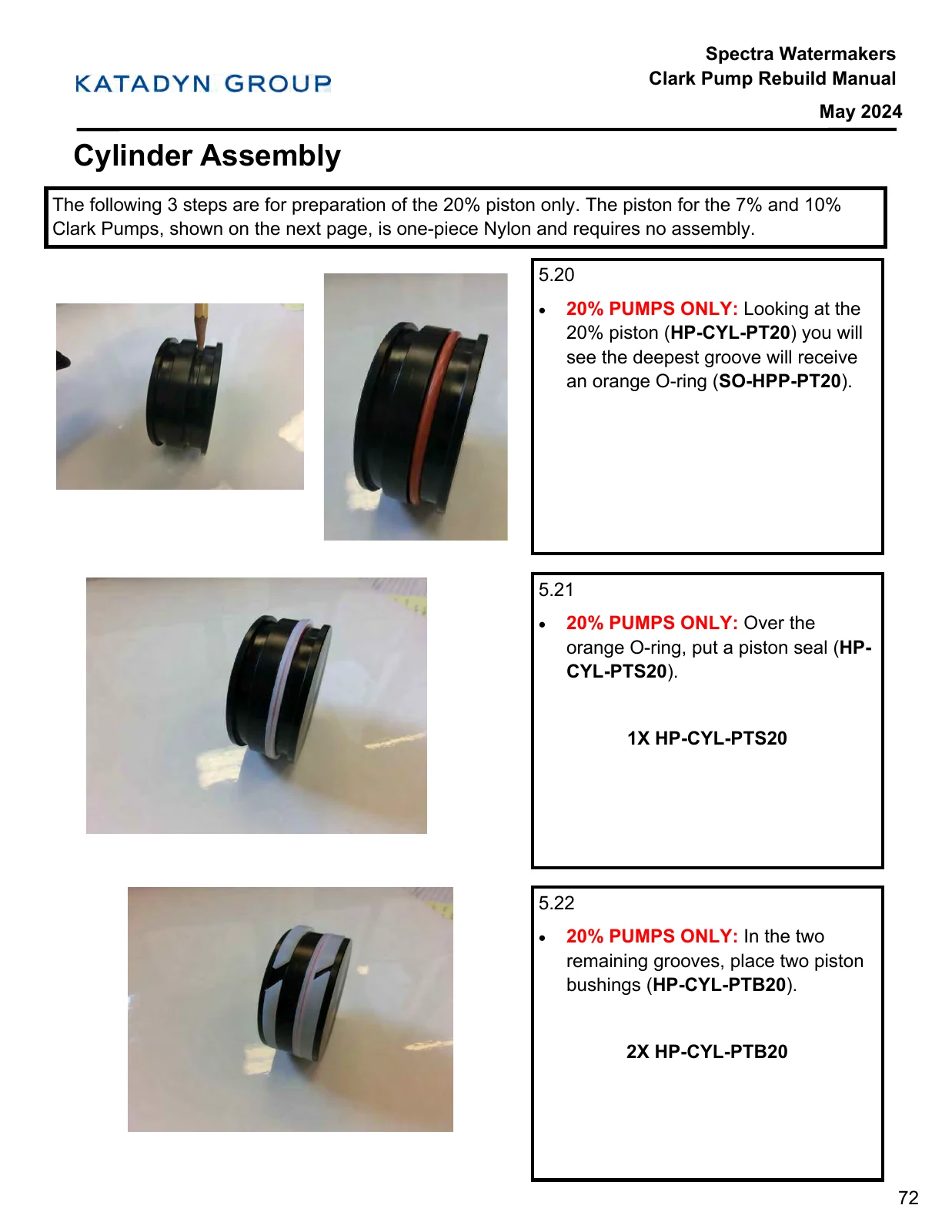

The 20% Delrin piston and replaceable components differ from the generic smaller-ratio PT piston illustrated in the historical appendix.
Open full-size source ↗ROUTINE SERVICE, STORAGE AND DIAGNOSTICS
Service sediment filters by actual condition and current cartridge instructions. Earlier wash/reuse advice does not prove that every current element can be washed. Carbon cannot be restored by cleaning; the model requires replacement at least every six months.
Routine maintenance ↗ · Carbon service ↗SC-1 preserves; SC-2 and SC-3 clean different fouling. Retained water affects concentration. The shared manual’s cleaning page 56 names Newport 400 Mk II and its dose. Do not apply that numerical recipe to the 700/1000. Confirm the actual retained volume and model-specific procedure with Spectra. SC-1 and Z-Ion do not provide freeze protection.
Chemical purposes ↗ · Storage ↗ · Winterizing ↗ · Inherited cleaning text ↗Check intake restrictions, filters, air leaks, main-pump delivery, power and Clark Pump operation before cleaning or replacing an element. Use the model flow test and an independent calibrated salinity meter. A display reading or taste alone does not verify product-water quality.
Model flow test ↗ · Salinity calibration ↗The Mk II-Z list names Cruise Kit B with three 20-micron filters, three 5-micron filters and two SC-1 packs. These are onboard spare quantities. Confirm present kit contents and fitted standard/commercial cartridge family with Spectra.
Suggested spares ↗ANSWERS THAT CHANGE YOUR PART CHOICE
No. The manual describes optional Z-Ion. Confirm the generator, control box, green pigtail and plumbing. Early Mk II-Z wiring may differ from the after-October-2014 harness.
Page 83 labels both models: Newport 700 has two vessels and Newport 1000 has three. For this Newport 700, the factory illustration shows 2. Confirm actual element labels, dimensions and changed stacks before selecting quantity.
Factory Mk II-Z already uses MPC-5000 and SP4. Identify installed chip, connector and cable reach; a complete MPC-3000 conversion applies only to actually changed or earlier controls.
The shipping list and model-specific modules identify KIT-HP20. The generic appendix mixes other pump ratios. Use the current 20% drawings and actual label/revision; the guide excludes known smaller-ratio parts.
No. The model labels 12V flush and diversion equipment. Check actual controller outputs, valve bodies and adapters after changes. Main motor and board supply are separate identification details.
The manual identifies it as a pressure-spike absorber and says it must not be shortened. Confirm a longer or changed assembly with Spectra; do not replace it using a similar model’s short hose.
The standard sediment and carbon cartridges are nominal 10 inches long × 2.5 inches diameter. Commercial Big Blue and optional oil/water equipment need their actual dimensions and housing identification.
MODEL-SCOPED REFERENCES WITH THEIR REQUIREMENTS
Named model and current manufacturer references appear first. Changed-hardware candidates remain separate and conditional. A selection does not verify a retrofit, live stock or price.
