IDENTIFY BEFORE ORDERING
Spectra’s manual index places Mk II at 2009–2012. This guide uses its February 2012 manual. Dates help find the manual; installed labels decide a replacement. The Mk II documents a separate booster/service module, clear three-piece 20 / 5-micron prefilters and a half-HP motor with PWM speed control. It is distinct from the earlier Newport 400 MPC.
Manufacturer generation / manual index ↗A 24V boat can have an original 24V motor or a later 12V motor operating through a correctly programmed PWM controller. Record the motor label, speed-controller code and system supply separately.
The Mk II outside drawing names CB10; Mk II-Z also illustrates a CB10 center block. Replaced pumps must be identified by ratio and revision. The 7%, 10% and 20% parts in a shared rebuild manual are not all interchangeable.
Current ratio differences ↗FOLLOW THE WATER

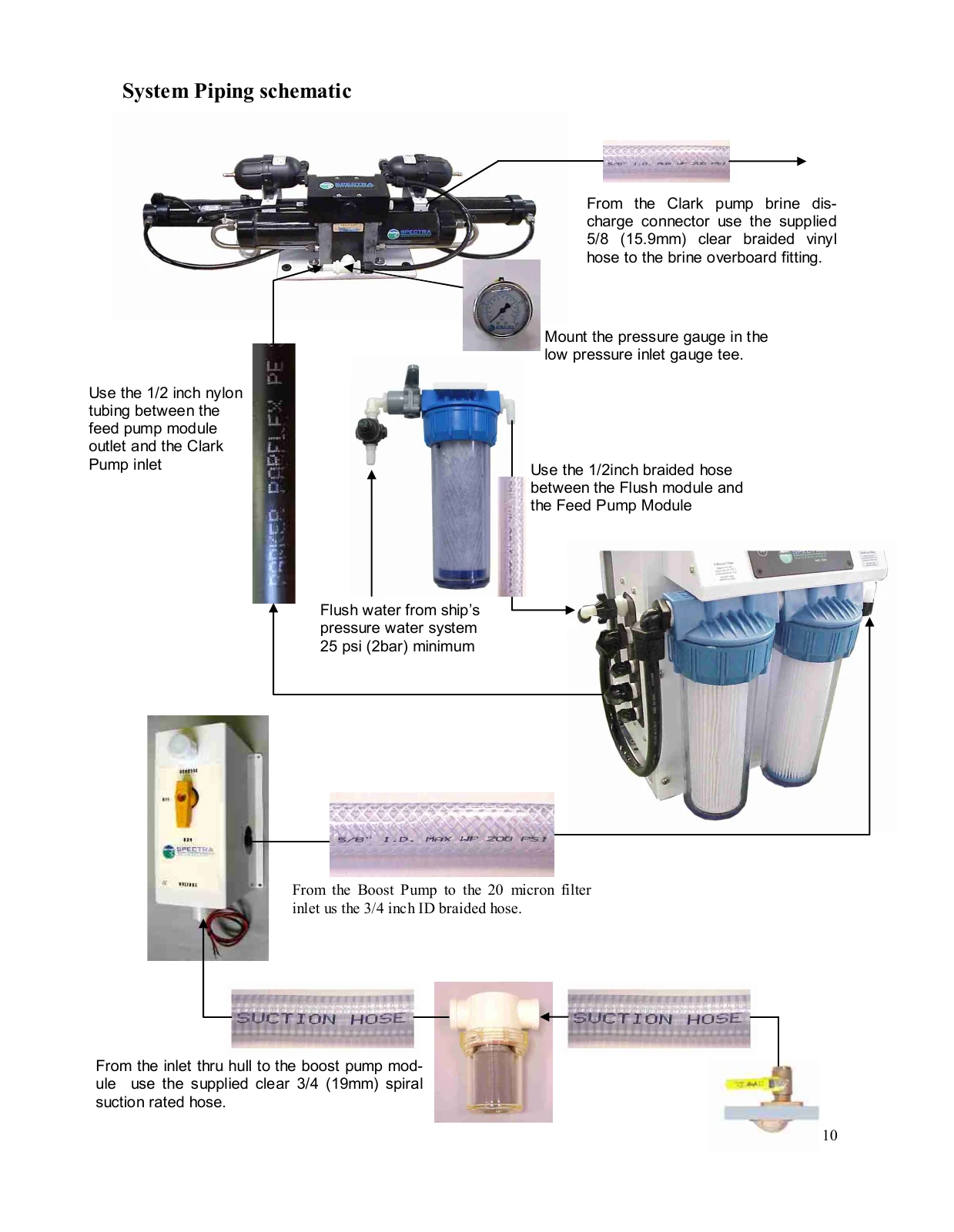

Intake strainer → single booster → 20-micron prefilter → 5-micron prefilter → magnetic-drive main feed pump → Clark Pump and membrane. Both sediment stages are before the main feed pump in these manuals.
The main feed-pump head, motor and PWM speed controller are separate purchases. The Clark Pump recovers pressure energy; the membrane separates product water from brine. The accumulator smooths pressure pulses.
Carbon treats freshwater used for flushing. The salinity probe, product flow meter and diversion valve monitor and route product water; they are separate from the seawater intake manifold and flush valve.

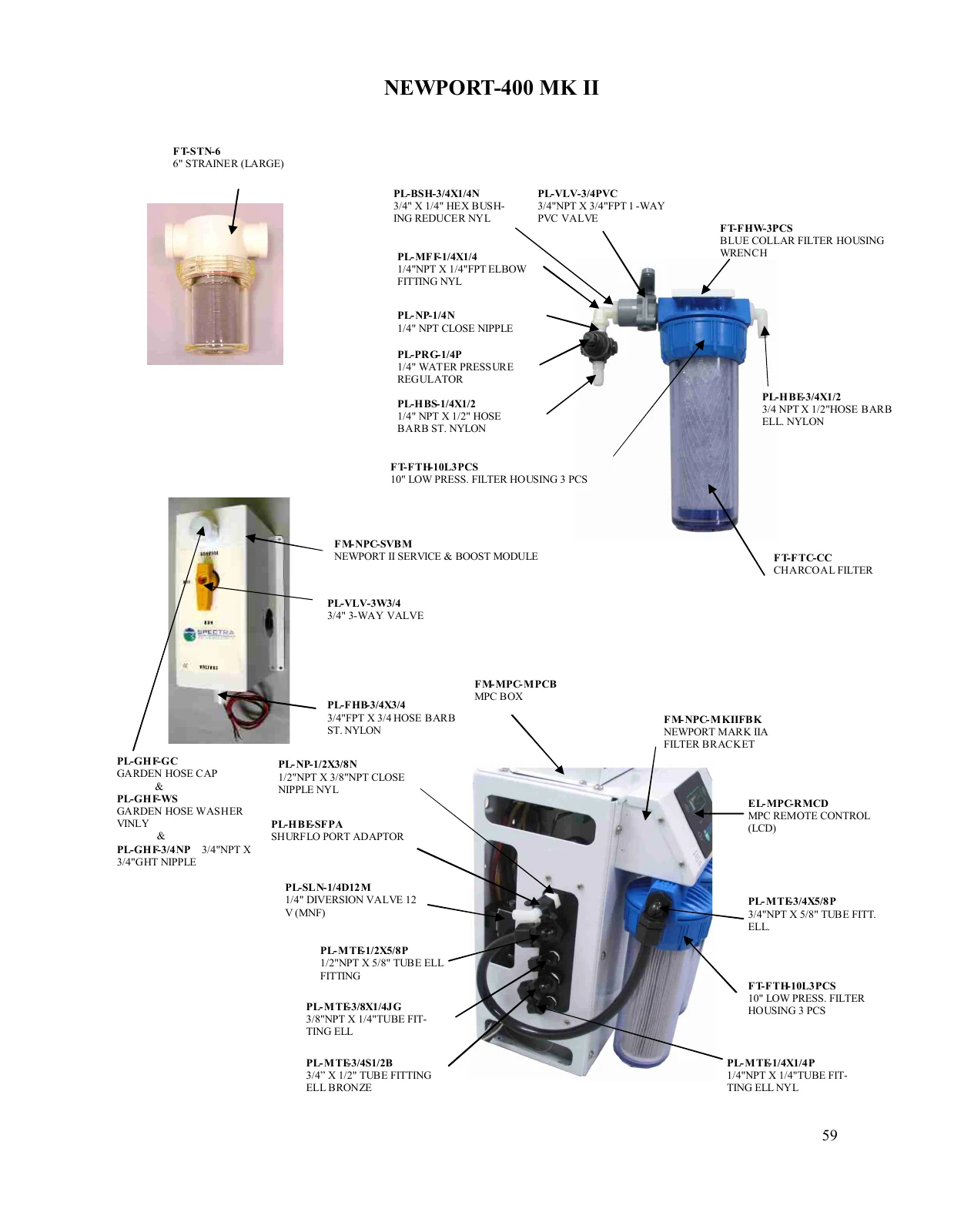

FILTER DIMENSIONS AND THE SPECTRA MATRIX
20-micron, 5-micron and carbon cartridges are each nominal 10 inches long × 2.5 inches in diameter. Nominal format can differ from end-to-end measurement. Carbon and sediment perform different jobs even when their size matches.
| Stage | Cartridge and nominal size | Housing / seal / wrench |
|---|---|---|
| Before main pump, first | FT-FTC-20 20 micron · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
| Before main pump, second | FT-FTC-5 5 micron · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
| Separate freshwater flush | FT-FTC-CC Carbon · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
These manuals show the clear three-piece housing. A changed black FT-FTH-10H bowl uses its own SO-FHS-10H seal and FT-FHW-10H wrench. A modified Z-Ion bowl needs separate identification. The discontinued standard housing/wrench in the matrix is a separate style.
The Mk II drawing identifies 6-inch strainer; the spares list names 6-inch screen and gasket. Match the actual body after any replacement.
Intake drawing ↗ · Spares list ↗The Mk II maintenance section documents the 20- and 5-micron stages. It does not establish a stock oil/water cartridge conversion. Confirm an added stage and its plumbing with Spectra before substituting cartridges.
Model filter maintenance ↗ · 5-micron dimensions ↗ · 20-micron dimensions ↗ · Carbon dimensions ↗

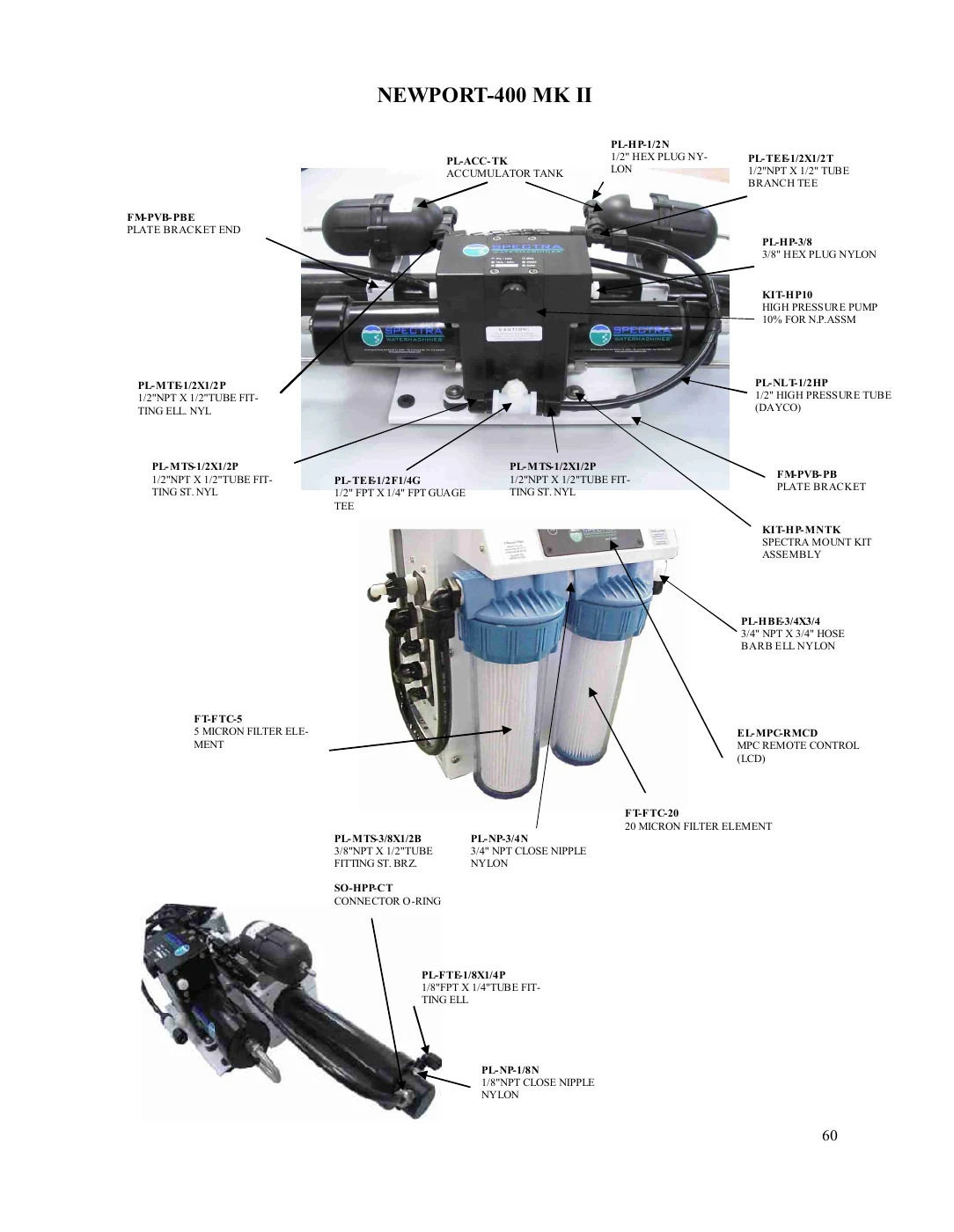

MEMBRANE LENGTH AND COUNT
The Mk II spares page explicitly lists a 40-inch membrane; the assembly drawing shows one vessel. One KIT-MB-40F replaces one original 2.5 × 40-inch element and supplies replacement seals. Match the fitted long vessel.
Explicit membrane length ↗ · Single-vessel assembly ↗End-plug kit and retaining ring repair vessel hardware. A membrane kit is not a complete vessel. Confirm end-cap style and any Z-Brane equipment with Spectra before selecting a modern kit.
The later Newport 400c Compact uses shorter elements. That later configuration does not prove a compact retrofit on Mk II or Mk II-Z. If your vessels differ from the long assembly, confirm the actual arrangement before ordering.
Newport 400C Connect owner guide →IDENTIFY THE BUYING SCOPE

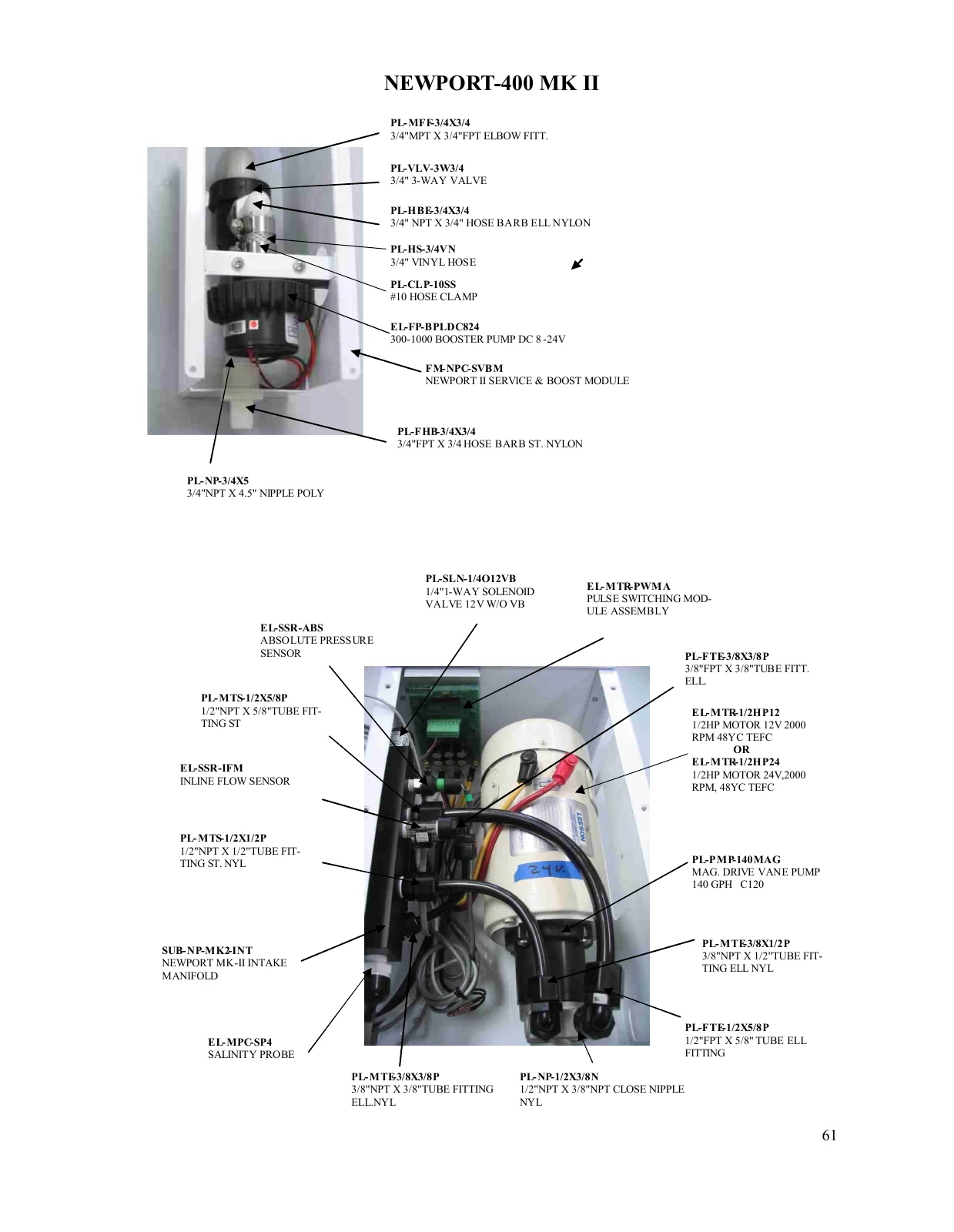

The 140MAG head is separate from motor, controller and intake booster. The drawings say C120 while the current store name says C100. Confirm the stamped head, pressure rating, coupling and ports with Spectra. The remanufactured package candidate has its own contents; the Mk II-Z spares label KIT-PMP-140MAG is not an established catalog alias.
Current manufacturer head reference ↗The drawing names 12V half-HP motor and 24V half-HP motor, separately from PWM assembly. Spectra reports the original 24V Leeson motor discontinued in January 2022. A listing does not establish stock; read the later replacement route.
Original motor / controller labels ↗The manufacturer’s conversion uses an eligible PWM controller with separately adjusted high, low and flush outputs. Its illustrations use Connect controls. Confirm the matching MPC procedure and actual controller with Spectra before ordering the 12V motor for a 24V system. This is not a direct connection to boat supply.
Complete motor / PWM conversion bulletin ↗The single 8–24V booster supplies the main pump through the prefilters. Inlet / absolute pressure and 150 PSI feed-pressure sensor serve different measuring points. Match function, range, port and harness with Spectra; a sensor cable is separate.
CHECK THE ACTUAL CHIP
Both model manuals document MPC-5000 controls. An MPC-3000 upgrade is not offered as a routine replacement for these generations. Identify modified controls with Spectra. The Mk II-Z manual illustrates A37; that does not prove a replaced board still has A37.
| Installed MPC-5000 chip | Documented path | Buying requirement |
|---|---|---|
| B-series / A31 | A40 board + SP4 | Confirm wiring and system programming. |
| A34 / A35 | SP4 + EL-MPC-SPCBA daughter board, or A40 + SP4 | No exact daughter-board listing here. The probe alone does not supply the interface. |
| A36 / A37 / A39 / A40 | SP4 | Match connector and cable reach; A36 supports operation with or without the daughter board. |
| Unknown / unlisted | Confirm with Spectra | No automatic recommendation from a similar chip number. |
A40 board + SP4 probe. Confirm actual wiring and system programming with Spectra before ordering.
Confirm EL-MPC-SPCBA daughter board, or the A40-plus-SP4 route, for A34/A35. The daughter board is not included by a standalone probe listing.
15-foot SP4; confirm the exact connector and cable reach. The 3-foot SP4N candidate requires separate suffix/interface confirmation with Spectra.
Flow, salinity and diversion have different functions. Keep automatic product-water diversion protection; a sensor reading alone does not establish membrane failure. Use the model calibration procedure and an independent calibrated meter.
Model salinity / probe reference ↗MATCH BODY AND FUNCTION
The Mk II drawing names INT. Changed hardware can differ; select using the current manufacturer matrix.
| Actual intake body | Current chart reference | Identify before ordering |
|---|---|---|
| 5 external fitting holes; about 1-inch legacy solenoid port | SUB-NP-MK2-INT | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
| 6 external fitting holes; about 1-inch legacy solenoid port | SUB-NP-MK2-INEZ | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
| 6 external fitting holes; about 3/4-inch Spartan solenoid port | SUB-NP-MK2-INTZ | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
The Mk II drawing uses an older O12VB flush label. Do not treat its suffix as an established alias for every later Spartan body or coil.
Legacy ECI/Alcon coil conversion retains the old body. With-body candidate is not an automatic replacement for Newport O12SP. Confirm actual body, output, ports and mounting with Spectra. Boat voltage alone does not identify the flush coil.
Legacy diversion-valve record, diversion manifold candidate and Burkert conversion kit have different scopes. The manufacturer chart allows the appropriate Burkert route on 12V and 24V systems. Confirm original valve, manifold and adaptation fittings with Spectra.
INSTALLED RATIO AND CURRENT SUFFIX

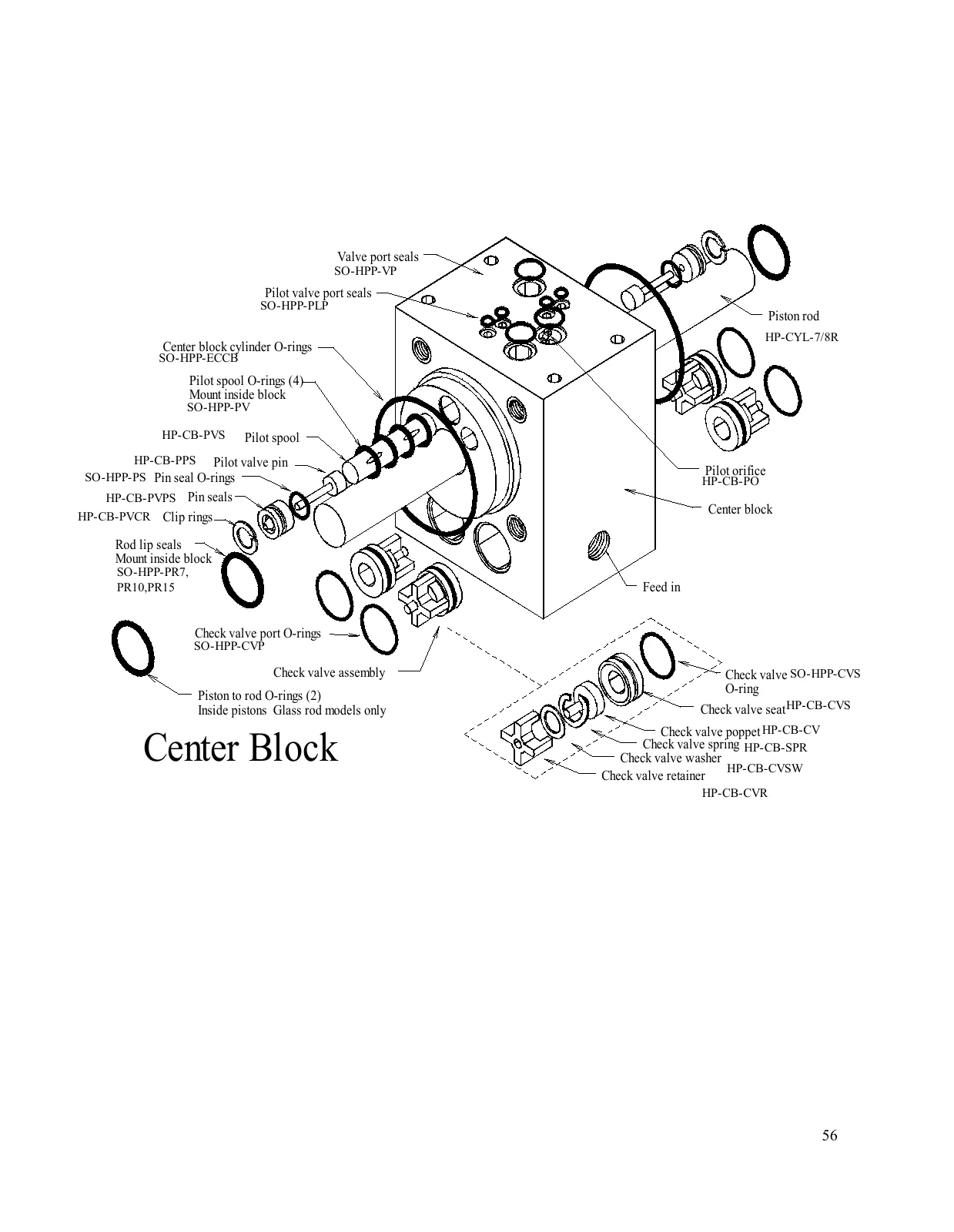

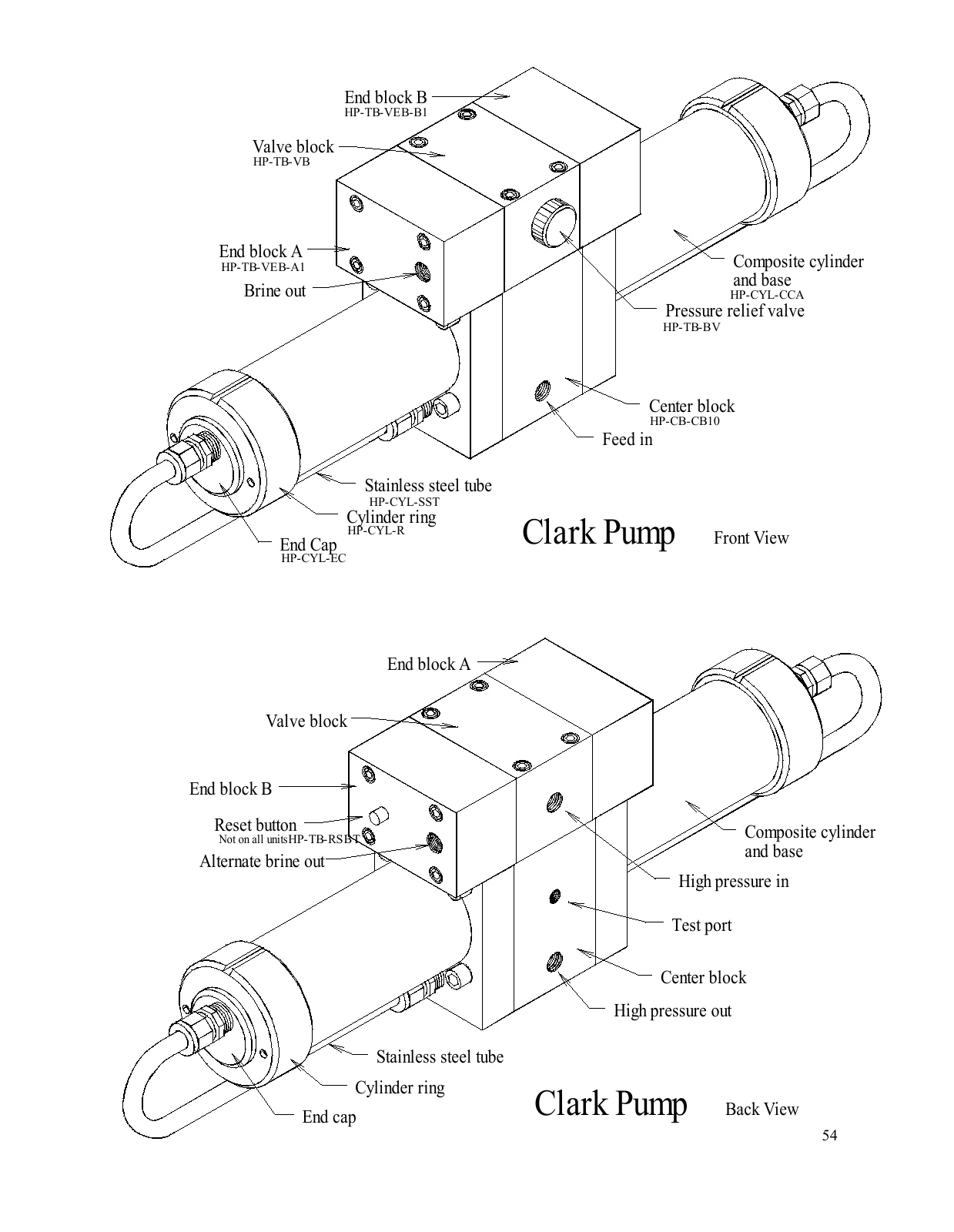

CB10 center block, one 7/8-inch rod and PR10 rod seals belong to the documented 10% arrangement. Confirm the actual ratio after a retrofit. Two seal locations do not establish catalog pack quantity.

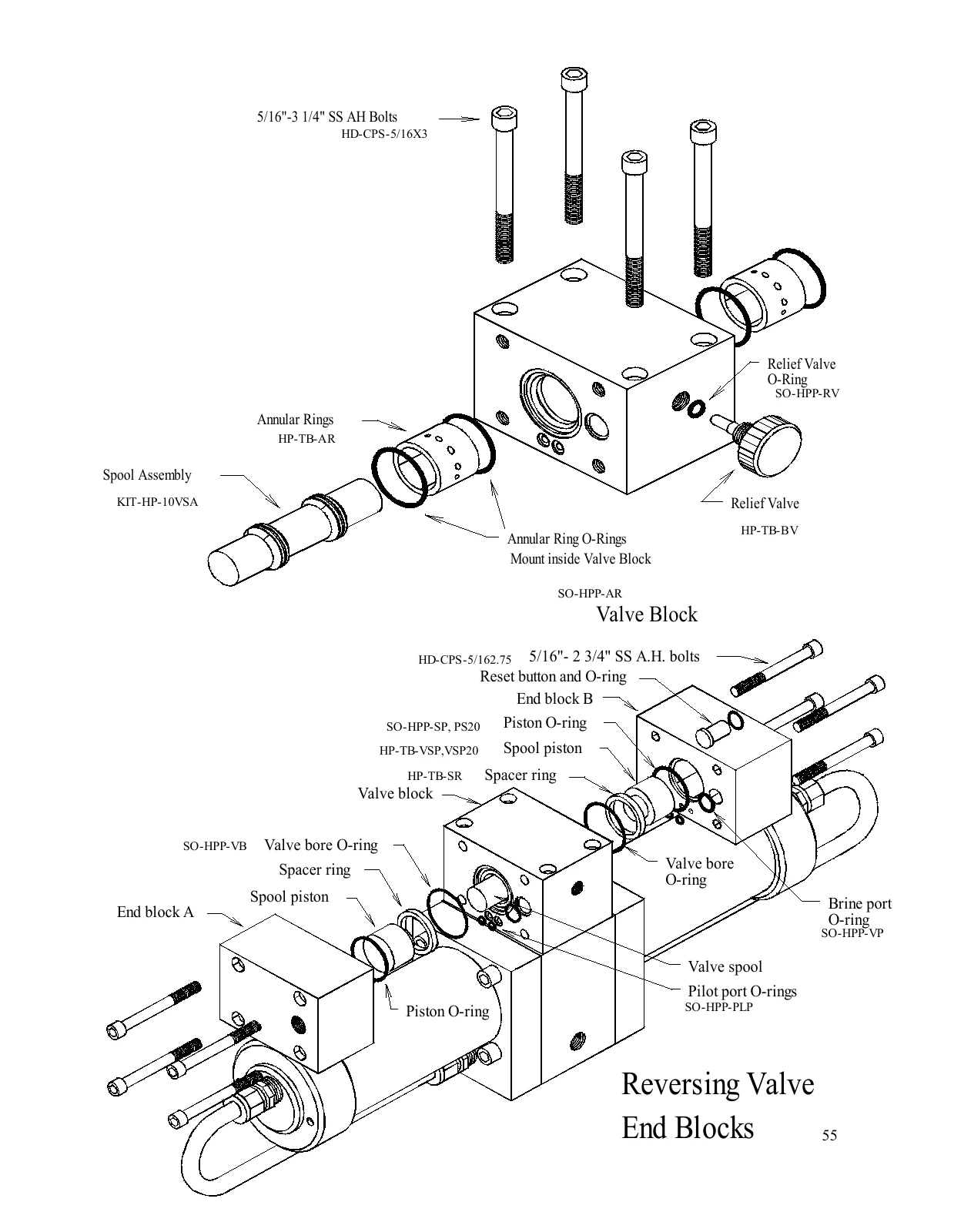

The Mk II outside drawing names A1/B1, while its parts table mislabels B as A2 and also includes a one-inch spool seal. The current 7% / 10% pair is A1 / B1 with 1-1/4-inch bores. Confirm actual side, bore and revision with Spectra. Use the matching 7% / 10% spool piston/seal.
Current ratio-specific top end ↗10% distributor rebuild kit and seal and O-ring kit are different purchases. The distributor kit excludes spacer rings and top-end spool pistons and supplies no tools or instructions. Compare current contents before duplicating loose pieces.
Current kit contents ↗LOCATE THE PART BEFORE BUYING

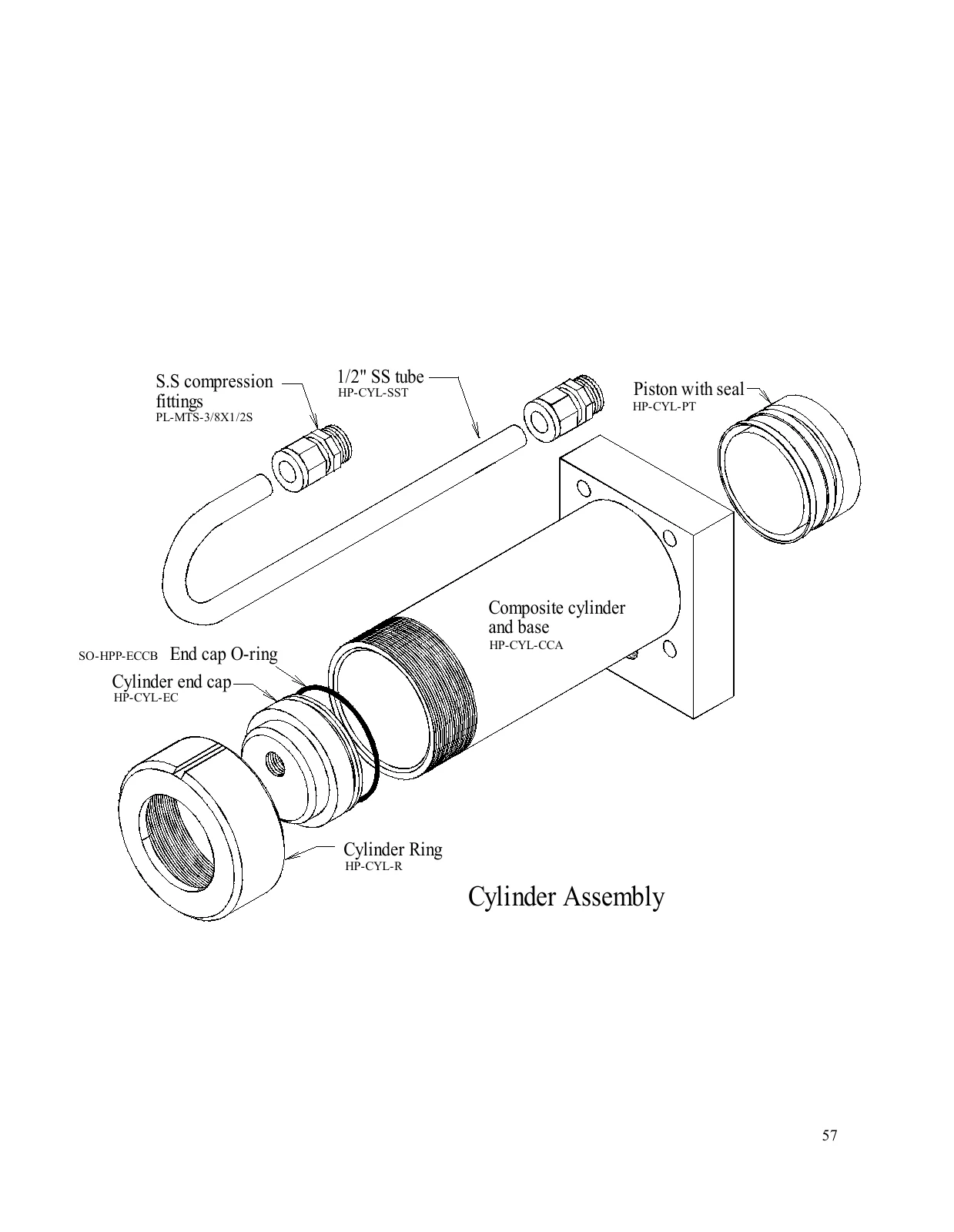

Choose an assembly, then open the full-size manufacturer drawing for readable callouts. Outside, reversing-valve, center-block and cylinder parts have separate sections.
Showing all drawings.
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
This shared drawing includes multiple pump-ratio callouts. Use the 7% / 10% spool piston and seal, not the one-inch 20% pair.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗PLAN SERVICE AND SPARES
Replace dirty sediment elements according to actual conditions. Keep the documented 20-then-5-micron sequence. Historical washing advice is not a blanket recommendation for every current cartridge. Replace carbon at least every six months as the model manual specifies.
Model maintenance ↗SC-1 storage compound serves a different purpose from SC-2 / SC-3 cleaners. Follow the installed-equipment storage, flush and recommissioning procedure. SC-1 does not provide freeze protection.
Cruise Kit B is named in the spares table. The offshore 7% / 10% service kit has a different scope. Compare current contents and supplies already onboard before adding filters, seals or tools.
Model spares list ↗The original Mk II manual includes optional Z-Brane equipment. A later Z-Ion generator uses different bowls, wiring and plumbing; confirm that retrofit with Spectra. Neither preservation system replaces freeze protection.
Use the model flow-test and troubleshooting references to check intake restrictions, booster/feed supply, fitted filters, pressure and leaks first. Low production and an incorrect salinity reading require different checks. Verify suspect product-water readings with a calibrated independent meter and keep automatic diversion protection.
Manufacturer flow-test reference ↗ANSWERS THAT AFFECT YOUR ORDER
The 20-micron, 5-micron and carbon cartridges are nominal 10 inches long × 2.5 inches diameter. The 20-micron stage is upstream of the 5-micron stage; both are before the main feed pump. Match actual housings and end styles after changes.
The Mk II drawing shows a 6-inch strainer. The Mk II-Z drawing shows a 5-inch strainer, although its spares list names 6-inch screen and gasket codes. Identify the fitted body; confirm the conflict with Spectra instead of buying by model name.
Only under the documented eligible motor/PWM conversion with correctly programmed high, low and flush outputs. The later bulletin illustrates Connect controls; confirm the actual controller and MPC procedure with Spectra. Do not connect the motor directly to 24V supply.
No. The manual identifies Z-Ion-ready plumbing and wiring. Identify the actual generator bowl and electronics before choosing retrofit or replacement parts. A generator, control assembly and modified bowl have different purchase scopes.
Its manual pictures one long vessel without a separate element-length callout. The predecessor Mk II explicitly lists a 40-inch membrane. Confirm actual Mk II-Z element dimensions and vessel/end-cap revision with Spectra; no shorter arrangement is inferred.
No. A 10% pump uses its actual center block, rod, seals and 1-1/4-inch-bore top end. Current 20% A/B blocks and one-inch spool parts are excluded from these guides. Read current suffix and pack-quantity requirements.
