SPECTRA OWNER GUIDE
Find filter sizes, original labeled drawings, 10% Clark Pump parts and MPC probe paths. Identify the fitted motor, speed controller and manifold before choosing replacement hardware.
12V / 24V system supply · MPC-5000 · installed hardware mattersRecord system supply separately from motor voltage. Changed hardware can alter the original configuration.
Identify actual element dimensions and vessel arrangement.
Identify system supply and controls.
IDENTIFY BEFORE ORDERING
Spectra’s manual index places Mk II at 2013–2017. This guide uses its February 2017 manual. Dates help find the manual; installed labels decide a replacement. The Mk II-Z adds a Z-Ion-ready flush path, different service hoses and an illustrated 5-inch strainer. Z-Ion-ready does not mean a generator is installed.
Manufacturer generation / manual index ↗A 24V boat can have an original 24V motor or a later 12V motor operating through a correctly programmed PWM controller. Record the motor label, speed-controller code and system supply separately.
The Mk II outside drawing names CB10; Mk II-Z also illustrates a CB10 center block. Replaced pumps must be identified by ratio and revision. The 7%, 10% and 20% parts in a shared rebuild manual are not all interchangeable.
Current ratio differences ↗FOLLOW THE WATER
Intake strainer → single booster → 20-micron prefilter → 5-micron prefilter → magnetic-drive main feed pump → Clark Pump and membrane. Both sediment stages are before the main feed pump in these manuals.
The main feed-pump head, motor and PWM speed controller are separate purchases. The Clark Pump recovers pressure energy; the membrane separates product water from brine. The accumulator smooths pressure pulses.
Carbon treats freshwater used for flushing. The salinity probe, product flow meter and diversion valve monitor and route product water; they are separate from the seawater intake manifold and flush valve.
FILTER DIMENSIONS AND THE SPECTRA MATRIX
20-micron, 5-micron and carbon cartridges are each nominal 10 inches long × 2.5 inches in diameter. Nominal format can differ from end-to-end measurement. Carbon and sediment perform different jobs even when their size matches.
| Stage | Cartridge and nominal size | Housing / seal / wrench |
|---|---|---|
| Before main pump, first | FT-FTC-20 20 micron · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
| Before main pump, second | FT-FTC-5 5 micron · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
| Separate freshwater flush | FT-FTC-CC Carbon · 10 in long × 2.5 in diameter | Clear three-piece housing Housing seal · Housing wrench |
These manuals show the clear three-piece housing. A changed black FT-FTH-10H bowl uses its own SO-FHS-10H seal and FT-FHW-10H wrench. A modified Z-Ion bowl needs separate identification. The discontinued standard housing/wrench in the matrix is a separate style.
The Mk II-Z drawing identifies 5-inch strainer, 5-inch screen and matching gasket; its spares table instead names 6-inch screen and 6-inch gasket. Confirm actual body and dimensions with Spectra before ordering from that conflicting list.
Explicit intake drawing ↗ · Conflicting spares table ↗The Mk II-Z procedure places optional oil/water separation in an added housing upstream of both 20- and 5-micron stages. Keep both sediment stages; verify the added housing and cartridge dimensions.
Model oil/water arrangement ↗
Model filter maintenance ↗ · 5-micron dimensions ↗ · 20-micron dimensions ↗ · Carbon dimensions ↗
MEMBRANE LENGTH AND COUNT
The Mk II-Z drawing shows one long vessel but does not separately label element length. The 2.5 × 40-inch kit is a conditional reference for that layout, supported by the predecessor Mk II’s explicit 40-inch entry. Confirm actual element dimensions, count and end-cap revision with Spectra before ordering. No compact conversion is inferred from the model name.
Mk II-Z illustrated long layout ↗ · Mk II explicit length ↗End-plug kit and retaining ring repair vessel hardware. A membrane kit is not a complete vessel. Confirm end-cap style and any Z-Brane equipment with Spectra before selecting a modern kit.
The later Newport 400c Compact uses shorter elements. That later configuration does not prove a compact retrofit on Mk II or Mk II-Z. If your vessels differ from the long assembly, confirm the actual arrangement before ordering.
Newport 400C Connect owner guide →IDENTIFY THE BUYING SCOPE

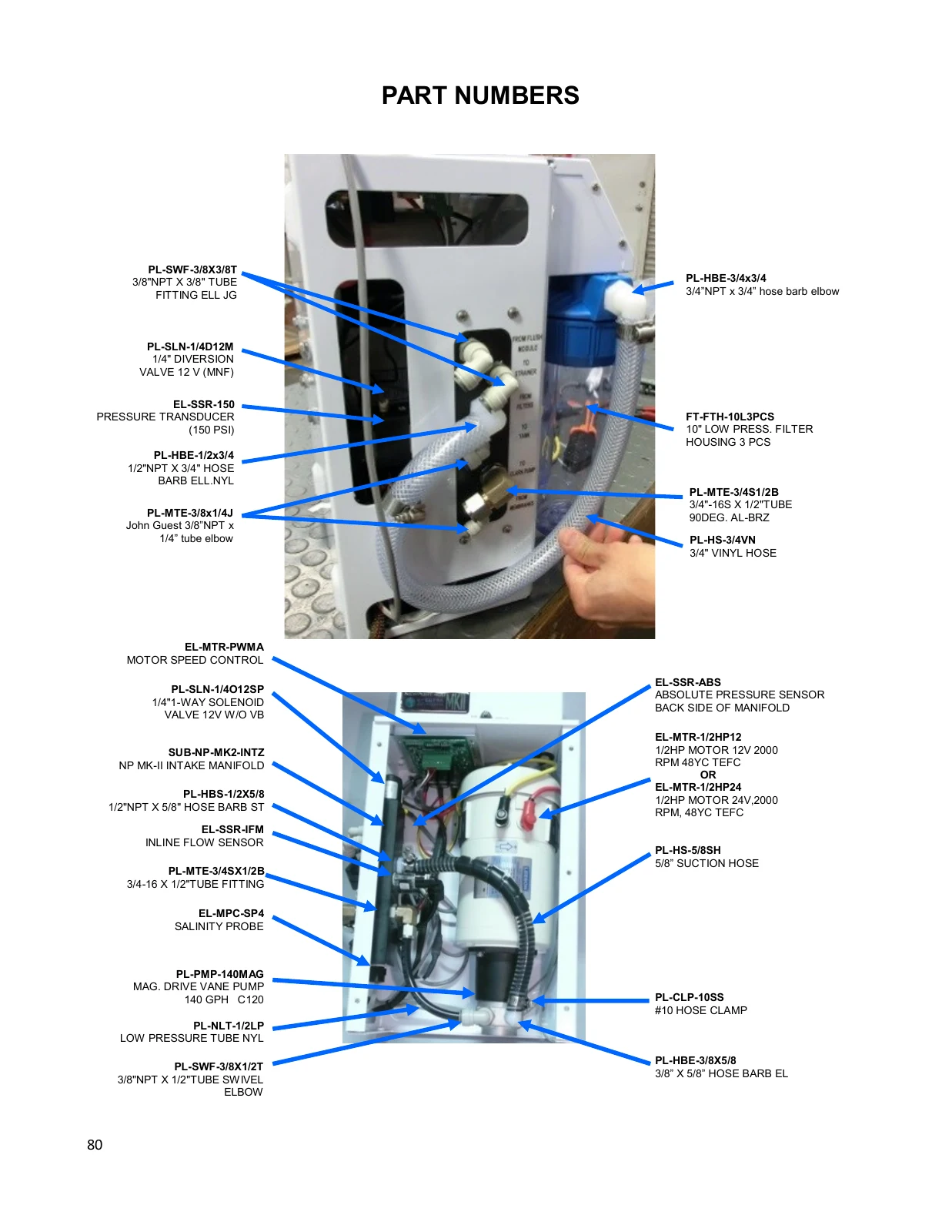

The 140MAG head is separate from motor, controller and intake booster. The drawings say C120 while the current store name says C100. Confirm the stamped head, pressure rating, coupling and ports with Spectra. The remanufactured package candidate has its own contents; the Mk II-Z spares label KIT-PMP-140MAG is not an established catalog alias.
Current manufacturer head reference ↗The drawing names 12V half-HP motor and 24V half-HP motor, separately from PWM assembly. Spectra reports the original 24V Leeson motor discontinued in January 2022. A listing does not establish stock; read the later replacement route.
Original motor / controller labels ↗The manufacturer’s conversion uses an eligible PWM controller with separately adjusted high, low and flush outputs. Its illustrations use Connect controls. Confirm the matching MPC procedure and actual controller with Spectra before ordering the 12V motor for a 24V system. This is not a direct connection to boat supply.
Complete motor / PWM conversion bulletin ↗The single 8–24V booster supplies the main pump through the prefilters. Inlet / absolute pressure and 150 PSI feed-pressure sensor serve different measuring points. Match function, range, port and harness with Spectra; a sensor cable is separate.
CHECK THE ACTUAL CHIP

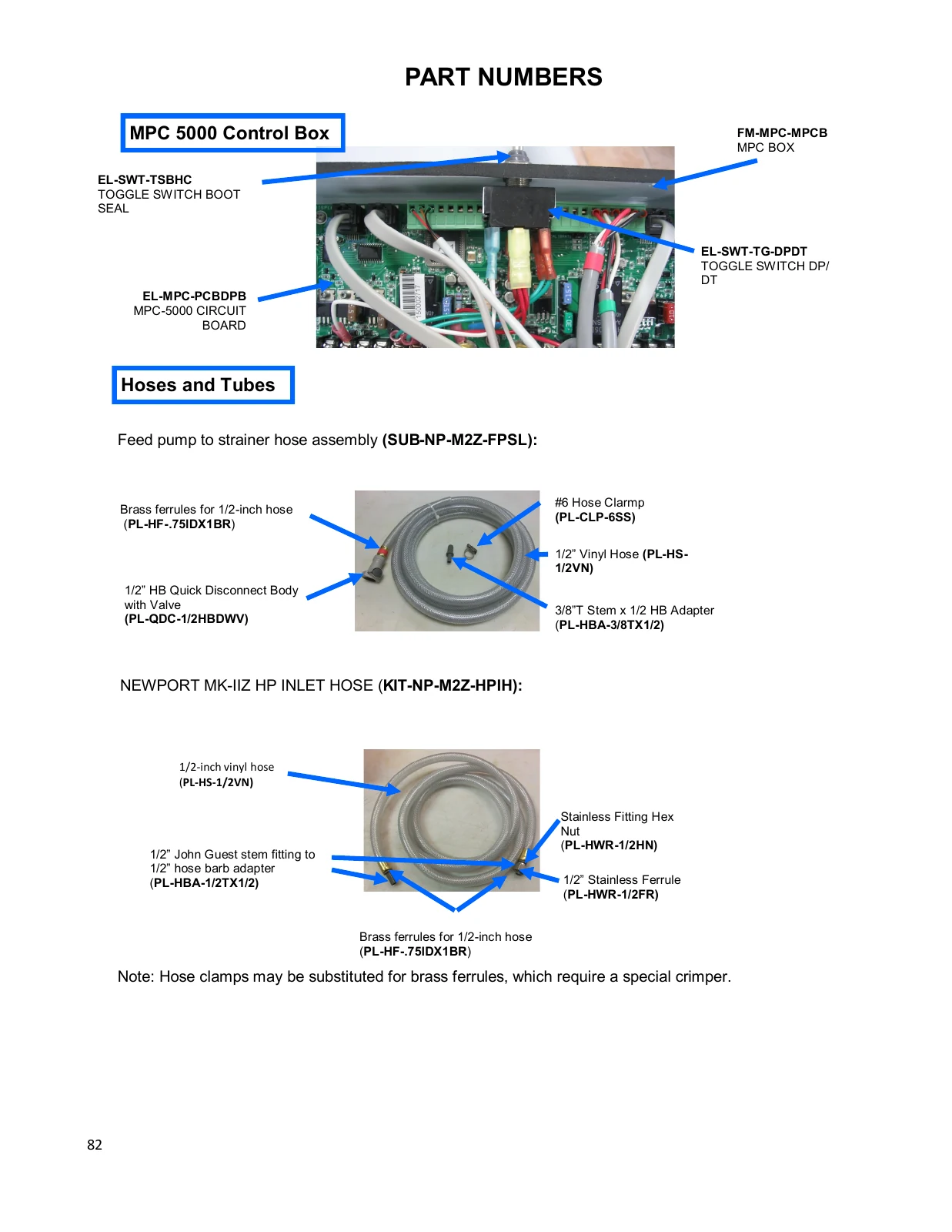

Both model manuals document MPC-5000 controls. An MPC-3000 upgrade is not offered as a routine replacement for these generations. Identify modified controls with Spectra. The Mk II-Z manual illustrates A37; that does not prove a replaced board still has A37.
| Installed MPC-5000 chip | Documented path | Buying requirement |
|---|---|---|
| B-series / A31 | A40 board + SP4 | Confirm wiring and system programming. |
| A34 / A35 | SP4 + EL-MPC-SPCBA daughter board, or A40 + SP4 | No exact daughter-board listing here. The probe alone does not supply the interface. |
| A36 / A37 / A39 / A40 | SP4 | Match connector and cable reach; A36 supports operation with or without the daughter board. |
| Unknown / unlisted | Confirm with Spectra | No automatic recommendation from a similar chip number. |
A40 board + SP4 probe. Confirm actual wiring and system programming with Spectra before ordering.
Confirm EL-MPC-SPCBA daughter board, or the A40-plus-SP4 route, for A34/A35. The daughter board is not included by a standalone probe listing.
15-foot SP4; confirm the exact connector and cable reach. The 3-foot SP4N candidate requires separate suffix/interface confirmation with Spectra.
Flow, salinity and diversion have different functions. Keep automatic product-water diversion protection; a sensor reading alone does not establish membrane failure. Use the model calibration procedure and an independent calibrated meter.
Model salinity / probe reference ↗MATCH BODY AND FUNCTION
The Mk II-Z drawing names INTZ. Changed hardware can differ; select using the current manufacturer matrix.
| Actual intake body | Current chart reference | Identify before ordering |
|---|---|---|
| 5 external fitting holes; about 1-inch legacy solenoid port | SUB-NP-MK2-INT | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
| 6 external fitting holes; about 1-inch legacy solenoid port | SUB-NP-MK2-INEZ | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
| 6 external fitting holes; about 3/4-inch Spartan solenoid port | SUB-NP-MK2-INTZ | Match actual holes, port and valve generation; confirm adapter and fittings with Spectra if modified. |
The Mk II-Z drawing names Newport Spartan flush solenoid without body. The replacement chart places this style on Newport systems since 2016; earlier units can differ.
Legacy ECI/Alcon coil conversion retains the old body. With-body candidate is not an automatic replacement for Newport O12SP. Confirm actual body, output, ports and mounting with Spectra. Boat voltage alone does not identify the flush coil.
Legacy diversion-valve record, diversion manifold candidate and Burkert conversion kit have different scopes. The manufacturer chart allows the appropriate Burkert route on 12V and 24V systems. Confirm original valve, manifold and adaptation fittings with Spectra.
INSTALLED RATIO AND CURRENT SUFFIX

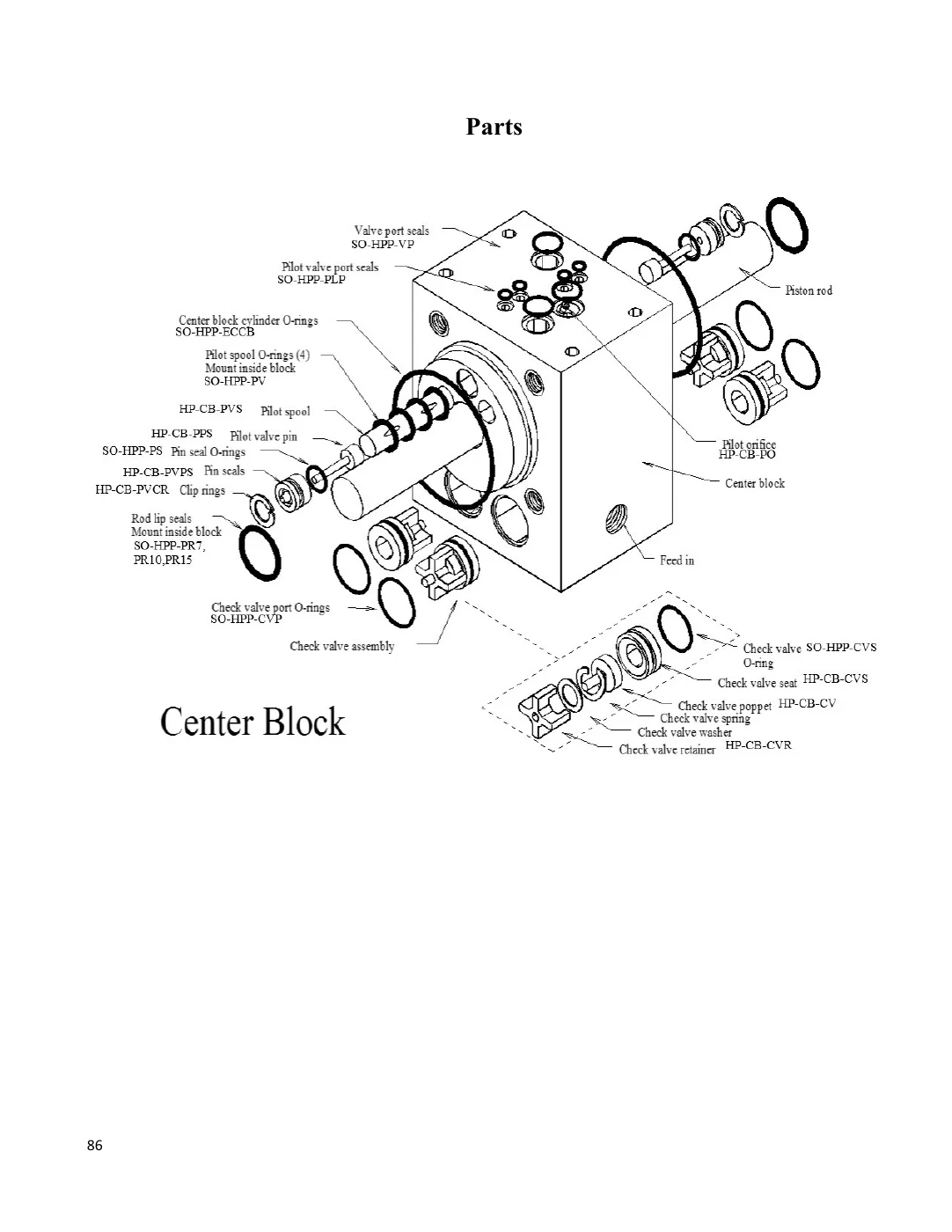

CB10 center block, one 7/8-inch rod and PR10 rod seals belong to the documented 10% arrangement. Confirm the actual ratio after a retrofit. Two seal locations do not establish catalog pack quantity.
The Mk II-Z outside drawing abbreviates blocks to A/B. Current catalog A/B codes identify 20% one-inch-bore blocks, so those links are excluded. The current 7% / 10% pair is A1 / B1 with 1-1/4-inch bores. Confirm actual side, bore and revision with Spectra. Use the matching 7% / 10% spool piston/seal.
Current ratio-specific top end ↗10% distributor rebuild kit and seal and O-ring kit are different purchases. The distributor kit excludes spacer rings and top-end spool pistons and supplies no tools or instructions. Compare current contents before duplicating loose pieces.
Current kit contents ↗LOCATE THE PART BEFORE BUYING
Choose an assembly, then open the full-size manufacturer drawing for readable callouts. Outside, reversing-valve, center-block and cylinder parts have separate sections.
Showing all drawings.
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗

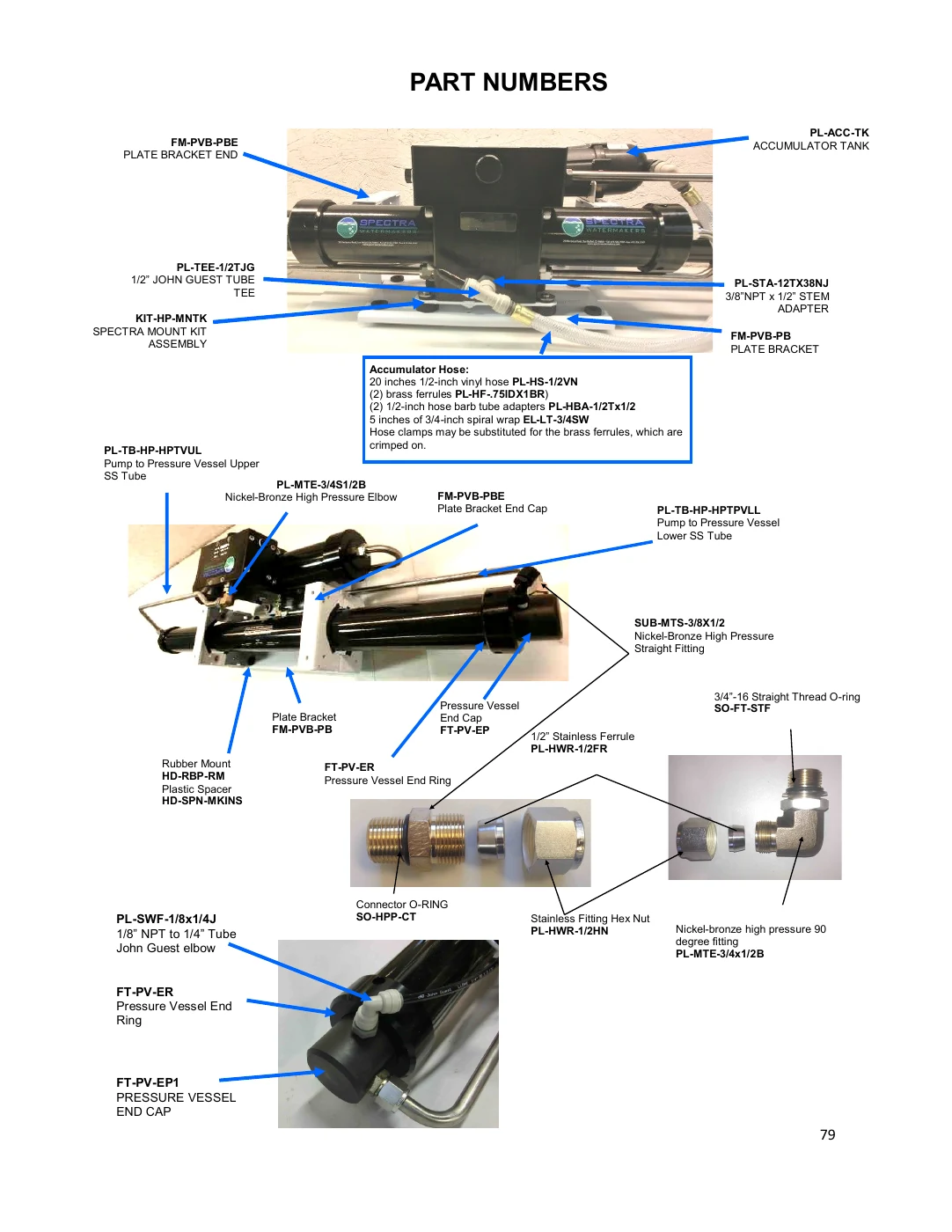

A single long vessel is pictured, without a separate element-length label. Confirm actual element dimensions and end-cap revision before selecting the conditional 40-inch kit.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗

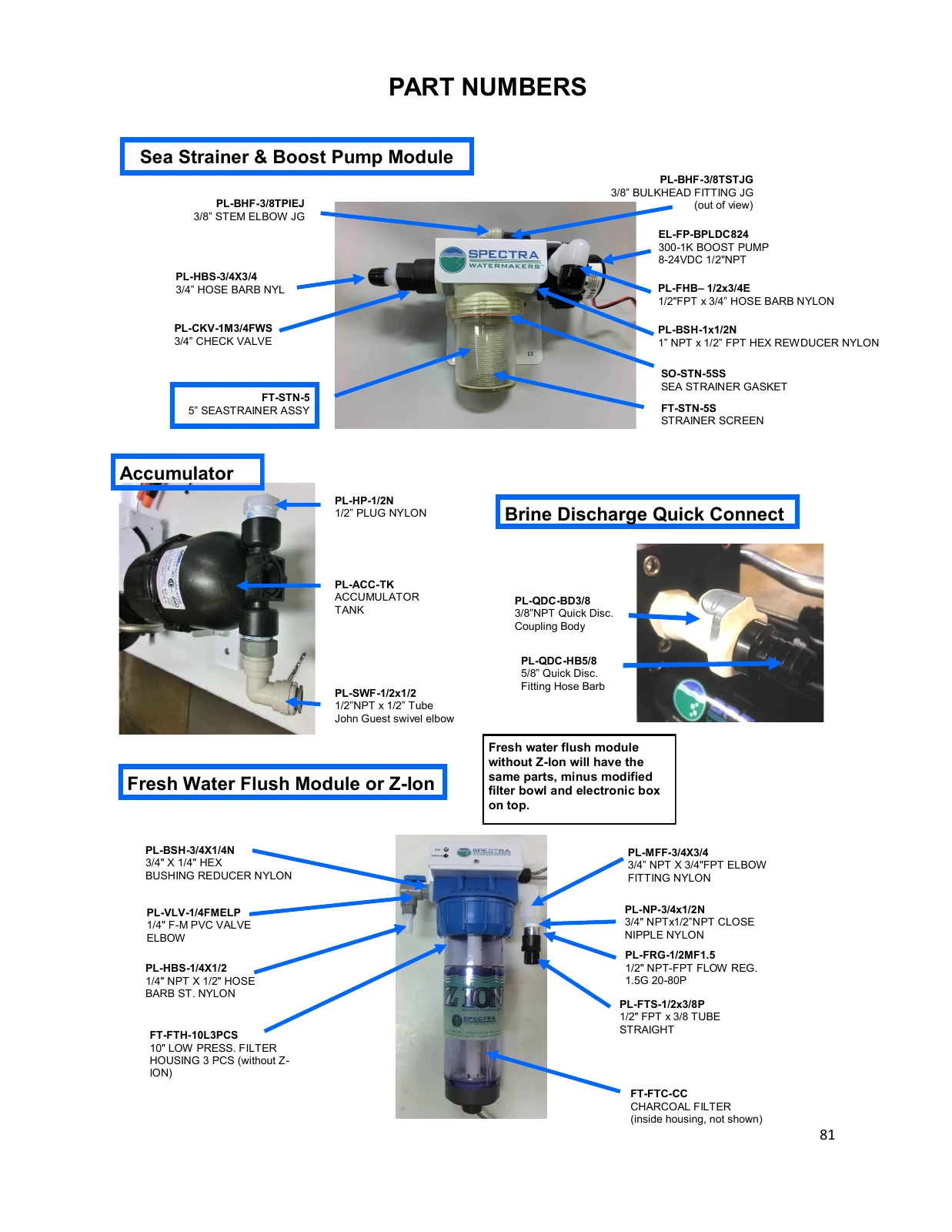

This drawing explicitly names the 5-inch strainer. The spares table instead lists 6-inch screen/gasket codes; identify the actual body before ordering.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗

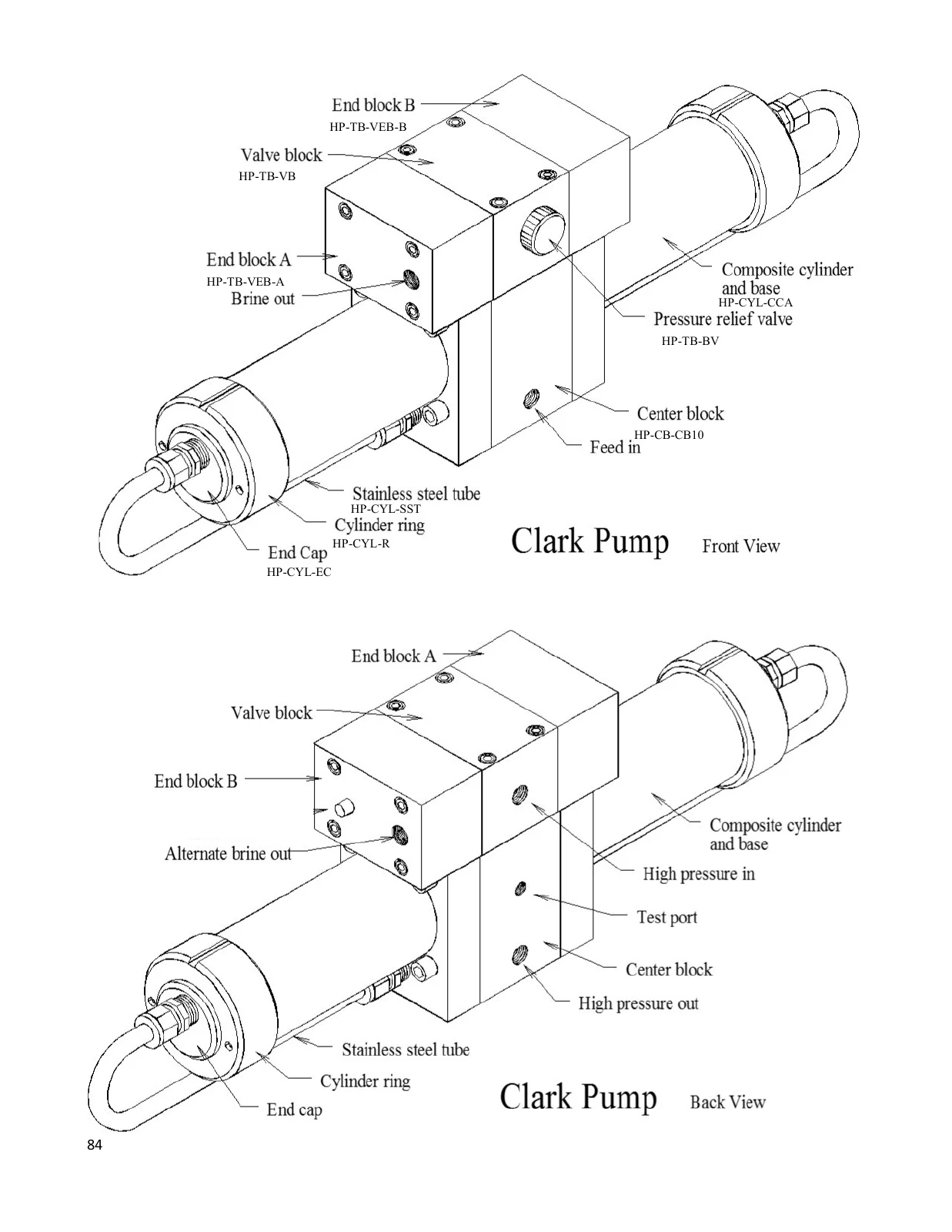

The abbreviated A / B end-block labels do not mean the current one-inch-bore 20% catalog blocks. A confirmed 10% pump uses current A1 / B1 blocks with 1-1/4-inch bores; check actual revision.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗
Match the original callout and installed part. Open the full PDF for readable detail; current replacement conditions remain beside the product links.
Open complete labeled drawing ↗PLAN SERVICE AND SPARES
Replace dirty sediment elements according to actual conditions. Keep the documented 20-then-5-micron sequence. Historical washing advice is not a blanket recommendation for every current cartridge. Replace carbon at least every six months as the model manual specifies.
Model maintenance ↗SC-1 storage compound serves a different purpose from SC-2 / SC-3 cleaners. Follow the installed-equipment storage, flush and recommissioning procedure. SC-1 does not provide freeze protection.
Cruise Kit B is named in the spares table. The offshore 7% / 10% service kit has a different scope. Compare current contents and supplies already onboard before adding filters, seals or tools.
Model spares list ↗The Mk II-Z is pre-plumbed for optional Z-Ion and includes a generator-ready connector. The current automated-system Z-Ion listing needs exact bowl, electronics, wiring and plumbing confirmation with Spectra. A control-only listing does not imply a complete retrofit. Z-Ion differs from Z-Brane pressure-vessel equipment; neither supplies freeze protection.
Original Z-Ion equipment requirements ↗Use the model flow-test and troubleshooting references to check intake restrictions, booster/feed supply, fitted filters, pressure and leaks first. Low production and an incorrect salinity reading require different checks. Verify suspect product-water readings with a calibrated independent meter and keep automatic diversion protection.
Mk II-Z model flow test ↗ANSWERS THAT AFFECT YOUR ORDER
The 20-micron, 5-micron and carbon cartridges are nominal 10 inches long × 2.5 inches diameter. The 20-micron stage is upstream of the 5-micron stage; both are before the main feed pump. Match actual housings and end styles after changes.
The Mk II drawing shows a 6-inch strainer. The Mk II-Z drawing shows a 5-inch strainer, although its spares list names 6-inch screen and gasket codes. Identify the fitted body; confirm the conflict with Spectra instead of buying by model name.
Only under the documented eligible motor/PWM conversion with correctly programmed high, low and flush outputs. The later bulletin illustrates Connect controls; confirm the actual controller and MPC procedure with Spectra. Do not connect the motor directly to 24V supply.
No. The manual identifies Z-Ion-ready plumbing and wiring. Identify the actual generator bowl and electronics before choosing retrofit or replacement parts. A generator, control assembly and modified bowl have different purchase scopes.
Its manual pictures one long vessel without a separate element-length callout. The predecessor Mk II explicitly lists a 40-inch membrane. Confirm actual Mk II-Z element dimensions and vessel/end-cap revision with Spectra; no shorter arrangement is inferred.
No. A 10% pump uses its actual center block, rod, seals and 1-1/4-inch-bore top end. Current 20% A/B blocks and one-inch spool parts are excluded from these guides. Read current suffix and pack-quantity requirements.
MODEL-SCOPED PRODUCT REFERENCES
Named manufacturer references and researched replacement routes appear first. Unresolved candidates are grouped for confirmation. Selecting voltage, chip or vessel does not verify a retrofit.
139 references.
No matching references. Clear search or check system selections above.
12V / 24V system references · Named in model manual
This model manual names the part on page 28. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 45. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 45. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
150 PSI feed-pressure transducer named in the Mk II-Z feed module. Match actual function, range, port, connector and harness. It is distinct from the absolute/inlet-pressure sensor.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. Absolute/inlet-pressure sensor before the main feed pump, used to monitor booster and prefilter conditions. It is separate from the downstream feed-pressure sensor. Confirm sensor range, connector, port and harness with Spectra.
Absolute/inlet-pressure sensor before the main feed pump, used to monitor booster and prefilter conditions. It is separate from the downstream feed-pressure sensor. Confirm sensor range, connector, port and harness with Spectra.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. Inline flow sensor named in the model drawing. Confirm installed range, units, connector and controller calibration with Spectra before choosing the current 0.5–5 listing; a shared code is not proof of every revision.
Inline flow sensor named in the model drawing. Confirm installed range, units, connector and controller calibration with Spectra before choosing the current 0.5–5 listing; a shared code is not proof of every revision.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
Original seawater prefilter: 20 micron first, 5 micron downstream, both before the main feed pump. Nominal cartridge dimensions are 10 inches long × 2.5 inches diameter; confirm actual measured length and end style if the housing has been changed.
Existing fitment requirements
12V / 24V system references · Named in model manual
Original seawater prefilter: 20 micron first, 5 micron downstream, both before the main feed pump. Nominal cartridge dimensions are 10 inches long × 2.5 inches diameter; confirm actual measured length and end style if the housing has been changed.
Existing fitment requirements
12V / 24V system references · Named in model manual
Separate carbon freshwater-flush cartridge, nominal 10 inches long × 2.5 inches diameter. It removes chlorine from flush water; it is not interchangeable in function with the seawater sediment elements. Follow the manual carbon-replacement interval.
Existing fitment requirements
12V / 24V system references · Named in model manual
Optional oil/water stage: the Mk II-Z maintenance procedure requires an added housing upstream of both 20- and 5-micron housings. Keep both sediment stages. Match element dimensions and the actual added housing; do not infer exact size from neighboring cartridges.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. The model drawing names the PWM speed controller separately from the MPC board, motor and pump head. Match controller revision, motor label and system supply, then confirm run-high, run-low and flush programming with Spectra. A model label alone does not establish identical output settings.
The model drawing names the PWM speed controller separately from the MPC board, motor and pump head. Match controller revision, motor label and system supply, then confirm run-high, run-low and flush programming with Spectra. A model label alone does not establish identical output settings.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 87. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 84. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 45. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 83. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. Product-water diversion assembly reference, separate from the intake manifold and freshwater-flush valve. Match actual valve/body, fittings, controller output and current replacement with Spectra. The suffix on a historical drawing does not establish a direct modern substitution.
Product-water diversion assembly reference, separate from the intake manifold and freshwater-flush valve. Match actual valve/body, fittings, controller output and current replacement with Spectra. The suffix on a historical drawing does not establish a direct modern substitution.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 80. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
12V / 24V system references · Named in model manual
The model drawing identifies the separate single 8–24V intake booster, with half-inch NPT ports. Match actual pump revision, supply and connections. A later dual-boost module is a different assembly; the booster is not the 140MAG main feed-pump head.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. The model drawing names this 12V half-HP motor for the original 12V arrangement. It is also a conditional replacement on 24V systems under the manufacturer’s later motor/PWM conversion. Confirm the installed Leeson motor, coupling, PWM revision and an approved MPC procedure with Spectra; high, low and flush outputs all need correct programming. Do not connect a 12V motor directly to 24V supply.
The model drawing names this 12V half-HP motor for the original 12V arrangement. It is also a conditional replacement on 24V systems under the manufacturer’s later motor/PWM conversion. Confirm the installed Leeson motor, coupling, PWM revision and an approved MPC procedure with Spectra; high, low and flush outputs all need correct programming. Do not connect a 12V motor directly to 24V supply.
Existing fitment requirements
24V system reference · Named in model manual
Confirm with Spectra before ordering. Original 24V half-HP motor reference. Leeson discontinued this motor in January 2022, according to Spectra; the product record does not establish current stock. The later 12V-motor replacement requires an eligible PWM controller and programming. Confirm installed hardware and the MPC conversion route with Spectra.
Original 24V half-HP motor reference. Leeson discontinued this motor in January 2022, according to Spectra; the product record does not establish current stock. The later 12V-motor replacement requires an eligible PWM controller and programming. Confirm installed hardware and the MPC conversion route with Spectra.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 45. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
Confirm with Spectra before ordering. The model drawing names PL-PMP-140MAG, a magnetic-drive feed-pump head separate from motor, PWM and booster. Historical drawings label C120 while the store record labels C100. Confirm the actual head stamp, pressure rating, coupling, ports and current replacement with Spectra; the common part code does not settle every variant.
The model drawing names PL-PMP-140MAG, a magnetic-drive feed-pump head separate from motor, PWM and booster. Historical drawings label C120 while the store record labels C100. Confirm the actual head stamp, pressure rating, coupling, ports and current replacement with Spectra; the common part code does not settle every variant.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 82. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual

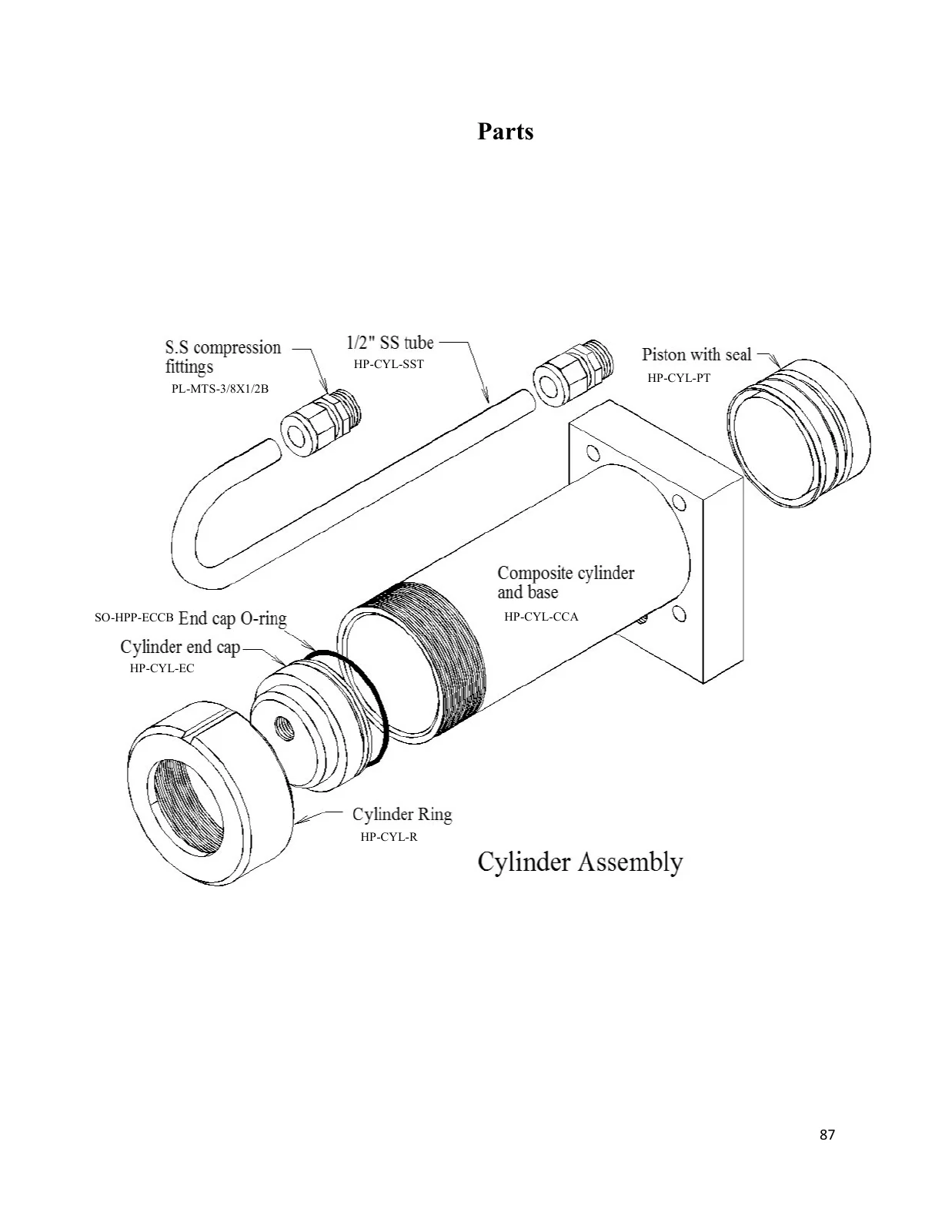

This model manual names the part on page 87. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual

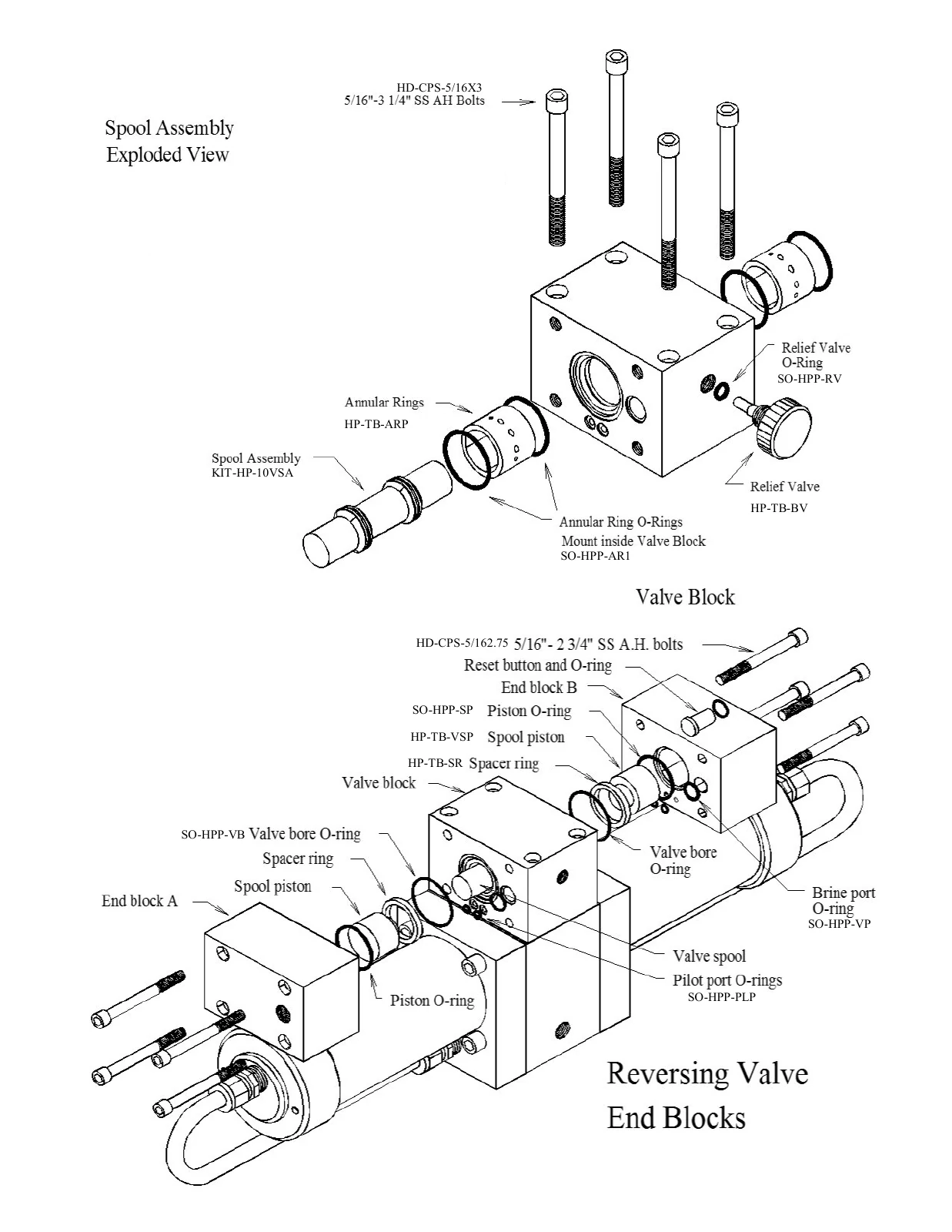

This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 79. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 87. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 85. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Named in model manual
This model manual names the part on page 81. Match exact installed label, original assembly location, connections and revision. Product pages show current contents and purchasing status.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
For an actually identified 10% pump: CB10 center block, one 7/8-inch rod and PR10 rod seals. The current rebuild manual distinguishes this from the 7% arrangement and the two-rod 20% pump. Two seal locations do not establish catalog pack quantity; match actual pump ratio after any retrofit.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
For an actually identified 10% pump: CB10 center block, one 7/8-inch rod and PR10 rod seals. The current rebuild manual distinguishes this from the 7% arrangement and the two-rod 20% pump. Two seal locations do not establish catalog pack quantity; match actual pump ratio after any retrofit.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current 7% / 10% end blocks have 1-1/4-inch bores and A1 / B1 suffixes. Mk II-Z outside drawing abbreviates these labels to A / B; those current catalog codes are 20% one-inch-bore parts, so they are excluded here. Confirm installed bore, side and current suffix with Spectra before ordering.
Current 7% / 10% end blocks have 1-1/4-inch bores and A1 / B1 suffixes. Mk II-Z outside drawing abbreviates these labels to A / B; those current catalog codes are 20% one-inch-bore parts, so they are excluded here. Confirm installed bore, side and current suffix with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Confirm with Spectra before ordering. Current 7% / 10% end blocks have 1-1/4-inch bores and A1 / B1 suffixes. Mk II-Z outside drawing abbreviates these labels to A / B; those current catalog codes are 20% one-inch-bore parts, so they are excluded here. Confirm installed bore, side and current suffix with Spectra before ordering.
Current 7% / 10% end blocks have 1-1/4-inch bores and A1 / B1 suffixes. Mk II-Z outside drawing abbreviates these labels to A / B; those current catalog codes are 20% one-inch-bore parts, so they are excluded here. Confirm installed bore, side and current suffix with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current 7% / 10% top-end spool piston and matching seal, used with 1-1/4-inch-bore end blocks. Do not substitute the one-inch HP-TB-VSP1 / SO-HPP-SP1 pair for the 20% pump. Confirm catalog pack quantity separately from two installed locations.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
For an actually identified 10% pump: CB10 center block, one 7/8-inch rod and PR10 rod seals. The current rebuild manual distinguishes this from the 7% arrangement and the two-rod 20% pump. Two seal locations do not establish catalog pack quantity; match actual pump ratio after any retrofit.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current Clark Pump rebuild reference, scoped to the actually identified 10% pump. Match installed part revision and the named 7% / 10% callout; generic 20% callouts do not establish compatibility. Repeated pieces in a drawing do not set catalog order quantity.
Existing fitment requirements
12V / 24V system references · Clark Pump rebuild reference
Current 7% / 10% top-end spool piston and matching seal, used with 1-1/4-inch-bore end blocks. Do not substitute the one-inch HP-TB-VSP1 / SO-HPP-SP1 pair for the 20% pump. Confirm catalog pack quantity separately from two installed locations.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current MPC-5000 board route. Match actual chip, wiring, system programming and connected accessories with Spectra. Both guide generations are documented as MPC-5000; the board is not a complete MPC-3000 conversion kit.
Current MPC-5000 board route. Match actual chip, wiring, system programming and connected accessories with Spectra. Both guide generations are documented as MPC-5000; the board is not a complete MPC-3000 conversion kit.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. MPC-5000 LCD display reference. Match actual MPC generation, connector and Spectra-approved cable length with Spectra; an ordinary LAN or telephone cable is not a replacement. This is separate from a Connect touchscreen conversion.
MPC-5000 LCD display reference. Match actual MPC generation, connector and Spectra-approved cable length with Spectra; an ordinary LAN or telephone cable is not a replacement. This is separate from a Connect touchscreen conversion.
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Use the actual MPC-5000 chip: B-series/A31 require A40 board plus SP4; A34/A35 need the daughter board or A40 route; A36/A37/A39/A40 list SP4 compatibility. Match the connector and 15-foot cable reach. The model name alone is not a probe recommendation.
Use the actual MPC-5000 chip: B-series/A31 require A40 board plus SP4; A34/A35 need the daughter board or A40 route; A36/A37/A39/A40 list SP4 compatibility. Match the connector and 15-foot cable reach. The model name alone is not a probe recommendation.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current Newport Spartan freshwater-flush coil/solenoid reference without the valve body. The 2017 Mk II-Z drawing names O12SP; the manufacturer chart places it on Newport systems since 2016. Confirm the actual body, connector, output and revision with Spectra. It is not a diversion valve.
Current Newport Spartan freshwater-flush coil/solenoid reference without the valve body. The 2017 Mk II-Z drawing names O12SP; the manufacturer chart places it on Newport systems since 2016. Confirm the actual body, connector, output and revision with Spectra. It is not a diversion valve.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
The illustrated clear FT-FTH-10L3PCS three-piece housing uses SO-FHS-3PCS10 and FT-FHW-3PCS. Match actual housing/ring style and any modified Z-Ion bowl. The matrix marks the old standard FT-FTH-10 housing and FT-FHW-10 wrench discontinued, not every 10-inch housing.
12V / 24V system references · Current manufacturer reference
The illustrated clear FT-FTH-10L3PCS three-piece housing uses SO-FHS-3PCS10 and FT-FHW-3PCS. Match actual housing/ring style and any modified Z-Ion bowl. The matrix marks the old standard FT-FTH-10 housing and FT-FHW-10 wrench discontinued, not every 10-inch housing.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current Newport 400 / Mk II-Z parts reference names the end-plug kit and retaining ring separately. Identify the actual vessel and any Z-Brane end-cap revision with Spectra; an older FT-PV-EP1 label does not prove every current kit includes the same hardware. The membrane element is a separate purchase.
Current Newport 400 / Mk II-Z parts reference names the end-plug kit and retaining ring separately. Identify the actual vessel and any Z-Brane end-cap revision with Spectra; an older FT-PV-EP1 label does not prove every current kit includes the same hardware. The membrane element is a separate purchase.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current Newport 400 / Mk II-Z parts reference names the end-plug kit and retaining ring separately. Identify the actual vessel and any Z-Brane end-cap revision with Spectra; an older FT-PV-EP1 label does not prove every current kit includes the same hardware. The membrane element is a separate purchase.
Current Newport 400 / Mk II-Z parts reference names the end-plug kit and retaining ring separately. Identify the actual vessel and any Z-Brane end-cap revision with Spectra; an older FT-PV-EP1 label does not prove every current kit includes the same hardware. The membrane element is a separate purchase.
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current selection chart: six external fitting holes and approximately 1-inch legacy solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Current selection chart: six external fitting holes and approximately 1-inch legacy solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current selection chart: five external fitting holes and approximately 1-inch legacy solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Current selection chart: five external fitting holes and approximately 1-inch legacy solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current selection chart: six external fitting holes and approximately 3/4-inch Spartan solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Current selection chart: six external fitting holes and approximately 3/4-inch Spartan solenoid opening. The Mk II-Z drawing names INTZ. Select by the actual body and solenoid port, not year alone. Confirm valve generation, adapter and fittings with Spectra after changes; the intake manifold is separate from the product diversion manifold.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Distributor rebuild kit for an identified 10% Clark Pump. Current kit excludes spacer rings and top-end spool pistons; instructions and tools are not supplied. Compare contents with the separate seal/O-ring service kit before adding individual pieces.
Existing fitment requirements
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Current product-water diversion conversion chart covers appropriate legacy 12V and 24V installations. Confirm actual diversion manifold, original ECI/Alcon/Spartan valve and required fittings with Spectra. This kit does not replace the freshwater-flush valve.
Current product-water diversion conversion chart covers appropriate legacy 12V and 24V installations. Confirm actual diversion manifold, original ECI/Alcon/Spartan valve and required fittings with Spectra. This kit does not replace the freshwater-flush valve.
12V / 24V system references · Current manufacturer reference
Confirm with Spectra before ordering. Manufacturer-chart coil conversion for the legacy 12V ECI/Alcon freshwater-flush valve, retaining its body. Identify actual valve body and output with Spectra before choosing it. This is not a complete valve or a product-water diversion conversion.
Manufacturer-chart coil conversion for the legacy 12V ECI/Alcon freshwater-flush valve, retaining its body. Identify actual valve body and output with Spectra before choosing it. This is not a complete valve or a product-water diversion conversion.
Confirm these specific links with Spectra before ordering. Historical labels, changed parts and later replacement paths remain conditional where the evidence does not establish a direct fit.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. The compatibility table names SP4 without establishing the shorter SP4N suffix. Confirm exact connector, chip interface and 3-foot cable reach with Spectra before substituting it.
The compatibility table names SP4 without establishing the shorter SP4N suffix. Confirm exact connector, chip interface and 3-foot cable reach with Spectra before substituting it.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Spartan freshwater-flush assembly with valve body, charted for replacement of the old ECI/Alcon flush assembly; current production use is Ventura/Catalina. It is not an automatic Newport O12SP substitution. Confirm Newport body, ports, mounting and actual output with Spectra before using this candidate.
Spartan freshwater-flush assembly with valve body, charted for replacement of the old ECI/Alcon flush assembly; current production use is Ventura/Catalina. It is not an automatic Newport O12SP substitution. Confirm Newport body, ports, mounting and actual output with Spectra before using this candidate.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
Existing fitment requirements
12V / 24V system references · one long element · Installed-hardware review
Confirm with Spectra before ordering. One KIT-MB-40F supplies one 2.5 × 40-inch membrane and replacement seals. The Mk II-Z drawing shows a single long vessel but does not separately label element length. The predecessor Mk II explicitly lists 40 inches. This is a conditional long-layout reference: confirm actual Mk II-Z element dimensions, count and end-cap revision with Spectra. No short or compact conversion is inferred.
One KIT-MB-40F supplies one 2.5 × 40-inch membrane and replacement seals. The Mk II-Z drawing shows a single long vessel but does not separately label element length. The predecessor Mk II explicitly lists 40 inches. This is a conditional long-layout reference: confirm actual Mk II-Z element dimensions, count and end-cap revision with Spectra. No short or compact conversion is inferred.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Product-water diversion assembly reference, separate from the intake manifold and freshwater-flush valve. Match actual valve/body, fittings, controller output and current replacement with Spectra. The suffix on a historical drawing does not establish a direct modern substitution.
Product-water diversion assembly reference, separate from the intake manifold and freshwater-flush valve. Match actual valve/body, fittings, controller output and current replacement with Spectra. The suffix on a historical drawing does not establish a direct modern substitution.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Current remanufactured package candidate, separate from the bare 140MAG head. The Mk II-Z spares list uses KIT-PMP-140MAG, which has no exact catalog listing here; that is not an established alias for KIT-PMP-140MRF. Confirm head revision and package contents with Spectra before ordering.
Current remanufactured package candidate, separate from the bare 140MAG head. The Mk II-Z spares list uses KIT-PMP-140MAG, which has no exact catalog listing here; that is not an established alias for KIT-PMP-140MRF. Confirm head revision and package contents with Spectra before ordering.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing model reference retained for identification. Exact installed revision, contents or replacement equivalence has not been established by a named current drawing. Confirm this specific part code, location and interface with Spectra before ordering.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
Black high-pressure 10H housing, SO-FHS-10H seal and FT-FHW-10H wrench form their own housing family. The Mk II / Mk II-Z drawings show clear three-piece housings. Confirm this changed installation with Spectra before ordering; do not use the black-housing seal for a three-piece bowl.
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
Conflicting strainer reference: the Mk II-Z spares list names the 6-inch screen and gasket, while the intake drawing on page 81 explicitly identifies FT-STN-5 / FT-STN-5S / SO-STN-5SS. Confirm the actual strainer body and measured screen/gasket with Spectra; 5- and 6-inch parts are not interchangeable by model name.
Existing fitment requirements
12V / 24V system references · Installed-hardware review
Confirm with Spectra before ordering. Optional Z-Ion equipment route for an automated system. Mk II-Z is pre-plumbed for Z-Ion but this does not prove the generator is installed or that a control-only listing supplies a complete retrofit. Confirm generator bowl, electronics, carbon element, trigger wiring and plumbing with Spectra. Z-Ion differs from Z-Brane and does not protect against freezing.
Optional Z-Ion equipment route for an automated system. Mk II-Z is pre-plumbed for Z-Ion but this does not prove the generator is installed or that a control-only listing supplies a complete retrofit. Confirm generator bowl, electronics, carbon element, trigger wiring and plumbing with Spectra. Z-Ion differs from Z-Brane and does not protect against freezing.
Existing fitment requirements
KEEP THE REFERENCES CLOSE
