SPECTRA OWNER GUIDE
Find 50-, 20- and 5-micron seawater stages plus carbon for flush, membrane choices, 10% Clark Pump references and the right MPC probe path. Read the installed labels before choosing a motor or upgrade.
12V / 24V system supply · original 2006 MPC generation · check installed pump ratioIdentify system supply, motor and controller separately. Replaced hardware can change the original arrangement.
Identify system supply and controls.
IDENTIFY BEFORE ORDERING
The 2006 manual identifies a magnetic-drive pump, upstream 50-micron protection and downstream duplex 20/5-micron filters. It is separate from Newport 400 Mk II, Mk II-Z and Connect. Its older motor/display/manifold labels must be checked before ordering later replacement hardware.
Choose the correct manufacturer manual ↗Record the system supply, motor label, speed-controller code and MPC A## or B## chip. A later Newport can use a 12V motor on a 24V supply through the correctly programmed PWM controller. That does not establish a conversion for an original SPCDC controller.
Current production guidance identifies Catalina and Newport 400 as 10% arrangements. Confirm the actual pump after a retrofit. The Mk II-Z outside drawing contains a conflicting CB7 label; do not use it to select a 7% center block.
Manufacturer pump-ratio reference ↗FOLLOW THE WATER
Strainer → 50-micron element → magnetic-drive feed pump → 20-micron element → 5-micron element → Clark Pump and membrane. Carbon serves the separate freshwater-flush path.
The Clark Pump recovers pressure energy; the membrane separates fresh product water from brine. The accumulator smooths pressure pulses. Membrane seals, vessel hardware and pump seals serve different repair jobs.
The flow meter, salinity probe and diversion valve are separate components. A salinity-reading problem is different from low water production; retain automatic diversion protection and identify the chip before replacing its probe.
FILTER DIMENSIONS AND THE SPECTRA MATRIX
Three seawater sediment elements in their documented positions, plus a separate carbon flush cartridge. Nominal 10-inch length × 2.5-inch diameter is verified for 20-micron, 5-micron and carbon products; exact 50-micron measurements remain a confirmation item.
| Stage | Element and size | Housing / seal / wrench |
|---|---|---|
| Before main feed pump | FT-FTC-50 50 micron · documented 10-inch housing format | Original clear low-pressure housing Confirm exact cartridge diameter/end-to-end measurements and fitted housing seal with Spectra. |
| After pump, first | FT-FTC-20 20 micron · nominal 10 × 2.5 in | Black high-pressure housing Matching seal · Matching wrench |
| After pump, second | FT-FTC-5 5 micron · nominal 10 × 2.5 in | Same black high-pressure housing family. |
| Freshwater flush | FT-FTC-CC Carbon · nominal 10 × 2.5 in | Original low-pressure flush bowl Identify actual bowl, ring and seal; a neighboring matrix column is not a match. |
Black downstream bowls and old clear upstream/flush bowls have different sealing arrangements. The matrix does not separately establish the old clear 10L bowl seal; confirm that exact ring and housing with Spectra.
Model maintenance ↗ · Spectra filter / housing / O-ring / wrench matrix ↗
The standard housing and standard wrench marked discontinued in the matrix are separate from the high-pressure, three-piece and low-pressure styles. Measured cartridge length may differ from the nominal format. Identify the actual bowl/ring before ordering a seal.
The original manual replaces the 20-micron element in the duplex assembly with the optional oil/water cartridge. View optional element
LENGTH AND QUANTITY MATTER

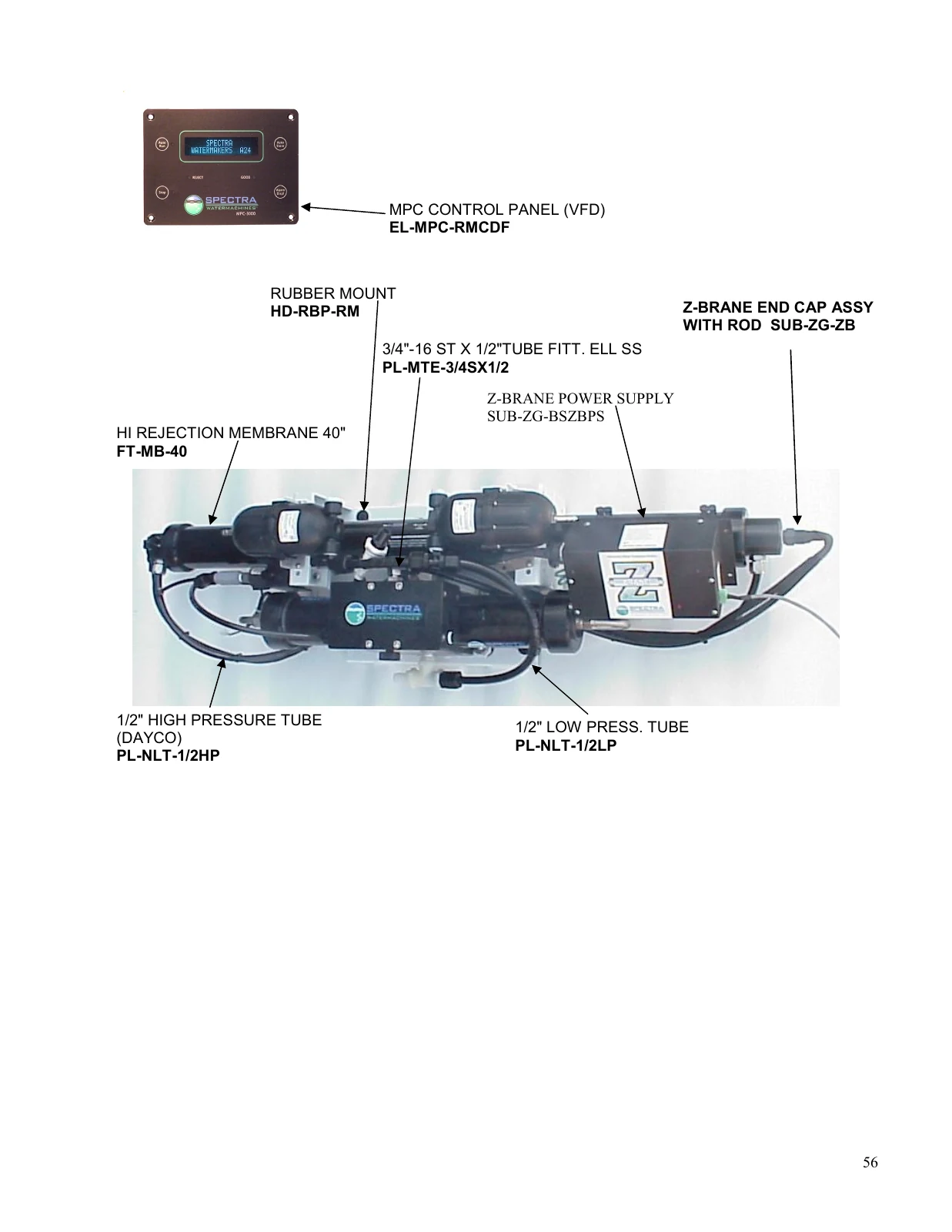

2.5 × 40-inch membrane kit replaces the single long element shown on page 56. One kit contains one new element and replacement seals. The generic spares list also names a short membrane; it does not establish a stock compact Newport 400.
Original long-vessel drawing ↗End-plug kit and retaining ring repair different hardware. Confirm installed vessel, end-cap and any Z-Brane revision with Spectra; a membrane kit is not a whole vessel or pump.
IDENTIFY THE PURCHASE
PL-PMP-140MAG is named in the original spares list. Match fitted coupling and ports. The remanufactured package candidate has a separate purchasing scope; confirm contents and replacement code with Spectra.
Original spare head ↗The historical diagram names EL-MTR-1/6D12 / EL-MTR-1/6D24 with SPCDC controls. Later Newport references describe a half-HP Leeson motor and PWM. These linked old labels are not verified direct replacement recommendations. Confirm actual motor, coupling and speed controller with Spectra.
Historical labels ↗12V half-HP motor candidate and PWM assembly reference require a confirmed compatible generation and programming. The 24V half-HP record concerns a motor the manufacturer reports discontinued in January 2022. Confirm eligibility with Spectra; do not treat the later bulletin as an automatic SPCDC retrofit.
Complete later motor/PWM conversion bulletin ↗CONTROL GENERATION MATTERS
Identify the actual controller and chip. Selectors highlight a path; the complete conditions remain readable on the page.
| Installed MPC-5000 chip | Documented path | Buying requirement |
|---|---|---|
| B-series / A31 | A40 board + SP4 | Confirm wiring and system programming; SP1 is factory obsolete. |
| A34 / A35 | SP4 + EL-MPC-SPCBA daughter board, or A40 + SP4 | The daughter board has no exact catalog listing. Do not buy the probe alone without the interface. |
| A36 / A37 / A39 / A40 | SP4 | Match connector and cable reach; A36 supports the daughter board with or without it. |
| Unknown / unlisted | Confirm with Spectra | No nearest-number inference or automatic replacement path. |
Match system supply: select 12V or 24V aboveKIT-MPC-5KUPG12KIT-MPC-5KUPG24. The documented 2006 manual is MPC-5000; a date or model name alone is insufficient to select this conversion.
Wiring re-termination, changed pump/AUX/valve outputs and system programming are required. The eligible kit retains the display and includes A40 board, SP4 and flow-meter/plumbing items. The 24V kit includes a 12V flush solenoid. Confirm the installation with Spectra; do not apply Catalina-specific relay instructions to a Newport without the complete procedure.
Current conversion kit ↗, Full conversion instructions ↗A40 board + SP4. Confirm wiring and system programming before ordering.
Confirm EL-MPC-SPCBA daughter board, or the A40-plus-SP4 route, for A34/A35. No product link is invented for the unlisted daughter board.
15-foot SP4; the 3-foot SP4N candidate still requires exact interface and cable confirmation with Spectra.
VALVE FUNCTION AND BODY MATTER
| Actual intake-body features | Current chart candidate | Requirement |
|---|---|---|
| 5 external fitting holes; about 1-inch legacy solenoid opening | SUB-NP-MK2-INT | Confirm with Spectra before ordering. Match body, valve generation and any required conversion fittings. |
| 6 external fitting holes; about 1-inch legacy solenoid opening | SUB-NP-MK2-INEZ | Confirm with Spectra before ordering. Match body, valve generation and any required conversion fittings. |
| 6 external fitting holes; about 3/4-inch Spartan opening | SUB-NP-MK2-INTZ | Confirm with Spectra before ordering. Match body, valve generation and any required conversion fittings. |
The old SUB-NP-MNFC intake body has no exact catalog listing. Hole count and solenoid opening distinguish the current candidates; no blanket supersession is established. The product-water diversion manifold is a separate component.
Current manifold identification chart ↗Legacy coil conversion retains the valve body; solenoid with body has a different scope. Confirm actual valve function, coil, body and controller output with Spectra. An A40 conversion can have 12V flush output on a 24V system.
Diversion conversion kit is charted for the appropriate legacy 12V/24V route. Confirm the original manifold, fittings and output with Spectra; similar historical D/O valve codes are not enough to establish a current replacement.
IDENTIFY THE INSTALLED 10% PUMP
HP-CB-CB10 pairs with the 7/8-inch rod and 10% rod seals. Two seal locations do not establish pack quantity. Confirm actual pump ratio/revision with Spectra. The Mk II-Z CB7 drawing conflict and generic 20% callouts do not establish fitment.
10% distributor rebuild kit excludes spacer rings and top-end spool pistons, and supplies no tools or instructions. Seal and O-ring kit is a different service scope. Compare current contents before adding individual internal pieces.
LOCATE A PART BEFORE BUYING

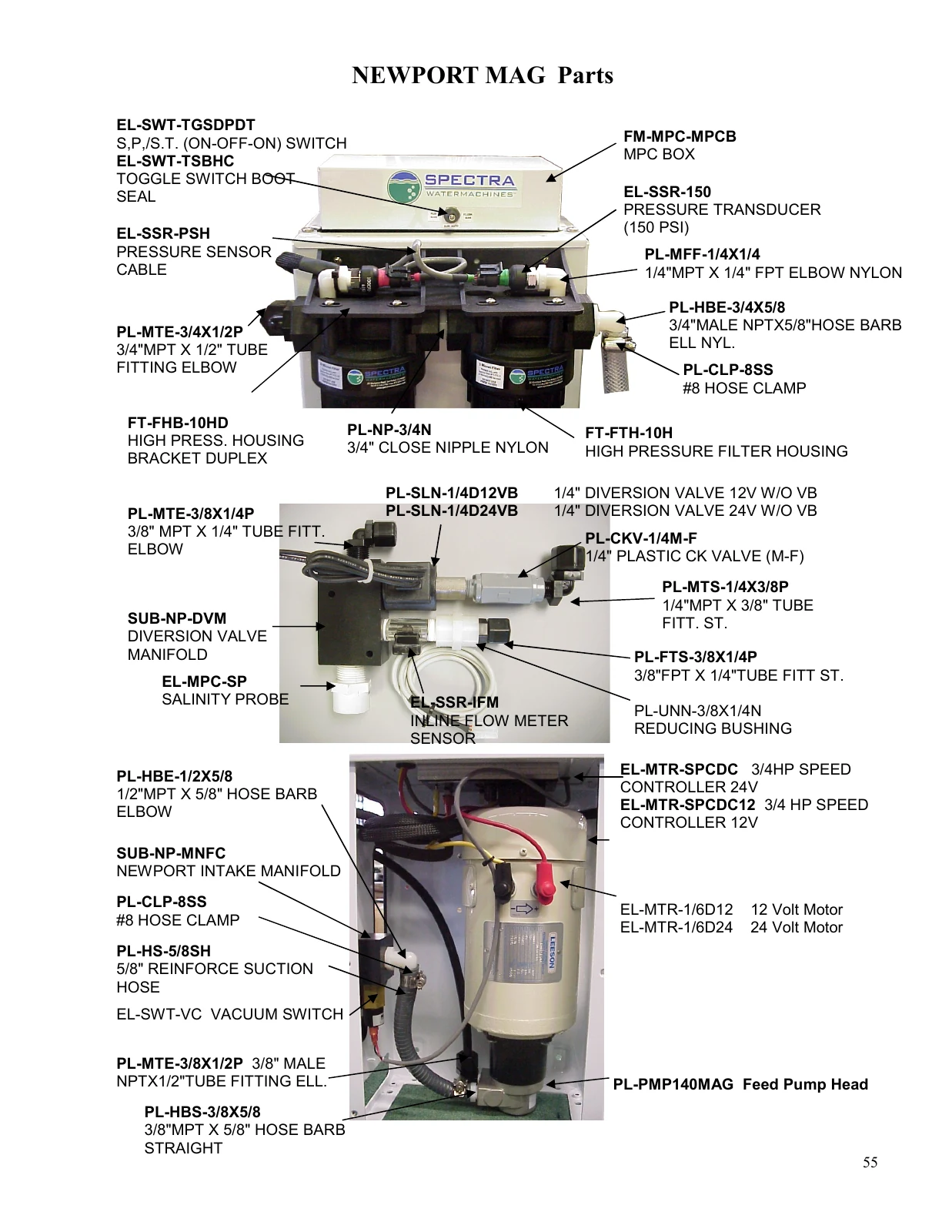

Select an assembly, then open the complete PDF for readable callouts. Outside, reversing valve, center block and cylinder groups remain separate. These are manufacturer drawings; no new model-specific 3D geometry is asserted.
Showing all drawings.
The 1/6D motor/SPCDC labels are historical. Current half-HP/PWM conversion references do not establish a direct replacement for this generation.

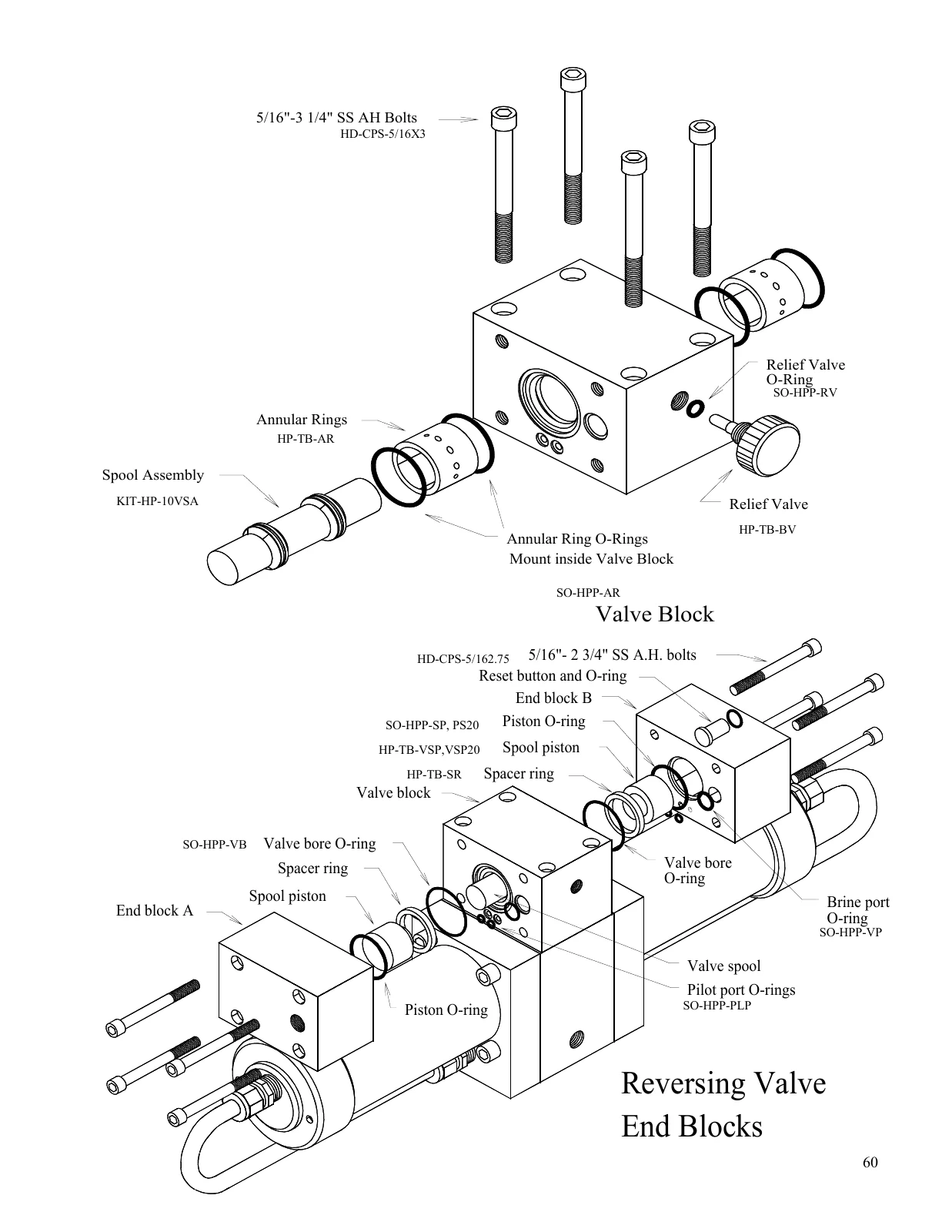

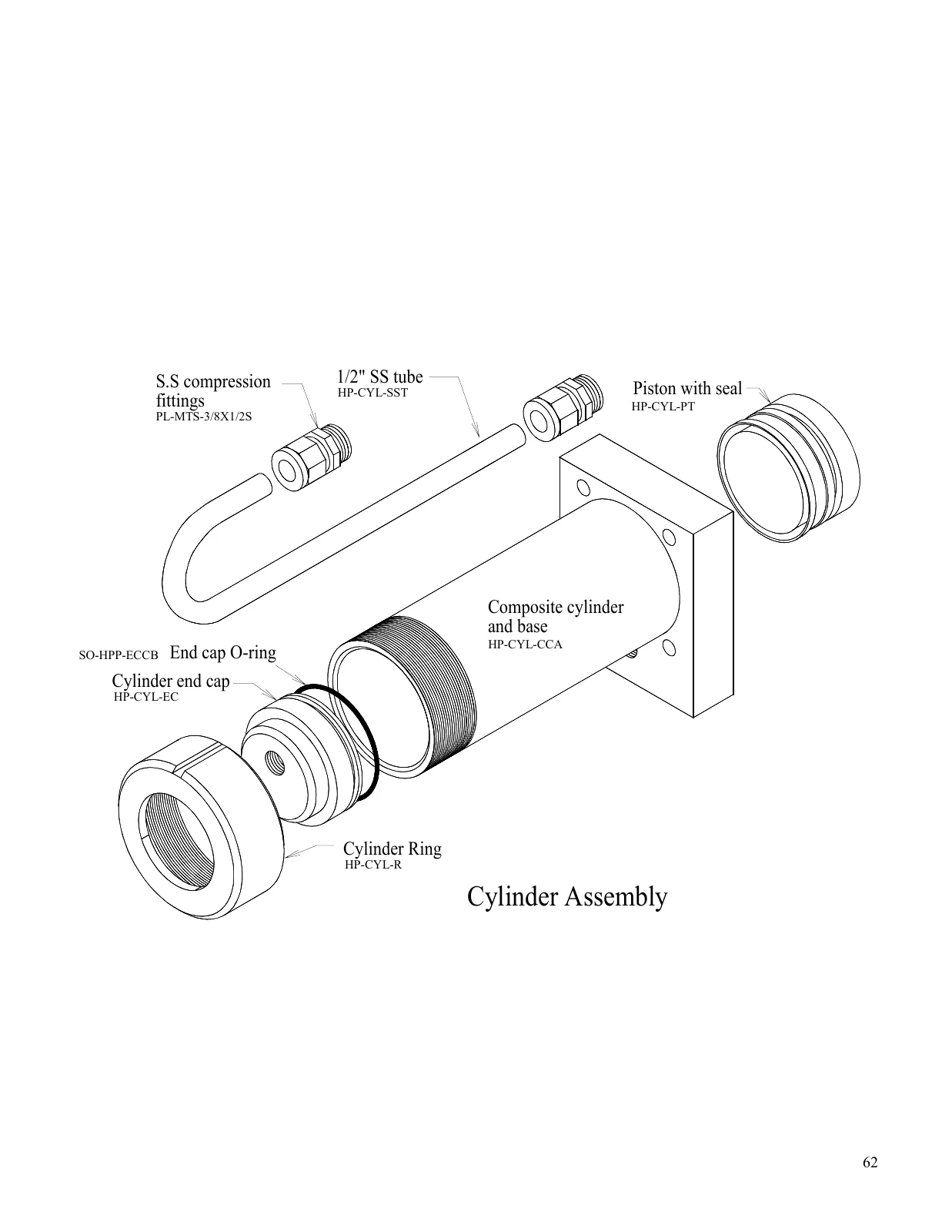

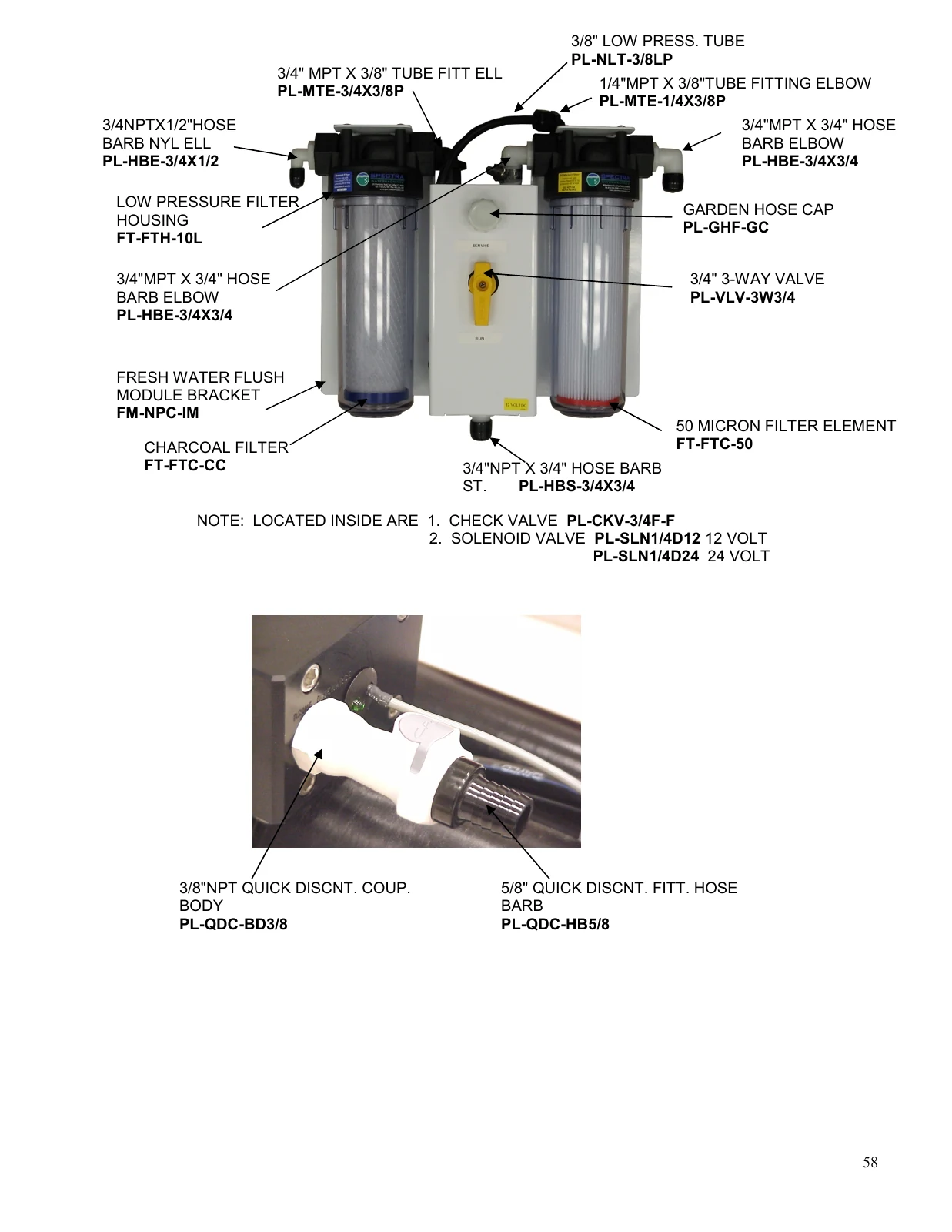

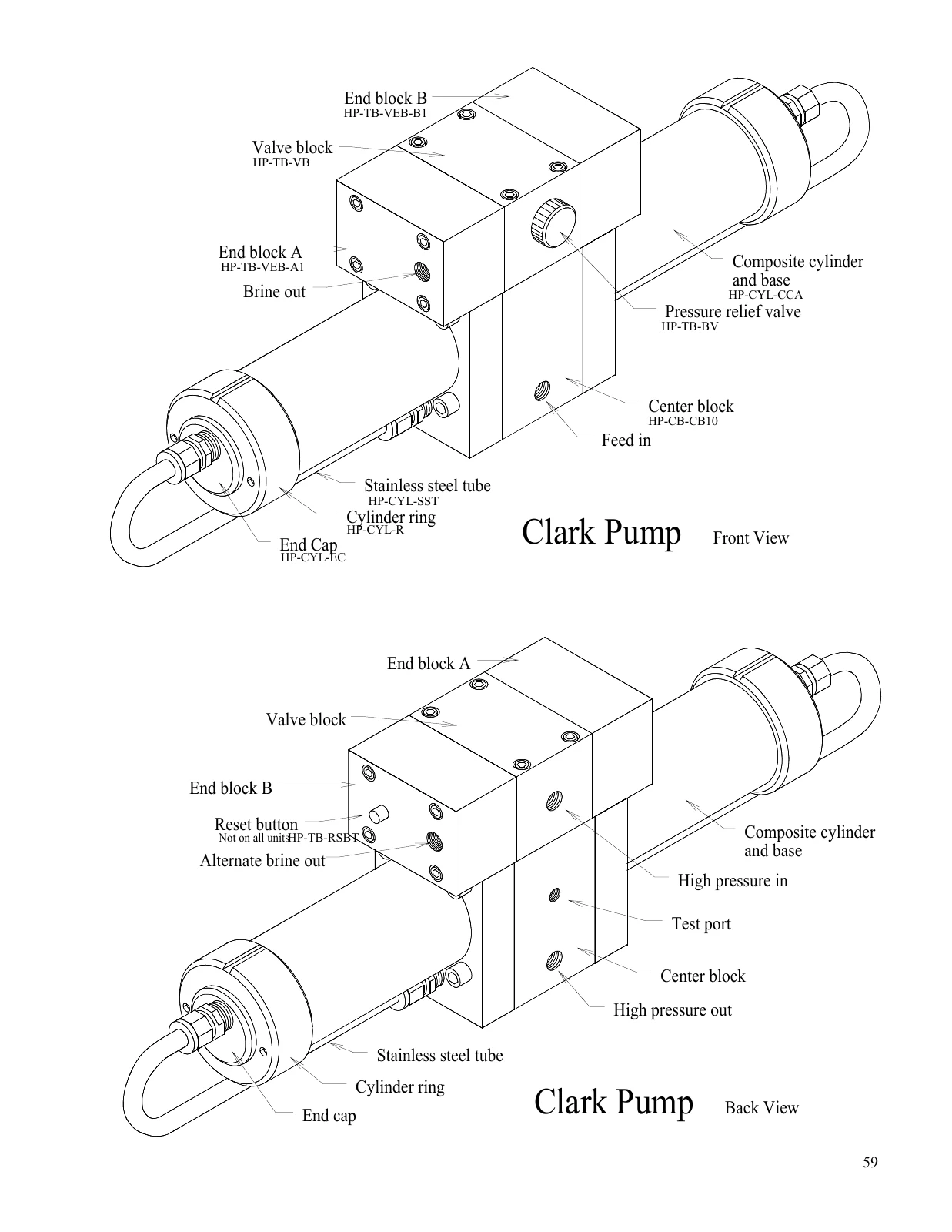

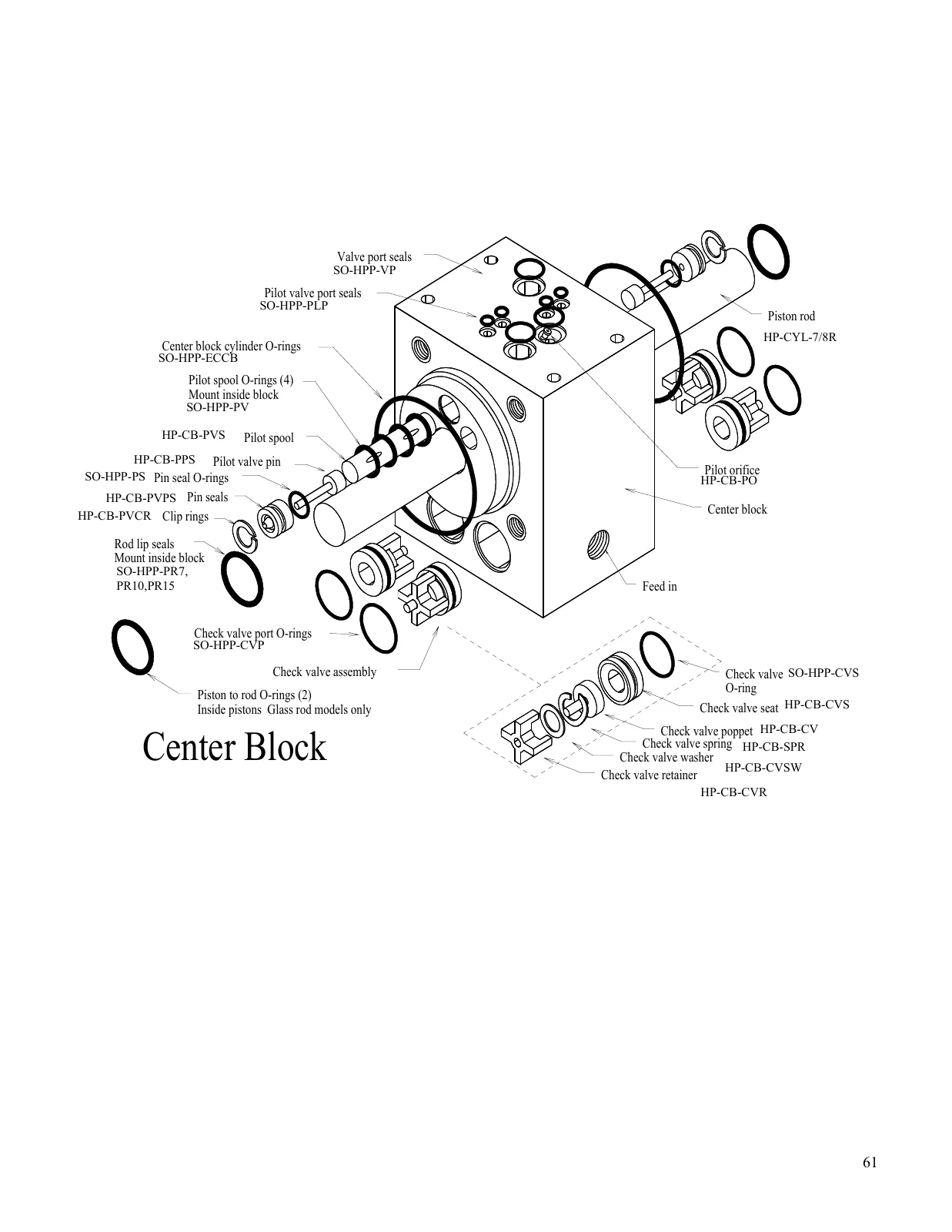

Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗The 1/6D motor/SPCDC labels are historical. Current half-HP/PWM conversion references do not establish a direct replacement for this generation.
Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗
Match callout, installed label and revision. Open the PDF for full-size detail; current replacement requirements remain in the parts list.
Open complete labeled drawing ↗PLAN THE JOB AND SPARES
Replace dirty elements according to condition and the installed layout. Do not turn historical washing advice into a universal current cartridge recommendation. Replace carbon at least every six months per the manual.
Model maintenance ↗SC-1 storage compound has a different purpose from SC-2 / SC-3 cleaners. Follow the installed-equipment procedures for storage, flushing and recommissioning; SC-1 does not provide freeze protection.
Cruise Kit C and the offshore service kit cover different spares. Compare contents and existing supplies before adding loose filters, seals or tools.
Original spares list ↗The old manual includes Z-Brane pressure-vessel equipment. A current Z-Ion generator and control assembly are different hardware; neither is freeze protection.
Use the model manual and flow-test reference to check intake restriction, installed filter stages, feed/boost supply and pressure before assuming membrane failure. A salinity reading and a production problem require different checks. Verify suspect product-water readings with a calibrated independent meter and retain automatic diversion protection.
Manufacturer flow-test guidance ↗ANSWERS FOR SPECTRA OWNERS
5-micron and carbon cartridges are nominal 10 inches long × 2.5 inches in diameter. Original Newport 400 also uses a 20-micron cartridge of that nominal size and an upstream 50-micron stage whose exact measurements need confirmation.
They perform different jobs. Sediment filters protect seawater feed components; carbon removes chlorine from freshwater used to flush. Similar dimensions do not make the functions interchangeable.
The label, interface, generation or replacement route has not been fully established. Give Spectra the full model, serial number and the actual motor, controller, chip, housing or part label identified by the note.
Only with the correctly identified controller output and documented route. The later Newport motor conversion needs the applicable PWM programming; it is not established for old SPCDC hardware. An A40 controls conversion can provide a 12V flush output.
No. A generic spares list or shared Clark drawing does not establish membrane count, pump ratio or a modern SKU suffix. Use the installed arrangement and read the model-specific requirements.
MODEL-SCOPED PRODUCT REFERENCES
Named manufacturer references and researched replacement paths appear first. Other candidates are grouped for confirmation. Selecting voltage or a membrane arrangement does not verify a retrofit.
123 references.
