Monterey 1000 parts & owner guide

Original arrangement

The January 2, 2002 manual describes frame and modular arrangements with the same principal equipment: one self-priming rotary-vane feed pump, a separate DC Shurflo flush/prime pump, MPC-3000 controls and three series-connected membrane vessels. An added boost pump is described as unnecessary.

Record equipment labels

Record system serial, main input, internal motor, auxiliary supply, controller/board, Clark ratio, housing family, membrane labels, boost-pump count and generator. Match each replacement’s actual function and current revision with Spectra.

Model scope

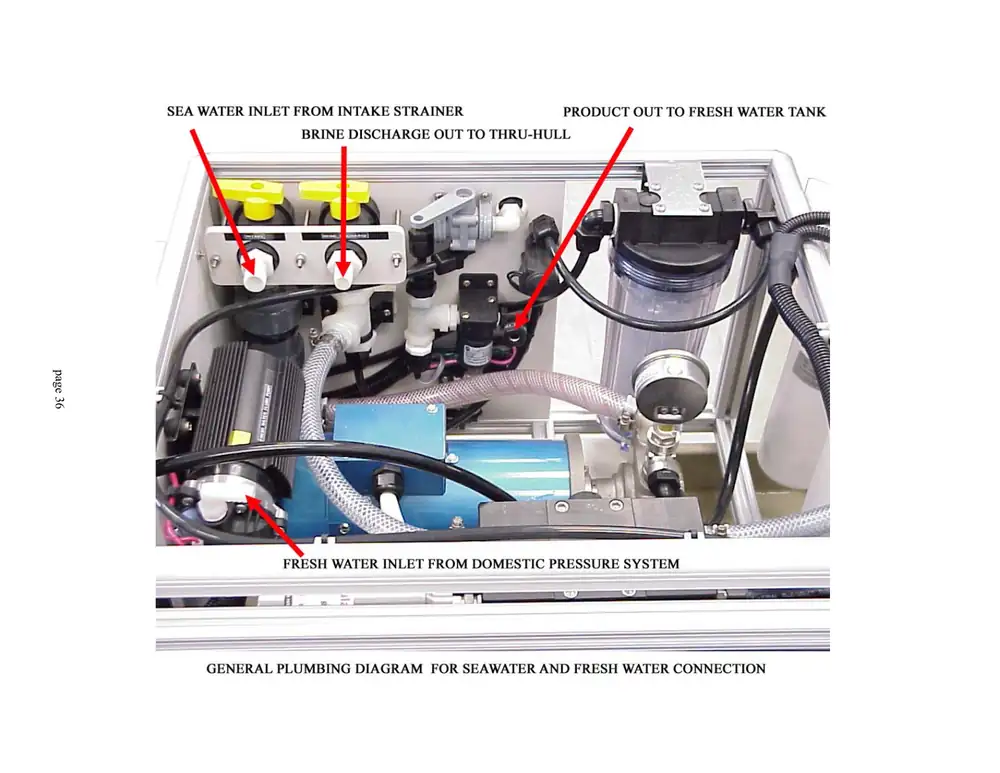

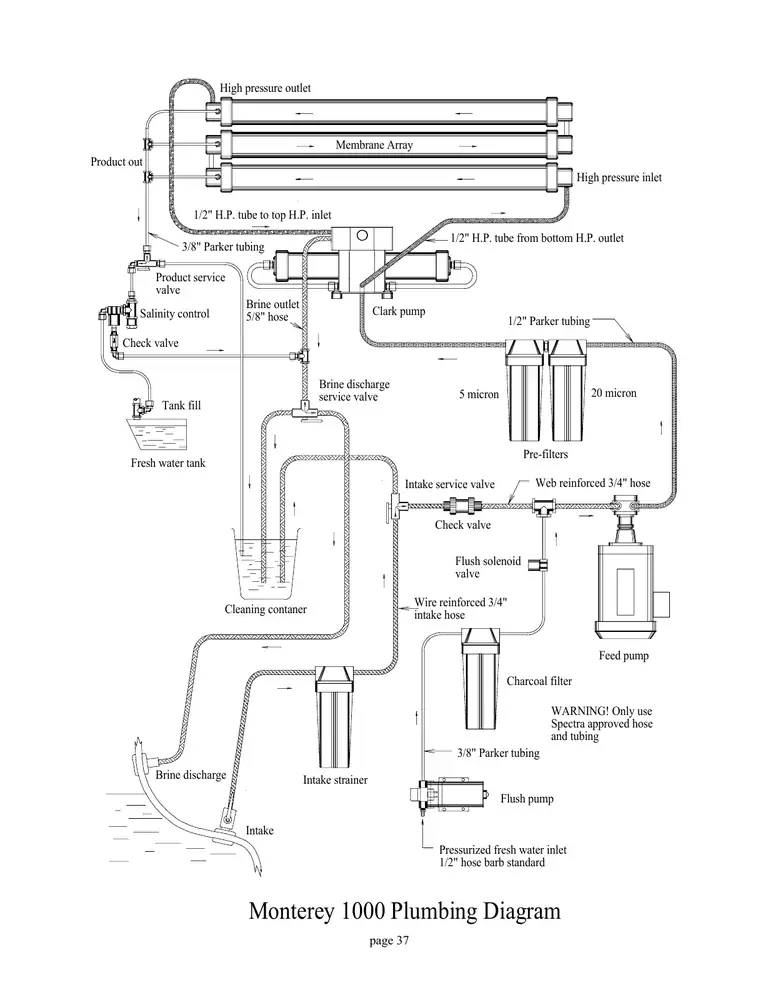

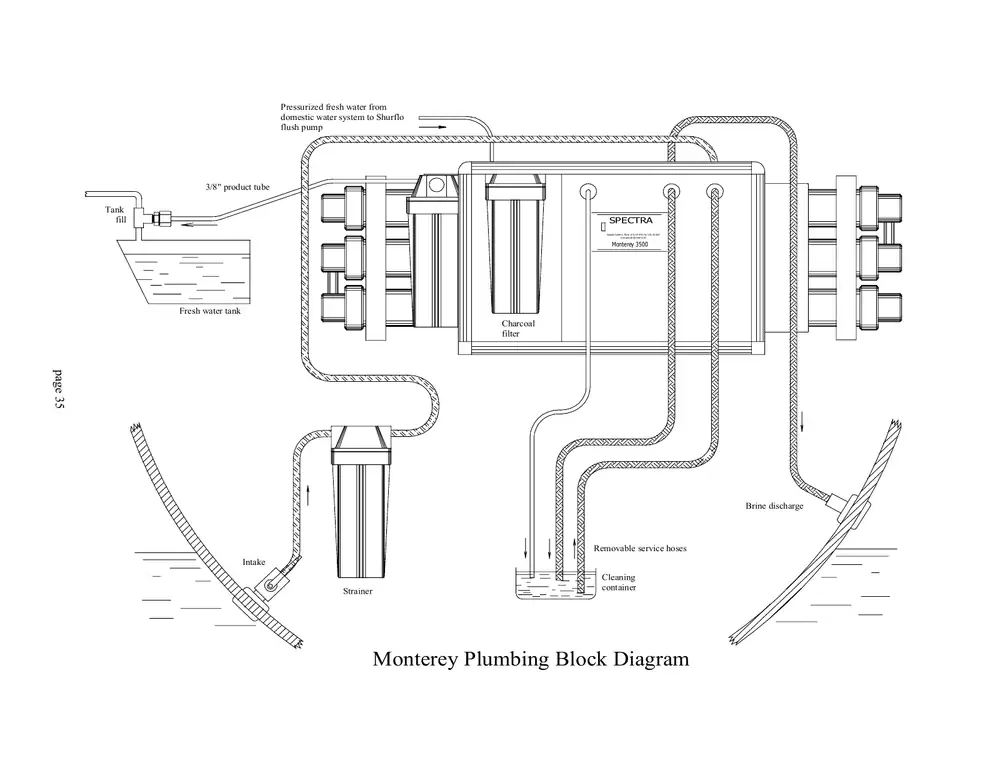

This guide follows the Monterey 1000 manual. Its page 35 diagram is labeled Monterey 3500; that historical mismatch does not establish another model. Compare the clearly named Monterey 1000 plumbing layout on page 37.

Identify bowl and seal

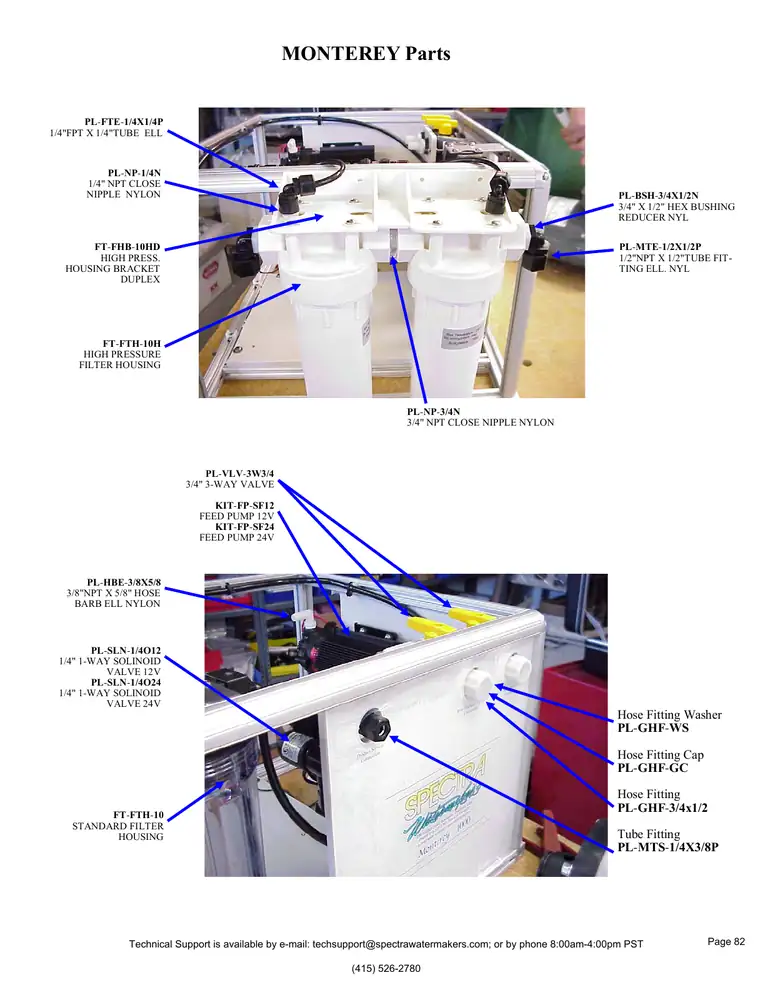

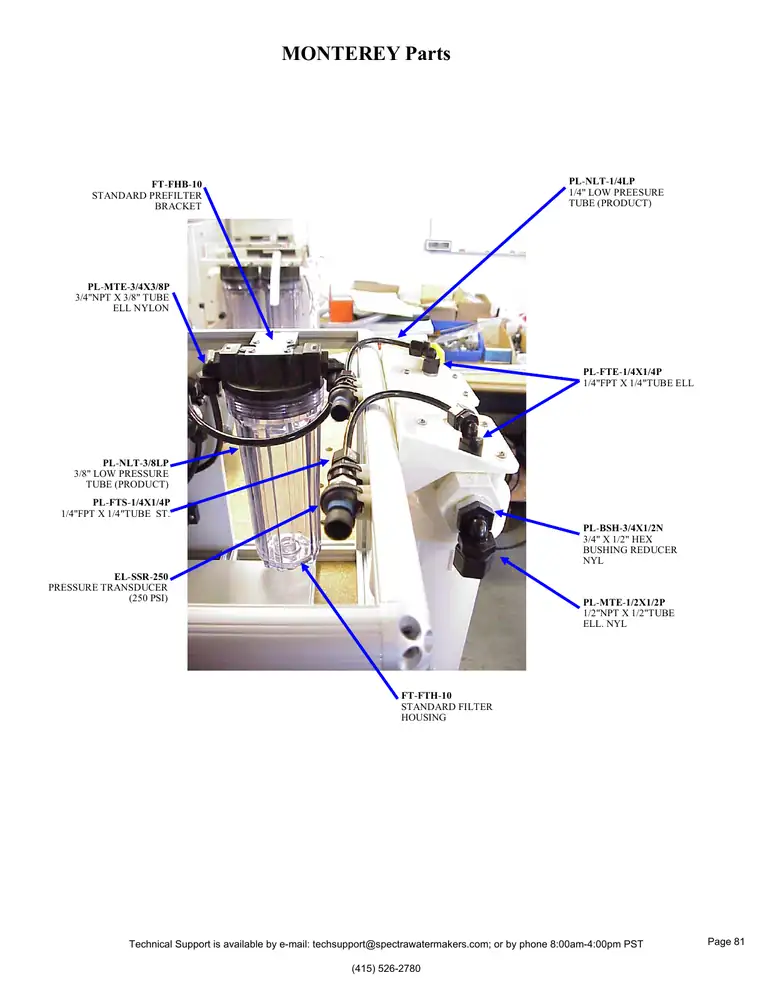

Later model Parts ID shows black FT-FTH-10H main sediment housings and a standard FT-FTH-10 carbon-flush housing. Match pressure rating, actual bowl, seal, bracket and wrench separately. The exact standard housing is absent from this catalog; no automatic substitute is supplied.

Keep carbon in the flush path

Domestic water passes through carbon before entering the seawater feed circuit. Inspect carbon age, chlorine removal and actual housing independently. Sediment filters and Z-Ion do not remove chlorine. Confirm water availability and the approved flush procedure for the installed controller.

Main feed assembly

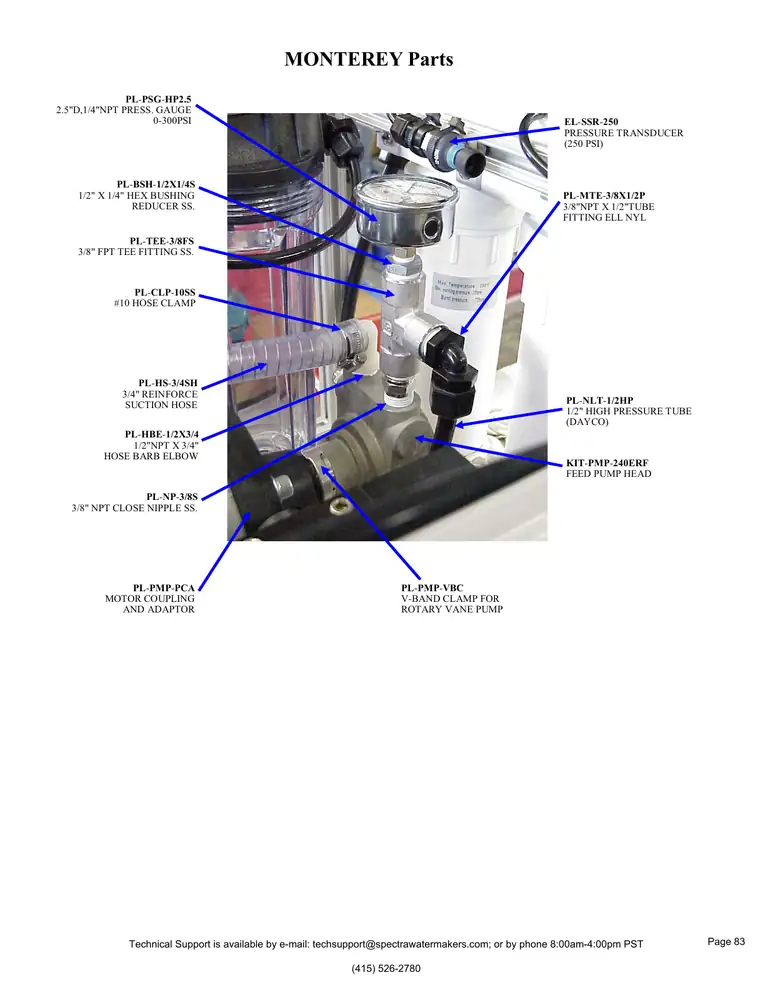

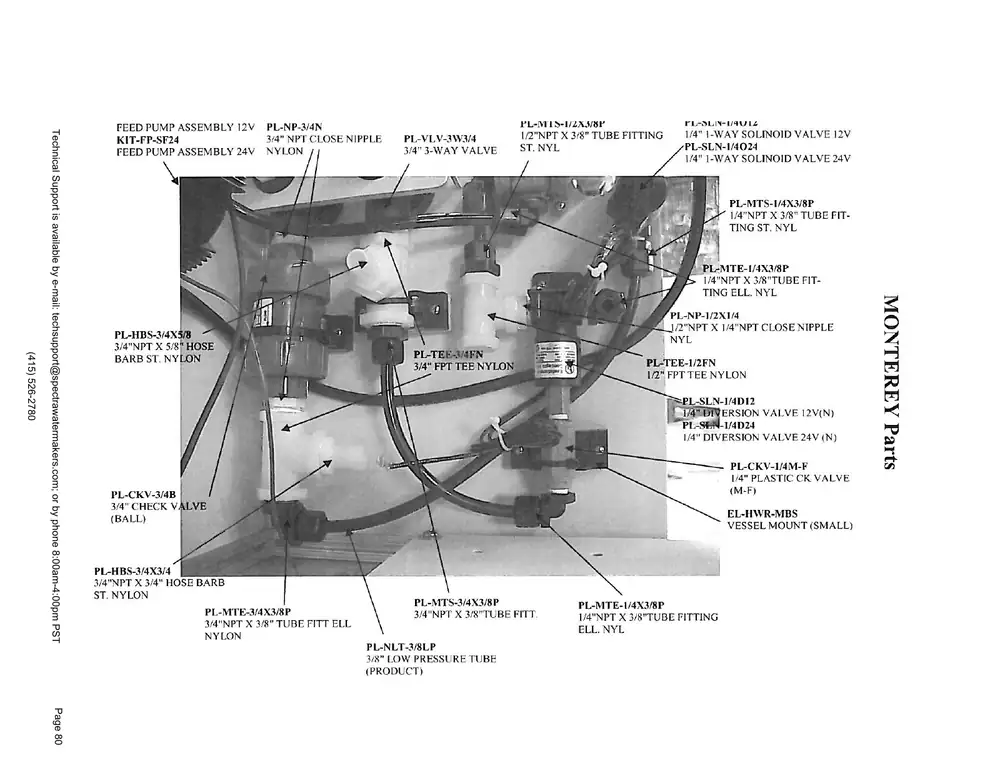

Original main feed can use 120V AC, 240V AC or 24V DC. It is a stainless mechanical rotary-vane pump, separate from the Shurflo flush/prime pump. Later Parts ID names KIT-PMP-240ERF. The current PL-PMP-240250E is a conditional head candidate requiring factory review of drive, coupling, ports and bypass; the codes are not assumed equivalent.

Separate service scopes

KIT-FP-SF12/24 is considered here only for the separate DC flush/prime pump. Current pump-and-heat-sink kits exclude the fan. Identify actual auxiliary supply, ports, switch and revision. AC main-feed selection does not select a DC coil, control board or flush pump.

Revision and diagnosis

The original mechanical feed-pressure gauge is upstream of the sediment filters and can rise as they clog; transducers on both sides measure the differential. Read actual gauge location. Diagnose air, filters, voltage, leaks and bypass before replacement; no new pressure-adjustment or modern motor conversion recipe is supplied.

Ratio identification

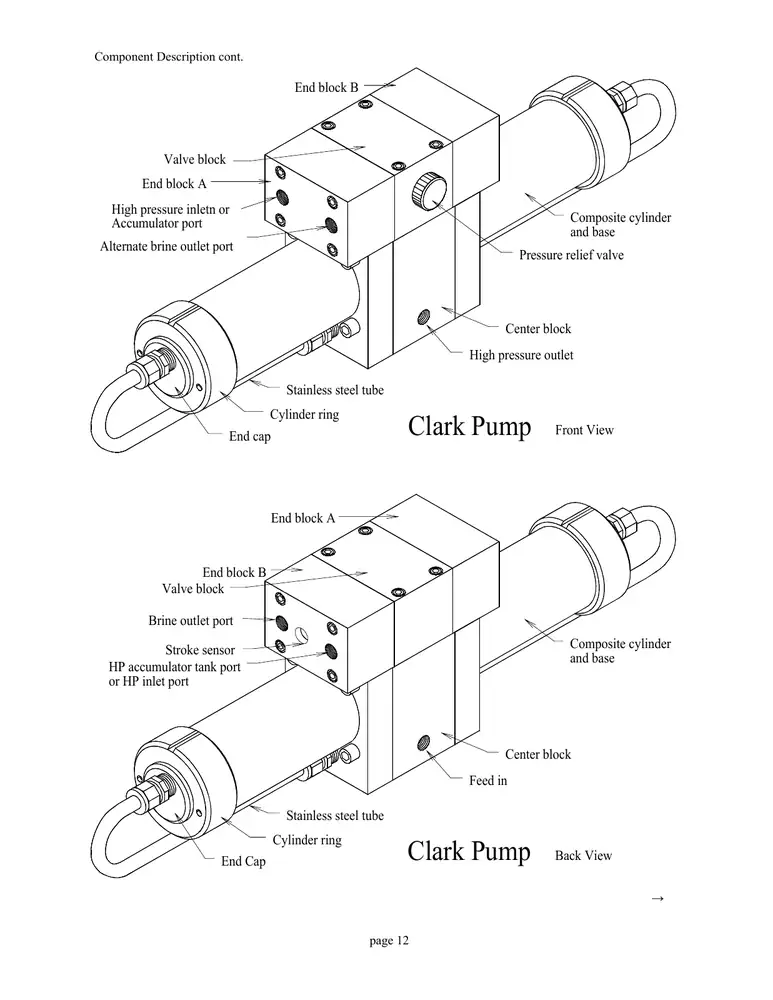

Monterey’s generic 10-to-1 force explanation does not prove Clark displacement. Unknown, 15% or other hardware remains factory review. Only positively identified 7%, 10% or 20% permits the matching candidate family.

7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod. 20% uses two 10% rods with Delrin pistons, replaceable piston seals and 1-inch top-end bores, compared with 1¼-inch on 7%/10%.

Different kit contents

Distributor rebuild kits exclude spacer rings, top-end spool pistons, tools and instructions. Seal/O-ring kits have a narrower scope. Offshore kits include tools, seals, annular rings, reversing spool, tubing/fittings and cleaners, while excluding piston rods and cylinder pistons.

Match the service family

7%/10% use KIT-HP-S&O and KIT-OFFSH; 20% uses KIT-HP-S&OH and KIT-OFFSH1. Current codes, ratio-dependent bores and illustrated quantities need revision confirmation. Shared May 2024 drawings do not prove interchangeability with every earlier pump.

Check each element

KIT-MB-40F supplies one 2.5 × 40-inch seawater element and replacement seals. Confirm actual label/dimensions, vessel revision and quantity. Monterey has three series vessels; overall array length is not proof of element size or a three-kit order.

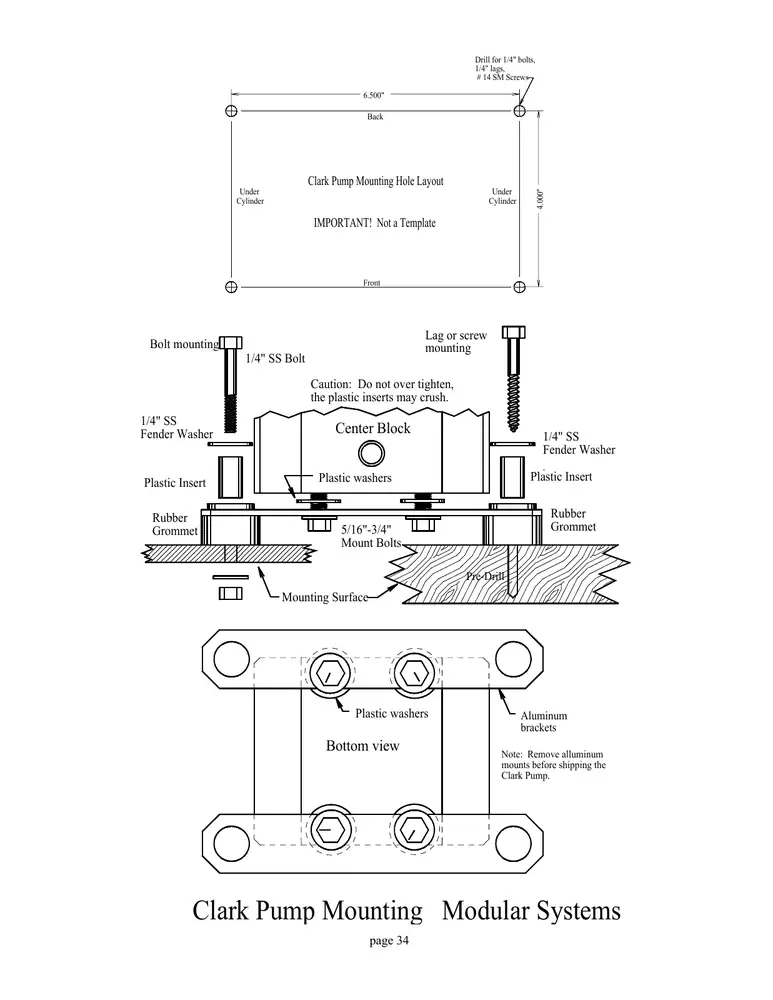

Preserve approved mounting

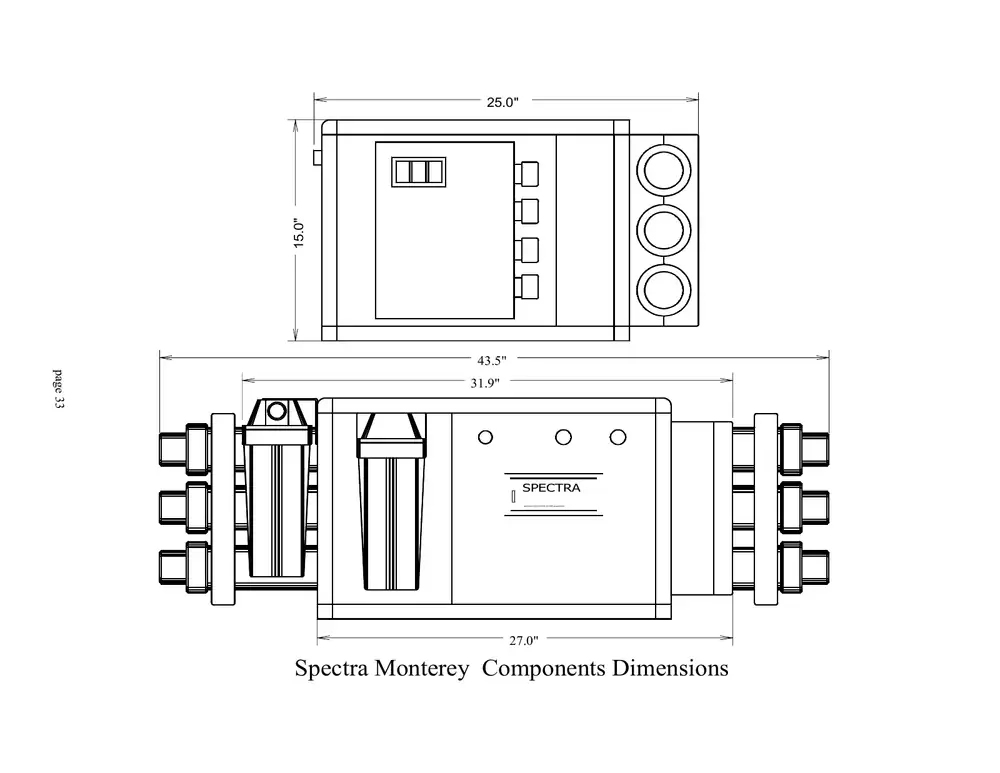

Identify actual end caps, retaining rings, seals, port orientation and vent arrangement before choosing vessel hardware. No universal seal count is inferred for changed caps. Monterey’s three-vessel array has factory supports/clamps; preserve its approved arrangement and service clearance rather than transferring a single-vessel mounting rule.

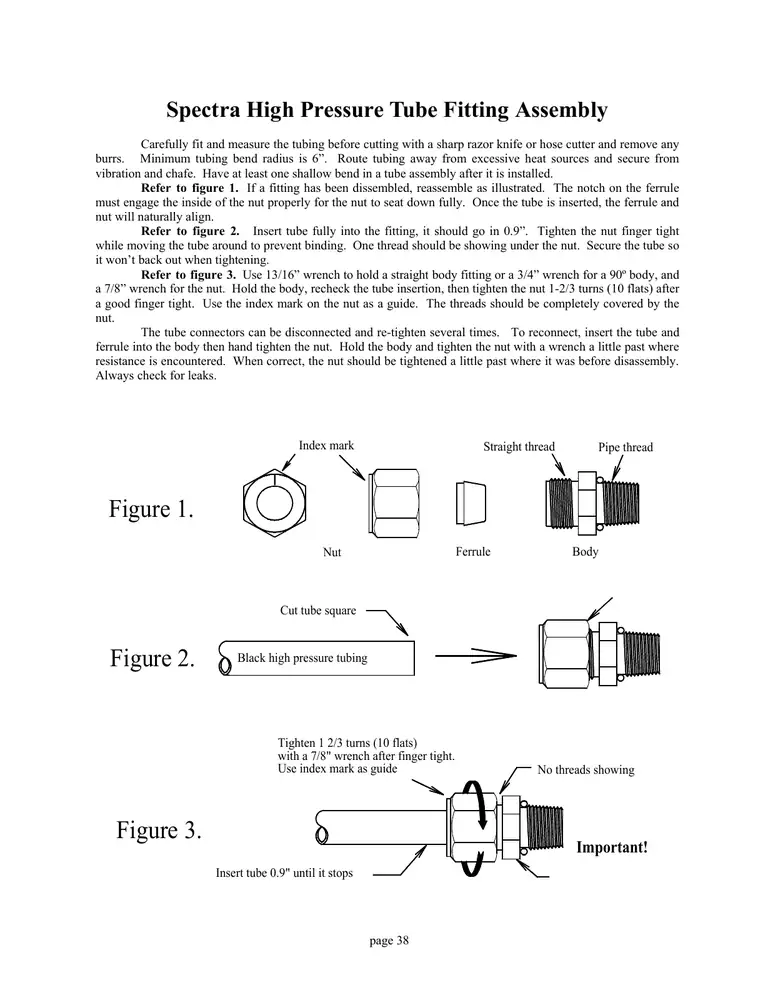

Product and high pressure differ

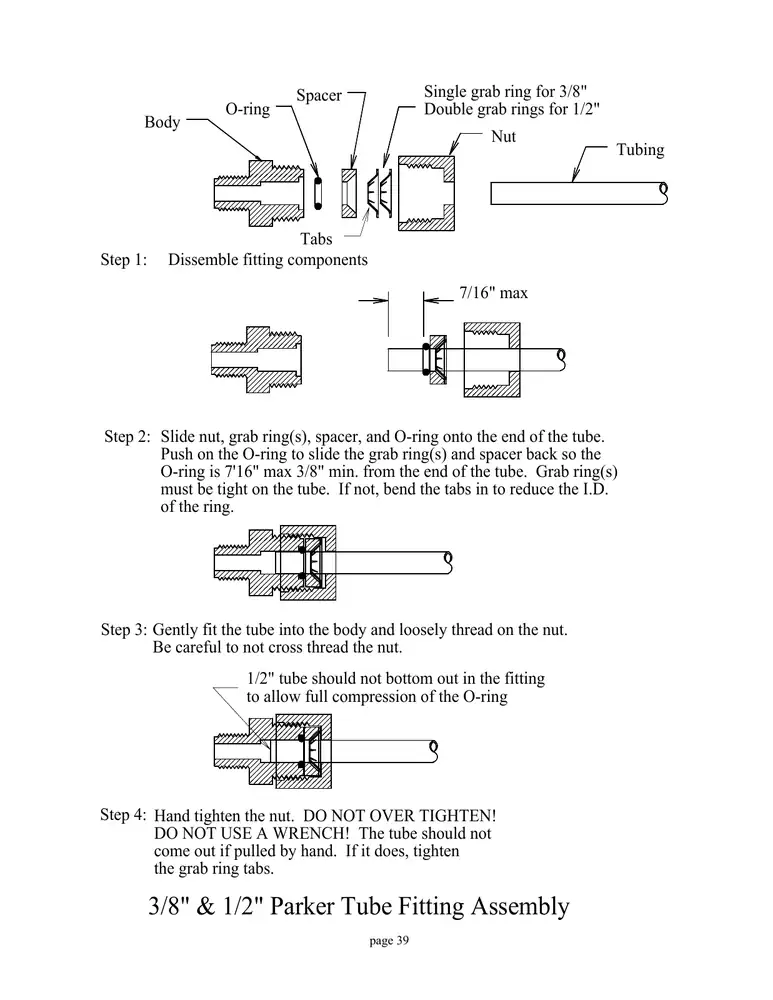

Each membrane has an individual 1/4-inch product connection that joins a larger 3/8-inch collector. Preserve unrestricted routing to an approved vented-tank top/fill connection. Old page 30 vent-line advice needs current factory review; it is not repeated as a new routing recommendation. High-pressure feed/brine tubing is a different circuit.

Different communication wiring

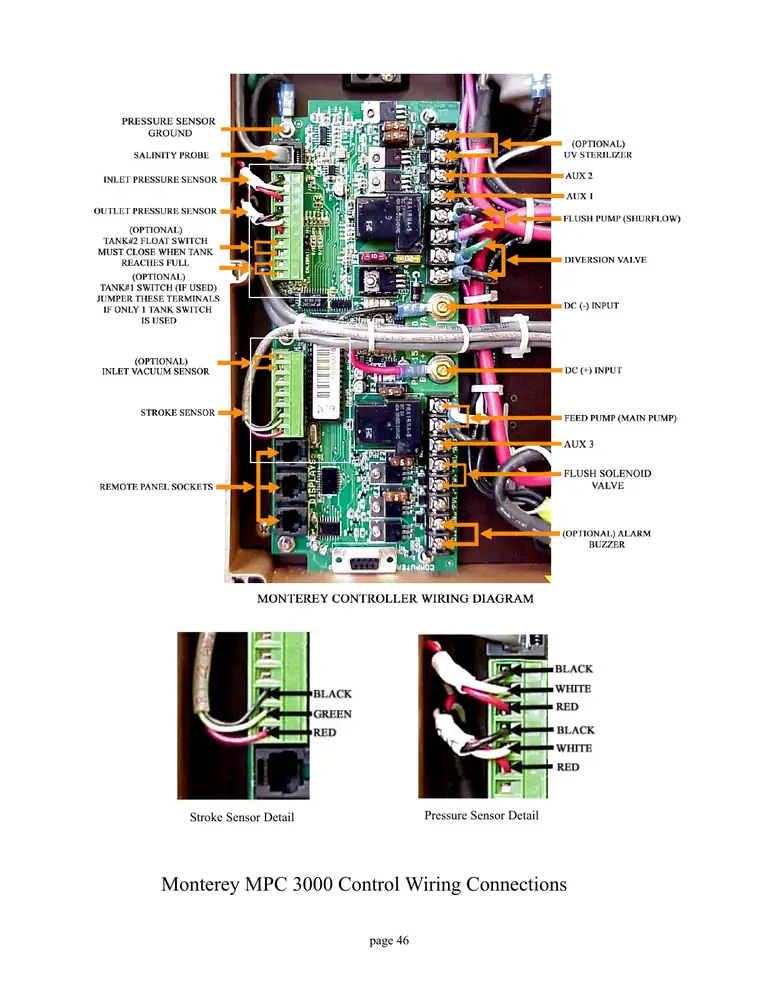

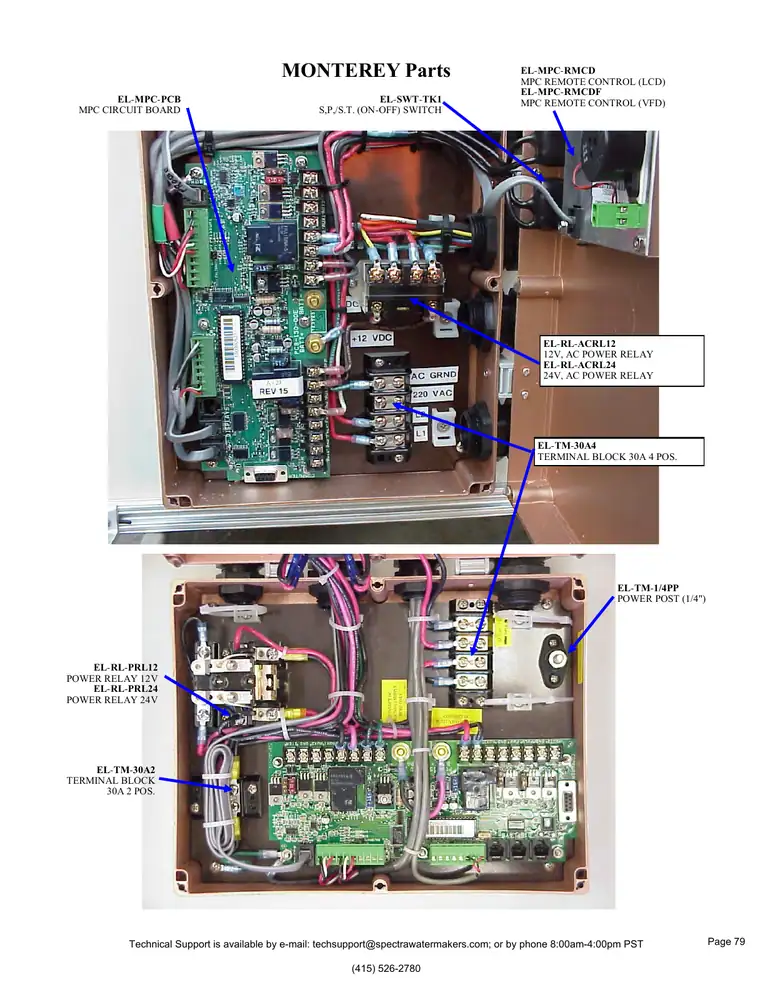

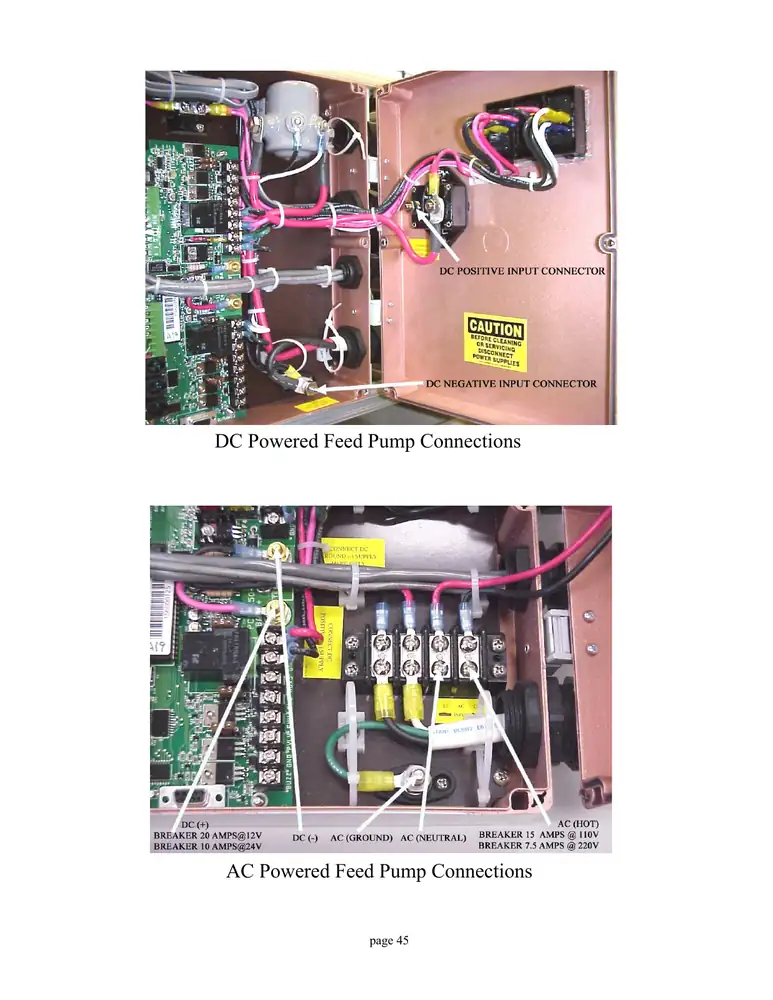

Original MPC-3000 remote uses its dedicated cable and sockets, not a LAN connection. Alarm terminals are an output interface, not an accessory power source. Original AC main feed still has separate DC control and flush power. Preserve the approved actual board wiring.

Water-quality protection

Manual overrides can bypass automatic salinity rejection. Keep product away from the tank until approved purge and independent water-quality checks pass. Confirm probe orientation, clean/calibrate according to installed-controller instructions and diagnose flow/pressure faults before ordering electronics.

Complete model fit required

A complete AUTO retrofit needs identified already installed MPC-5000 controls and Monterey-specific factory approval. General MPC compatibility does not prove MPC-3000 integration; original ZetaRod is a different product. Confirm plumbing, trigger, connectors, package contents and carbon protection.

Approve accessory power separately

Accessory DC supply is a separate confirmation from main feed input and auxiliary DC. No direct AC or 48V connection is implied. Changing main feed power clears accessory and retrofit approval selections. A feed motor’s voltage does not approve optional-generator power.

Service an installed generator

SUB-ZION-ELECTB combines bowl and rod. Identify installed generator/control box and matching revision before selecting it or a loose bowl/rod. Avoid automatically adding another rod. A service item is not a complete retrofit. Z-Ion removes neither chlorine nor freezing risk.

Baseline and flush

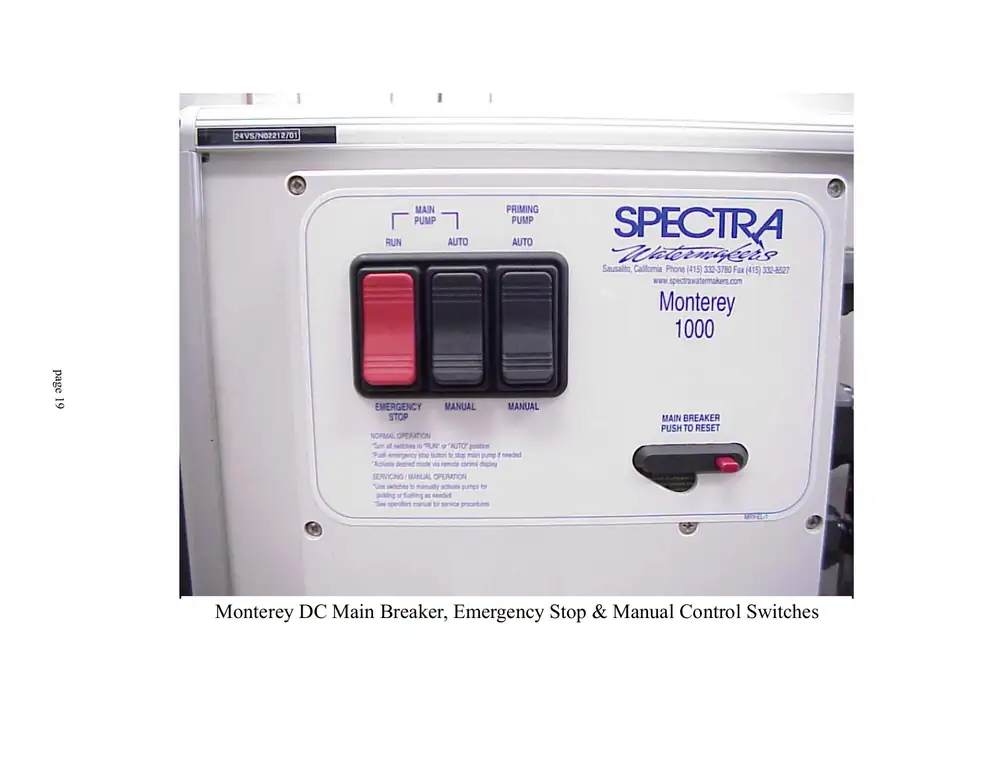

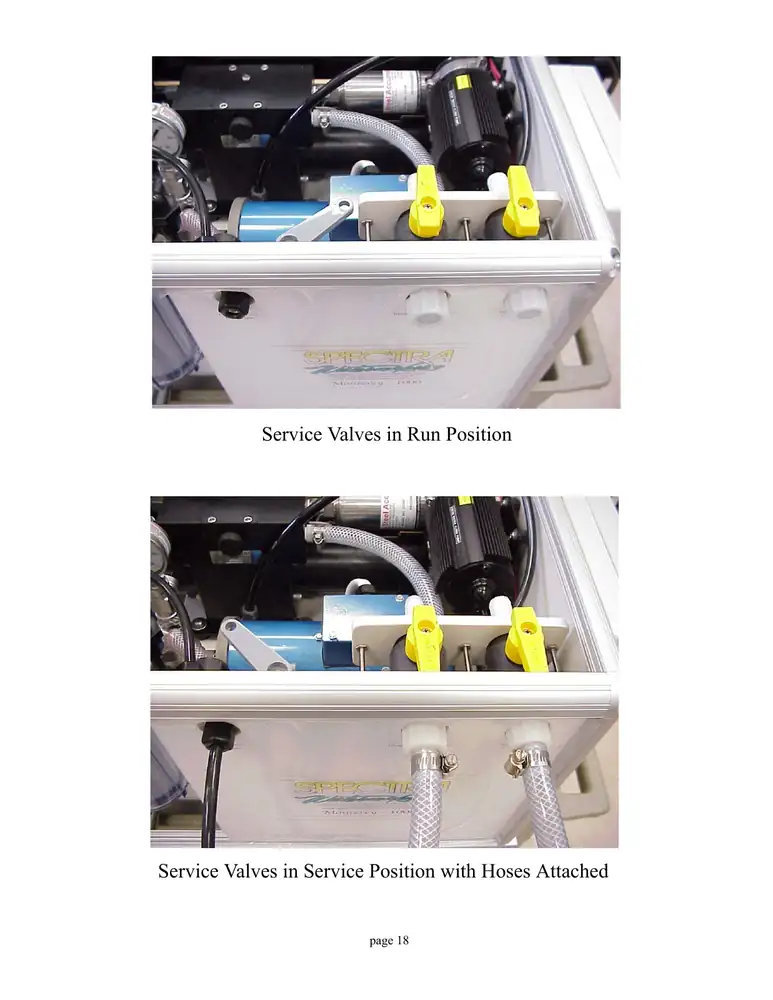

Record clean-filter flow, pressure and voltage under load. Inspect strainer, air leaks, sediment and carbon before diagnosing pumps. Automatic recurring flush needs continuous correct power, available tank/domestic water and the configured controller. Chemical storage uses its own approved circulation and power-off procedure; recurring flush and chemical storage are different paths.

Current chemical roles

SC-1 is storage compound; SC-2 is alkaline biological-fouling cleaner; SC-3 is acid mineral-scale cleaner. Never mix SC-2/SC-3, use cleaners for storage or infer current package quantity from historical KIT-CHEM codes. Use nonchlorinated water and the approved fitted-system procedure. No unverified numeric dose is supplied.

Purge and freezing

Keep product out of the tank during depressurized chemical purge until the approved purge and quality checks pass. Follow installed-hardware service valve and hose routing. SC-1 and Z-Ion do not prevent freezing. Obtain the current fitted-system winterizing procedure rather than transferring historical recipes or filter-washing advice.

Cruise spare quantities

KIT-BCK-B is only a conditional stock candidate after matching actual 10 × 2.5-inch pair and carbon stage. Current stock is three 5-micron, three 20-micron, one carbon and two SC-1. The current compatibility list does not explicitly name Monterey; factory confirmation remains necessary.
