Identify the installed pump, controls and filter arrangement. Compare labeled drawings, service scopes and replacement requirements before ordering.
Connect controls · brushless mag-drive feed · single original 5-micron stage · ignition protection
Match the actual equipment. Every part reference keeps its confirmation requirements. Selection narrows candidates; it does not approve a conversion or verify stock.
Original model manual ↗ · Manufacturer model index ↗Related guide: Monterey 1000
Select labels and hardware you have confirmed. Reset returns to unidentified equipment.
Main feed supply
SOURCE GENERATION AND INSTALLED LABELS
The July 2024 manual specifies a 10% Clark Pump, one long membrane module, brushless mag-drive feed module, strainer/boost module and Connect touchscreen. Keep feed module vertical and boost pump below the waterline. Optional Z-Ion replaces the standard freshwater-flush module.
Manual, PDF page 11 ↗ · Manual, PDF page 13 ↗Record system serial, main input, internal motor, auxiliary supply, controller/board, Clark ratio, housing family, membrane labels, boost-pump count and generator. Match each replacement’s actual function and current revision with Spectra.
Manufacturer generation reference ↗The manufacturer index covers Bimini 2019–current and separately identifies Boston Whaler OEM 2019–2022. This guide documents the standard 300C Connect arrangement. Select OEM or unknown to hold standard part candidates for factory identification. Shared Catalina fabrication labels do not prove complete Catalina assemblies fit Bimini.
FILTER LOCATION AND PRESSURE RATING MATTER

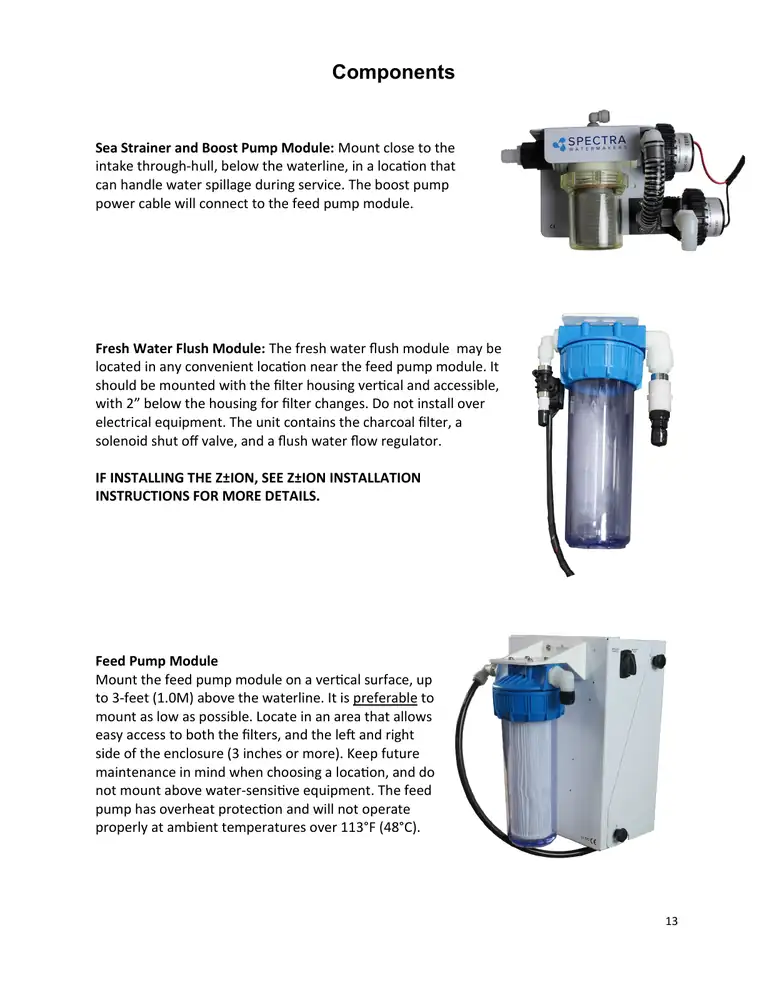

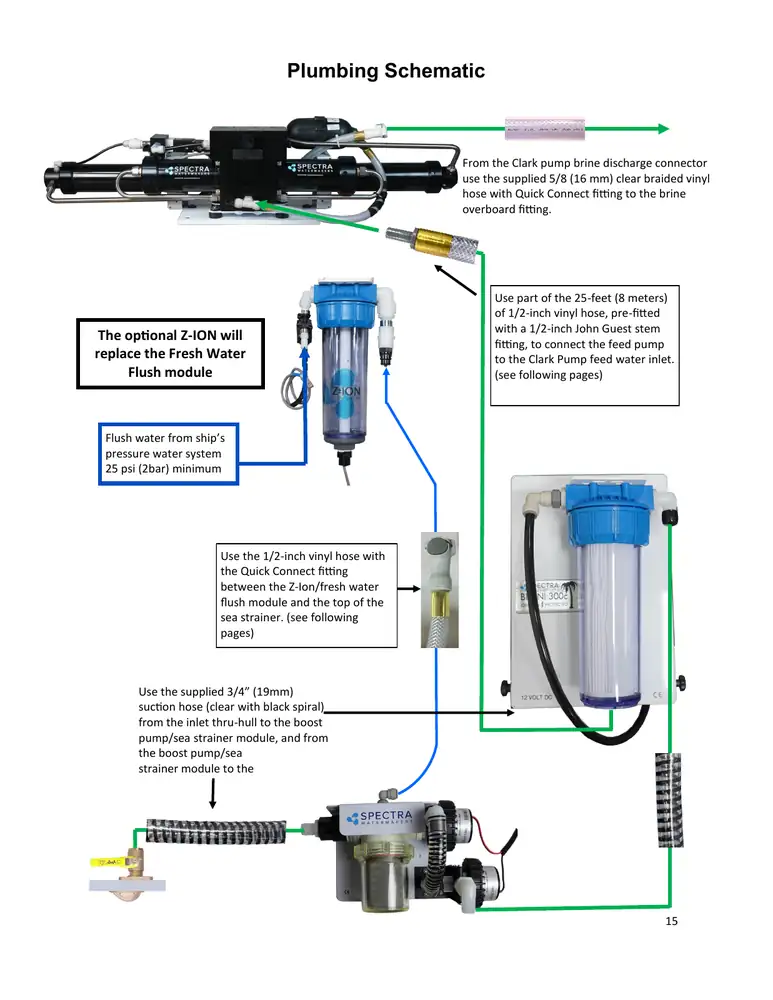

Original seawater path: intake → strainer / boost module → single 5-micron feed-module filter → mag-drive feed pump → Clark Pump / membrane.
| Stage | Part / nominal size | Original function |
|---|---|---|
| Final sediment | FT-FTC-5 Nominal 10 in × 2.5 in diameter | Before mag-drive feed pump in original Bimini. |
| Added first stage | FT-FTC-20 Nominal 10 in × 2.5 in diameter | Only after confirming an added housing and approved routing. |
| Flush carbon | FT-FTC-CC Nominal 10 in × 2.5 in diameter | Separate domestic-water flush path; removes chlorine. |

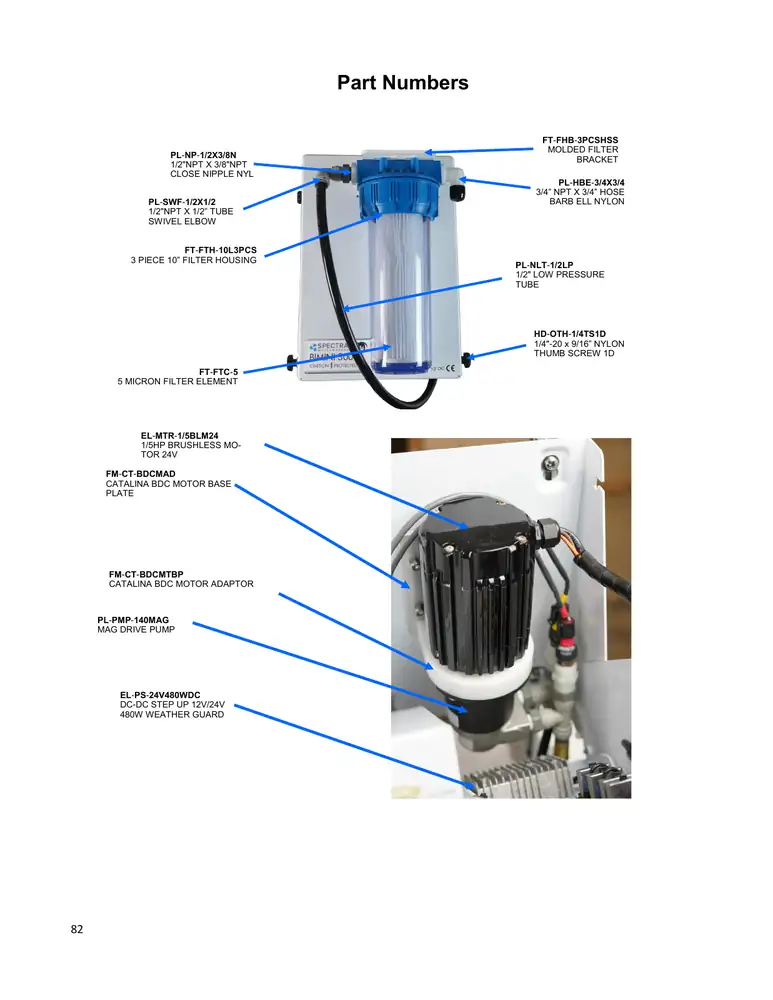

Page 82 names the three-piece FT-FTH-10L3PCS feed housing. Page 59 also lists a black SO-FHS-10H seal, while its carbon seal is SO-FHS-3PCS10. Identify the actual bowl and seal geometry; do not resolve the conflict by substituting the black seal. Generic maintenance text naming 20 and 5 microns does not establish a second installed filter.
Manual, PDF page 82 ↗ · Manual, PDF page 59 ↗Domestic water passes through carbon before entering the seawater feed circuit. Inspect carbon age, chlorine removal and actual housing independently. Sediment filters and Z-Ion do not remove chlorine. Confirm water availability and the approved flush procedure for the installed controller.
Manual, PDF page 23 ↗
Compare actual construction, seal geometry, pressure rating and wrench engagement. Similar cartridge dimensions do not establish housing interchangeability.
Open full-size source ↗MAIN INPUT, INTERNAL DRIVE AND AUXILIARY POWER

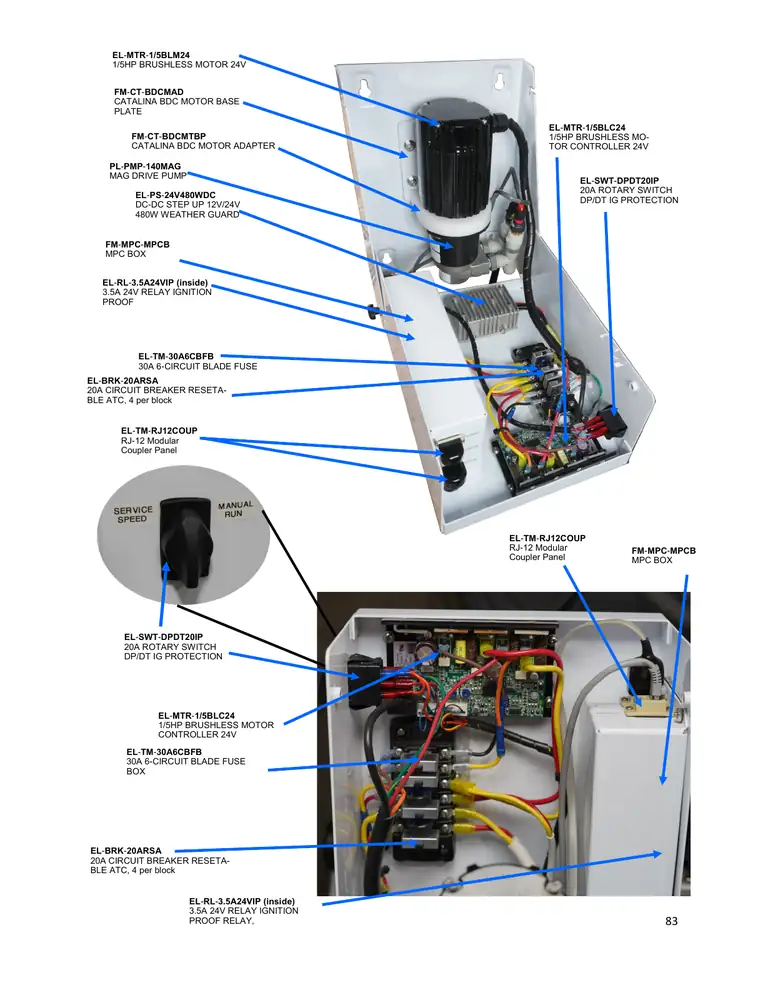

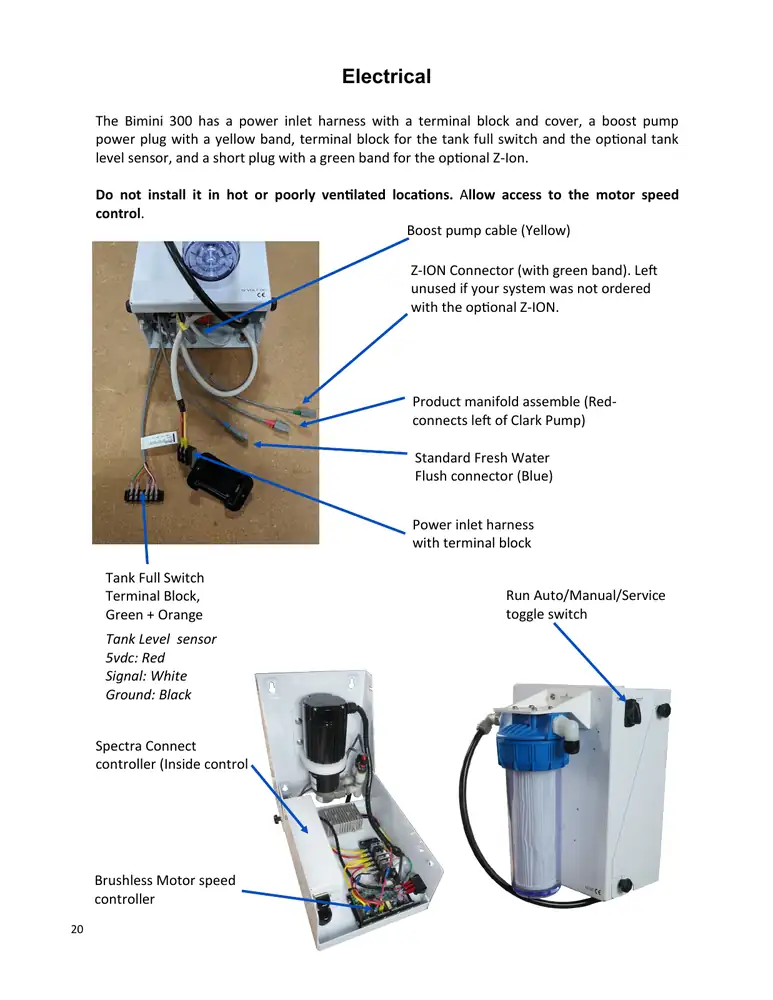

The component map identifies PL-PMP-140MAG head, a 24V brushless motor/controller and a 12-to-24V converter. A 12V input system can contain a 24V motor. Match the actual motor, converter, harness and factory-approved ignition-protected assembly; ordinary motor or relay substitutions are excluded.
Manual, PDF page 82 ↗ · Manual, PDF page 83 ↗The manual spares list names KIT-PMP-140MAG but the exploded drawing and current manufacturer page name PL-PMP-140MAG. A head is not a complete motor/feed module; no absent KIT listing or matching package contents is invented. Preserve ignition protection across switches, relay, drive and approved replacement wiring.

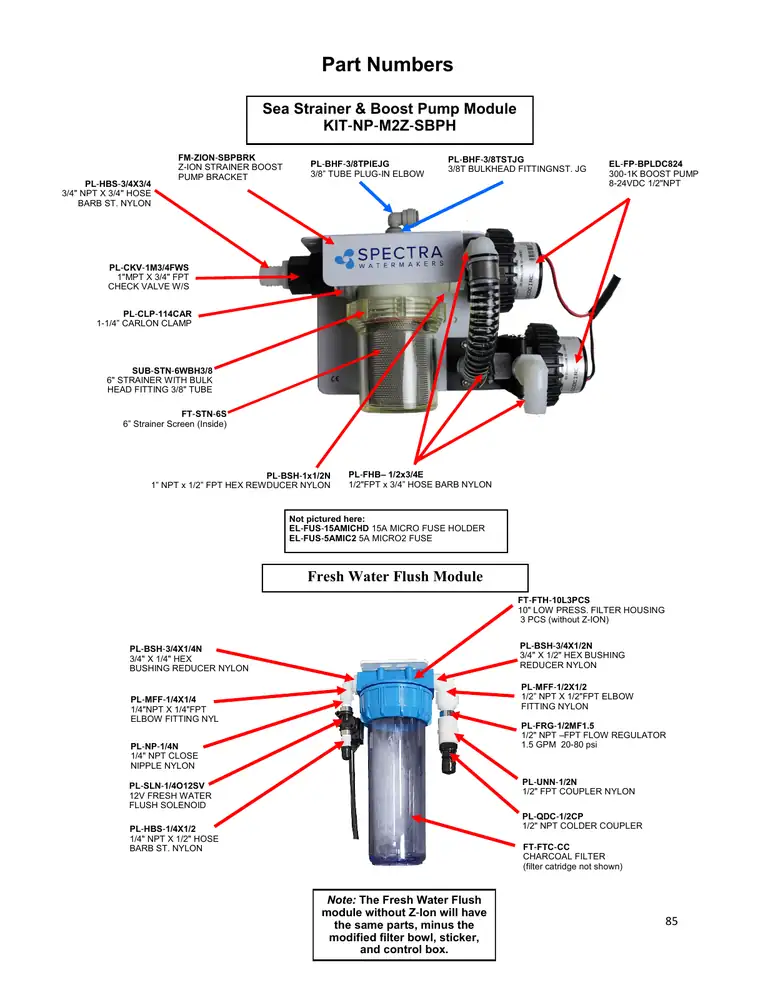

Current head scope ↗The July 2024 module drawing pictures one Laing boost pump. The current manufacturer replacement page says current production uses two. Read the installed revision and count; one replacement-pump listing does not set order quantity or authorize a dual-module conversion. Diagnose air, strainer, loaded filter, supply under load and pump faults first.
Manual, PDF page 85 ↗ · Current replacement/count note ↗READ ACTUAL DISPLACEMENT AND REVISION
Bimini shipping list explicitly specifies 10%. Read the actual identification before ordering; confirmed changed 7% requires factory review. This guide does not infer 20% or Pearson hardware for standard Bimini.

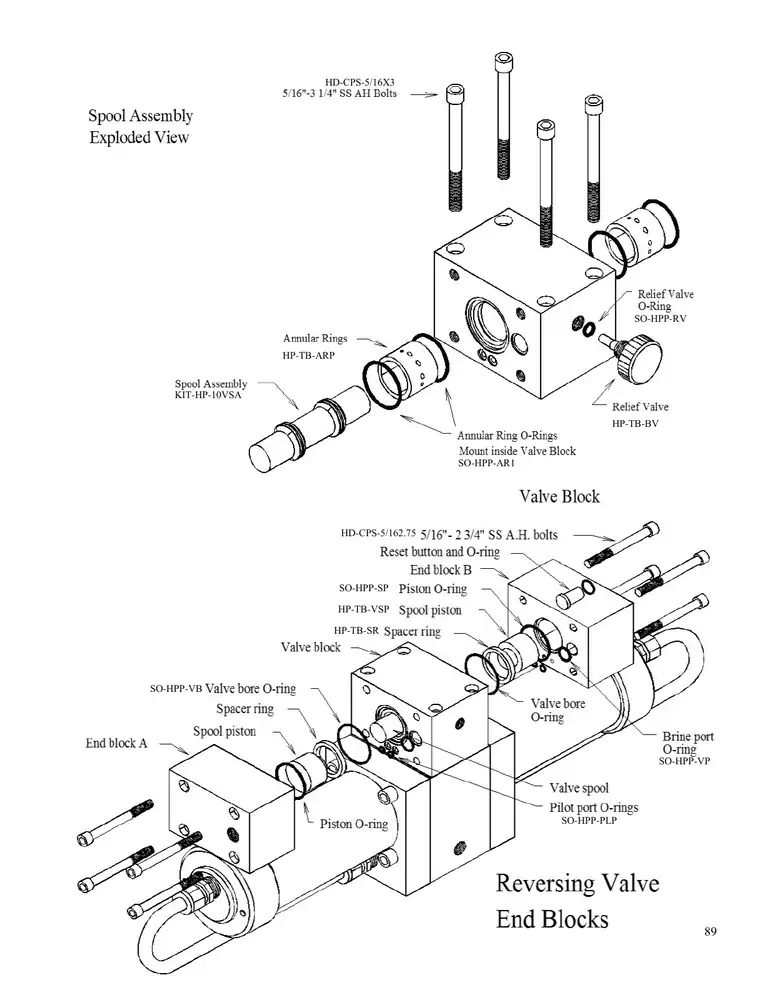

Manual, PDF page 11 ↗7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod. 20% uses two 10% rods with Delrin pistons, replaceable piston seals and 1-inch top-end bores, compared with 1¼-inch on 7%/10%.
Current ratio differences ↗Distributor rebuild kits exclude spacer rings, top-end spool pistons, tools and instructions. Seal/O-ring kits have a narrower scope. Offshore kits include tools, seals, annular rings, reversing spool, tubing/fittings and cleaners, while excluding piston rods and cylinder pistons.
Distributor scope ↗ · Seal and offshore scopes ↗7%/10% use KIT-HP-S&O and KIT-OFFSH; 20% uses KIT-HP-S&OH and KIT-OFFSH1. Current codes, ratio-dependent bores and illustrated quantities need revision confirmation. Shared May 2024 drawings do not prove interchangeability with every earlier pump.
Current rebuild reference ↗ELEMENT AND VESSEL ARE SEPARATE SCOPES
KIT-MB-40F supplies one 2.5 × 40-inch seawater element and replacement seals. Confirm actual label/dimensions, vessel revision and quantity. Bimini has one original long membrane module.
Manual, PDF page 81 ↗Identify actual end caps, retaining rings, seals, port orientation and vent arrangement before choosing vessel hardware. No universal seal count is inferred for changed caps. Bimini Clark/membrane module uses its specified mounts and accessible service connections.

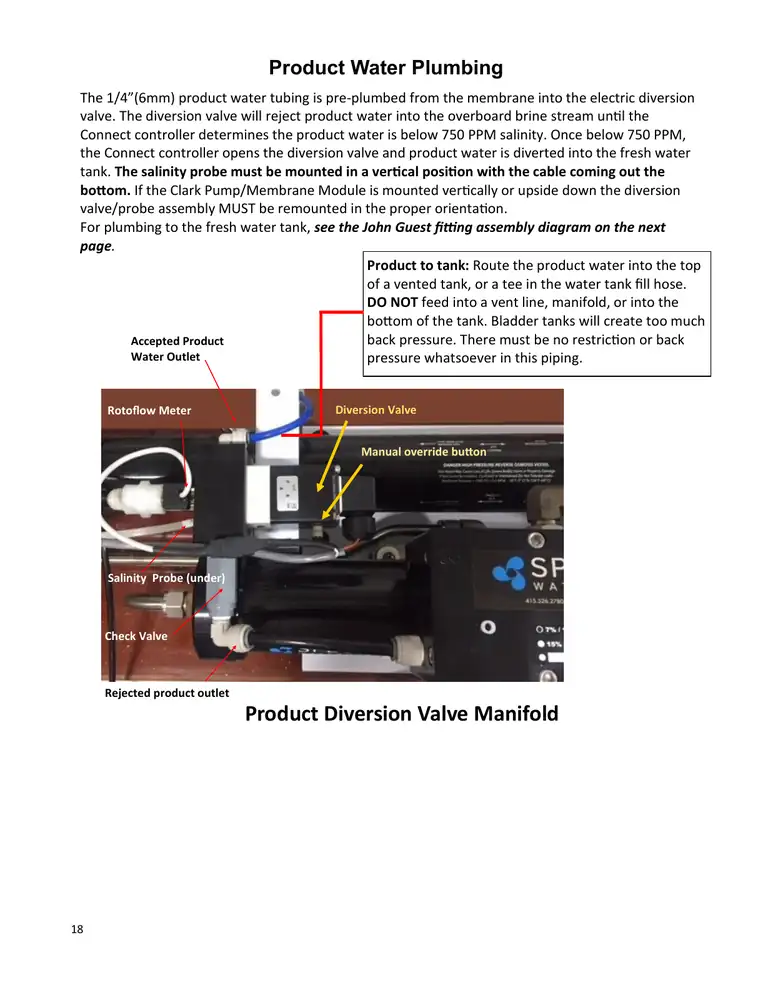

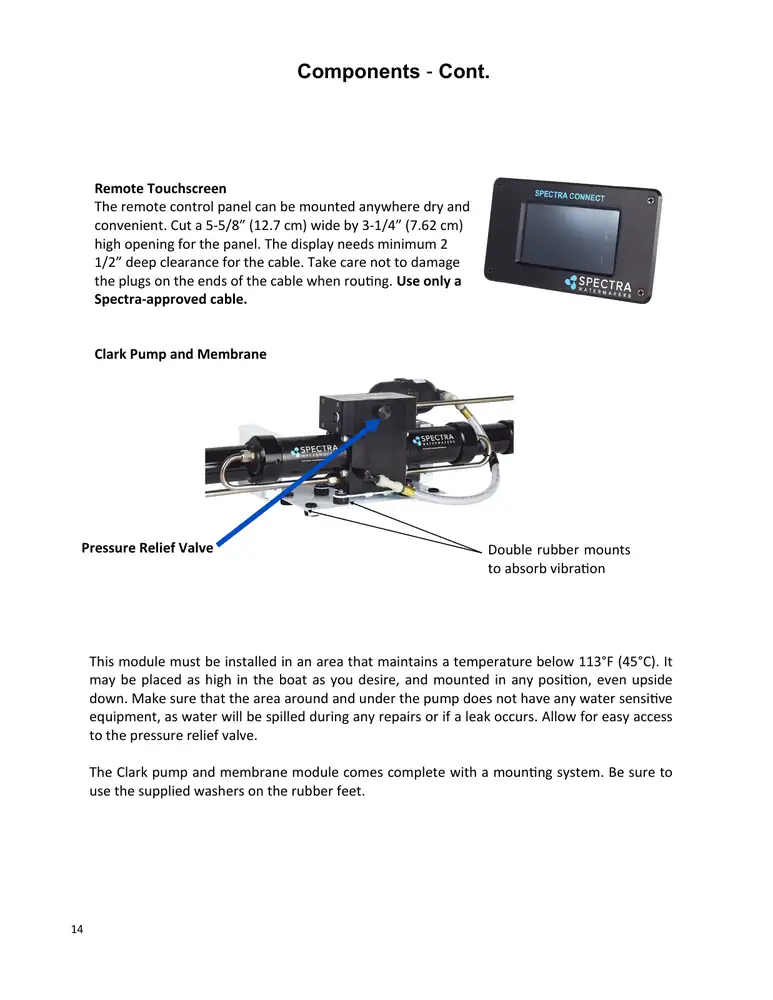

Manual, PDF page 14 ↗Bimini probe mounts vertically with cable DOWN. Rotating the diversion module requires remounting the probe. Product tubing must discharge unrestricted into a vented tank top or approved fill routing. Avoid vent-line, tank-bottom, manifold or bladder-tank backpressure. Probe RJ12-style cable is separate from Ethernet.
Manual, PDF page 18 ↗IDENTIFY THE CONTROL GENERATION

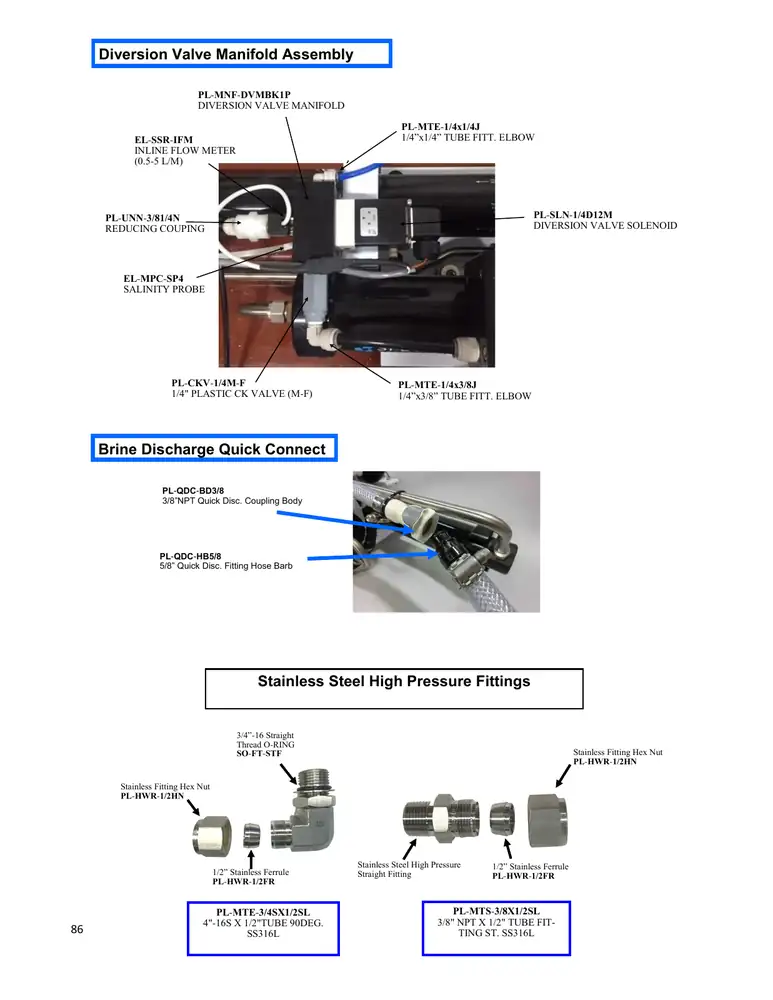

SP4 is explicitly named for Bimini; confirm actual board, probe connector and calibration. The display-only kit does not supply a controller or harness. Generic MPC upgrades are not a Connect conversion.
Monterey is not named by the generic March 2006 upgrade compatibility list. Factory must approve any complete conversion; no generic upgrade kit or standalone SP4 conversion is recommended.
Current service route is A40 board plus SP4. Confirm actual wiring and programming; this does not approve converting Monterey.
SP4 requires the daughter board, or A40 plus SP4. Probe alone is insufficient; no missing daughter-board listing is fabricated.
Current table lists SP4 compatibility. Confirm actual connector, cable reach and installed-controller calibration.

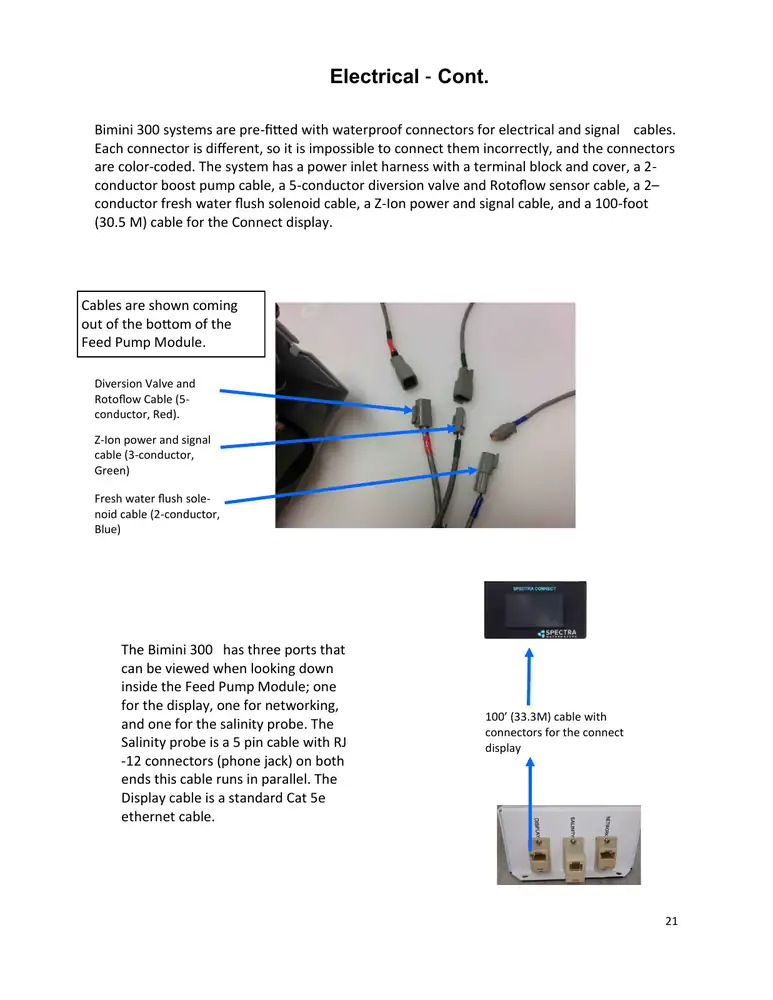

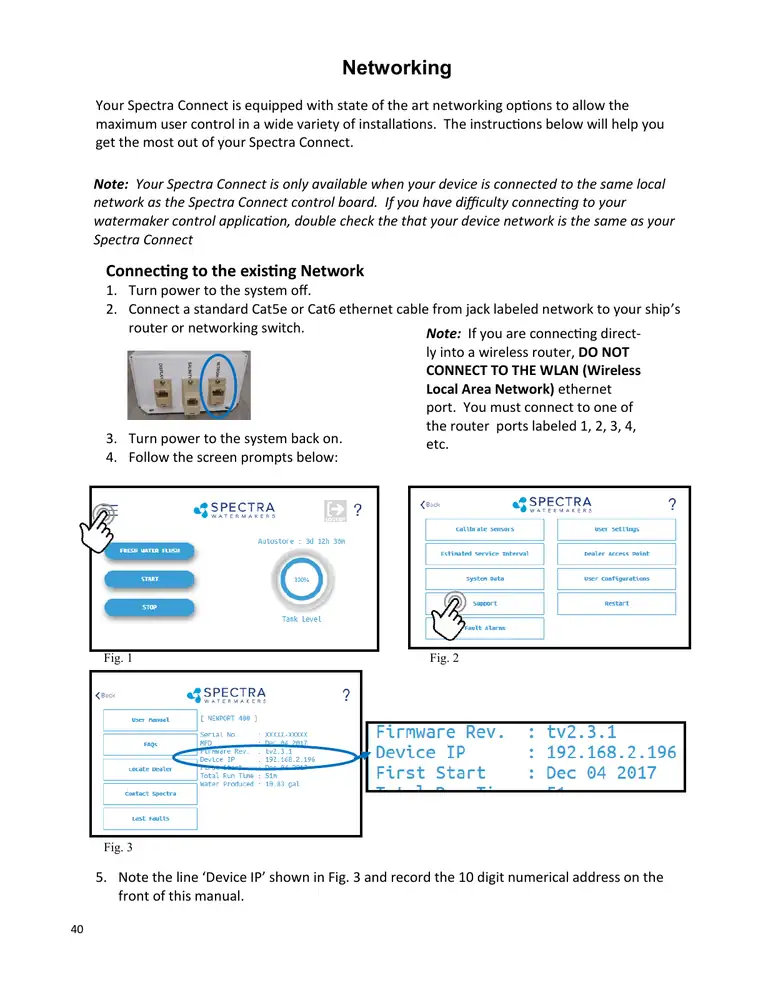

Connect touchscreen/MFD networking uses Ethernet. The parallel five-pin RJ12-style salinity connector is a separate probe interface. Yellow boost, red diversion/Rotoflo, blue flush and green Z-Ion waterproof connectors have distinct purposes. The fabrication label “MPC BOX” does not establish MPC controls. The archived wiring schematic is labeled Bimini w/ Connect (April 4, 2018); match the installed revision with Spectra before using its wiring or printed values.
Manual, PDF page 21 ↗ · Manual, PDF page 40 ↗Manual overrides can bypass automatic salinity rejection. Keep product away from the tank until approved purge and independent water-quality checks pass. Confirm probe orientation, clean/calibrate according to installed-controller instructions and diagnose flow/pressure faults before ordering electronics.
Manual, PDF page 36 ↗OPTIONAL RETROFIT AND INSTALLED-GENERATOR SERVICE
A complete AUTO retrofit needs identified Connect controls and a Bimini-approved ignition-protected installation. The optional module replaces the standard freshwater-flush module. Confirm plumbing, trigger, connectors, package contents and carbon protection.
Current control selector ↗Accessory DC supply is a separate confirmation from main feed input and auxiliary DC. No direct AC or 48V connection is implied. Changing main feed power clears accessory and retrofit approval selections. A feed motor’s voltage does not approve optional-generator power.

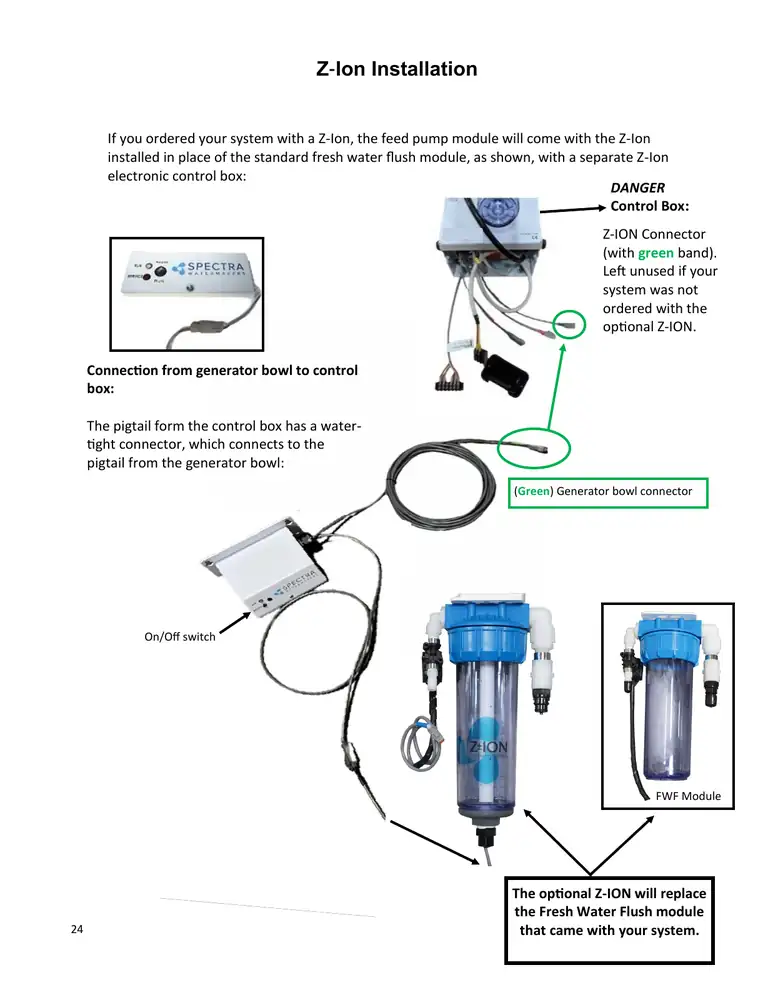

SUB-ZION-ELECTB combines bowl and rod. Identify installed generator/control box and matching revision before selecting it or a loose bowl/rod. Avoid automatically adding another rod. A service item is not a complete retrofit. Z-Ion removes neither chlorine nor freezing risk.
Current combined assembly ↗MODEL DRAWINGS AND SHARED REFERENCES

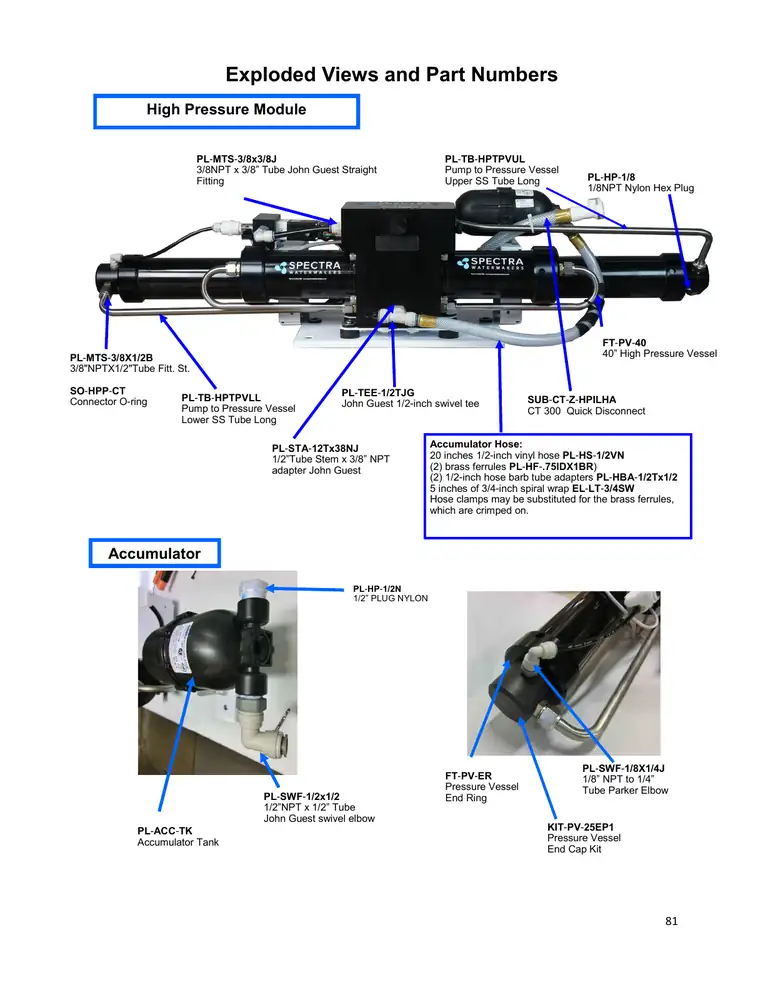

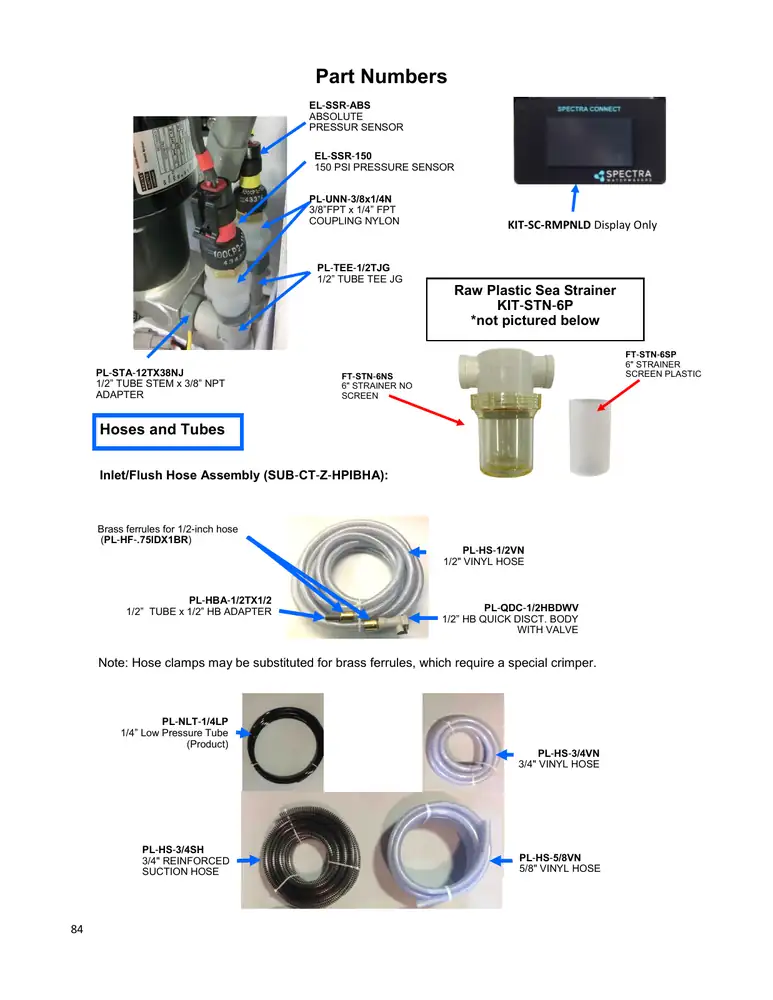

Original model drawings, later model Parts ID maps and current shared Clark drawings are labeled separately. Open each full manual for context; historical printed recipes do not approve a changed system.
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗

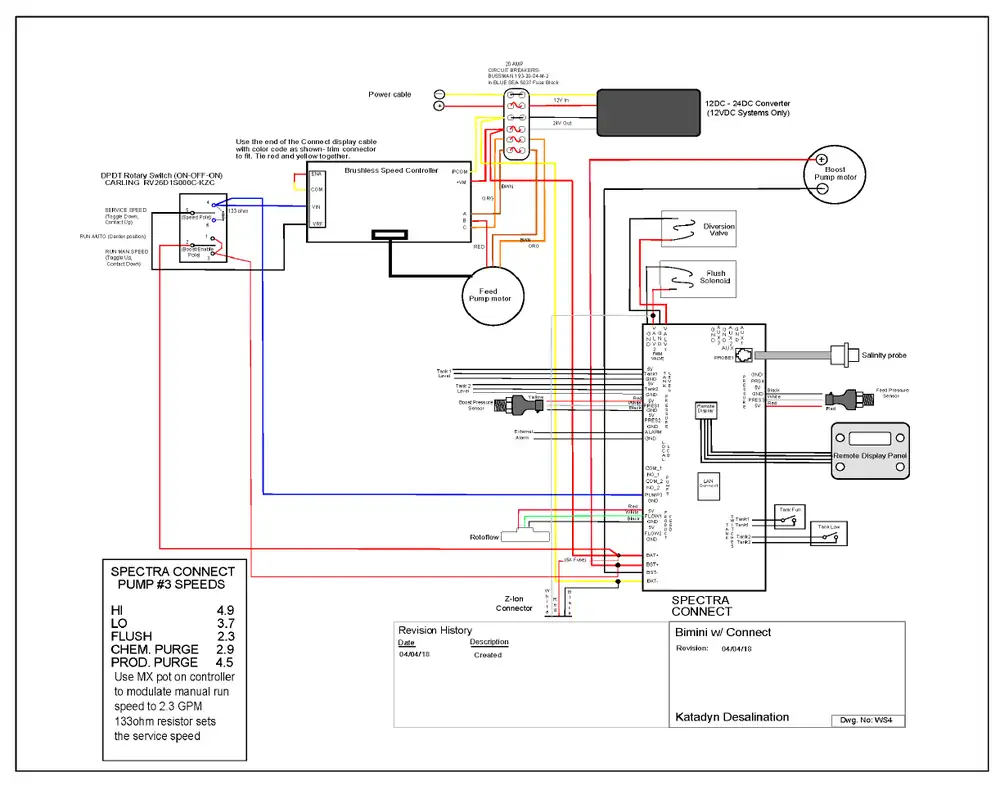

This schematic inside the July 2024 manual is labeled Bimini w/ Connect, revision April 4, 2018. It is an identification reference, not proof of current standard or Boston Whaler OEM interchangeability. Original diagram callouts are upright here; printed wiring and speed values require factory approval for the installed revision. The full primary PDF remains unchanged.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original Connect assembly includes a 24V brushless motor/controller, 12-to-24V converter and ignition-protected switch/relay. External input voltage differs from internal drive voltage. The MPC BOX fabrication label does not identify an MPC controller.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
The July 2024 map illustrates one boost pump, while the current manufacturer replacement page says current systems use two. Identify installed revision and pump count; do not automatically order two or treat the labeled module kit as a conversion.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗
Original model source. Identify installed hardware and revision before using part numbers or procedures. Printed recipes and wiring labels require the complete manual context.
Open full-size source ↗

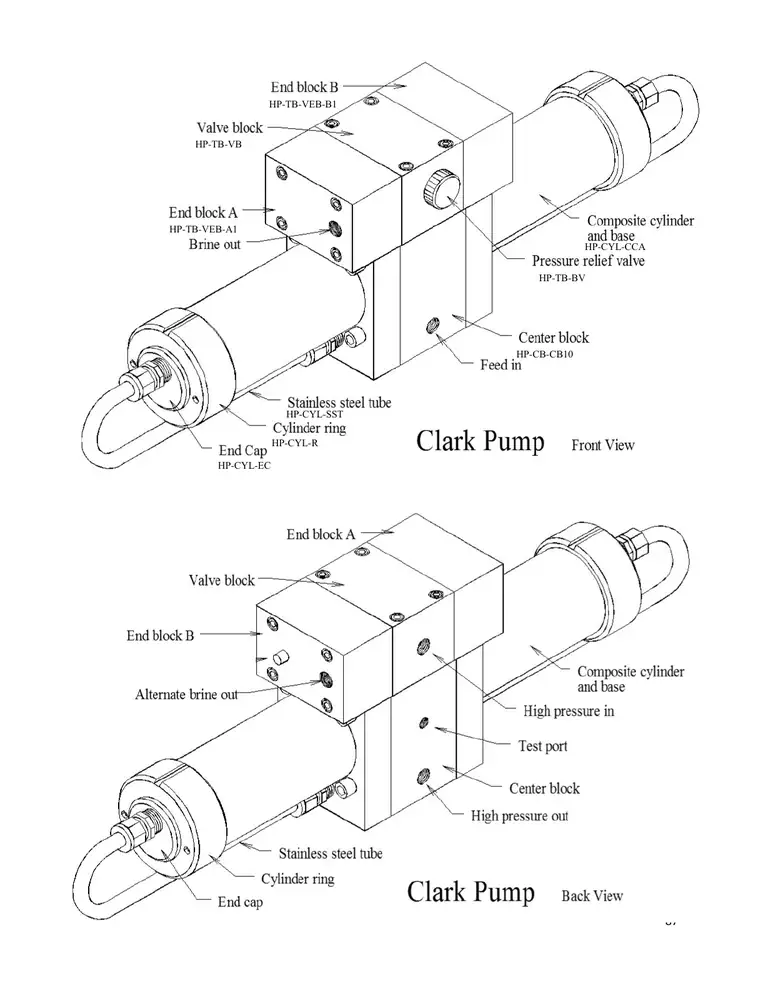

May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗
May 2024 shared Clark manual covers 7%, 10% and 20%; actual ratio and revision select the appropriate portion. Drawing quantities are not kit contents.
Open full-size source ↗CURRENT PROCEDURES FOR THE INSTALLED SYSTEM
Record clean-filter flow, pressure and voltage under load. Inspect strainer, air leaks, sediment and carbon before diagnosing pumps. Automatic recurring flush needs continuous correct power, available tank/domestic water and the configured controller. Chemical storage uses its own approved circulation and power-off procedure; recurring flush and chemical storage are different paths.

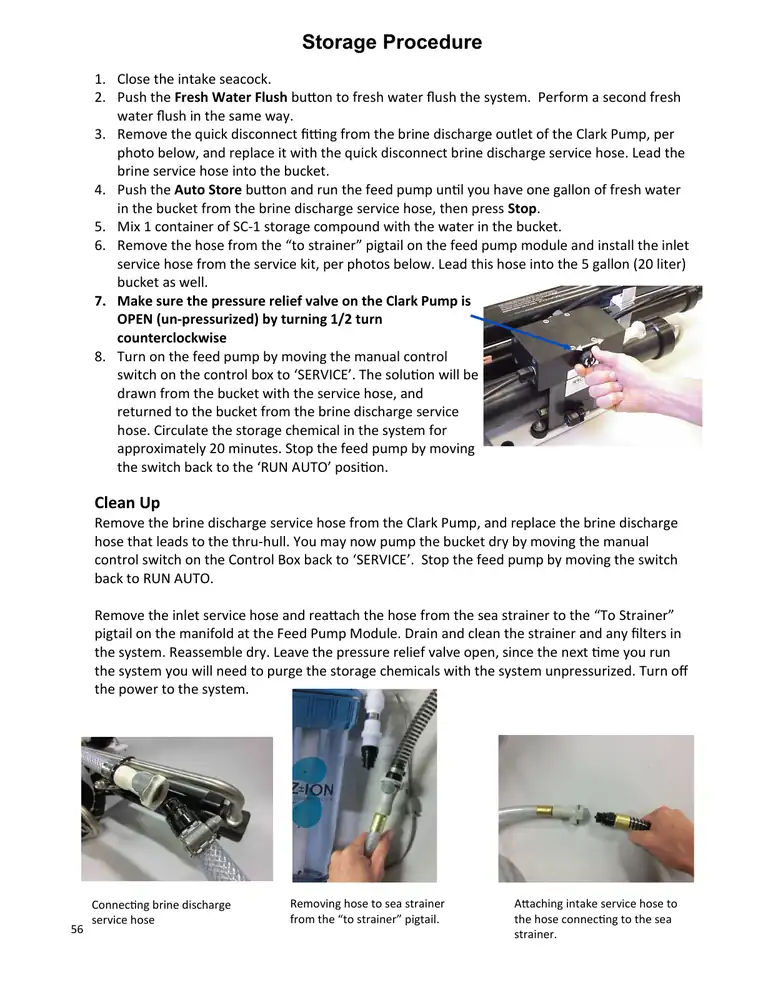

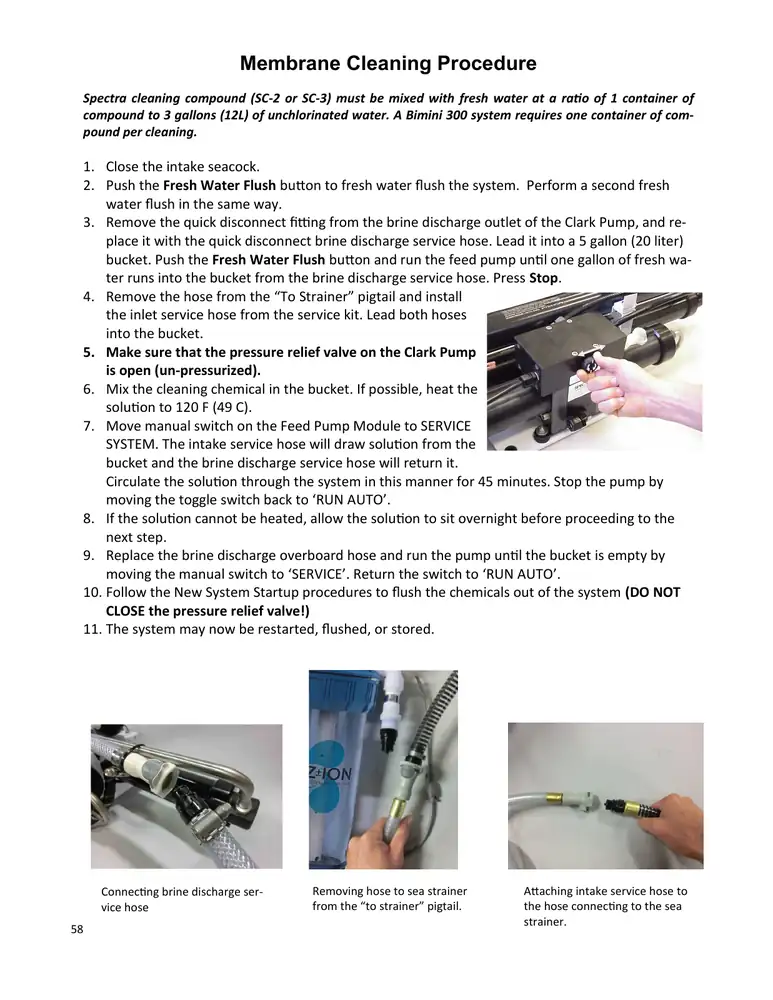

Manual, PDF page 42 ↗SC-1 is storage compound; SC-2 is alkaline biological-fouling cleaner; SC-3 is acid mineral-scale cleaner. Never mix SC-2/SC-3, use cleaners for storage or infer current package quantity from historical KIT-CHEM codes. Use nonchlorinated water and the approved fitted-system procedure. No unverified numeric dose is supplied.
Current chemical roles ↗Keep product out of the tank during depressurized chemical purge until the approved purge and quality checks pass. Follow installed-hardware service valve and hose routing. SC-1 and Z-Ion do not prevent freezing. Obtain the current fitted-system winterizing procedure rather than transferring historical recipes or filter-washing advice.
Manual, PDF page 56 ↗Current KIT-BCK-A contains six 5-micron elements, one carbon and two SC-1 bags. The manual’s short description omits carbon; current kit contents are used. These are spare quantities, not installed housing count. Confirm actual cartridges and current contents.
Current Kit A contents ↗ANSWERS THAT AFFECT REPLACEMENT CHOICES
No. Monterey can have AC main feed and separate DC controls/flush. Bimini 12V input can have a 24V brushless motor and converter. Optional Z-Ion needs separately approved supply.
The generic model list does not name Monterey. Complete conversion requires factory approval; identified already installed MPC-5000 has conditional chip-specific service.
Identify installed revision and count. The July 2024 manual pictures one while the current replacement listing refers to two in current production.
Standard guide references do not establish OEM fitment. The manufacturer separately lists Boston Whaler OEM 2019–2022; factory must identify its assembly.
No. Spare quantities do not establish installed filter count, bowl family or pump ratio.
MODEL-SCOPED REFERENCES WITH THEIR REQUIREMENTS
Named model and current manufacturer references appear first. Changed-hardware candidates remain separate and conditional. A selection does not verify a retrofit, live stock or price.
128 references.
No matching references. Clear search or check your selections above.
identify sediment housing · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Final sediment stage. Nominal current element is 10 inches long × 2.5 inches diameter. Match actual cartridge ends, bowl, rating and installed arrangement. Bimini original module has one 5-micron element BEFORE the mag-drive feed pump. Generic two-stage maintenance prose does not establish an extra housing.
identify sediment housing · confirmed dual sediment arrangement · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. First stage in an identified 20 → 5 pair. Nominal current element is 10 inches long × 2.5 inches diameter. Match actual cartridge ends, bowl, rating and installed arrangement. Bimini original module has one 5-micron element BEFORE the mag-drive feed pump. Generic two-stage maintenance prose does not establish an extra housing.
fitted freshwater flush · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Separate domestic-water flush carbon element; chlorine removal. Nominal current element is 10 inches long × 2.5 inches diameter. Match actual cartridge ends, bowl, rating and installed arrangement. Bimini original module has one 5-micron element BEFORE the mag-drive feed pump. Generic two-stage maintenance prose does not establish an extra housing.
identify three housing · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Candidate for the small three-piece family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify three housing · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Candidate for the small three-piece family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify three housing · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Candidate for the small three-piece family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Identify actual intake-strainer body, screen material, length, mesh, cap and seal. The Bimini spares list names six-inch screen/seal, and page 84 separately lists a plastic strainer family. Do not combine metal and plastic screen revisions or infer complete body contents.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Identify actual intake-strainer body, screen material, length, mesh, cap and seal. The Bimini spares list names six-inch screen/seal, and page 84 separately lists a plastic strainer family. Do not combine metal and plastic screen revisions or infer complete body contents.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Identify actual intake-strainer body, screen material, length, mesh, cap and seal. The Bimini spares list names six-inch screen/seal, and page 84 separately lists a plastic strainer family. Do not combine metal and plastic screen revisions or infer complete body contents.
confirmed 2.5 × 40-inch element · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. One 2.5 × 40-inch seawater membrane and replacement seals. Identify actual element label, dimensions and vessel revision first. One kit is not a complete vessel or automatic whole-system order quantity. Bimini original arrangement has one long membrane module.
confirmed 2.5 × 40-inch element · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Vessel/end-cap/retaining-ring identification, separate from the element. Confirm actual ports, seals, vent, end-plug revision and approved supports with Spectra; no universal seal count or modern cap interchangeability is inferred. Original Bimini component map labels this code; match the installed vessel revision.
confirmed 2.5 × 40-inch element · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Vessel/end-cap/retaining-ring identification, separate from the element. Confirm actual ports, seals, vent, end-plug revision and approved supports with Spectra; no universal seal count or modern cap interchangeability is inferred. Original Bimini component map labels this code; match the installed vessel revision.
confirmed 2.5 × 40-inch element · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Vessel/end-cap/retaining-ring identification, separate from the element. Confirm actual ports, seals, vent, end-plug revision and approved supports with Spectra; no universal seal count or modern cap interchangeability is inferred. Original Bimini component map labels this code; match the installed vessel revision.
identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Storage compound; no freeze protection. Use the approved procedure and current product packaging for actual hardware. Do not equate historical KIT-CHEM codes with an identical current pack quantity. Never mix SC-2 and SC-3. Diagnose air, filters, voltage and pump faults first; use nonchlorinated water. No unverified numerical dose is supplied.
identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Alkaline cleaner for biological fouling; not storage. Use the approved procedure and current product packaging for actual hardware. Do not equate historical KIT-CHEM codes with an identical current pack quantity. Never mix SC-2 and SC-3. Diagnose air, filters, voltage and pump faults first; use nonchlorinated water. No unverified numerical dose is supplied.
identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Acid cleaner for mineral scale; not storage. Use the approved procedure and current product packaging for actual hardware. Do not equate historical KIT-CHEM codes with an identical current pack quantity. Never mix SC-2 and SC-3. Diagnose air, filters, voltage and pump faults first; use nonchlorinated water. No unverified numerical dose is supplied.
confirmed 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Center Block 10% (W/O Inserts) shared Clark identification for a confirmed 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Center Block 7% (W/O Inserts) shared Clark identification for a confirmed 7% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Retainer shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Seat shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Spring Washer shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification

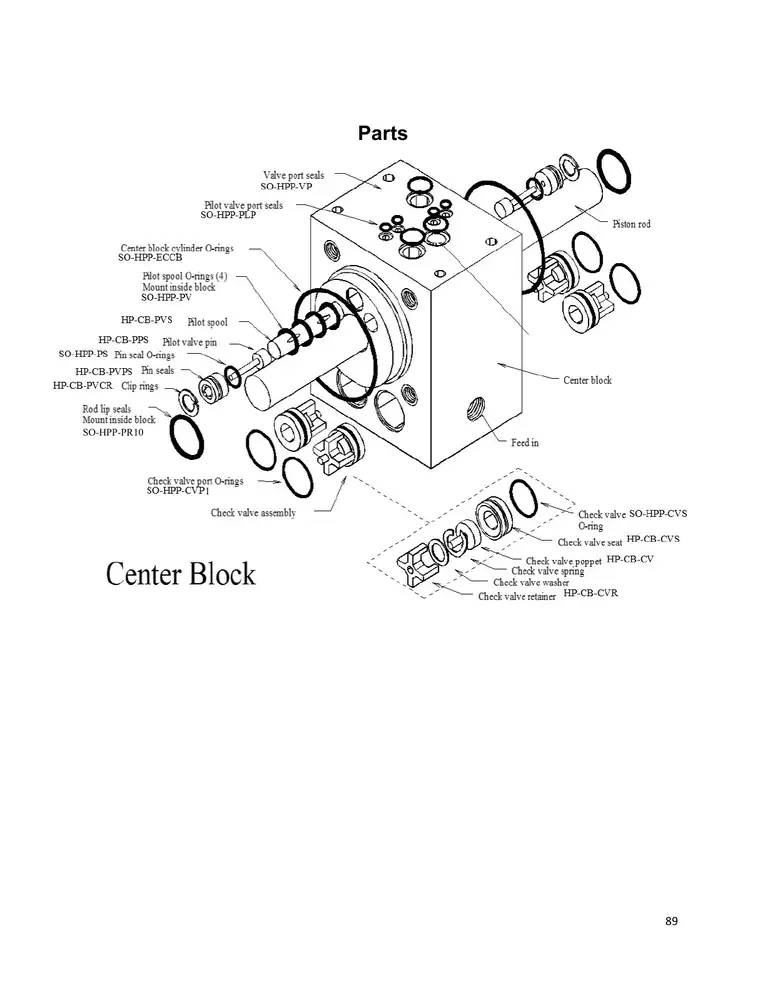

Confirm with Spectra before ordering. Center Block Insert shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Valve Pin shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Valve Clip Ring shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Valve Pin Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Valve Spool shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Spring shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Piston Rod (7%) shared Clark identification for a confirmed 7% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Piston Rod (10%) shared Clark identification for a confirmed 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification

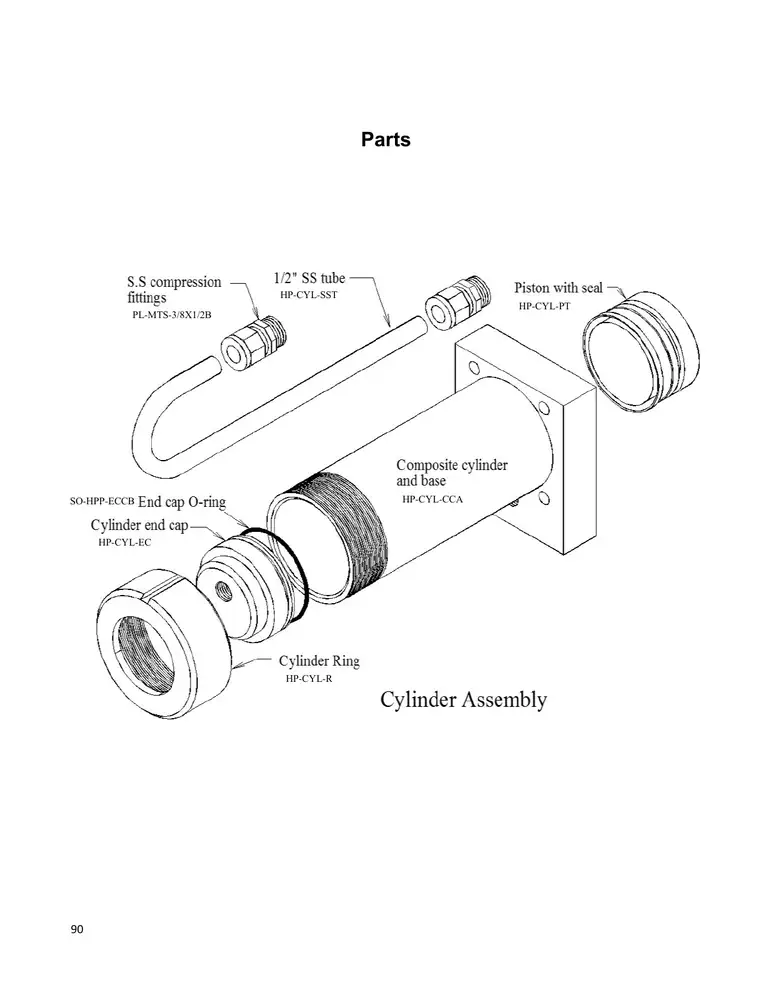

Confirm with Spectra before ordering. Cylinder Assembly (G‐10 BASE) shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Cylinder End Cap shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Piston shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Cylinder End Ring shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Stainless Tube shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Annular Ring (Peek) shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Bleed Valve shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Valve Body shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Valve End Block A 1 1/4" BORE shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Valve End Block B 1 1/4" BORE shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Rev. Valve Spool Piston shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Annular Ring O-Ring (Viton) shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Connector O-Ring shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Port (Viton) shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Check Valve Seat Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. End Cap Center Block Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Ports Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Piston Rod Seal shared Clark identification for a confirmed 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. 3/4" Piston Rod Seal shared Clark identification for a confirmed 7% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pin Seals shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Pilot Valve Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Relief Valve Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Spool Piston Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Valve Bore Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Valve Port Seal shared Clark identification for a confirmed 7% / 10% pump. Match actual ratio, bore, rod diameter, seal, geometry and revision. 7% uses one 3/4-inch rod; 10% uses one 7/8-inch rod; 20% uses TWO 10% rods with different pistons and 1-inch top-end bores. Current drawings do not prove every old revision; assembly quantities are not package contents. Similar codes are not aliases.
confirmed 7% Clark Pump · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Distributor rebuild kit for a positively identified 7% Clark Pump. Excludes spacer rings, top-end spool pistons, tools and instructions. Confirm revision, complete service needs and overlap. Bimini original shipping list specifies 10%; any changed 7% hardware needs factory review.
Existing catalog fitment requirements
confirmed 10% Clark Pump · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Distributor rebuild kit for a positively identified 10% Clark Pump. Excludes spacer rings, top-end spool pistons, tools and instructions. Confirm revision, complete service needs and overlap. Bimini original shipping list specifies 10%; any changed 7% hardware needs factory review.
Existing catalog fitment requirements
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Seal/O-ring kit is a separate scope from a complete internal rebuild. Current May 2024 manual distinguishes 7%/10% and 20% families. Offshore kits exclude rods and cylinder pistons; confirm current contents, fitted ratio, revision and overlap. Never substitute a 7%/10% kit for 20% hardware.
Existing catalog fitment requirements
confirmed 7% / 10% Clark Pump · identified standard Bimini configuration · Shared component identification
Confirm with Spectra before ordering. Offshore kit is a separate scope from a complete internal rebuild. Current May 2024 manual distinguishes 7%/10% and 20% families. Offshore kits exclude rods and cylinder pistons; confirm current contents, fitted ratio, revision and overlap. Never substitute a 7%/10% kit for 20% hardware.
actual 12 / 24V auxiliary DC · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original model-map sensor/display reference. Match actual pressure or flow range, connector, firmware and calibration. Connect display-only kit does not supply controller or wiring; EL-SSR-IFM is the 0.5–5 L/min family, not the lower-range IFMLR.
actual 12 / 24V auxiliary DC · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original model-map sensor/display reference. Match actual pressure or flow range, connector, firmware and calibration. Connect display-only kit does not supply controller or wiring; EL-SSR-IFM is the 0.5–5 L/min family, not the lower-range IFMLR.
actual 12 / 24V auxiliary DC · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original model-map sensor/display reference. Match actual pressure or flow range, connector, firmware and calibration. Connect display-only kit does not supply controller or wiring; EL-SSR-IFM is the 0.5–5 L/min family, not the lower-range IFMLR.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
actual 12 / 24V auxiliary DC · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original model-map sensor/display reference. Match actual pressure or flow range, connector, firmware and calibration. Connect display-only kit does not supply controller or wiring; EL-SSR-IFM is the 0.5–5 L/min family, not the lower-range IFMLR.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Model component-map identification. Match actual thread form, tube outside diameter, material, pressure rating, mounting and function. High-pressure membrane/Clark fittings differ from low-pressure product fittings; keep product flow unrestricted. Bimini must retain the approved ignition-protected system configuration; a shared Catalina fabrication label does not approve a complete Catalina replacement assembly.
confirmed brushless24 drive · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Current manufacturer explicitly names Bimini for this mag-drive pump HEAD. The manual spares list says KIT-PMP-140MAG while its exploded map says PL-PMP-140MAG. The absent KIT code is not assumed to have identical contents. Confirm actual coupling, ports, bypass, revision and Bimini-approved ignition-protected motor assembly; this is not a complete feed module.
confirmed internal 24V drive · confirmed brushless24 drive · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. 24V brushless motor identification from the Bimini component map. External 12V input can supply a 24V internal motor through the converter. Confirm actual drive label, harness, mounting and complete factory-approved ignition-protected assembly; ordinary motor/relay substitution is excluded. Internal 24V rating does not require 24V external input and does not approve a power conversion.
confirmed internal 24V drive · confirmed brushless24 drive · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. 24V brushless motor controller identification from the Bimini component map. External 12V input can supply a 24V internal motor through the converter. Confirm actual drive label, harness, mounting and complete factory-approved ignition-protected assembly; ordinary motor/relay substitution is excluded. Internal 24V rating does not require 24V external input and does not approve a power conversion.
confirmed 12V input → 24V drive · confirmed brushless24 drive · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. 12-to-24V 480W step-up converter identification from the Bimini component map. External 12V input can supply a 24V internal motor through the converter. Confirm actual drive label, harness, mounting and complete factory-approved ignition-protected assembly; ordinary motor/relay substitution is excluded. Converter is only a candidate on a confirmed 12V input arrangement; it is not selected for 24V input or unknown supply.
actual 12 / 24V auxiliary DC · identified boost-pump revision · Bimini-rated assembly confirmed · identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. One 8–24V DC Laing boost-pump candidate. The July 2024 manual pictures one pump; current manufacturer says current Bimini production uses TWO. Identify actual installed revision and count with Spectra. No automatic two-pump quantity, complete module or conversion is inferred. Confirm supply, ports, orientation and the approved ignition-protected arrangement.
confirmed actual 12V coil and approved circuit · fitted freshwater flush · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original Bimini map identifies this 12V freshwater flush solenoid. Confirm ACTUAL COIL label and factory-approved circuit independently from main input, internal motor and auxiliary controller supply. A 24V input system is not proof of a 24V coil; no coil-power conversion is supplied. Match exact valve function, body, connector, routing and Bimini ignition-protected assembly. Flush and diversion valves are not interchangeable.
Existing catalog fitment requirements
confirmed actual 12V coil and approved circuit · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Original Bimini map identifies this 12V product diversion solenoid. Confirm ACTUAL COIL label and factory-approved circuit independently from main input, internal motor and auxiliary controller supply. A 24V input system is not proof of a 24V coil; no coil-power conversion is supplied. Match exact valve function, body, connector, routing and Bimini ignition-protected assembly. Flush and diversion valves are not interchangeable.
Existing catalog fitment requirements
actual 12 / 24V auxiliary DC · identified connect controls/interface · Bimini-rated assembly confirmed · identified standard Bimini configuration · Original manual identification
Confirm with Spectra before ordering. Bimini manual explicitly names SP4 for its original Connect controller. Match actual Connect board, five-pin RJ12-style probe connector, cable, vertical cable-down probe mounting and approved calibration. The probe cable is not Ethernet. The SKU prefix does not imply MPC controls or permission to convert the system.
Existing catalog fitment requirements
identified standard Bimini configuration · Current manufacturer reference
Confirm with Spectra before ordering. Current manufacturer kit stock: six 5-micron elements, one carbon element and two SC-1 bags. The manual short kit description omits carbon; current contents are used. Spare counts do not imply six installed housings or an added 20-micron stage. Confirm actual cartridge ends and current package contents.
Confirm these specific links with Spectra before ordering. The source does not prove direct interchangeability, exact current revision or complete conversion contents.
identify standard2 housing · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Candidate for the standard two-piece family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify black housing · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Candidate for the black 10H pressure-rated family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify black housing · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Candidate for the black 10H pressure-rated family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify black housing · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Candidate for the black 10H pressure-rated family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identify black housing · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Candidate for the black 10H pressure-rated family. Identify actual bowl, seal cross-section, threads/locking ring, pressure rating and wrench engagement; cartridge dimensions alone do not select housing hardware. Bimini page 82 identifies a three-piece feed housing; page 59 also names a 10H seal. This internal conflict requires physical identification; do not transfer the black seal to a three-piece bowl.
identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Independent handheld salinity meter candidate. Confirm calibration solution, temperature compensation and product-water sample procedure. Manual overrides can bypass automatic water-quality protection; verify product independently before routing it to the tank.
identified boost-pump revision · Bimini-rated assembly confirmed · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Complete strainer/boost module candidate only for an identified factory-approved dual-pump arrangement. The Bimini manual labels this code beside a one-pump illustration; the current replacement-pump page describes two current pumps. Confirm count, bracket, strainer, hose/harness and complete kit contents. Do not use it as an automatic upgrade of the pictured single-pump system.
confirmed oil sediment arrangement · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Optional oil/water element named in the Bimini spares list. Identify the installed dedicated optional stage, dimensions and factory-approved arrangement before ordering. It does not replace the required final sediment element or carbon chlorine protection; the manual list does not prove an extra housing is installed.
separately approved accessory DC · fitted freshwater flush · identified connect controls/interface · factory-approved retrofit and accessory supply · Bimini-rated assembly confirmed · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Optional complete AUTO retrofit requires fitted freshwater flush, identified Connect interfaces, separately approved 12/24V accessory supply and factory model-specific plumbing/harness approval. Retain Bimini ignition protection; the optional Z-Ion module replaces its standard flush module, rather than adding a duplicate carbon stage. No direct AC or 48V supply is implied.
Existing catalog fitment requirements
installed generator · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Service only for an identified installed Z-Ion generator and its matching control box. Current ELECTB combines bowl and rod; do not automatically add a loose rod. Confirm threaded base, connector, revision and Bimini-approved ignition-protected configuration. A service item is not a complete retrofit or supply approval.
Existing catalog fitment requirements
installed generator · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Service only for an identified installed Z-Ion generator and its matching control box. Current ELECTB combines bowl and rod; do not automatically add a loose rod. Confirm threaded base, connector, revision and Bimini-approved ignition-protected configuration. A service item is not a complete retrofit or supply approval.
Existing catalog fitment requirements
installed generator · identified standard Bimini configuration · Installed-hardware review
Confirm with Spectra before ordering. Service only for an identified installed Z-Ion generator and its matching control box. Current ELECTB combines bowl and rod; do not automatically add a loose rod. Confirm threaded base, connector, revision and Bimini-approved ignition-protected configuration. A service item is not a complete retrofit or supply approval.
Existing catalog fitment requirements
KEEP THE ORIGINAL AND CURRENT REFERENCES TOGETHER
