Ventura 150C Connect parts & owner guide

Identify your Connect system, follow the seawater and freshwater paths, match the 20-inch membrane and filters, and locate the 7% Clark Pump service groups in Spectra's original drawings.

12V or 24V DC · Connect controls · one short membrane

Select the installed voltage

Check the system or feed-pump label, especially after a retrofit.

Showing parts common to both original supplies. Select a voltage for pump and electrical references.

CHECK THE NAMEPLATE

150C Connect or 150D Deluxe?

Connect controls

The 150C has the Spectra Connect remote display and automated control system. The 150D Deluxe has analog instruments. This guide covers original VT-150C-12V and VT-150C-24V configurations; choose a different guide for older MPC or Deluxe controls.

Display with cable · Display only

150C fact sheet ↗ · Connect display drawing ↗

One membrane and a 7% pump

The 150C fact sheet specifies one 2.5 × 20-inch membrane. Spectra labels KIT-MB-20F as 21 inches in the parts drawing. The drawing identifies the 7% center block. Check the installed vessel and pump label if either has been replaced.

Membrane specification ↗ · Short vessel ↗ · 7% pump ↗

12V or 24V supply

These versions share the main water path but use different feed pumps. The current fact sheet lists 12V 9A or 24V 4.5A power requirements. Match the installed motor and control components before buying electrical parts.

12V pump · 24V pump

150C power requirements ↗ · Electrical specifications ↗

SIZES OWNERS ASK FOR

Three cartridges, two water paths

The 20-micron and 5-micron seawater elements are each nominal 10 × 2.5 inches. Seawater passes through 20 micron first, then 5 micron. The carbon element is nominal 10 × 2.5 inches in the separate freshwater-flush path; it does not replace either prefilter.

Water path	Element	Housing and seal
Seawater, first	20 micron FT-FTC-20 10 × 2.5 in nominal	Check installed prefilter bowl and seal
Seawater, second	5 micron FT-FTC-5 10 × 2.5 in nominal	Check installed prefilter bowl and seal
Freshwater flush	Carbon FT-FTC-CC 10 × 2.5 in nominal	Standard clear bowl · bowl seal Optional Z-Ion changes the bowl assembly

The intake strainer is the small five-inch type: assembly · screen · seal. Its screen size describes the strainer, not the 10-inch filter cartridges.

Prefilter dimensions ↗ · Maintenance ↗ · Common parts ↗ · Five-inch strainer ↗

FOLLOW THE WATER

Connect modules and original drawings

Use these original Ventura Connect parts drawings to recognize the physical modules. Tap a section to view its labeled components. The plumbing schematic traces the route between them.

Intake & filter bowls

The feed-pump module includes the Shurflo pump, service valve and freshwater-flush bowl. The seawater dual prefilters sit downstream. 12V and 24V motors differ. Pump head and heat sink are separate service items.

Open full-size drawing ↗

Spectra Ventura 150C Connect Intake & filter bowls manufacturer parts drawing, manual page 78

Ventura Connect plumbing schematic ↗ · 12V/24V wiring drawing ↗

INSIDE THE PUMP

7% Clark Pump service groups

The 2025 Ventura Connect exploded views identify the 7% center block and the same outside, reversing-valve, center-block and cylinder service groups used by the Ventura 150 Deluxe guide. These are manufacturer identification drawings; the interactive 7% reconstruction in the Ventura 150 Deluxe 3D Clark Pump guide ↗ is an additional visual aid. Compare the installed ratio and revision before using either guide to order parts.

Outside

7% center block joins the two cylinders. End block A and end block B have separate SKUs. Locate the pressure relief valve, end caps and J-tubes.

Open full-size drawing ↗

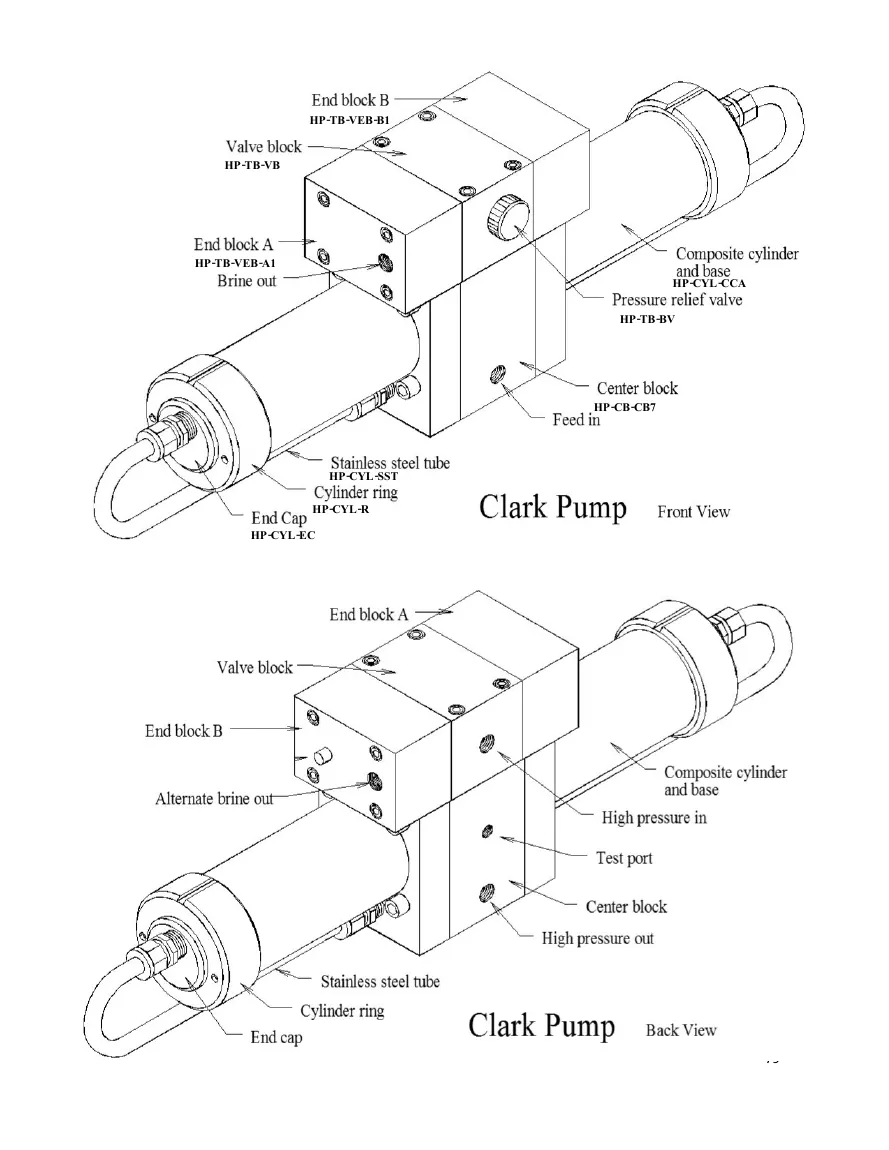

Spectra Ventura 150C Connect Outside manufacturer parts drawing, manual page 79

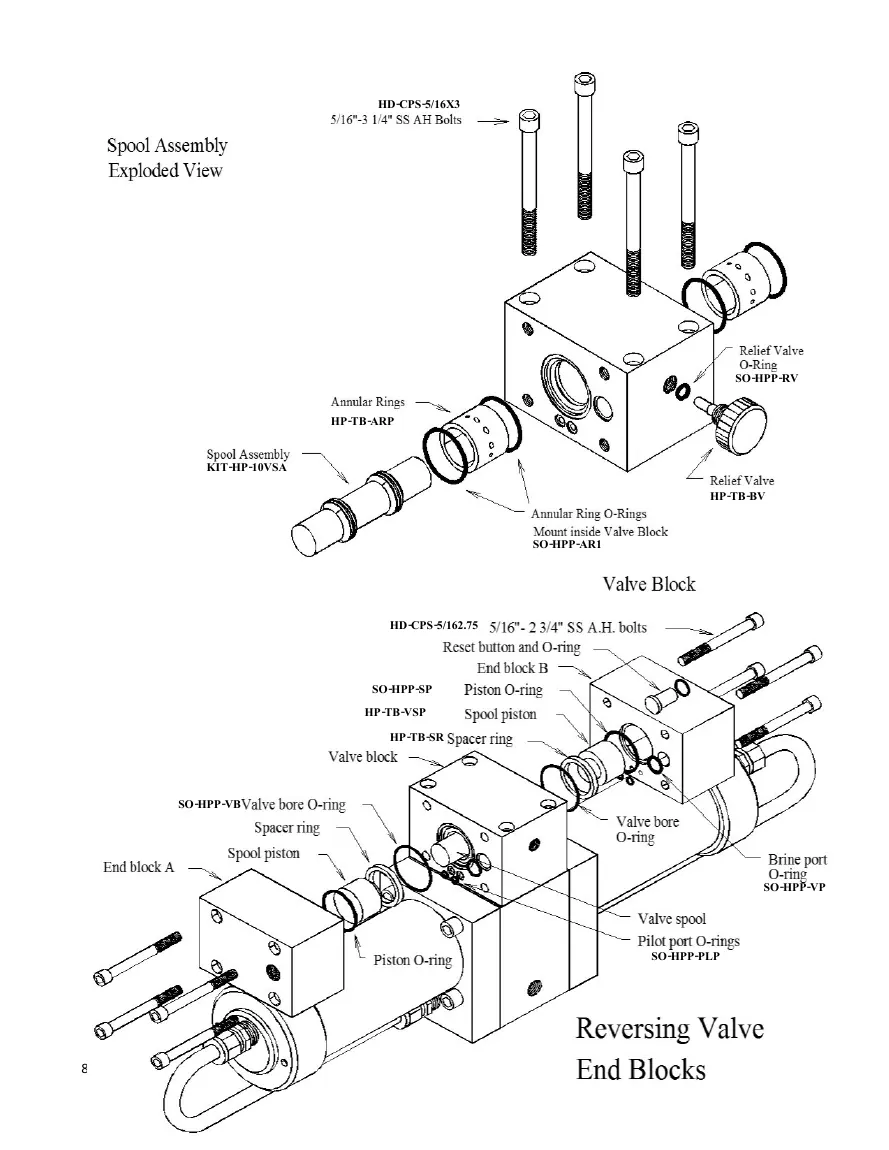

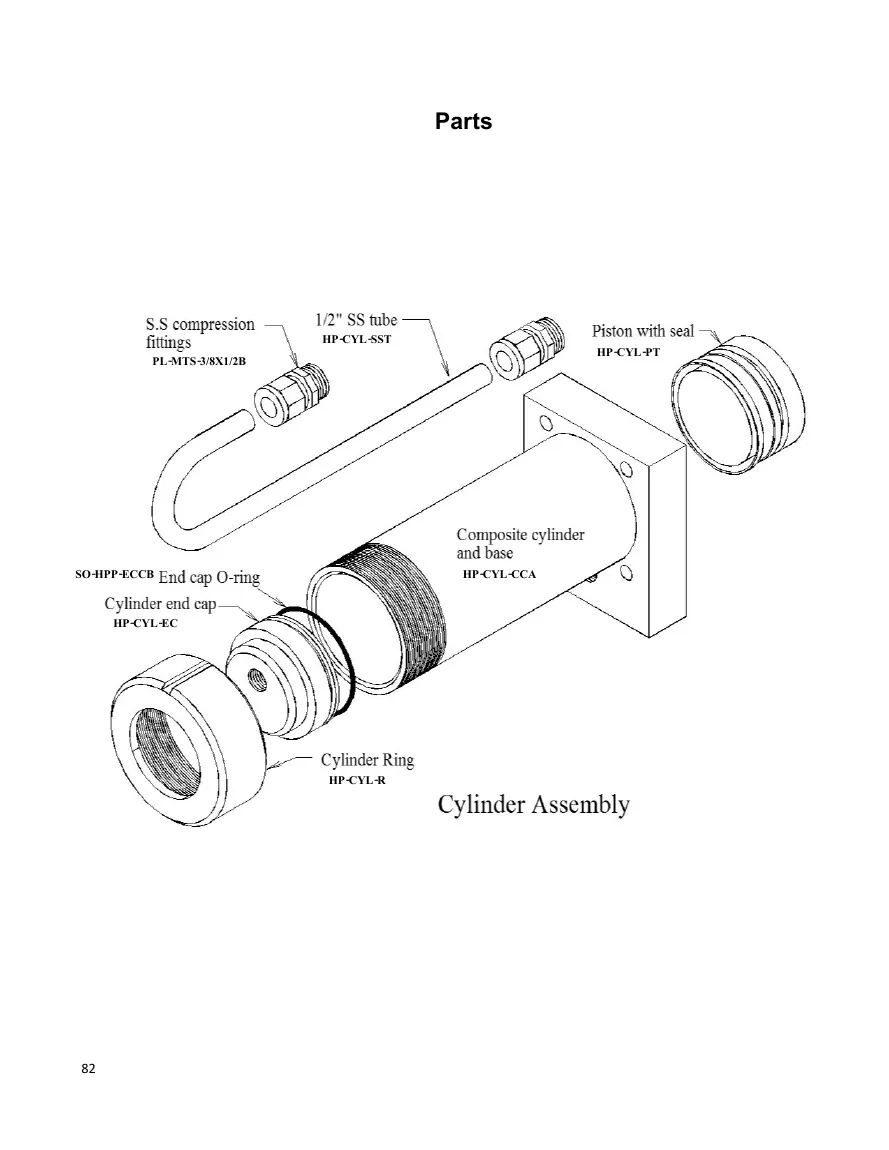

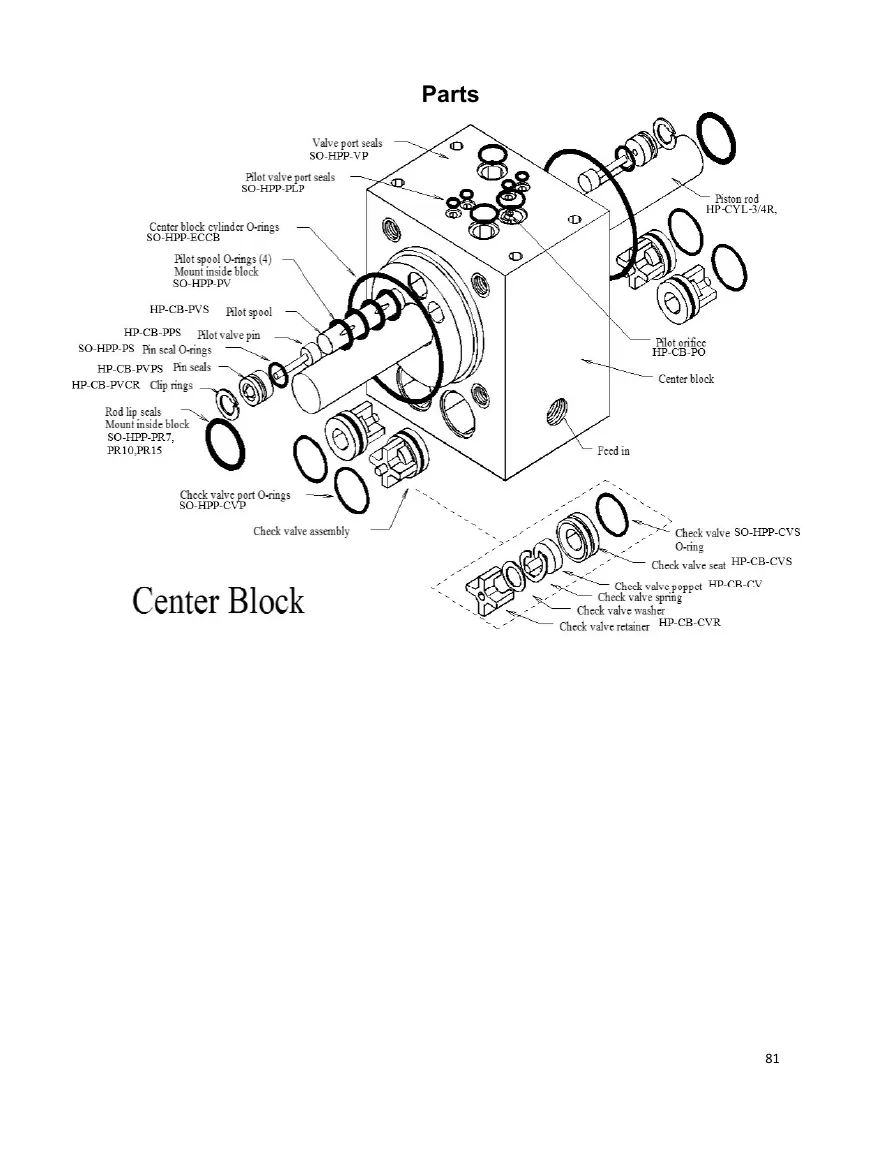

Kit or individual part?

7% distributor rebuild kit and 7%/10% seal and O-ring kit have different scopes. Check contents and service requirements before buying overlapping pieces. A drawing is not a disassembly procedure.

CARE & BUYING CHOICES

Maintain the whole water path

Prefilters and flush carbon

Replace dirty seawater prefilters according to condition; Spectra advises against cleaning them for reuse. The 5-micron element follows the 20-micron element. Change the freshwater-flush carbon at least every six months. The optional Z-Ion unit changes the flush assembly.

20 micron · 5 micron · carbon

Maintenance ↗ · Z-Ion option ↗

Storage versus cleaning

SC-1 is for preservation. SC-2 and SC-3 address different diagnosed membrane fouling. Low output can have feed or pump causes; use the manual flow test before assuming the membrane needs replacement or cleaning.

Storage ↗ · Cleaning ↗ · Flow test ↗

Electrical and controls

Match the 12V or 24V feed pump to the installed nameplate. Pump head repairs have a different scope from a complete motor. Check display-plus-cable versus display-only contents.

Display packages ↗ · Feed module ↗

SHORT ANSWERS

Common 150C questions

Does this system use a 20-inch or 21-inch membrane?

The current 150C fact sheet describes one 20-inch membrane; Spectra calls KIT-MB-20F a 2.5 × 21-inch kit in the Connect exploded view. Match the kit SKU and installed short vessel rather than relying on the rounded length wording.

Which filters are the seawater prefilters?

FT-FTC-20 is the upstream 20-micron seawater prefilter and FT-FTC-5 is the downstream 5-micron seawater prefilter. Both are nominal 10 × 2.5 inches. FT-FTC-CC is the separate freshwater-flush carbon element.

Does the 150C have the same controller as the Deluxe?

No. The 150C uses Spectra Connect remote controls, while the 150D Deluxe has analog instruments. Some mechanical 7% pump parts overlap, but controls and wiring must be matched to the installed system.

Can I replace one internal seal without a full rebuild kit?

Individual seals and kits have different contents. Identify the pump ratio and revision, compare the manufacturer drawing and check the kit contents before ordering overlapping items.

Will the normal carbon bowl fit a Z-Ion option?

Z-Ion is optional and changes the freshwater-flush bowl assembly. Identify the installed option before choosing a bowl or treatment part.

FIND THE EXACT SKU

Parts reference by voltage

The first group has an exact SKU or function identified in the 2025 Connect manual. The remaining links come from the earlier configuration mapping and need an installed-hardware check. The list does not set order quantity or guarantee interchangeability after a retrofit.
