SPECTRA OWNER GUIDE

Ventura 150 Deluxe

Explore your system. Identify a component. Find its parts.

150D Analog controls
Your system voltageMatch the label on your installed pump.

Shared parts shown. Choose a voltage for pump and electrical options.

GET TO KNOW YOUR WATERMAKER

Explore the three modules

Spectra CAD models
Loading the system models…The parts and manuals below are available while this loads.
Drag to rotate · scroll or pinch to zoom
Choose a module to see its components.

Modules are arranged here for identification; their installed positions vary. The supplied CAD shows selected components. Internal seals and other service items may appear in the parts list without separate 3D geometry.

Parts identified in the supplied CAD

Match the installed connections to the modeled arrangement. The 3/4-inch hose fittings below are CAD-size matches; later Deluxe plumbing can use 5/8-inch hose. These links do not expand the model finder’s compatibility list.

Modeled componentPart or referenceWhat to check
Prefilter elbows · 3/4-inch hosePL-HBE-3/4X3/4Two 90-degree fittings connect the prefilter housing to the hose. Each is named 3/4-inch NPT × 3/4-inch hose barb in the supplied CAD. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Flush-filter elbows · 3/4-inch hosePL-HBE-3/4X3/4These are the two separate hose elbows at the carbon-filter assembly. The CAD name supplies the 3/4-inch male pipe thread and 3/4-inch hose barb; the geometry shows the elbow shape. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Intake straight fitting · 3/4-inch hosePL-HBS-3/4X3/4Straight fitting at the intake service-valve connection: 3/4-inch NPT to 3/4-inch hose barb in the original CAD. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Clark Pump hose elbow · 5/8-inch hosePL-HBE-3/8X5/8The CAD identifies this Clark Pump connection as a 3/8-inch NPT × 5/8-inch hose-barb elbow. The older Ventura Deluxe parts drawing names PL-HBE-3/8X5/8 at the pump. Check the installed port and brine-hose arrangement when replacing an older module. Manufacturer reference ↗
Brine hose · complete pigtail optionSUB-CT-Z-HPILHAThe selected piece is the short brine hose. SUB-CT-Z-HPILHA is the documented complete Clark Pump pigtail assembly, with end connections, rather than a bulk-hose SKU. Compare the installed ends with the drawing before replacing the assembly. The separate threaded mating body is identified as PL-QDC-BD3/8. Manufacturer reference ↗
Membrane-support bracket end capsFM-PVB-PBE (manufacturer reference)These two shaped mounting caps bridge the membrane-support base. Spectra identifies the plate-bracket end cap as FM-PVB-PBE. They are outside the pressure vessel and are different from the pressure-vessel end plugs. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗
High-pressure module plate bracketFM-PVB-PB (manufacturer reference)This is the larger support base with raised membrane saddles. The manufacturer drawing identifies the plate bracket as FM-PVB-PB. It is separate from the small flat mounting plate directly beneath the Clark Pump. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗
Ventura feed-pump mounting bracketFM-VT-ITM (manufacturer reference)The folded sheet-metal chassis supports the feed pump and service controls. Spectra calls this Ventura feed-pump bracket FM-VT-ITM. This label identifies the bracket; it does not include the pump, filter or separately modeled fasteners. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗

Check that this is your Ventura

150D / Deluxe

Check for VT-150-D-12V or VT-150-D-24V on your system label or paperwork.

Analog instruments

This guide covers Deluxe controls. Choose the matching finder configuration for MPC, Connect or Remote controls.

Installed hardware

Compare the pump label and membrane vessel with your system. Replaced modules can change which parts apply.

INSIDE YOUR CLARK PUMP

Explore the Ventura 150 Clark Pump

Start with the outside, then open the reversing valve, center block or cylinder assembly to identify the parts inside.

Interactive reconstruction

Illustrated 7% Clark Pump arrangement. Reconstructed shapes, threads and separation distances are approximate. Match the installed pump ratio and revision before ordering; use Spectra’s manual for disassembly.

1. Choose a section to explore

SECTION 1 OF 4

Outside

Explore the external parts.

Loading the Clark Pump explorer…

Reset reassembles this section and restores the full view.

Choose a component to see its part reference.

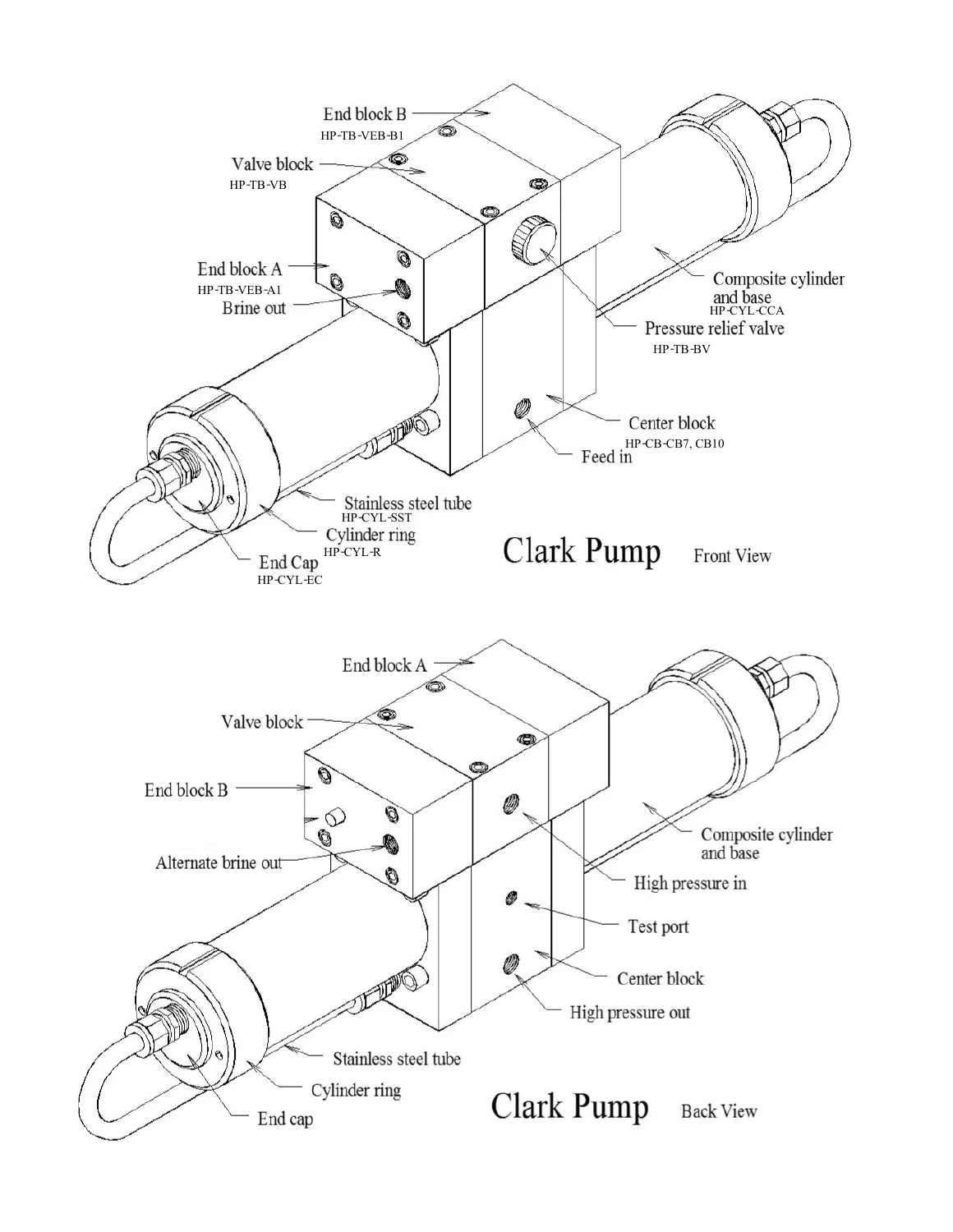

Compare with Spectra’s original drawingOpen source manual · page 53 ↗Spectra Clark Pump exterior drawing, manual page 53
Find a part by name or part number

These component references cover all four views. Open a component in 3D to locate it, then review its product requirements before ordering. Counts in the illustration are not package or order quantities.

HP-TB-VB

Reversing valve block

Contains the annular rings and reversing spool. The pressure-relief valve screws into this block.

Drawing · page 53 ↗
HP-TB-VEB-A1

End block A

One of the two reversing-valve end blocks. A and B are distinct; compare the actual brine-discharge and reset-button arrangement.

Drawing · page 53 ↗
HP-TB-VEB-B1

End block B

End block B has an identifying indentation shown in the rebuild manual. It is not interchangeable by appearance alone with end block A.

Drawing · page 53 ↗
HP-CYL-CCA

Composite cylinder & base

Two identical cylinder-and-base assemblies attach to the center block in the documented pump.

Drawing · page 56 ↗
HP-CYL-EC

Cylinder end cap

Closes the outer end of a cylinder. Its seal and retaining ring are separately identified in the drawing.

Drawing · page 56 ↗
HP-CYL-R

Cylinder retaining ring

The threaded ring retains the cylinder end cap. Thread geometry is simplified in this illustration.

Drawing · page 56 ↗
HP-TB-BV

Pressure-relief valve

Located on the reversing valve block. The SO-HPP-RV O-ring is a separate service item.

Drawing · page 54 ↗
HP-TB-ARP

Annular ring

Two annular rings sit inside the valve block around the reversing spool. The four annular-ring O-rings are separate items.

Drawing · page 54 ↗
KIT-HP-10VSA

Reversing spool assembly

The Deluxe drawing labels this assembly KIT-HP-10VSA; the 2024 rebuild sheet uses KIT-HP-VS10 for 7%/10%. These reference labels are not treated as a verified replacement chain or mapped to a bare spool listing.

Drawing · page 54 ↗
HP-TB-SR

Spool spacer ring

A spacer ring is shown between the valve block and each end-block piston.

Drawing · page 54 ↗
HP-CYL-3/4R

Piston rod, 7%

The 7% pump uses one piston rod. The rebuild guide identifies it separately from the larger 10% rod.

Drawing · page 55 ↗
KIT-HP-CVK

Check-valve assembly

The Deluxe drawing identifies the complete check-valve assembly separately from its individual seat, poppet, spring and retainer.

Drawing · page 55 ↗
SO-HPP-ECCB

Cylinder / end-cap O-ring

The same source part number is shown for cylinder-to-center-block sealing and the cylinder end-cap O-ring. Order for the repair locations you are servicing.

View part & current priceDrawing · page 56 ↗
HP-CYL-PT

Cylinder piston, 7% / 10%

The rebuild guide identifies a one-piece nylon piston for 7% and 10% pumps. The separate 20% piston seal and bushings are not shown here.

Drawing · page 56 ↗
SUB-MTS-3/8X1/2

Cylinder tube fitting

The Deluxe drawing calls this stainless; the current store record with this exact code says bronze. The 2024 rebuild sheet specifies PL-MTS-3/8X1/2S. No purchase link is assigned until the installed material and revision are verified.

Drawing · page 56 ↗
HD-CPS-5/16X3

Valve-block mounting bolt

The drawing identifies four longer bolts joining the valve block to the center block. Dimensions are omitted because the Deluxe annotation and SKU differ.

Drawing · page 54 ↗
HD-CPS-5/162.75

End-block bolt

The rebuild sheet shows eight shorter bolts for the end blocks. The illustration does not specify installation torque.

Drawing · page 54 ↗

Sources: Deluxe manual, pages 53–56; Clark Pump rebuild manual, May 2024. The 7% center block, rod and rod seals differ from 10%; 20% components are excluded here. The reconstruction remains subject to technician geometry review.

FILTERS & REPLACEMENT PARTS

Filters, membrane & feed pump

Browse the full parts list
KIT-MB-20F

One short membrane in the original 150D.

Spectra uses both 20-inch and 21-inch wording for this kit. Identify it by KIT-MB-20F and the installed short vessel. End-plug and retaining-ring repairs use separate catalog items.

View membrane kit
2.5 × 20 / 21 inManufacturer naming for the short kitSee the parts drawing ↗

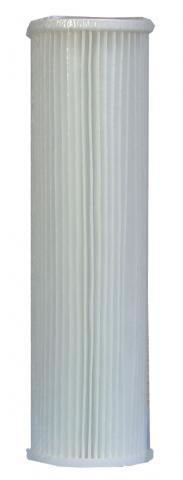

5-micron seawater prefilter
FT-FTC-5

5-micron seawater prefilter

Nominal cartridge size: 10 in long × 2.5 in diameter. Captures fine particles in the seawater feed path.

View part & current price

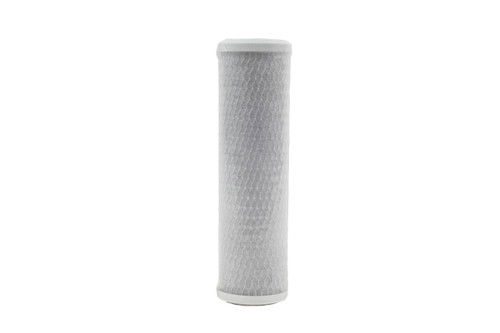

Carbon flush filter
FT-FTC-CC

Carbon flush filter

Nominal cartridge size: 10 in long × 2.5 in diameter. Removes chlorine from freshwater used to flush the membrane.

View part & current price
KIT-FP-SF12

12V feed pump & heat sink

12V package. Match the installed voltage and review the supplied components before ordering.

View part & current price
KIT-FP-SF24

24V feed pump & heat sink

24V package. Match the installed voltage and review the supplied components before ordering.

View part & current price

Select 12V or 24V above to show the matching feed-pump package.

Match the housing seal to the filter stage

StageHousingCartridgeHousing seal
Seawater prefilterFT-FTH-10HFT-FTC-5SO-FHS-10H
Freshwater flushFT-FTH-10L3PCSFT-FTC-CCSO-FHS-3PCS10

Documented Deluxe arrangement. Match any replacement housing by its own identification. Nominal cartridge sizes can differ from measured end-to-end dimensions. Manufacturer drawing ↗

IDENTIFY THE REPAIR PART

Connections & mounting hardware

Match the mounting bracket

Spectra labels these mounting parts in the Deluxe drawings. Compare the installed bracket shape and mounting-hole arrangement with the drawing.

  • FM-VT-ITM — Ventura feed-pump bracket (page 51).
  • FM-PVB-PB — plate bracket (page 50).
  • FM-PVB-PBE — plate-bracket end cap (page 50).

A plate-bracket end cap is mounting hardware; it is different from the membrane pressure-vessel end plug.

Mounting-parts drawing · page 50 ↗

LOOK AFTER YOUR SYSTEM

Maintenance & onboard spares

02

Prepare for storage

Use the storage procedure for your installed preservation equipment. SC-1 is for storage, not membrane cleaning or freeze protection. Follow the manual’s quantities, flushing and return-to-service steps.

SC-1 storage compoundStorage instructions · page 36 ↗
Low output? Check the system before buying a membrane.

The manufacturer calls for a flow test before membrane cleaning. Use its troubleshooting procedure to distinguish feed, pump and membrane issues.

Membrane guidance · page 33 ↗

ANSWERS FOR DELUXE OWNERS

Filters, membrane and configuration questions

What size filters does the Ventura 150 Deluxe use?

The documented FT-FTC-5 seawater prefilter and FT-FTC-CC carbon flush cartridge are nominally 10 inches long by 2.5 inches in diameter. Check the cartridge part number as well as its size: these filters serve different water circuits.

Are the carbon filter and seawater prefilter interchangeable?

Use FT-FTC-5 in the documented seawater prefilter stage and FT-FTC-CC in the freshwater flush stage. The carbon element removes chlorine from flush water; the 5-micron prefilter captures particles in the seawater feed.

Which membrane fits the original Ventura 150 Deluxe?

The original short-vessel 150D arrangement uses one KIT-MB-20F membrane. Spectra uses both 20-inch and 21-inch wording for this short kit. Identify it by part number and installed vessel; the separate end plugs and retaining rings are vessel service items.

How do I choose the 12V or 24V feed pump?

Read the voltage on the installed motor label, then select that voltage above. The guide shows KIT-FP-SF12 for the documented 12V configuration or KIT-FP-SF24 for 24V. Check the product's contents and configuration requirements before ordering.

Does this guide cover Ventura MPC or Connect systems?

This page covers Ventura 150 Deluxe configurations. MPC, Connect and other control arrangements have separate finder selections. Check the installed controls and any replaced modules instead of choosing solely by the Ventura name.

Can I identify every internal part in the 3D model?

The manufacturer CAD shows the main assemblies. A separate Clark Pump reconstruction illustrates the exterior and internal service groups from the manual. Its dimensions and fine details are approximate; use the original drawings and product requirements for identification.

References: membrane drawing, page 50; filters and feed pump, page 51. Cartridge dimensions and pump-package requirements are detailed on the linked product pages above.

YOUR DELUXE PARTS REFERENCE

All documented parts

Includes service parts and optional equipment. Read each part’s requirements before ordering.

95 documented parts across the 12V and 24V configurations. Voltage-specific items are labeled below.

SC-3

Acid Cleaning Chemical

Requirements & manufacturer references

Acid membrane cleaner for mineral scale, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC3; this catalog listing uses SC-3.

Manufacturer guide · Manufacturer guide

12V / 24V systemsView part
SC-2

Alkaline Cleaning Compound

Requirements & manufacturer references

Alkaline membrane cleaner for biological fouling, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC2; this catalog listing uses SC-2.

Manufacturer guide · Manufacturer guide

12V / 24V systemsView part
SC-1

Storage Compound

Requirements & manufacturer references

Storage / preservation chemical for Spectra systems. Use the model manual for the required dose, circulation and recommissioning procedure. This is a maintenance consumable, not an installed component or an automatic recommendation to clean. Manufacturer current kit name: KIT-CHEM-SC1; this catalog listing uses SC-1.

Manufacturer guide · Manufacturer guide

12V / 24V systemsView part
FT-FTH-10L3PCS

10" Low Press. Filter Housing 3 Pcs

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Housing is specific to this position; do not move a low-pressure housing to the pressure side.

Parts diagram / guide, page 51

12V / 24V systemsView part
FT-FTC-5

5 Micron Filter

Requirements & manufacturer references

For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.

Parts diagram / guide, page 31

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

12V / 24V systemsView part
FT-STN-5

5" Strainer (small)

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
FT-STN-5S

5" Strainer Screen (small)

Requirements & manufacturer references

For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.

Parts diagram / guide, page 31

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
FT-FTC-CC

Carbon Filter

Requirements & manufacturer references

For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.

Parts diagram / guide, page 31

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

12V / 24V systemsView part
FT-FTH-10H

High Pressure Filter Housing (blk)

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Housing is specific to this position; do not move a low-pressure housing to the pressure side.

Parts diagram / guide, page 51

12V / 24V systemsView part
FT-PV-ER

Membrane Ring

Requirements & manufacturer references

Ventura short pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 50

12V / 24V systemsView part
PL-TEE-1/2FN

1/2" FPT Tee Nylon

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-VLV-3W1/4

1/4" Three Way Valve

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-CLP-3/4CAR

3/4 in Carlon Clamp

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-VLV-3W3/4

3/4" 3-WAY Valve

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

12V / 24V systemsView part
PL-HBE-3/8X5/8

3/8" NPT X 5/8" Hose Barb Ell Nylon

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-ACC-TK

Accumulator Tank

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-FMT-10

Flow Meter (10G)

Requirements & manufacturer references

Ventura sample/strainer/accumulator assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 52

12V / 24V systemsView part
PL-NP-3/4X2

PL-NP-3/4X2

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

12V / 24V systemsView part
HD‐RBP‐RM

Rubber Mount

Requirements & manufacturer references

Ventura short pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 50

12V / 24V systemsView part
SUB-CT-Z-HPILHA

Clark Pump Brine Pigtail

Requirements & manufacturer references

Complete Clark brine pigtail at the documented discharge connection. Match the pictured connector arrangement; this is not the feed-pump high-pressure inlet hose. The CT prefix does not restrict it to Catalina.

Parts diagram / guide, page 50

12V / 24V systemsView part
KIT-BCK-A

Cruise Kit A

Requirements & manufacturer references

Cruise consumables kit; confirm current kit contents and installed filter stages. Carry-on spares quantity is not system installation quantity.

Parts diagram / guide, page 31

12V / 24V systemsView part
EL-FP-FPHS

Feed Pump Heat Sink

Requirements & manufacturer references

Ventura Deluxe feed and manual flush modules. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.

Parts diagram / guide, page 51

12V / 24V systemsView part
PL-PMP-SFPH

Shurflo Pump Head Assembly

Requirements & manufacturer references

Installed Spectra Shurflo feed pump; complete head and diaphragm drive kit are different purchase choices. Complete pump head includes diaphragm drive, check valves and pressure switch; do not require the buyer to add them again for the same repair.

Parts diagram / guide, page 1 · Manufacturer guide

For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair. Complete pump head includes diaphragm drive, check valves and pressure switch; do not require the buyer to add them again for the same repair.

Parts diagram / guide, page 31 · Manufacturer guide

12V / 24V systemsView part

KEEP THE REFERENCE CLOSE

Manuals & drawings

Ventura 150 / 200T Deluxe manual, June 2025. This page uses the 150D configurations.

Open the Deluxe manual ↗
Onboard sparesPage 31 ↗MaintenancePages 32–33 ↗Clark Pump & membrane drawingPage 50 ↗Intake & filter drawingPage 51 ↗

Need a different Ventura configuration? Return to the parts finder. View the complete Ventura 150 Deluxe system.
