Ventura 200T Deluxe

Find parts for your warm-water Ventura: explore its Deluxe modules, 10% Clark Pump, filters and short membrane.

200T Analog controls

Have a Ventura 150 Deluxe? Open its 7% Clark Pump guide →

Your system voltageMatch the label on your installed pump.

Shared parts shown. Choose a voltage for pump and electrical options.

BEFORE YOU CHOOSE A PART

Ventura 200T essentials

Built for warm water

The 200T is designed for water above 50°F / 10°C. Spectra warns that colder water can increase operating pressure and feed-pump wear.

Warm-water guidance · page 5 ↗

200 GPD rated output

Spectra rates this model at 8.3 US gallons / 31 liters per hour. The fact sheet lists baseline feed water at 77°F / 25°C and 33,000 PPM. Actual output depends on conditions and system health.

200T manufacturer fact sheet ↗

Check the pump ratio

The documented 200T uses a 10% Clark Pump. Read the installed pump’s identification before ordering a center block, rod, rod seals or rebuild kit, especially after a retrofit.

See the four 200T-specific references ↓

GET TO KNOW YOUR WATERMAKER

Explore the three modules

Shared Deluxe exterior CAD
Loading the system models…The parts and manuals below are available while this loads.
Drag to rotate · scroll or pinch to zoom
Choose a module to see its components.

Spectra describes the 200T as sharing the 150’s size and module configuration. These supplied Deluxe exterior models identify the shared layout; the separate internal explorer shows the 200T’s 10% pump. Installed positions and replaced hardware can vary. The supplied CAD shows selected components. Internal seals and other service items may appear in the parts list without separate 3D geometry.

Parts identified in the supplied CAD

Match the installed connections to the modeled arrangement. The 3/4-inch hose fittings below are CAD-size matches; later Deluxe plumbing can use 5/8-inch hose. These links do not expand the model finder’s compatibility list.

Modeled componentPart or referenceWhat to check
Prefilter elbows · 3/4-inch hosePL-HBE-3/4X3/4Two 90-degree fittings connect the prefilter housing to the hose. Each is named 3/4-inch NPT × 3/4-inch hose barb in the supplied CAD. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Flush-filter elbows · 3/4-inch hosePL-HBE-3/4X3/4These are the two separate hose elbows at the carbon-filter assembly. The CAD name supplies the 3/4-inch male pipe thread and 3/4-inch hose barb; the geometry shows the elbow shape. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Intake straight fitting · 3/4-inch hosePL-HBS-3/4X3/4Straight fitting at the intake service-valve connection: 3/4-inch NPT to 3/4-inch hose barb in the original CAD. The supplied CAD uses a 3/4-inch hose barb here. Check your installed hose inside diameter: later Deluxe plumbing can use 5/8-inch hose. Match both ends before ordering. Manufacturer reference ↗
Clark Pump hose elbow · 5/8-inch hosePL-HBE-3/8X5/8The CAD identifies this Clark Pump connection as a 3/8-inch NPT × 5/8-inch hose-barb elbow. The older Ventura Deluxe parts drawing names PL-HBE-3/8X5/8 at the pump. Check the installed port and brine-hose arrangement when replacing an older module. Manufacturer reference ↗
Brine hose · complete pigtail optionSUB-CT-Z-HPILHAThe selected piece is the short brine hose. SUB-CT-Z-HPILHA is the documented complete Clark Pump pigtail assembly, with end connections, rather than a bulk-hose SKU. Compare the installed ends with the drawing before replacing the assembly. The separate threaded mating body is identified as PL-QDC-BD3/8. Manufacturer reference ↗
Membrane-support bracket end capsFM-PVB-PBE (manufacturer reference)These two shaped mounting caps bridge the membrane-support base. Spectra identifies the plate-bracket end cap as FM-PVB-PBE. They are outside the pressure vessel and are different from the pressure-vessel end plugs. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗
High-pressure module plate bracketFM-PVB-PB (manufacturer reference)This is the larger support base with raised membrane saddles. The manufacturer drawing identifies the plate bracket as FM-PVB-PB. It is separate from the small flat mounting plate directly beneath the Clark Pump. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗
Ventura feed-pump mounting bracketFM-VT-ITM (manufacturer reference)The folded sheet-metal chassis supports the feed pump and service controls. Spectra calls this Ventura feed-pump bracket FM-VT-ITM. This label identifies the bracket; it does not include the pump, filter or separately modeled fasteners. Reference identification only; this SKU has no listing in the supplied store catalog. Manufacturer reference ↗

Check that this is your Ventura

200T / Deluxe

Check for VT-200-T-12 or VT-200-T-24 (also written VT-200T-12V / 24V) on your system label or paperwork.

Analog instruments

This guide covers Deluxe controls. Choose the matching finder configuration for MPC, Connect or Remote controls.

Installed hardware

Compare the pump label and membrane vessel with your system. Replaced modules can change which parts apply.

INSIDE YOUR CLARK PUMP

Explore the Ventura 200T Clark Pump

Start with the outside, then open the reversing valve, center block or cylinder assembly to identify the parts inside.

Interactive reconstruction

Illustrated 10% Clark Pump arrangement. Reconstructed shapes, threads and separation distances are approximate. Match the installed pump ratio and revision before ordering; use Spectra’s manual for disassembly.

1. Choose a section to explore

SECTION 1 OF 4

Outside

Explore the external parts.

Loading the Clark Pump explorer…

Reset reassembles this section and restores the full view.

Choose a component to see its part reference.

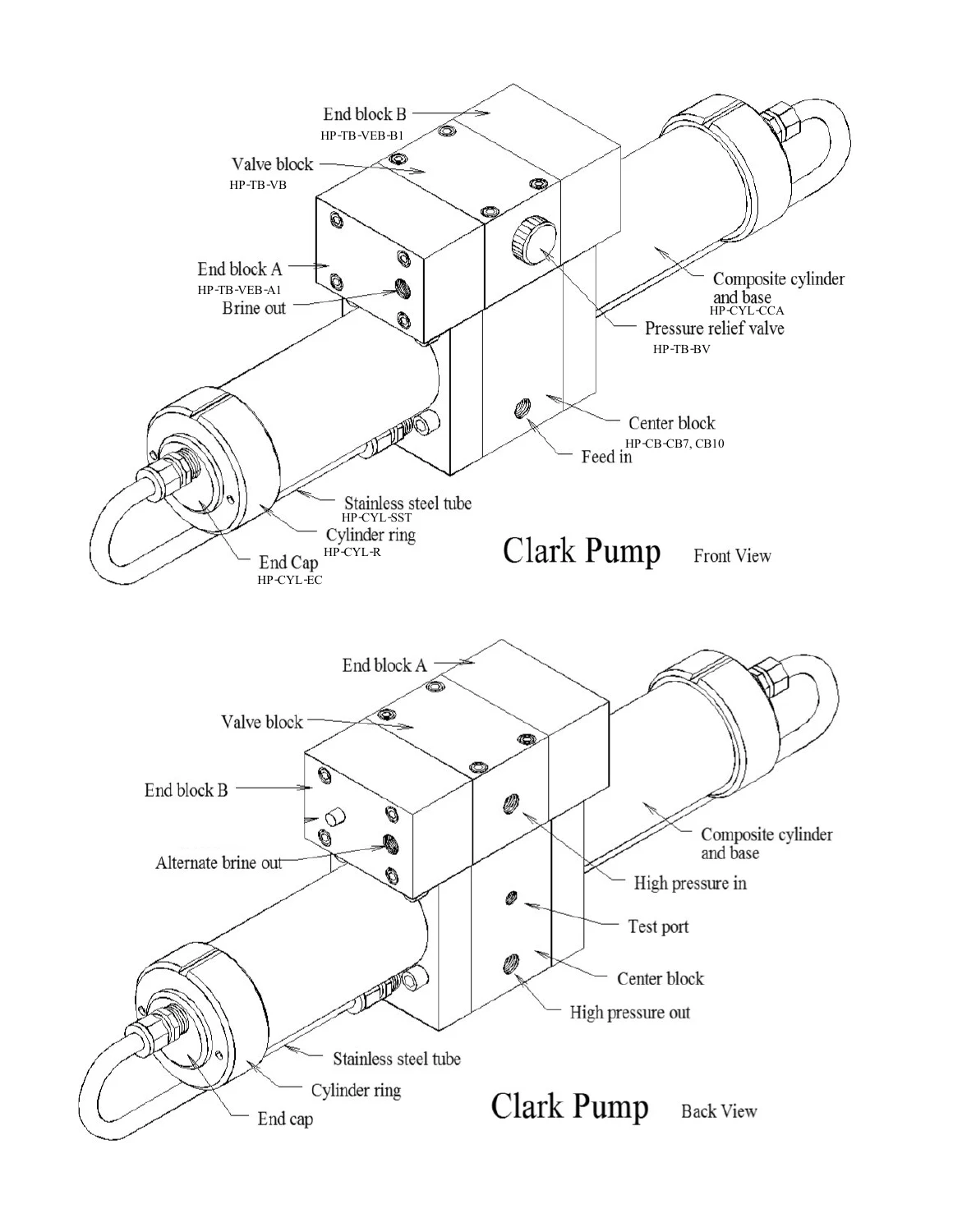

Compare with Spectra’s original drawingOpen source manual · page 53 ↗Spectra Clark Pump exterior drawing, manual page 53
Find a part by name or part number

These component references cover all four views. Open a component in 3D to locate it, then review its product requirements before ordering. Counts in the illustration are not package or order quantities.

HP-CB-CB10

10% center block

Center block for the installed 10% Clark Pump, sold without inserts. The center-block bore must match the larger 10% piston rod and SO-HPP-PR10 seals. Check pump ratio and revision after any replacement.

View part & current priceDrawing · page 53 ↗
KIT-HP-10VSA

Reversing spool assembly

The Deluxe drawing labels this assembly KIT-HP-10VSA; the 2024 rebuild sheet uses KIT-HP-VS10 for 7%/10%. These reference labels are not treated as a verified replacement chain or mapped to a bare spool listing.

Drawing · page 54 ↗
HP-TB-SR

Spool spacer ring

A spacer ring is shown between the valve block and each end-block piston.

Drawing · page 54 ↗
HP-CYL-7/8R

Piston rod, 10% (7/8 inch)

The 10% Clark Pump uses one 7/8-inch piston rod. The 150’s 7% rod is 3/4 inch. Pair this replacement with the installed 10% center block and its correct rod seals.

View part & current priceDrawing · page 55 ↗
SO-HPP-PR10

Piston-rod lip seal, 10%

Two SO-HPP-PR10 seal locations are shown in the 10% center block. Match the larger 10% rod, and check the product’s supplied quantity before ordering for both locations.

View part & current priceDrawing · page 55 ↗
KIT-HP-CVK

Check-valve assembly

The Deluxe drawing identifies the complete check-valve assembly separately from its individual seat, poppet, spring and retainer.

Drawing · page 55 ↗
SO-HPP-ECCB

Cylinder / end-cap O-ring

The same source part number is shown for cylinder-to-center-block sealing and the cylinder end-cap O-ring. Order for the repair locations you are servicing.

View part & current priceDrawing · page 56 ↗
SUB-MTS-3/8X1/2

Cylinder tube fitting

The Deluxe drawing calls this stainless; the current store record with this exact code says bronze. The 2024 rebuild sheet specifies PL-MTS-3/8X1/2S. No purchase link is assigned until the installed material and revision are verified.

Drawing · page 56 ↗
HD-CPS-5/16X3

Valve-block mounting bolt

The drawing identifies four longer bolts joining the valve block to the center block. Dimensions are omitted because the Deluxe annotation and SKU differ.

Drawing · page 54 ↗
HD-CPS-5/162.75

End-block bolt

The rebuild sheet shows eight shorter bolts for the end blocks. The illustration does not specify installation torque.

Drawing · page 54 ↗

Sources: Deluxe manual, pages 53–56; Clark Pump rebuild manual, May 2024. The 200T’s 10% center block, rod and rod seals differ from the 150’s 7% versions. Select replacements by the installed pump ratio and revision. The reconstruction remains subject to technician geometry review.

10% CLARK PUMP REPLACEMENTS

What changes from the Ventura 150?

Spectra’s rebuild manual identifies three differences between its 7% and 10% pumps: the center block, piston rod and rod seals. The reversing-valve and cylinder service groups share the documented 7% / 10% arrangement.

10% center block

HP-CB-CB10 — block without inserts. Check the installed pump ratio and revision.

View 10% center block

7/8-inch piston rod

HP-CYL-7/8R — one rod in the documented 10% pump, paired with the matching center block and rod seals.

View 10% piston rod

Matching rod seals

SO-HPP-PR10 — two seal locations inside the center block. Review the supplied pack quantity on the product page.

View 10% rod seal

Planning a full rebuild?

KIT-HP-10UD is the distributor rebuild kit for an installed 10% pump. Review its contents before also ordering individual internal parts. The KIT-HP-S&O seal-and-O-ring kit remains a separate service option for documented 7% / 10% pumps.

View 10% rebuild kit View seal & O-ring kit

References: 7% / 10% differences, page 11; rod seals, page 15; piston rods, page 16; manufacturer 10% rebuild kit.

FILTERS & REPLACEMENT PARTS

Filters, membrane & feed pump

Browse the full parts list
KIT-MB-20F

One short membrane in the documented 200T.

Spectra uses both 20-inch and 21-inch wording for this kit. Identify it by KIT-MB-20F and the installed short vessel. End-plug and retaining-ring repairs use separate catalog items.

View membrane kit
2.5 × 20 / 21 inManufacturer naming for the short kitSee the parts drawing ↗
5-micron seawater prefilter
FT-FTC-5

5-micron seawater prefilter

Nominal cartridge size: 10 in long × 2.5 in diameter. Captures fine particles in the seawater feed path.

View part & current price
Carbon flush filter
FT-FTC-CC

Carbon flush filter

Nominal cartridge size: 10 in long × 2.5 in diameter. Removes chlorine from freshwater used to flush the membrane.

View part & current price
KIT-FP-SF12

12V feed pump & heat sink

12V package. Match the installed voltage and review the supplied components before ordering.

View part & current price
KIT-FP-SF24

24V feed pump & heat sink

24V package. Match the installed voltage and review the supplied components before ordering.

View part & current price

Select 12V or 24V above to show the matching feed-pump package.

Match the housing seal to the filter stage

StageHousingCartridgeHousing seal
Seawater prefilterFT-FTH-10HFT-FTC-5SO-FHS-10H
Freshwater flushFT-FTH-10L3PCSFT-FTC-CCSO-FHS-3PCS10

Documented Deluxe arrangement. Match any replacement housing by its own identification. Nominal cartridge sizes can differ from measured end-to-end dimensions. Manufacturer drawing ↗

IDENTIFY THE REPAIR PART

Connections & mounting hardware

Match the mounting bracket

Spectra labels these mounting parts in the Deluxe drawings. Compare the installed bracket shape and mounting-hole arrangement with the drawing.

  • FM-VT-ITM — Ventura feed-pump bracket (page 51).
  • FM-PVB-PB — plate bracket (page 50).
  • FM-PVB-PBE — plate-bracket end cap (page 50).

A plate-bracket end cap is mounting hardware; it is different from the membrane pressure-vessel end plug.

Mounting-parts drawing · page 50 ↗

LOOK AFTER YOUR SYSTEM

Maintenance & onboard spares

02

Prepare for storage

Use the storage procedure for your installed preservation equipment. SC-1 is for storage, not membrane cleaning or freeze protection. Follow the manual’s quantities, flushing and return-to-service steps.

SC-1 storage compoundStorage instructions · page 36 ↗
Low output? Check the system before buying a membrane.

The manufacturer calls for a flow test before membrane cleaning. Use its troubleshooting procedure to distinguish feed, pump and membrane issues.

Membrane guidance · page 33 ↗

ANSWERS FOR DELUXE OWNERS

Filters, membrane and configuration questions

Is the 200T Clark Pump the same as the 150’s?

They share most of the documented 7% / 10% service groups. The 200T’s 10% center block, larger piston rod and rod seals differ, and its full rebuild kit is KIT-HP-10UD. Select parts for the pump actually installed.

Manufacturer comparison · page 11 ↗
Does the 200T’s higher output mean it needs a 40-inch membrane?

The documented Deluxe 200T uses one short KIT-MB-20F membrane in its 2.5-inch pressure vessel. Its higher-displacement Clark Pump distinguishes it from the 150; the shared Deluxe drawing still specifies the short membrane. Match any replaced vessel before ordering.

Membrane drawing · page 50 ↗
What size filters does the Ventura 200T Deluxe use?

The documented FT-FTC-5 seawater prefilter and FT-FTC-CC carbon flush cartridge are nominally 10 inches long by 2.5 inches in diameter. Check the cartridge part number as well as its size: these filters serve different water circuits.

Are the carbon filter and seawater prefilter interchangeable?

Use FT-FTC-5 in the documented seawater prefilter stage and FT-FTC-CC in the freshwater flush stage. The carbon element removes chlorine from flush water; the 5-micron prefilter captures particles in the seawater feed.

Which membrane fits the original Ventura 200T Deluxe?

The original short-vessel 200T arrangement uses one KIT-MB-20F membrane. Spectra uses both 20-inch and 21-inch wording for this short kit. Identify it by part number and installed vessel; the separate end plugs and retaining rings are vessel service items.

How do I choose the 12V or 24V feed pump?

Read the voltage on the installed motor label, then select that voltage above. The guide shows KIT-FP-SF12 for the documented 12V configuration or KIT-FP-SF24 for 24V. Check the product's contents and configuration requirements before ordering.

Does this guide cover Ventura MPC or Connect systems?

This page covers Ventura 200T Deluxe configurations. MPC, Connect and other control arrangements have separate finder selections. Check the installed controls and any replaced modules instead of choosing solely by the Ventura name.

Can I identify every internal part in the 3D model?

The manufacturer CAD shows the main assemblies. A separate Clark Pump reconstruction illustrates the exterior and internal service groups from the manual. Its dimensions and fine details are approximate; use the original drawings and product requirements for identification.

References: membrane drawing, page 50; filters and feed pump, page 51. Cartridge dimensions and pump-package requirements are detailed on the linked product pages above.
