Newport 700C Connect parts & owner guide
Follow the 700C water path, identify filters and two 40-inch membranes, choose your supply voltage and compare 20% Clark Pump components with the original exploded drawings.
24V / 48V DC · 110V / 220V AC · Spectra ConnectMatch your system supply
Read the installed system and motor labels, especially after a retrofit.
Showing parts common to all four original configurations. Select the system supply to see electrical parts.
CHECK THE SYSTEM
Newport 700C or 1000C?
20% Clark Pump
The 700C high-pressure module identifies KIT-HP20 and the HP-CB-CB20 center block. The 10% center block, piston rod and rod seals from the 400C are different. Check the installed pump label and revision.
Four electrical supplies
24V and 48V DC systems use different motors and control paths. The AC models have 110V or 220V system input, but the manufacturer drawing identifies the same 240VAC three-phase feed motor downstream of speed controls. Read both labels before replacing electrical components.
MATCH EACH FILTER
Seawater stages and freshwater flush
The seawater prefilters are nominal 10 × 2.5 inches: 20 micron upstream and 5 micron downstream. The carbon cartridge treats the separate freshwater flush; matching cartridge size does not make these stages interchangeable.
| Path | Cartridge | Housing |
|---|---|---|
| Seawater, first | 20 micron FT-FTC-20 10 × 2.5 in nominal | Three-piece housing Housing seal |
| Seawater, second | 5 micron FT-FTC-5 10 × 2.5 in nominal | Separate three-piece housing |
| Freshwater flush | Carbon FT-FTC-CC 10 × 2.5 in nominal | Separate flush housing; Z-Ion bowl may differ |
The sea strainer is ahead of the booster pump. The standard six-inch screen differs from the plastic strainer screen labeled FT-STN-6SP. Match the body and seal before ordering.
Filter sizes ↗ · Strainer drawing ↗ · Dual prefilter drawing ↗ · Flush drawing ↗
FOLLOW THE WATER
Explore the four modules
These are Spectra’s 700C/1000C parts drawings. The high-pressure image shows the 700C two-vessel layout. Choose a module to compare the installed assembly.

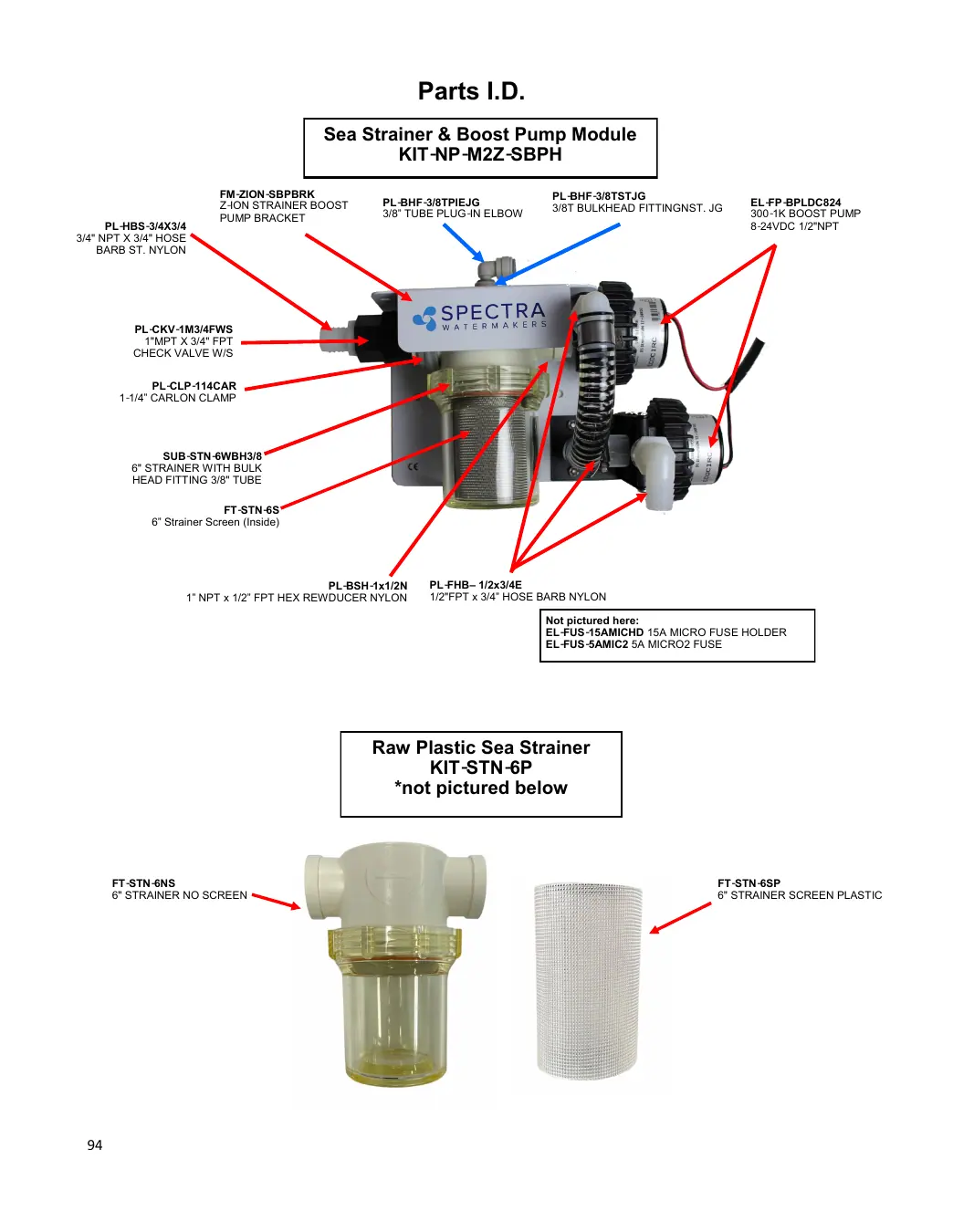

Sea strainer & booster
The six-inch strainer and 8–24V booster pump are ahead of the feed module. The 48V system uses a separate voltage-conversion path; do not wire an 8–24V pump directly to 48V.

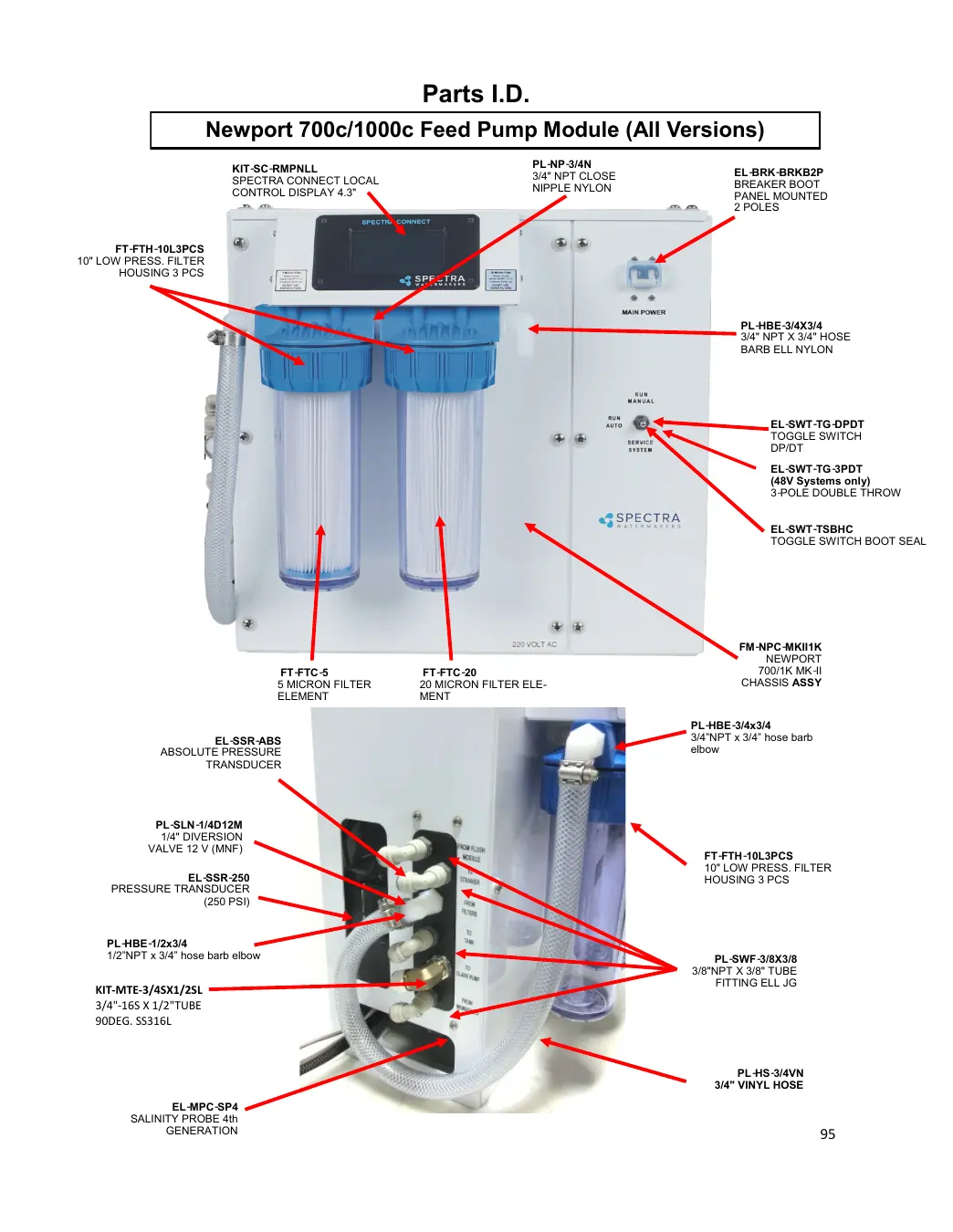

Feed pump & prefilters
The mag-drive vane pump moves seawater through separate 20-micron and 5-micron housings. The pump head, motor and motor controller are distinct items.

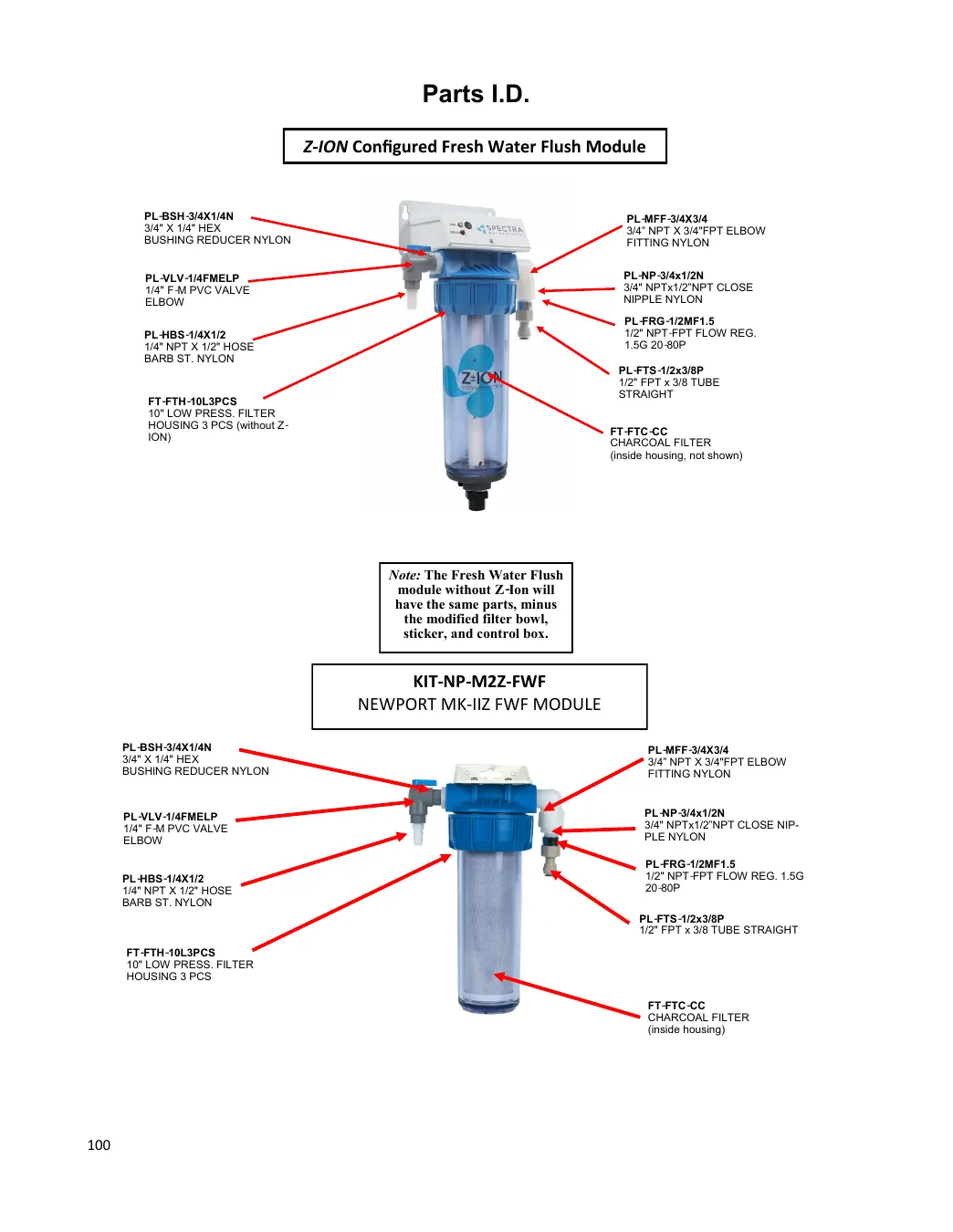

Freshwater flush & carbon
The freshwater-flush path uses a separate carbon cartridge. Z-Ion installations include a modified bowl and control arrangement.

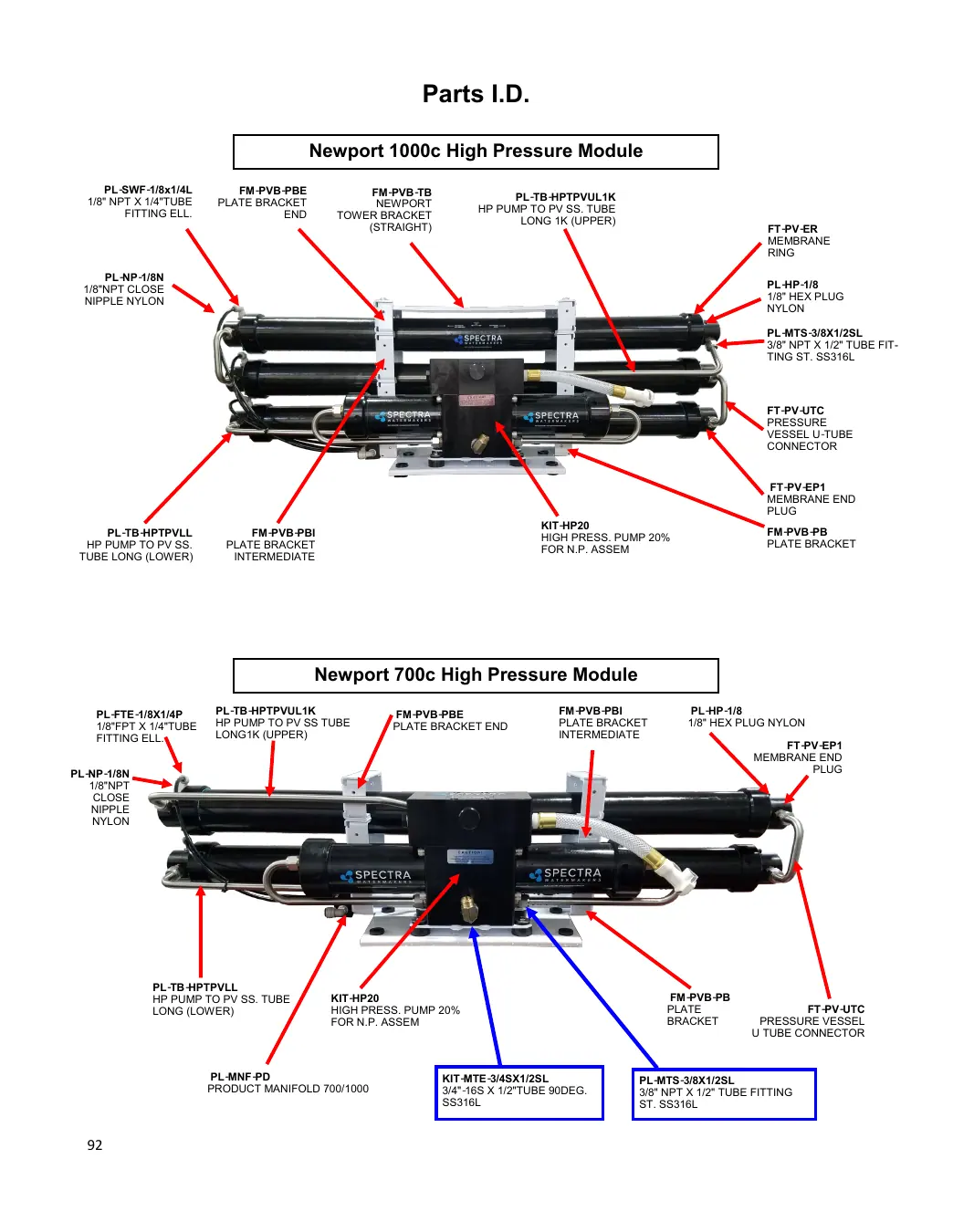

20% pump & two membranes
The 700C pressure module has the 20% pump and two long membrane vessels; the adjacent 1000C drawing uses three. Match the correct drawing before selecting tube or mounting hardware.
INSIDE THE 20% PUMP
Explore the actual 700C exploded drawings
The prior guide’s 3D pump reconstruction supports 7% and 10% hardware. It cannot accurately represent this 20% pump, so these manufacturer drawings are the identification view. Compare the installed pump ratio and revision before ordering internal components.

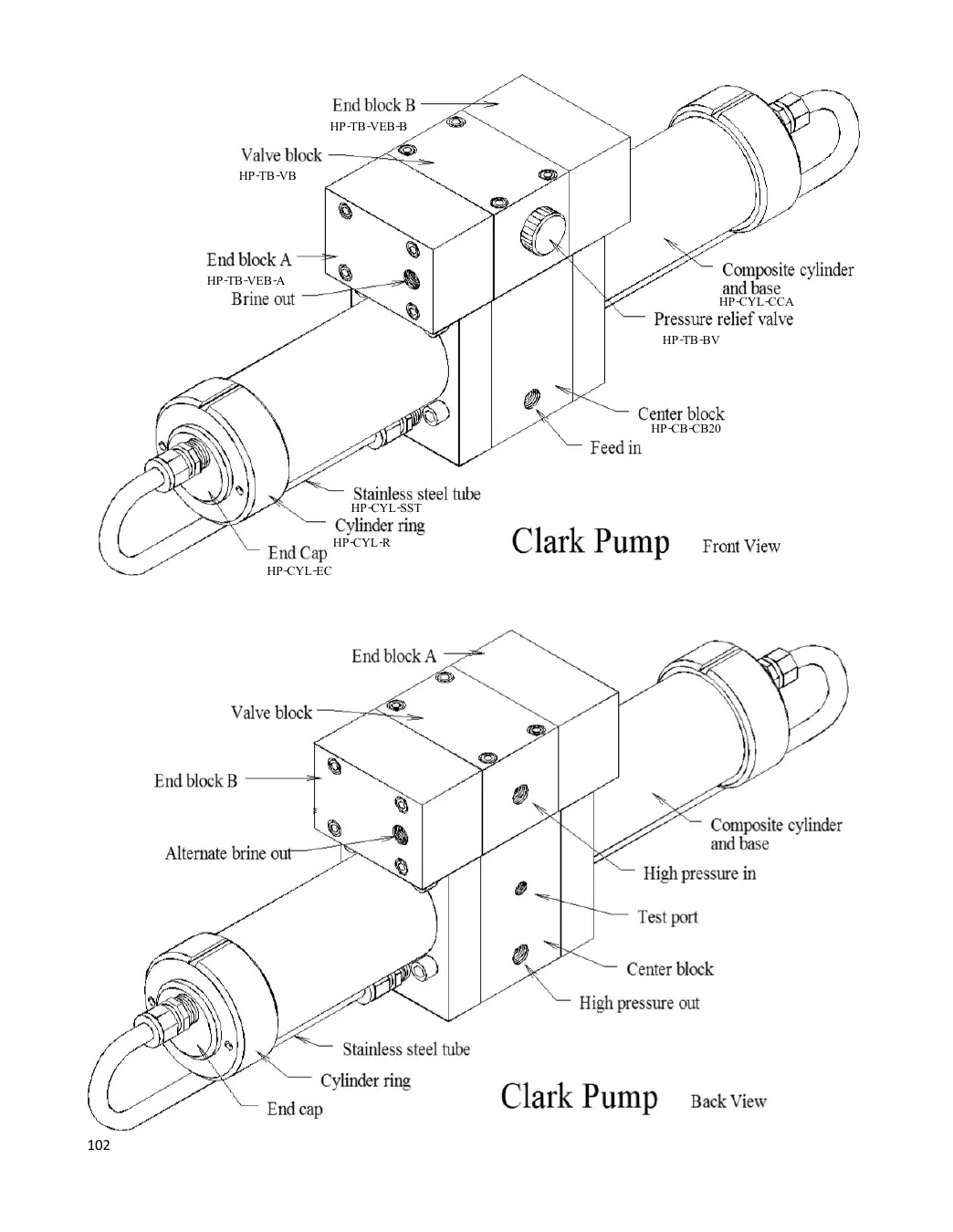

Outside
The 20% center block joins the two cylinder assemblies. The drawing labels A and B valve end blocks as different parts.

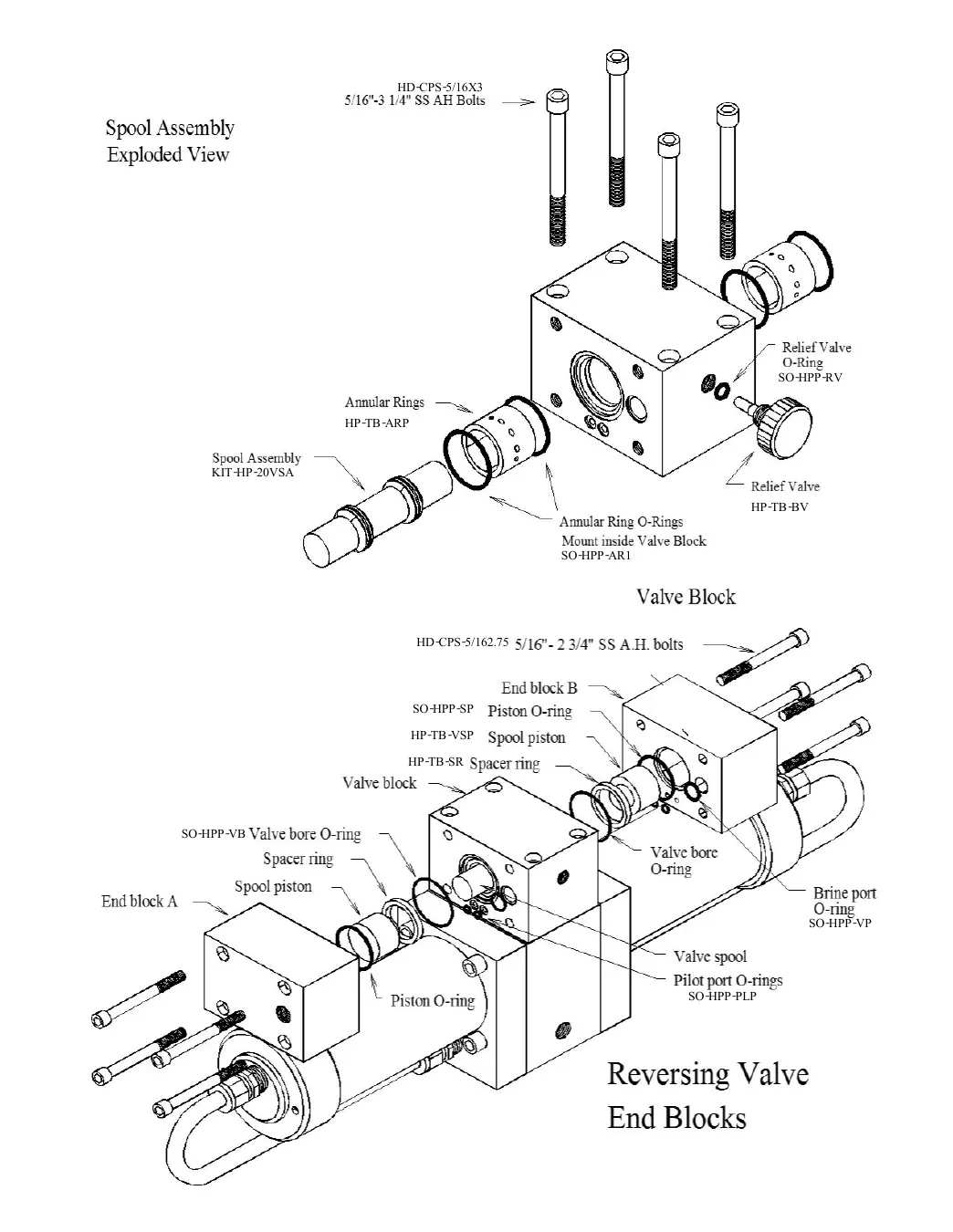

Reversing valve
The valve spool, bleed valve and several seals have distinct drawing labels. Check rebuild-kit contents before buying individual seals.

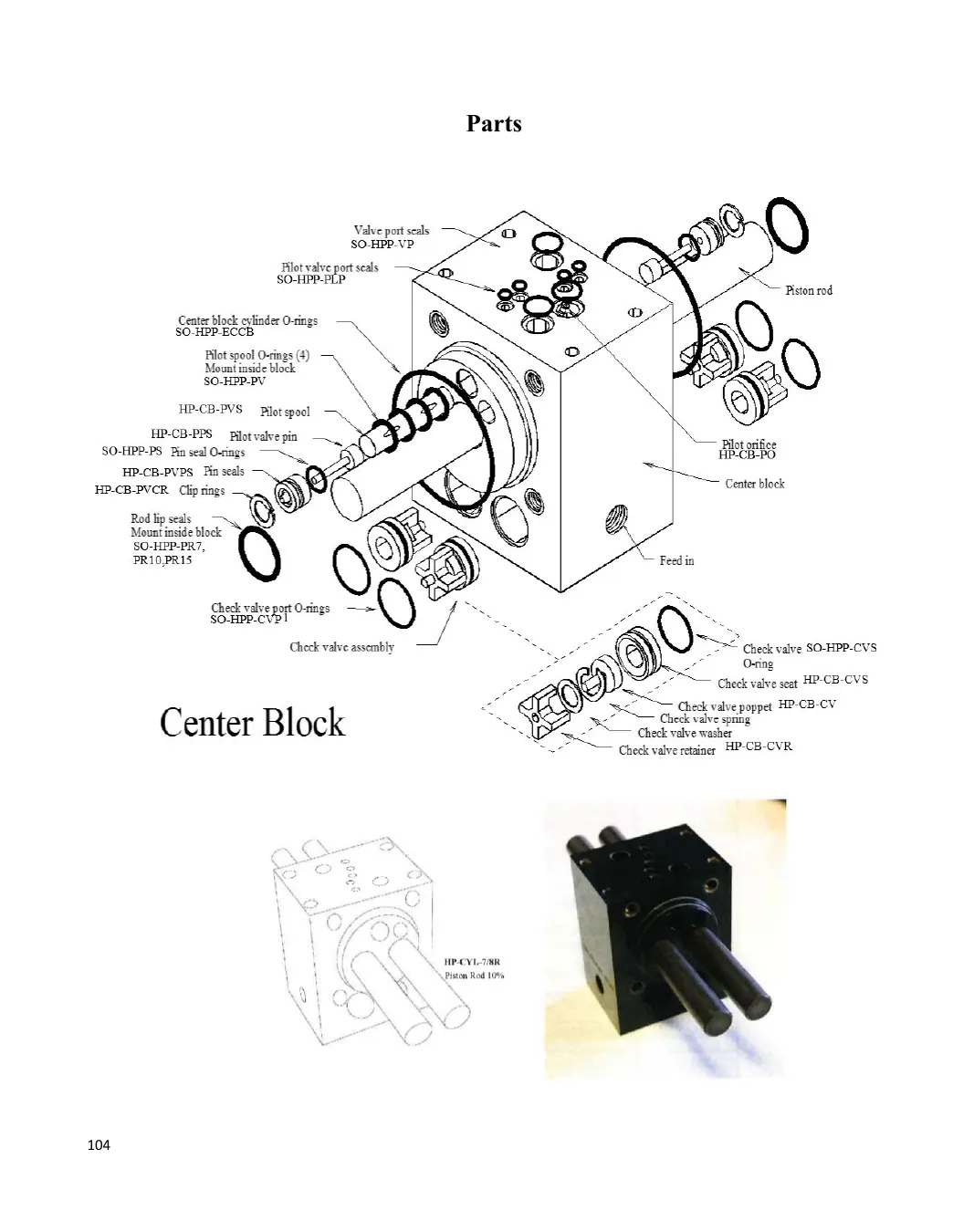

Center block
The drawing shows pilot and check valves plus rod-lip seals. It also labels a photograph HP-CYL-7/8R as a 10% rod on this 20% pump page. That label does not establish which rod and seal fit every installed 20% revision; confirm those two items with Spectra.

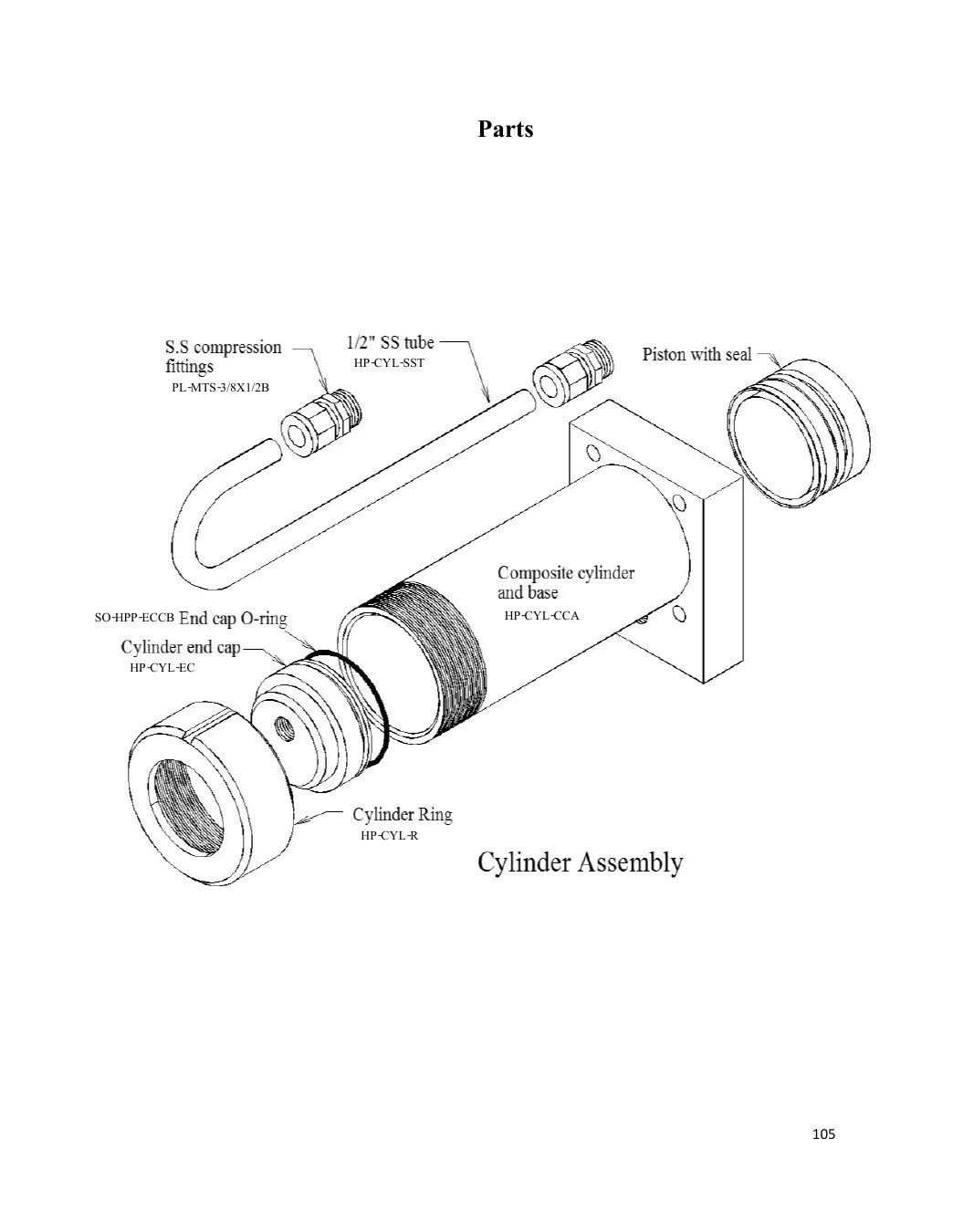

Cylinder assembly
Check the cylinder, stainless tube, retaining ring and end cap against the installed revision and the service procedure.
Full rebuild or individual seals?
20% distributor rebuild kit and 20% seal and O-ring kit have different scopes. Check the kit contents and installed pump before ordering overlapping parts. The manufacturer drawings are an identification aid, not a disassembly procedure.
SELECT THE INPUT SUPPLY
Motors, breakers and controllers
| System input | Documented components | What to check |
|---|---|---|
| 24V DC | 24V 1 HP motor · 30A breaker · PWM assembly | Motor label and exact PWM revision. Newport manual, page 97 ↗ |
| 48V DC | 48V 1 HP motor EL-MTR-1D48 · 48-to-24V converter EL-PS-720W48/24 · 15A breaker | Motor and converter appear in the drawing but are not in this store catalog. Newport manual, page 98 ↗ |
| 110V AC | 240VAC three-phase feed motor · 15A breaker | The speed controller drives the motor; incoming 110V is not the motor nameplate. Newport manual, page 99 ↗ |
| 220V AC | 240VAC three-phase feed motor · 10A breaker | Match controller input and motor nameplate. Newport manual, page 99 ↗ |
The existing product URL for EL-BRK-30ADP still contains an old “10a” slug, but its SKU and 2025 24V drawing identify a 30A breaker. Confirm the actual breaker label before purchase. 30A drawing ↗
CARE & BUYING CHOICES
Choose only what the task needs
Membrane replacement
Replace one element with one membrane kit. Replacing both original 700C elements needs two. Retaining rings and vessel end-plug hardware are separate repairs; check the installed vessel before adding them.
Filters and storage
Replace dirty seawater prefilters as the manual directs. Change the flush carbon filter at least every six months. SC-1 preserves a stored system; SC-2 and SC-3 address different diagnosed membrane fouling.
Service and controls
Inspect the installed Connect display and cable before choosing the display-plus-cable kit or display only. 20% offshore spares kit may overlap individual seals; review contents first.
ANSWERS FOR OWNERS
Frequently confused choices
Does the Newport 700C use one or two membrane kits?
The original Newport 700C has two 2.5 × 40-inch membrane elements. One KIT-MB-40F replaces one; two kits replace both. Count installed vessels if the system has been modified.
Are the 700C and 400C Clark Pumps interchangeable?
The 700C manual identifies a 20% pump. The 400C guide covers a 10% pump. Ratio-specific center block, piston and seals differ; check the installed pump before selecting parts.
Which filter goes first?
Seawater enters the 20-micron FT-FTC-20 prefilter, then the 5-micron FT-FTC-5. The carbon FT-FTC-CC is in the separate freshwater-flush circuit.
Why does a 110V Newport list a 240VAC three-phase motor?
Spectra labels the installed motor EL-MTR-3/4AC220 in both AC module drawings. The motor-speed controller connects system input to the motor. Check the installed motor and controller labels.
Does the 48V system have a 48V booster pump?
The booster-pump drawing labels an 8–24V part. The 48V module also contains a 48-to-24V converter; do not connect the booster directly to the 48V supply.
Can the 400C 3D Clark Pump model identify 700C internal parts?
No. That reconstruction supports 7% and 10% geometry. Use the original 20% Newport exploded drawings and installed part labels for this system.
CATALOG REFERENCE
Documented parts by voltage
Choose the system input above to narrow these parts. The list includes small fittings and service items; identification does not set the order quantity. Confirm installed revisions and package contents on the linked product page.
114 reviewed references across the four original supplies.
No matching parts. Clear the search or choose another system supply.
