SPECTRA OWNER GUIDE
Catalina 340 Connect
Find the filters, membranes and service parts for your Catalina. Identify the installed modules, explore the 10% Clark Pump, and check upgrades before you order.
12V / 24V / 48V DC · Standard & compact · Connect controls
Use the system label, then check the installed vessels.
Count and measure the installed vessels before ordering membranes.
All configurations are labeled in the reference list below.
48V system? Check the component supply.The manual specifies a 24V feed motor with a step-down converter. Booster pumps, valves and optional accessories have their own power requirements. Use the 48V wiring sheet and match the installed labels.
BEFORE YOU CHOOSE A PART
Check that this is your Catalina
Connect controls
Look for the Spectra Connect touchscreen and a CT-340C system code. Catalina 300, 340Z MPC and 340R Remote Manual have different controls. A replacement module may be newer than the boat.
Standard uses one long membrane. The compact “S” arrangement uses two short membranes. A modular system described as compact in general sales copy is not enough to identify the membrane arrangement.
The documented Clark Pump is 10%. Confirm its ratio after a retrofit. The membrane, feed motor, booster pump and Clark Pump are distinct components with different replacement choices.
One kit replaces the original standard element. The kit includes a membrane and replacement seals; the vessel, end plugs and retaining rings are separate service items.
Replacing both original elements takes two kits. Each kit supplies one membrane with seals. Spectra also uses 21-inch wording for the short kit; identify it by KIT-MB-20F and the installed short vessels.
These are nominal cartridge dimensions, not a measurement of every end cap. Match the SKU and sealing ends as well as length and diameter. Carbon belongs in the freshwater flush circuit; it is not a substitute for the seawater prefilter.
Does mine need a 20-micron filter or a different housing seal?

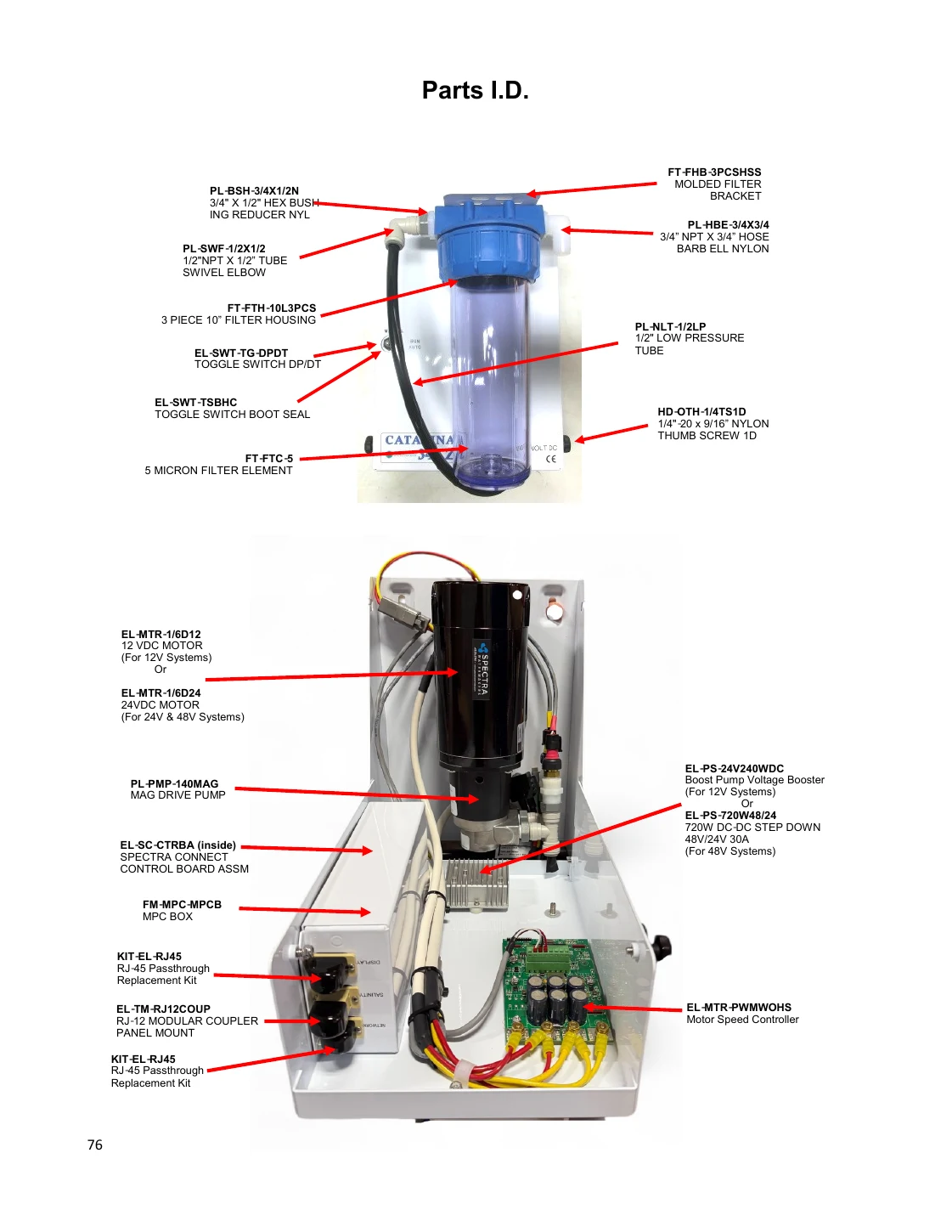

The Catalina fact sheet and feed-module drawing identify a 5-micron prefilter. The general maintenance text also discusses a 20/5-micron sequence. Add a 20-micron element only for an installed additional stage; do not substitute it for the specified 5-micron element. A high-pressure housing uses a different seal from the three-piece low-pressure housing above.
The manual’s spares table and module drawings disagree on some housing seals and strainer sizes. The affected links are explained in hardware checks and Spectra confirmation.
Seawater passes through the strainer and booster pumps, then the prefilter and feed pump. The Clark Pump pressurizes the membrane circuit. Sensors and the diversion valve monitor product water before it goes to the tank. The separate carbon-filter circuit supplies freshwater flushing.
48V converterThe manual names EL-PS-720W48/24. There is no exact matching store listing in the supplied catalog; the 12V step-up converter is not a substitute.
The current drawing shows a pair of booster pumps around a 6-inch strainer. Earlier assemblies may have one pump. Count yours before ordering a full module.

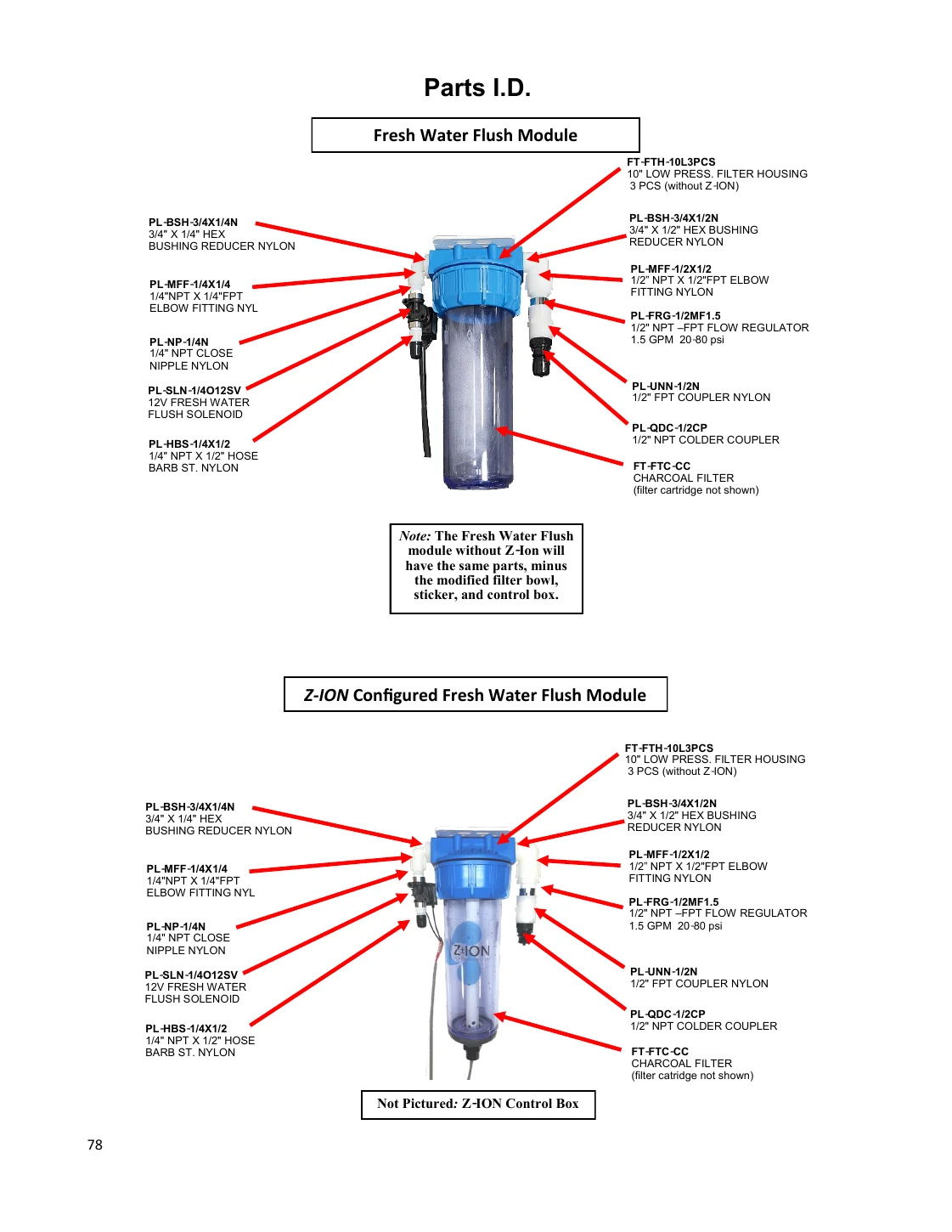

Freshwater from the vessel passes through the carbon stage to protect the membrane from chlorine. Z-Ion adds preservation equipment at this module; the drawing still includes the carbon cartridge.

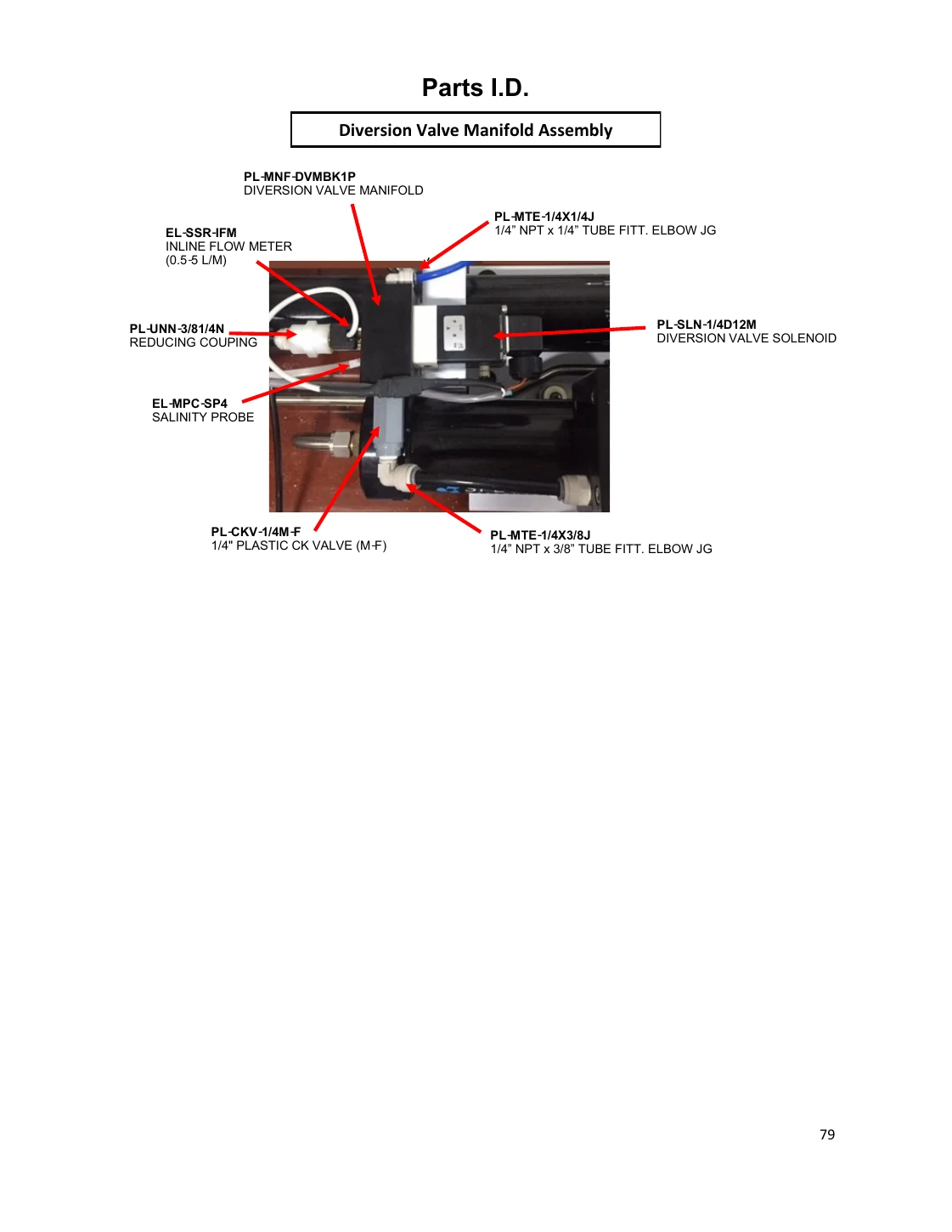

The salinity probe measures water quality; the flow sensor measures production. The diversion valve determines the water path. These parts perform different jobs.
A dirty filter indication is associated with the pressure measurements, not the salinity probe. Use the manual’s diagnostics before replacing a sensor.
Complete plumbing schematic ↗. The Catalina modules above use manufacturer drawings. The Clark Pump below is an illustrative 3D reconstruction; no Catalina exterior CAD is claimed.

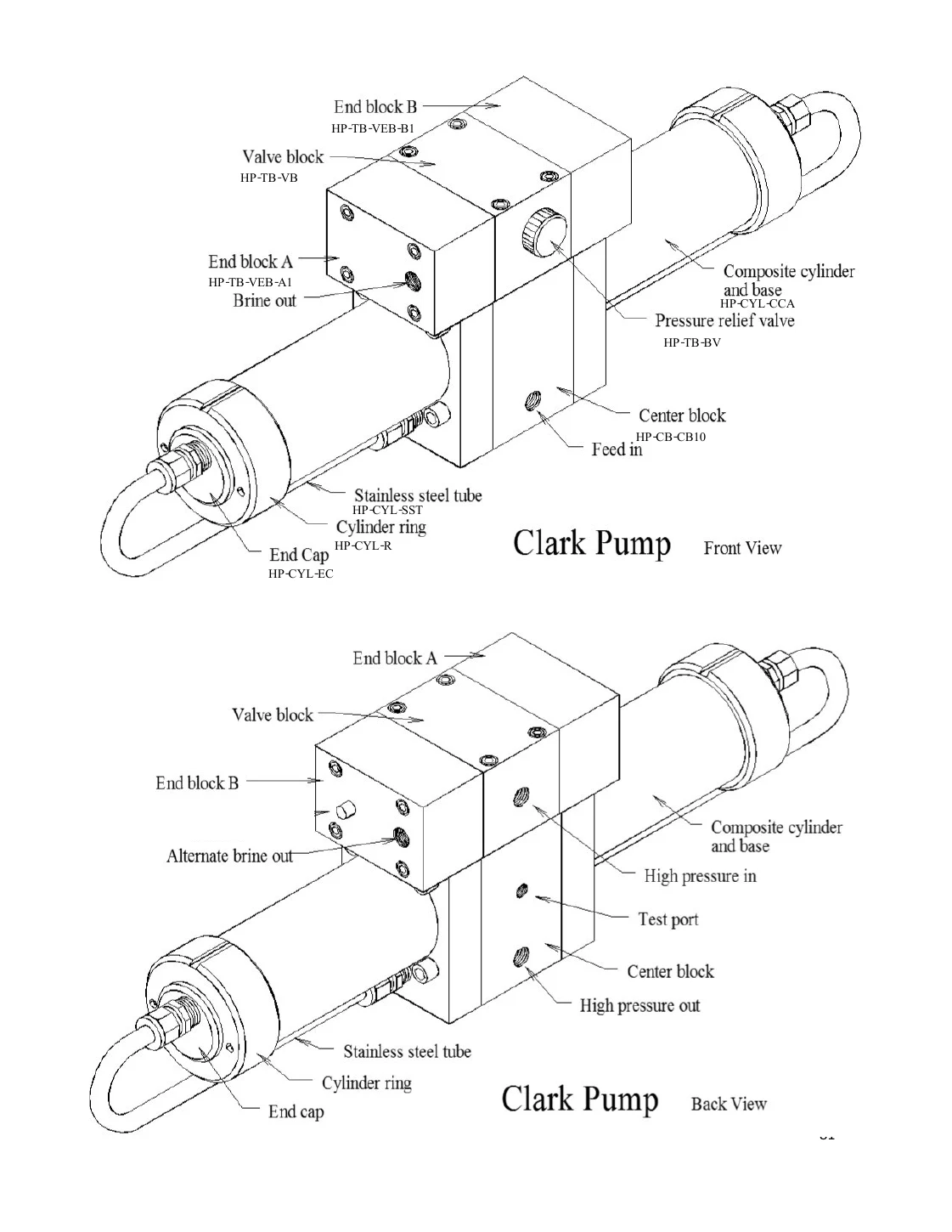

INSIDE YOUR CLARK PUMP
Explore the Catalina 340 Connect Clark Pump
Start with the outside, then open the reversing valve, center block or cylinder assembly to identify the parts inside.
Interactive reconstruction
Illustrated 10% Clark Pump arrangement. Reconstructed shapes, threads and separation distances are approximate. Match the installed pump ratio and revision before ordering; use Spectra’s manual for disassembly.
1. Choose a section to explore
SECTION 1 OF 4
Outside
Explore the external parts.
Select “Load 3D” to rotate and separate the pump. The component selectors work without loading the model.
Reset reassembles this section and restores the full view.
These component references cover all four views. Open a component in 3D to locate it, then review its product requirements before ordering. Counts in the illustration are not package or order quantities.
HP-CB-CB10
10% center block
Center block for the installed 10% Clark Pump, sold without inserts. The center-block bore must match the larger 10% piston rod and SO-HPP-PR10 seals. Check pump ratio and revision after any replacement.
The Catalina drawing labels this assembly KIT-HP-10VSA; the 2024 rebuild sheet uses KIT-HP-VS10 for 7%/10%. These reference labels are not treated as a verified replacement chain or mapped to a bare spool listing.
Reference only; no verified purchase link.Source drawing ↗HP-TB-VSP
Spool piston, 7% / 10%
Two spool pistons fit inside the end blocks. The 20% piston and seal are different; they are excluded here.
Two SO-HPP-PR10 seal locations are shown in the 10% center block. Match the larger 10% rod, and check the product’s supplied quantity before ordering for both locations.
Complete check-valve assembly reference from the rebuild material. The Catalina drawing identifies the individual seat, poppet, spring and retainer; no complete-kit shopping match is asserted here.
Reference only; no verified purchase link.Source drawing ↗HP-CB-CVS
Check-valve seat
Seat used with the check-valve sealing O-ring. Four check valves are shown in the center block.
The same source part number is shown for cylinder-to-center-block sealing and the cylinder end-cap O-ring. Order for the repair locations you are servicing.
The Catalina cylinder drawing labels PL-MTS-3/8X1/2B; newer high-pressure module drawings use stainless fittings. Match the installed fitting material and revision. This illustrative fitting has no direct purchase link.
Reference only; no verified purchase link.Source drawing ↗HD-CPS-5/16X3
Valve-block mounting bolt
The drawing identifies four longer bolts joining the valve block to the center block. Dimensions are omitted because the source annotation and SKU differ.
Reference only; no verified purchase link.Source drawing ↗HD-CPS-5/162.75
End-block bolt
The rebuild sheet shows eight shorter bolts for the end blocks. The illustration does not specify installation torque.
Sources: Catalina manual, pages 81–84; Clark Pump rebuild manual, May 2024. The illustrated 10% center block, piston rod and rod seals must match the installed pump. The 7% and 20% alternatives are excluded here. The reconstruction remains subject to technician geometry review.
ZION-AUTO is the automated option for Connect. It changes preservation equipment, not membrane size. The documented flush module keeps a carbon cartridge.
For 48V, confirm the approved accessory supply and exact package with Spectra before ordering. Do not connect a 12/24V accessory directly to 48V.
Burkert diversion-manifold conversion: a complete conversion has different requirements from a replacement solenoid. Confirm with Spectra before ordering for a Connect manifold. Identify its revision and accessory supply.
Single-to-dual booster upgrade: the reviewed candidate applies to 12/24V configurations subject to confirmation; 48V fitment is not established here.
MPC-3000 to MPC-5000 kits are not Connect upgrades.Those conversions concern older MPC-controlled systems. This guide does not link them as Catalina 340 Connect replacements. If the installed controls say MPC, choose the matching Catalina generation in the parts finder.
CHECK THE INSTALLED VERSION
Hardware checks & Spectra confirmation
These links stay available for identification. They are not counted as documented matches for the selection above. Give Spectra the system label, installed component label and a photo of the relevant connection when asking the question shown.
9 links requiring a hardware check or Spectra confirmationZ-ION-CT
Z-Ion Protection for New Catalina 340Z Systems
Confirm with Spectra before ordering.
Confirm the installed controls, plumbing/power interface and exact package with Spectra. No direct equivalence or supersession to another Z-Ion SKU is established.
For Farallon or 48V/AC systems, confirm the approved 12/24V accessory supply and correct Z-Ion package with Spectra. Do not connect Z-Ion directly to 48V or AC.
Confirm SP4N electrical/connector compatibility and that its 3-foot lead reaches your installation. The SP4 controller guide does not separately clear every SP4N application.
Dealer-listed candidate retrofit: confirm exact starting model, supply voltage, wiring protection and current kit contents with Spectra before ordering.
Page 52 lists SO-FHS-10H, but the pictured Catalina feed module on page 76 has FT-FTH-10L3PCS, which uses SO-FHS-3PCS10. Confirm the installed housing with Spectra before ordering SO-FHS-10H; do not select it by system name alone.
The spares table on page 52 lists a 5-inch screen; the current module on page 77 has a 6-inch strainer. Confirm the installed strainer size and body with Spectra before ordering the 5-inch screen.
This is a seal for a 5-inch strainer. The current module drawing shows a 6-inch strainer. Confirm the installed strainer body with Spectra before ordering; the 5-inch spare is not a universal Catalina gasket.
Earlier Catalina Connect/Z drawings show a Spartan/ECI/Alcon manifold as well as a Burkert version. Confirm whether this complete conversion fits the installed Connect manifold, connector and accessory supply, and which fittings must be retained. It is not a routine upgrade for an existing Burkert manifold; 48V fitment is not established here.
Use the prefilter-condition display and the actual water conditions to decide when to change the seawater element. Replace dirty elements; do not plan on washing them back into service.
Replace the carbon flush cartridge at least every six months. Check the seawater strainer for debris and match its screen and gasket to the installed body.
Cruise Kit A: review the included filters before adding duplicates.
SC-1 is a storage preservative, not a membrane cleaner or freeze protector. Follow the procedure for the installed Z-Ion or chemical-preservation arrangement.
After chemical storage—or if storage history is unknown—follow the commissioning and purge instructions before sending product water to the tank.
Start with the manual’s cruising-duration list. Cruise Kit A, a replacement PL-PMP-140MAG head, storage supplies and strainer/housing seals address different needs. For longer trips, review the offshore kit alongside the parts already onboard. Match every seal to the installed housing and check kit contents before doubling up.
What size filters does a Catalina 340 Connect use?
The documented seawater prefilter is FT-FTC-5, 5 micron, nominally 10 inches long × 2.5 inches diameter. The freshwater flush cartridge is FT-FTC-CC, a carbon block of the same nominal size. They serve different circuits and are not interchangeable.
Does the compact Catalina use a 40-inch membrane?
The original compact arrangement uses two 2.5 × 20-inch elements. Two KIT-MB-20F kits replace both elements. The original standard arrangement uses one 2.5 × 40-inch element, replaced by one KIT-MB-40F. Check installed vessels after any modification.
Why does the 48V system list a 24V motor?
The current Catalina manual specifies EL-MTR-1/6D24 for both 24V and 48V systems, with a 48V-to-24V converter in the 48V arrangement. The voltage of the boat’s supply does not establish the required voltage of each component.
Is the Clark Pump the same as a Ventura 150 Deluxe pump?
The documented Catalina 340 Connect uses a 10% Clark Pump. The Ventura 150 Deluxe uses a 7% arrangement. The ratio-specific center block, piston rod and rod seals differ; shared-looking external parts do not make the complete pumps interchangeable.
Do I need the 5-inch or 6-inch strainer parts?
The current Catalina module drawing shows a 6-inch strainer and also identifies a newer plastic version separately. The spares table still lists some 5-inch parts. Identify the installed body, screen and gasket; use the confirmation links if those records do not match your hardware.
Can I order an upgrade just because it appears here?
Read its conditions first. Documented parts include configuration and revision requirements. Links marked “Confirm with Spectra before ordering” are possible applications or unresolved hardware choices, not verified fitment.
Can the 3D explorer identify every Catalina part?
The 3D reconstruction covers four service groups of the 10% Clark Pump. The other Catalina modules use manufacturer identification drawings. Fine geometry is approximate; unknown CAD pieces and unresolved fitting revisions are not given verified shopping links.
YOUR CONFIGURATION REFERENCE
Documented parts & service options
Choose the system voltage and membrane arrangement above to narrow this list. Open each part’s requirements for its location, hardware restrictions and source. Optional equipment and service programs are labeled in those requirements.
121 documented references across the six configurations.
No matches for these selections. Clear the search or check voltage and membrane arrangement. Unresolved hardware links are listed in Spectra confirmation.
Acid membrane cleaner for mineral scale, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC3; this catalog listing uses SC-3.
Alkaline membrane cleaner for biological fouling, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC2; this catalog listing uses SC-2.
Storage / preservation chemical for Spectra systems. Use the model manual for the required dose, circulation and recommissioning procedure. This is a maintenance consumable, not an installed component or an automatic recommendation to clean. Manufacturer current kit name: KIT-CHEM-SC1; this catalog listing uses SC-1.
Complete 12V Spartan flush valve with body in the documented freshwater module. Match the 12V control output and two quarter-inch female ports; different from the body-less manifold valve. Match installed valve function, voltage and body/interface. A model connection does not make all valve revisions interchangeable. Match installed valve function, voltage and body/interface. A model connection does not make all valve revisions interchangeable.
Catalina Connect motor/controller module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Controller without heatsink; board must carry programming and firmware for the exact model. A Connect interface alone does not establish interchangeability.
documented Connect sensor/diversion assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Match the sensor range, connector and manifold position. Component voltage can differ from system input; use the documented control supply.
documented Connect sensor/diversion assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Match the sensor range, connector and manifold position. Component voltage can differ from system input; use the documented control supply. Standard sensor: 0.5–5 L/min, 3/8-inch NPT; Molex assembly SUB-MPC-IFA. The 2023 marine Connect production change uses a three-pin Deutsch connector; replacement bare-sensor SKU is supplied with bare wires. Do not assume an order arrives with a Deutsch plug.
documented Connect sensor/diversion assembly. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Match the sensor range, connector and manifold position. Component voltage can differ from system input; use the documented control supply.
Identify the installed controller and follow the Controller & Probe Replacement section on this page. Match cable reach and connections; this configuration listing alone is not an unconditional replacement recommendation.
Catalina Connect motor/controller module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Controller without heatsink; board must carry programming and firmware for the exact model. A Connect interface alone does not establish interchangeability.
Connect remote display option. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. RMPNL includes the remote kit/cable; RMPNLD is display-only. Match supported Connect firmware and connectors. Remote display uses RJ45 Ethernet. KIT-SC-RMPNL includes a 100-foot cable; KIT-SC-RMPNLD is display only. Distinct from the JST local display.
Connect remote display only. The display-with-cable KIT-SC-RMPNL is a separate package; match the installed Connect hardware, connection and required cable length.
Optional tank-level sensor kit named in the Catalina fact sheet. This measures tank level; it is a separate function from the tank-full switch used to stop a Fill Tank run. Check the tank and installation requirements.
Catalina Connect motor/controller module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Controller without heatsink; board must carry programming and firmware for the exact model. A Connect interface alone does not establish interchangeability.
Three-piece 10-inch low-pressure housing shown for the feed-module prefilter; also shown in the flush circuit on page 78. A Z-Ion installation has a modified bowl: do not replace that bowl with a plain filter bowl without checking its components.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Wrench for the installed standard three-piece 10-inch housing. The Spectra filter matrix pairs this wrench with FT-FTH-10L3PCS; it is not the high-pressure or Big Blue wrench.
Seal for the installed FT-FTH-10L3PCS three-piece low-pressure housing. The drawings show this housing in the seawater prefilter and freshwater flush modules. Match the housing itself; this is not SO-FHS-10H for the high-pressure housing.
One 5-micron seawater prefilter is identified on the feed-pump module. Nominal element size: 10 inches long × 2.5 inches diameter. It filters seawater particles; it is not the carbon flush element.
Screen for the documented 6-inch strainer assembly. The same page separately lists FT-STN-6SP for a plastic strainer; identify the installed strainer body before choosing a screen. The 5-inch spare listed on page 52 does not establish interchangeability.
Carbon cartridge in the separate freshwater flush circuit, including the documented Z-Ion arrangement. Nominal size: 10 inches long × 2.5 inches diameter. Replace at least every six months; check the linked cartridge specification.
Optional oil/water separator element. It requires a suitable additional upstream housing; it is not the normal replacement for the installed 5-micron prefilter or carbon flush cartridge.
Catalina 340C Compact, original compact / short membrane arrangement: 2 2.5-inch diameter x 20-inch membranes installed. Each KIT-MB-20F kit replaces one membrane and includes seals; replacing every original element requires 2 kits. Match the installed vessel and end-cap/seal arrangement. This does not cover a modified membrane arrangement or the other diameter/length.
Catalina 340C, original standard / long membrane arrangement: 1 2.5-inch diameter x 40-inch membrane installed. Each KIT-MB-40F kit replaces one membrane and includes seals; replacing every original element requires 1 kit. Match the installed vessel and end-cap/seal arrangement. This does not cover a modified membrane arrangement or the other diameter/length.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module. Match the vessel and complete kit contents; do not infer old bare-part equivalence.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Length is not established; measure the run and retain the specified hose/tube duty.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Complete inlet/flush hose in the documented arrangement: half-inch vinyl hose, stem-to-hose adapter and valved quick-disconnect body. Distinct from the brine pigtail and Newport inlet hose.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.
This flush diagram consistently specifies a half-inch male NPT to half-inch female NPT nylon elbow. The conflicting three-quarter-inch label in the Ventura manual does not apply to this assembly.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Catalina Connect motor/controller module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Controller without heatsink; board must carry programming and firmware for the exact model. A Connect interface alone does not establish interchangeability.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Catalina Connect filter/boost/flush/diversion plumbing. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
One Laing booster pump, rated 8–24VDC, in the sea-strainer module. The current manual illustrates two booster pumps; older arrangements can have one. Check installed quantity and supply. A 48V system listing does not mean this pump accepts 48V directly.
12V feed-pump motor for the documented 12V Catalina 340C. This is the motor, not the PL-PMP-140MAG pump head or a complete feed module. Match the motor label and coupling.
24V feed-pump motor for the documented 24V AND 48V Catalina 340C. The 48V system uses a step-down converter. System battery voltage is not necessarily motor or accessory voltage; preserve the approved wiring arrangement.
Complete Clark brine pigtail at the documented discharge connection. Match the pictured connector arrangement; this is not the feed-pump high-pressure inlet hose. The CT prefix does not restrict it to Catalina.
Routine cruising spares. The manual describes six 5-micron prefilters and one carbon cartridge in Cruise Kit A. Review the current kit contents before adding the same cartridges individually; storage chemical is a separate choice.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Catalina Connect standard pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
The current Catalina manual labels the sea-strainer/boost-pump module with this code, but older drawings show a single pump and the current drawing shows two. Confirm the package contents with Spectra before ordering a complete replacement module.
Catalina Connect compact pressure-vessel module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires compact membrane arrangement for the illustrated module.
Gasket identified for the 6-inch strainer in the Catalina Connect/Z parts drawing. Check the installed body and gasket shape; this does not establish fit for the newer plastic strainer.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Catalina Connect motor/controller module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Controller without heatsink; board must carry programming and firmware for the exact model. A Connect interface alone does not establish interchangeability.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Installed 10% Clark Pump. Full rebuild kit; confirm actual pump if retrofitted. Requires the installed 10% Clark Pump and matching revision. Verify the pump identification after any retrofit; system name alone is insufficient. Requires the installed 10% Clark Pump and matching revision. Verify the pump identification after any retrofit; system name alone is insufficient.
Optional Z-Ion control type for MPC, Connect and Remote Manual. Confirm installed generation, suitable accessory power and plumbing before installation.
Use the document and revision that match the installed hardware. This guide combines the model-specific drawings with the existing catalog evidence; it does not replace the manufacturer’s installation or service procedure.
