SPECTRA OWNER GUIDE

Ventura 200C Connect parts & owner guide

Identify your Connect system, follow the seawater and freshwater paths, match the 20-inch membrane and filters, and locate the 10% Clark Pump service groups in Spectra's original drawings.

12V or 24V DC · Connect controls · one short membrane

Select the installed voltage

Check the system or feed-pump label, especially after a retrofit.

Showing parts common to both original supplies. Select a voltage for pump and electrical references.

CHECK THE NAMEPLATE

200C Connect or 150C Connect?

Warm-water 200C

The Ventura 200C is rated at 200 GPD (8.3 gal/h) under the fact sheet baseline conditions and is intended for water above 50°F / 10°C. The 150C is a different pump-ratio configuration. Confirm VT-200C-12V or VT-200C-24V on the installed system label.

200C fact sheet ↗

One membrane, 10% pump

The fact sheet specifies one 2.5 × 20-inch membrane; the Connect drawing calls KIT-MB-20F a 21-inch kit. The 200C mapping and Spectra’s Ventura 200 rebuild kit identify a 10% Clark Pump, including HP-CB-CB10 center block. The shared Connect drawing shows a 7% block, so verify the installed pump label before ordering ratio-specific internals.

Membrane specification ↗ · Spectra 10% kit ↗

Connect controls and voltage

The 200C uses Spectra Connect, distinct from the 200T Deluxe analog controls. The fact sheet lists 12V 10A or 24V 5A requirements. Match the installed motor and controller before choosing 12V or 24V parts.

Display with cable · display only

Controls and power ↗ · Connect display ↗

SIZES OWNERS ASK FOR

Three cartridges, two water paths

The 20-micron and 5-micron seawater elements are each nominal 10 × 2.5 inches. Seawater passes through 20 micron first, then 5 micron. The carbon element is nominal 10 × 2.5 inches in the separate freshwater-flush path; it does not replace either prefilter.

Water path	Element	Housing and seal
Seawater, first	20 micron FT-FTC-20 10 × 2.5 in nominal	Check installed prefilter bowl and seal
Seawater, second	5 micron FT-FTC-5 10 × 2.5 in nominal	Check installed prefilter bowl and seal
Freshwater flush	Carbon FT-FTC-CC 10 × 2.5 in nominal	Standard clear bowl · bowl seal Optional Z-Ion changes the bowl assembly

The intake strainer is the small five-inch type: assembly · screen · seal. Its screen size describes the strainer, not the 10-inch filter cartridges.

Prefilter dimensions ↗ · Maintenance ↗ · Common parts ↗ · Five-inch strainer ↗

FOLLOW THE WATER

Connect modules and original drawings

Use these original Ventura Connect parts drawings to recognize the physical modules. Tap a section to view its labeled components. The plumbing schematic traces the route between them.

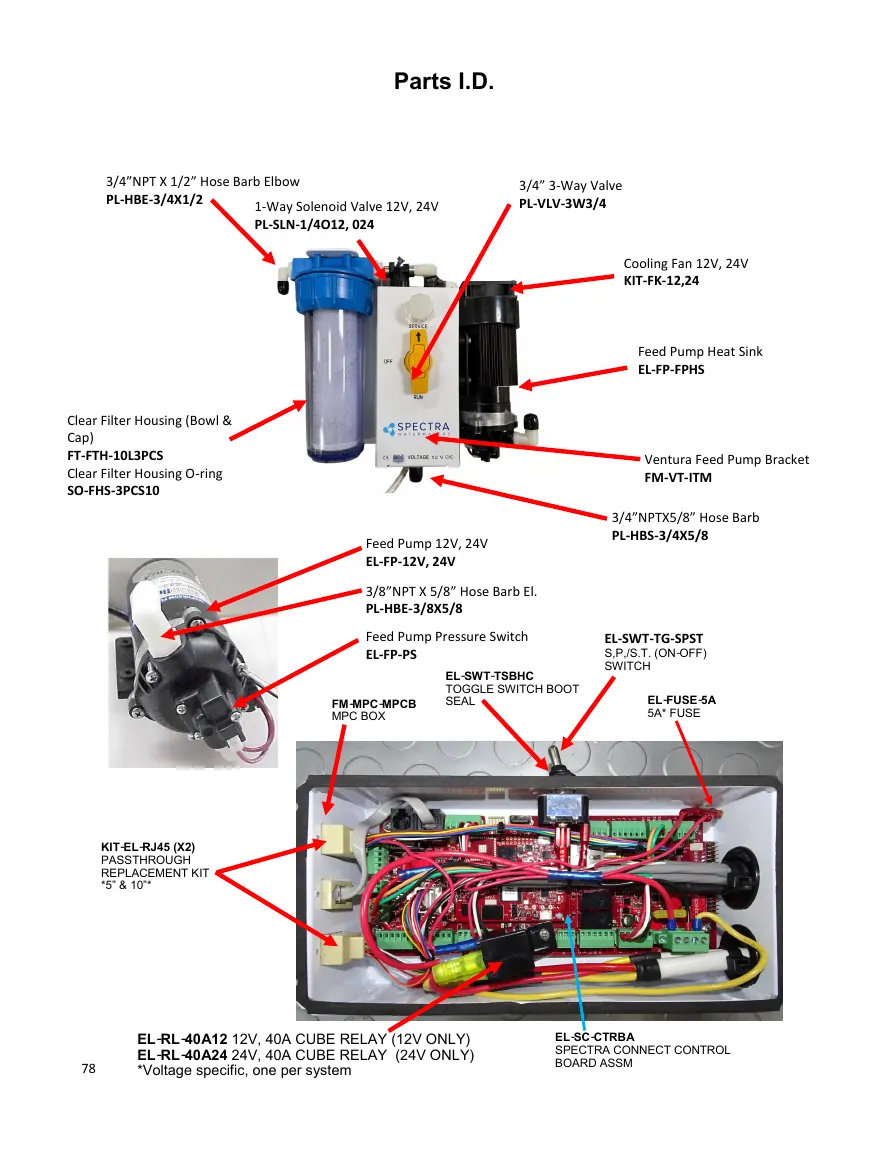

Intake & filter bowls

The feed-pump module includes the Shurflo pump, service valve and freshwater-flush bowl. The seawater dual prefilters sit downstream. 12V and 24V motors differ. Pump head and heat sink are separate service items.

Open full-size drawing ↗

Spectra Ventura 200C Connect Intake & filter bowls manufacturer parts drawing, manual page 78

Ventura Connect plumbing schematic ↗ · 12V/24V wiring drawing ↗

INSIDE THE PUMP

10% Clark Pump service groups

The common 2025 Connect manual’s exterior drawing labels HP-CB-CB7, the 7% center block. That label is not the 200C part recommendation. Spectra identifies a 10% rebuild kit for Ventura 200 systems, and the 200C’s existing configuration mapping identifies HP-CB-CB10, 7/8-inch rod and matching rod seal. The separate Ventura Deluxe manual illustrates both 7% and 10% mechanical variants on pages 53–56. Its drawings and the 200T Deluxe 10% interactive pump view ↗ help identify locations, while the Connect controls and wiring remain distinct. Confirm the installed pump ratio and revision.

Outside

10% center block joins two cylinders. End block A and end block B are different parts. Compare the pressure relief valve and stainless J-tubes.

Open full-size drawing ↗

Spectra Ventura 200C Connect Outside manufacturer parts drawing, manual page 53

Kit or individual part?

10% distributor rebuild kit and 7%/10% seal and O-ring kit have different scopes. Check kit contents and service requirements before buying overlapping parts. The drawings are identification references, not disassembly instructions.

CARE & BUYING CHOICES

Maintain the whole water path

Prefilters and flush carbon

Replace dirty seawater prefilters according to condition; Spectra advises against cleaning them for reuse. The 5-micron element follows the 20-micron element. Change the freshwater-flush carbon at least every six months. The optional Z-Ion unit changes the flush assembly.

20 micron · 5 micron · carbon

Maintenance ↗ · Z-Ion option ↗

Storage versus cleaning

SC-1 is for preservation. SC-2 and SC-3 address different diagnosed membrane fouling. Low output can have feed or pump causes; use the manual flow test before assuming the membrane needs replacement or cleaning.

Storage ↗ · Cleaning ↗ · Flow test ↗

Electrical and controls

Match the 12V or 24V feed pump to the installed nameplate. Pump head repairs have a different scope from a complete motor. Check display-plus-cable versus display-only contents.

Display packages ↗ · Feed module ↗

SHORT ANSWERS

Common 200C questions

Does the 200C need a 40-inch membrane?

No. The current 200C fact sheet specifies one 2.5 × 20-inch membrane. KIT-MB-20F is the short membrane kit; Spectra also calls it 21 inches in a parts drawing.

Which Clark Pump ratio does the 200C use?

The reviewed original configuration is 10%. The shared Connect manual exterior image labels a 7% block, so identify the installed pump ratio and revision before ordering a center block, piston rod, rod seals or rebuild kit.

Are 150C and 200C controls interchangeable?

Both current models use Spectra Connect, but their documented pump ratio and operating rating differ. Verify controller generation, firmware and system label before replacement.

Where are the 20-micron, 5-micron and carbon filters?

The two nominal 10 × 2.5-inch seawater prefilters are in series, 20 micron upstream and 5 micron downstream. The carbon cartridge is in the separate freshwater-flush path.

Can I use this in colder water?

Spectra describes the Ventura 200C as designed for water above 50°F / 10°C. Compare actual feed-water temperature and the manufacturer specifications rather than assuming the rated output in colder water.

Does Z-Ion use the standard flush bowl?

Optional Z-Ion changes the freshwater-flush bowl assembly. Identify the installed option before buying the standard bowl or Z-Ion replacement.

FIND THE EXACT SKU

Parts reference by voltage

The first group has an exact SKU or function identified in the 2025 Connect manual. The remaining links come from the earlier configuration mapping and need an installed-hardware check. The list does not set order quantity or guarantee interchangeability after a retrofit.

Search these partsCategory

111 linked references across both voltages.

Named in the Connect manual

SC-1

Storage Compound

12V / 24V · Manual-labeled

Identification and source

Storage preservative; follow the Connect long-term storage dose and recommissioning instructions.

Select the installed voltage

200C Connect or 150C Connect?

Warm-water 200C

One membrane, 10% pump

Connect controls and voltage

Three cartridges, two water paths

Connect modules and original drawings

Intake & filter bowls

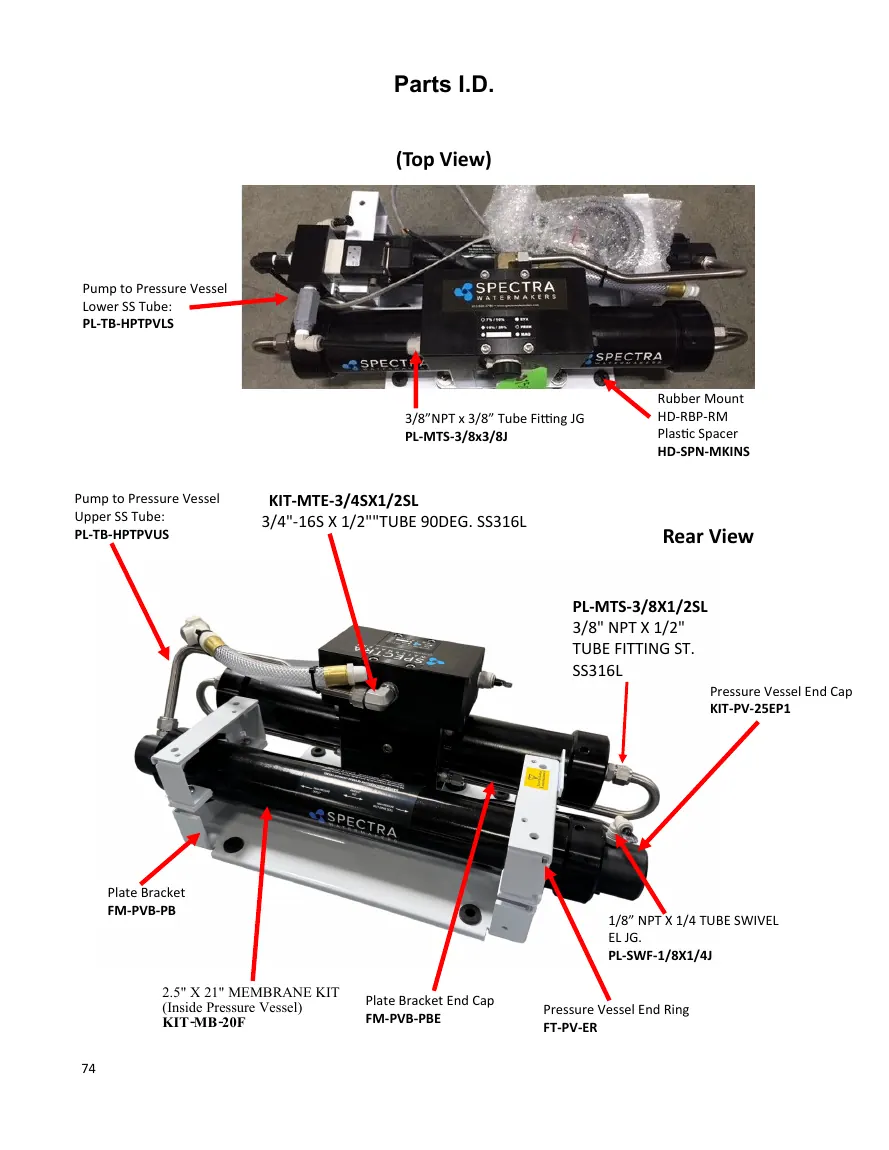

Pump & short membrane

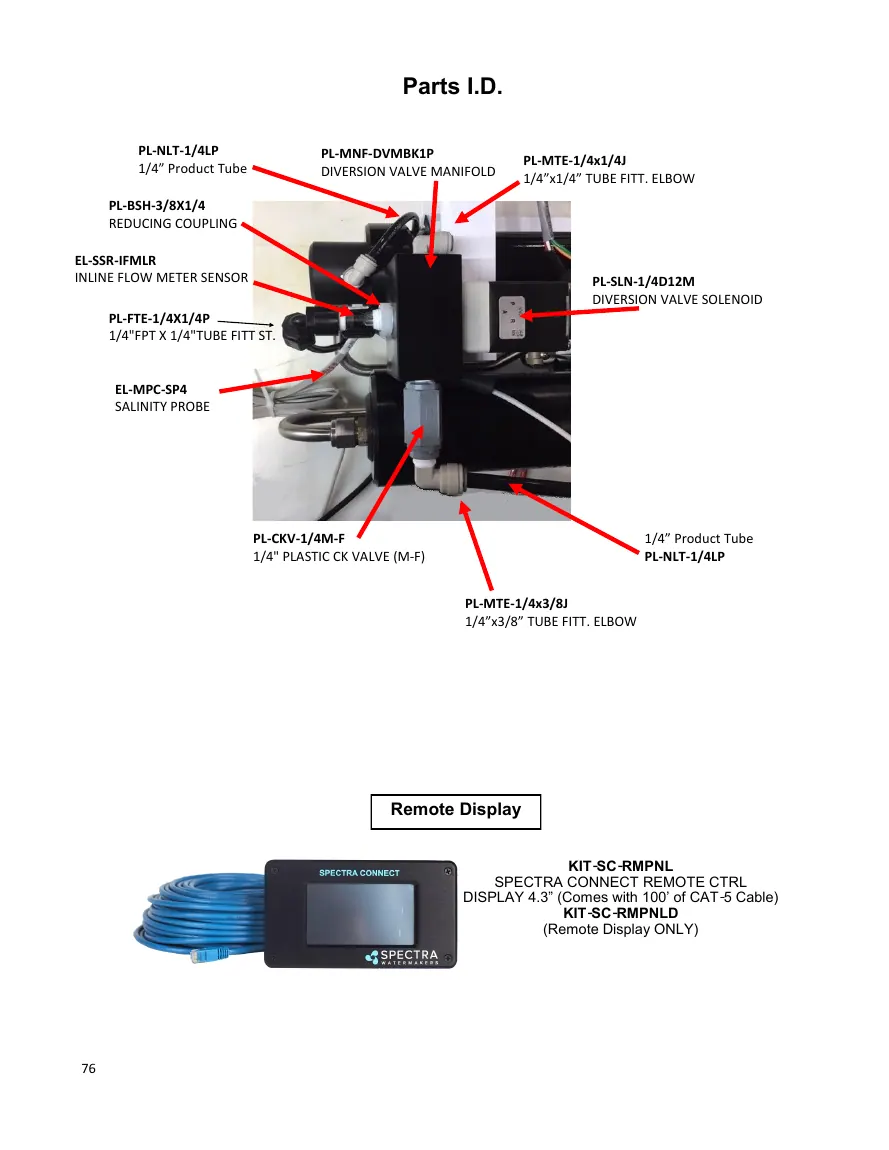

Product water & controls

10% Clark Pump service groups

Outside

Reversing valve

Center block

Cylinder assembly

Maintain the whole water path

Prefilters and flush carbon

Storage versus cleaning

Electrical and controls

Common 200C questions

Parts reference by voltage

Named in the Connect manual

Storage Compound

Alkaline Cleaning Compound

Acid Cleaning Chemical

SHURFLO Pressure Switch

Salinity Probe 4Th Generation 15'

12V, 40A Cube Relay

S,P,/S.T. (ON-OFF) Switch

Spectra Connect Remote Control Disp.4.3" W/Cbl.

Spectra Connect Remote Display (Only)

High Pressure Housing Bracket Duplex

20 Micron Filter

5 Micron Filter

Carbon Filter

Oil Water Separator Filter

High Pressure Filter Housing (Blk)

10" Low Press. Filter Housing 3 Pcs

5" Strainer (Small)

5" Strainer Screen (Small)

3-Piece Filter Housing 0-Ring

Membrane Ring

2.5" X 21" Membrane Kit

Inline Flow Meter (0.1-2 L/M)

Rubber Mount

Plastic Insert For Mount Kit

Center Block 10% (W/O Inserts)

Check Valve Retainer

Check Valve Seat

Pilot Valve Pin

Pilot Valve Clip Ring

Pilot Valve Spool

Piston Rod (10%)

Cylinder Assembly (G‐10 BASE)

Cylinder End Cap

Piston

Cylinder End Ring

Stainless Tube

Annular Ring (Peek)

Bleed Valve

Valve Body

Valve End Block A 1 1/4" BORE

Valve End Block B 1 1/4" BORE

Rev. Valve Spool Piston

Spectra Cooling Fan Kit (12V)

Spectra Cooling Fan Kit (24V)

Offshore Kit For 7% & 10%

2.5" Pressure Vessel End Plug Replacement Kit

Accumulator Tank

1/2" X 1/4" Hex Bushing Reducer Nyl

3/8" X 1/4" Hex Bushing Reducer Nyl

1/4" Plastic Ck Valve (M-F)

1/4" Fpt X 1/4"Tube Fitting Ell

1/4" Npt X 5/8" Hose Barb Ell Nylon

3/4" Npt X 1/2"Hose Barb Ell. Nylon

3/4" Npt X 5/8" Hose Barb Ell Nylon

3/8" Npt X 5/8" Hose Barb Ell Nylon

1/2" Npt X 5/8" Hose Barb St. Nylon

3/4" Npt X 5/8" Hose Barb St. Nylon

1/2" Stainless Ferrule
