IDENTIFY THE ARRANGEMENT
The 2017 Catalina 340 Z manual identifies a separate boost-pump/strainer module, speed-controlled magnetic-drive feed pump and one 5-micron prefilter. It is a factory MPC-5000 generation, not the Connect touchscreen or Remote Manual model.
Choose the matching manual ↗The drawing names 12V and 24V Catalina motors. Record the actual motor label and the MPC A## or B## chip identification; vessel voltage does not identify every solenoid or booster supply.
Chip identification and photos ↗These pages cover the illustrated original single 40-inch vessel. Match the Clark Pump’s actual 10% label after a retrofit. A compact Mk II-Z or changed membrane layout needs its own identification; a generic spares list does not determine element count.
FOLLOW THE WATER

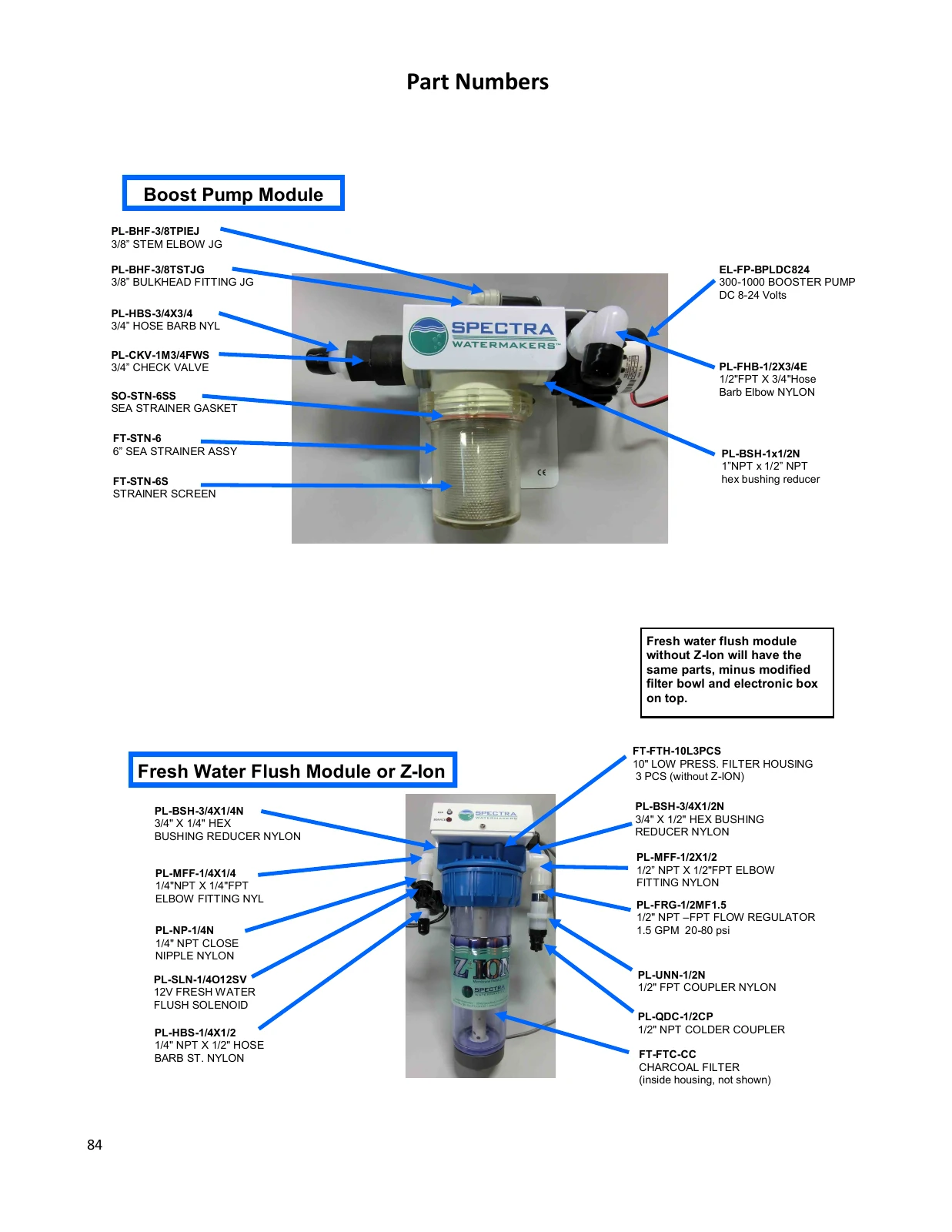

The documented path uses the 6-inch sea strainer and boost pump, then the magnetic-drive feed pump and 5-micron element before the Clark Pump. The carbon bowl serves freshwater flush.
The Clark Pump recovers pressure energy. The membrane separates fresh product water from brine; the accumulator smooths pressure pulses. Membrane seals, vessel hardware and pump seals have different repair roles.

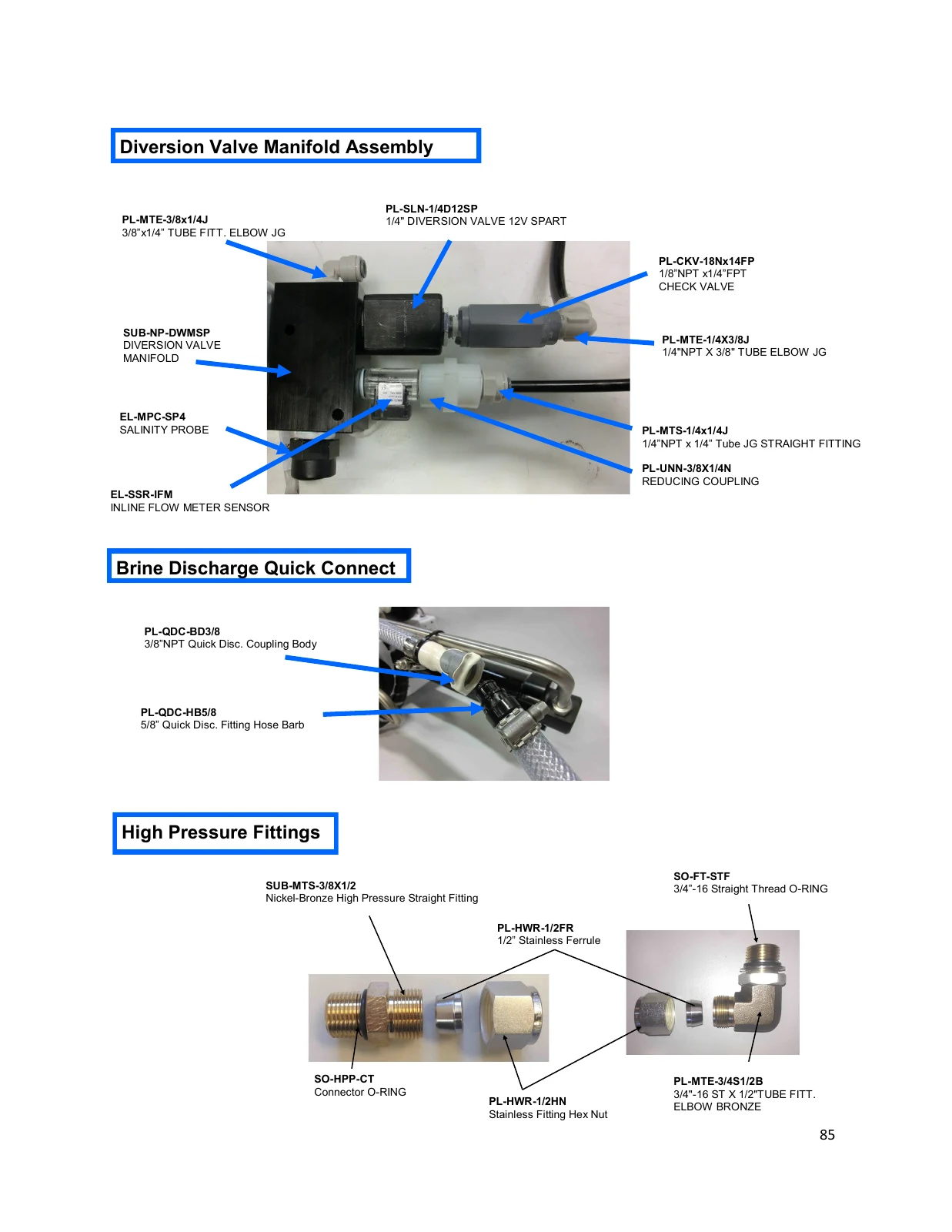

The flow sensor, salinity probe and diversion valve are separate components on the product-water manifold. Use the probe replacement table before choosing a controller or probe, and retain automatic diversion protection.
FILTER DIMENSIONS AND THE SPECTRA MATRIX
The 340Z has one seawater sediment element plus the separate carbon flush element. Both are nominal 10 inches long × 2.5 inches in diameter. It does not use the older 300’s stock three-element sediment sequence.
| Stage | Element and size | Housing / identification |
|---|---|---|

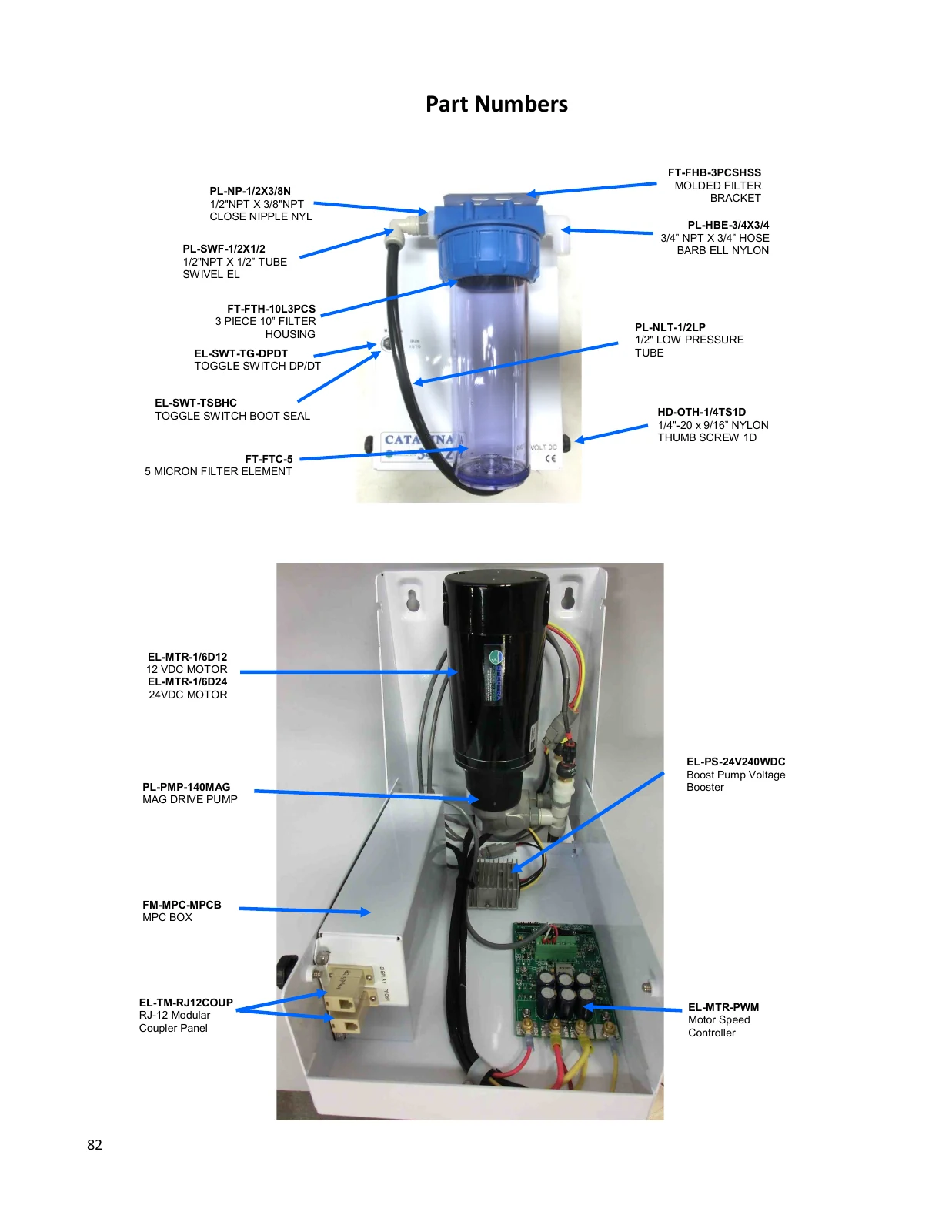

| Seawater prefilter | FT-FTC-5 5 micron · nominal 10 × 2.5 in | Clear three-piece housing Housing seal · Matching wrench |
| Freshwater flush | FT-FTC-CC Carbon · nominal 10 × 2.5 in | Clear three-piece housing Housing seal · Matching wrench |
Model maintenance ↗ · Spectra filter / housing / O-ring / wrench matrix ↗
Match the housing body, ring and sealing arrangement. The discontinued standard housing and wrench in the matrix are not automatic equivalents to the low-pressure, high-pressure or three-piece versions. Measured cartridge dimensions can differ from a nominal format.
The 340Z manual requires adding a second housing upstream of the 5-micron housing for oil/water separation. The optional element is not simply swapped into the stock 5-micron position. View the optional element
IDENTIFY THE PURCHASE
The main head is PL-PMP-140MAG. It is separate from the 8–24V boost pump. Match the motor/head coupling, booster revision and installed controller supply; the pump number is not a blanket system-voltage rating.
12V Catalina motor and 24V Catalina motor are voltage-specific choices. A replacement motor does not imply that the head, speed controller, booster or fittings are included.

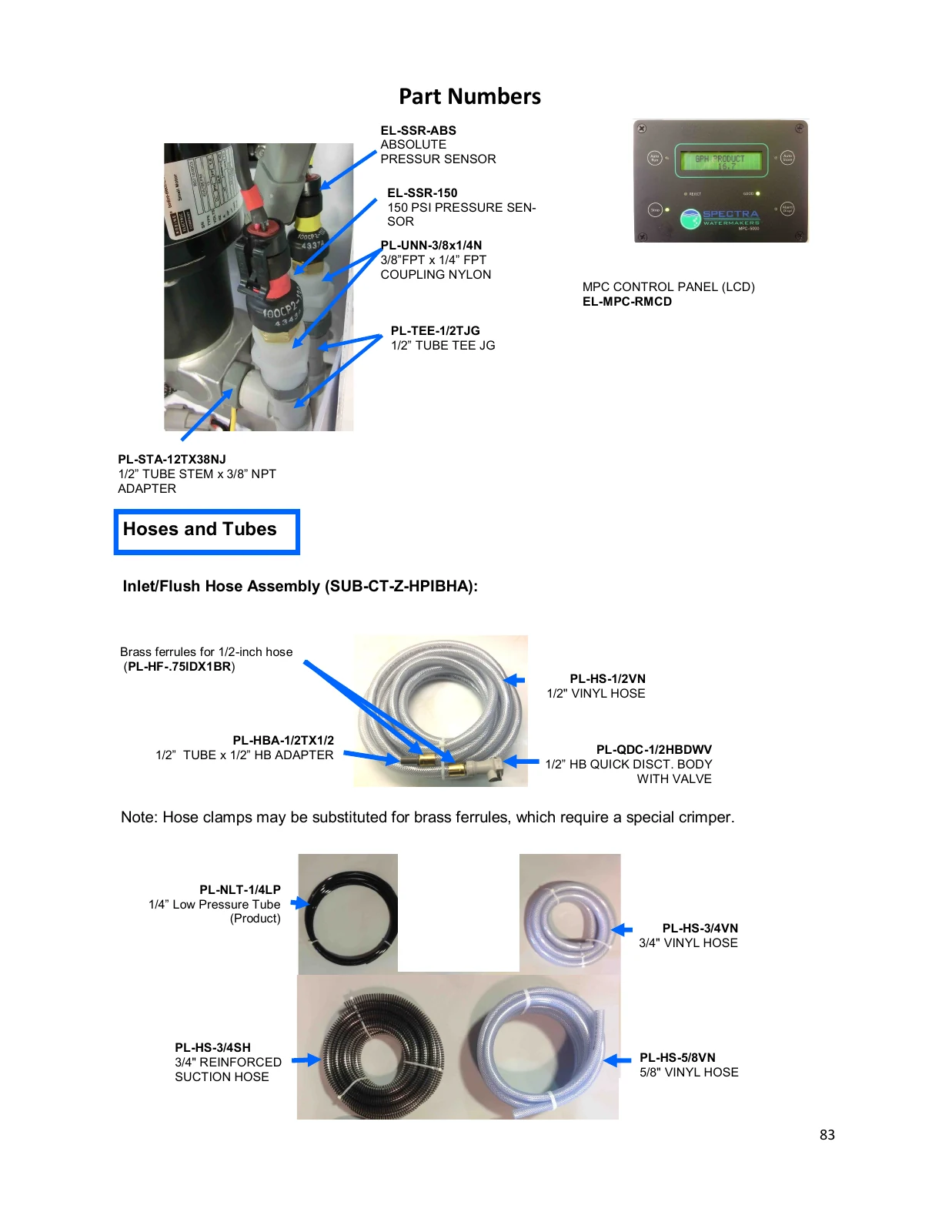

The feed-pressure sensor measures a different part of the flow path from the inlet/absolute-pressure sensor on the 340Z. Match the installed sensor range, connector and harness; do not choose by appearance.
CONTROL GENERATION MATTERS
Identify the installed board and chip before selecting a replacement. The selectors highlight the relevant path; the full conditions remain readable below.
| Installed controls | Documented probe path | Requirement |
|---|---|---|
| MPC-5000 B-series / A31 | A40 board + SP4 | SP1 factory-obsolete; confirm wiring and programming. |
| MPC-5000 A34 / A35 | SP4 + EL-MPC-SPCBA daughter board, or A40 board + SP4 | No exact daughter-board product listing in this catalog. Confirm the fitted interface. |
| MPC-5000 A36 / A37 / A39 / A40 | SP4 | A36 supports the daughter board with or without it; confirm cable and connector. |
| Unknown chip | Confirm with Spectra | An unlisted number is not assigned the nearest replacement path. |
Current chip/probe replacement guide ↗
The documented 340Z already has MPC-5000 controls. The older MPC-3000 conversion kit is not presented as a routine 340Z upgrade. If its controller has been changed to an unusual generation, confirm that installation with Spectra first.
A40 board + SP4. Confirm programming, wiring and any changed accessories.
Confirm the EL-MPC-SPCBA daughter board or the A40 board-and-probe route before ordering SP4 alone. The daughter board is named without inventing a product link.
SP4 with 15-foot cable. The shorter SP4N option remains a separate interface/cable confirmation link.
ORIGINAL 10% CLARK PUMP
HP-CB-CB10 pairs with the 7/8-inch rod and 10% rod seals. The 7% parts are different. Two seal locations in the rebuild drawing do not promise two seals in a catalog pack.
10% distributor rebuild kit and seal and O-ring kit serve different repair scopes. The distributor kit excludes spacer rings and top-end spool pistons and supplies no tools/instructions. Compare current contents before duplicating individual parts.
LOCATE A PART BEFORE ORDERING

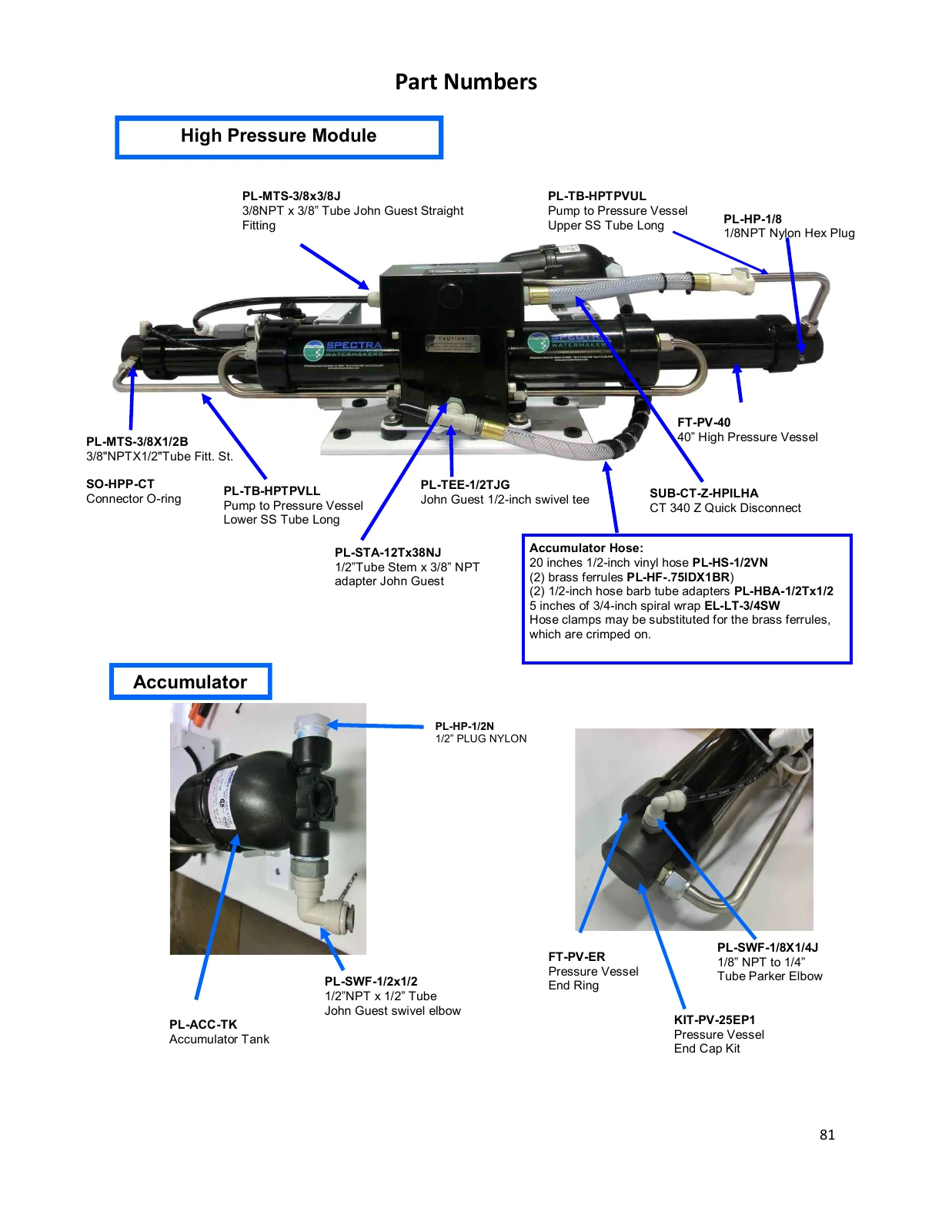

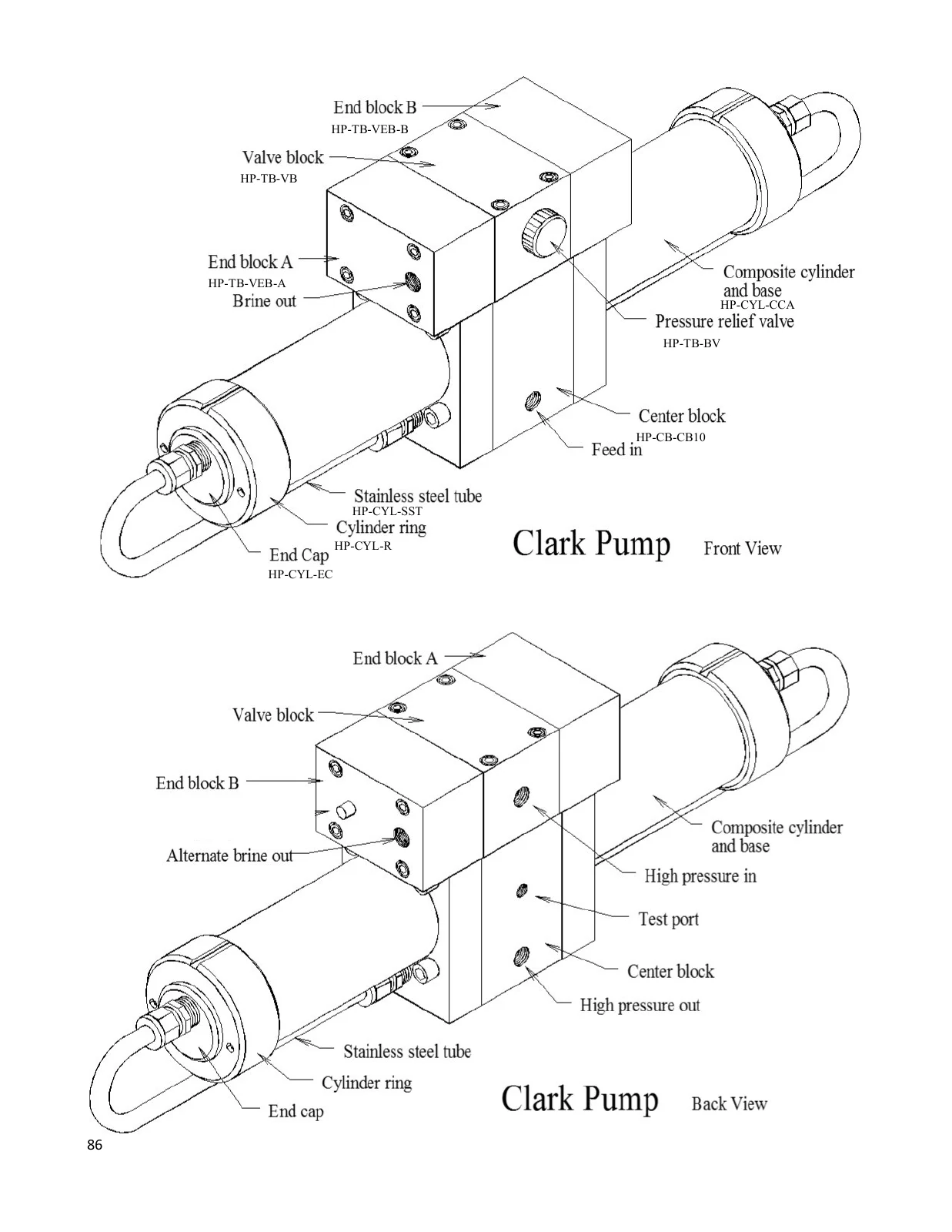

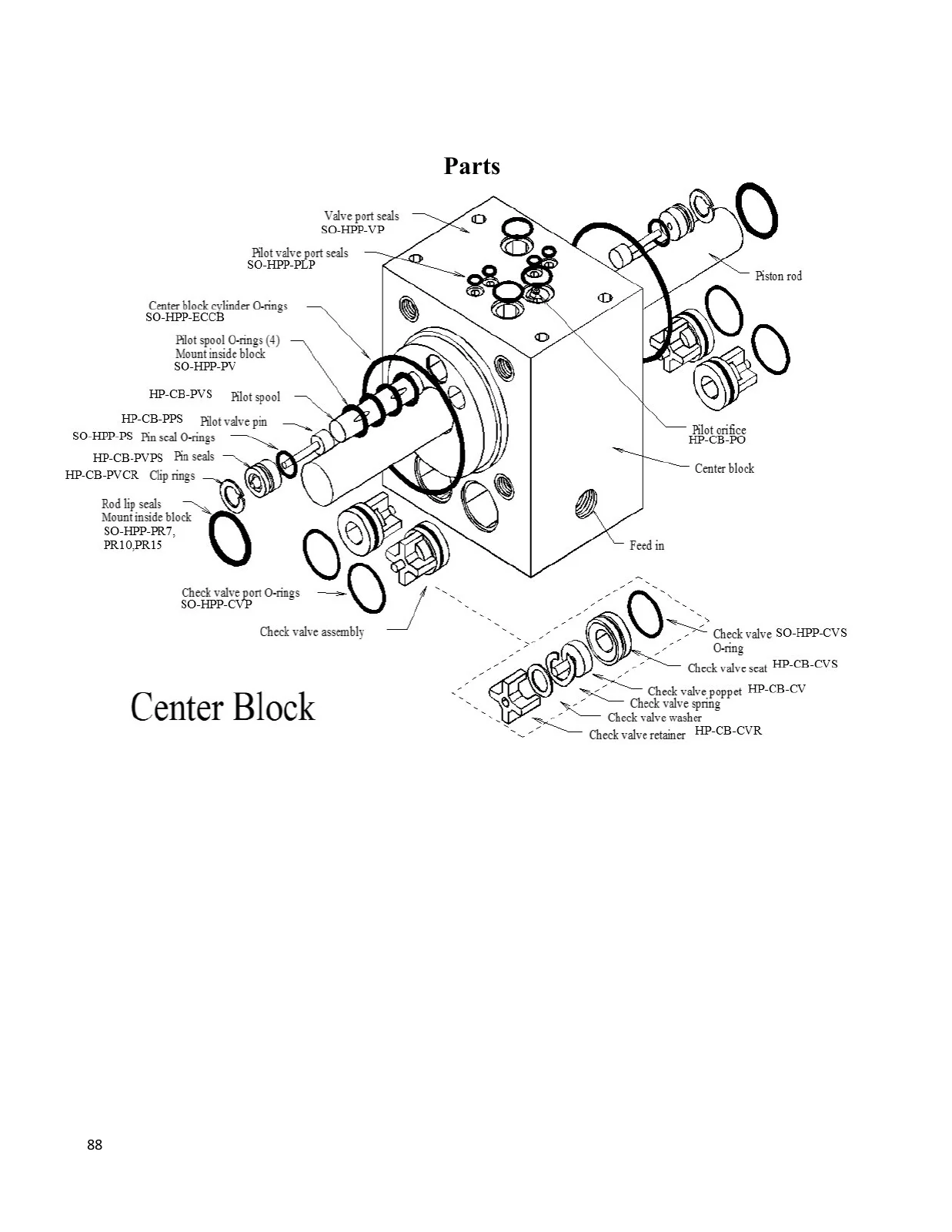

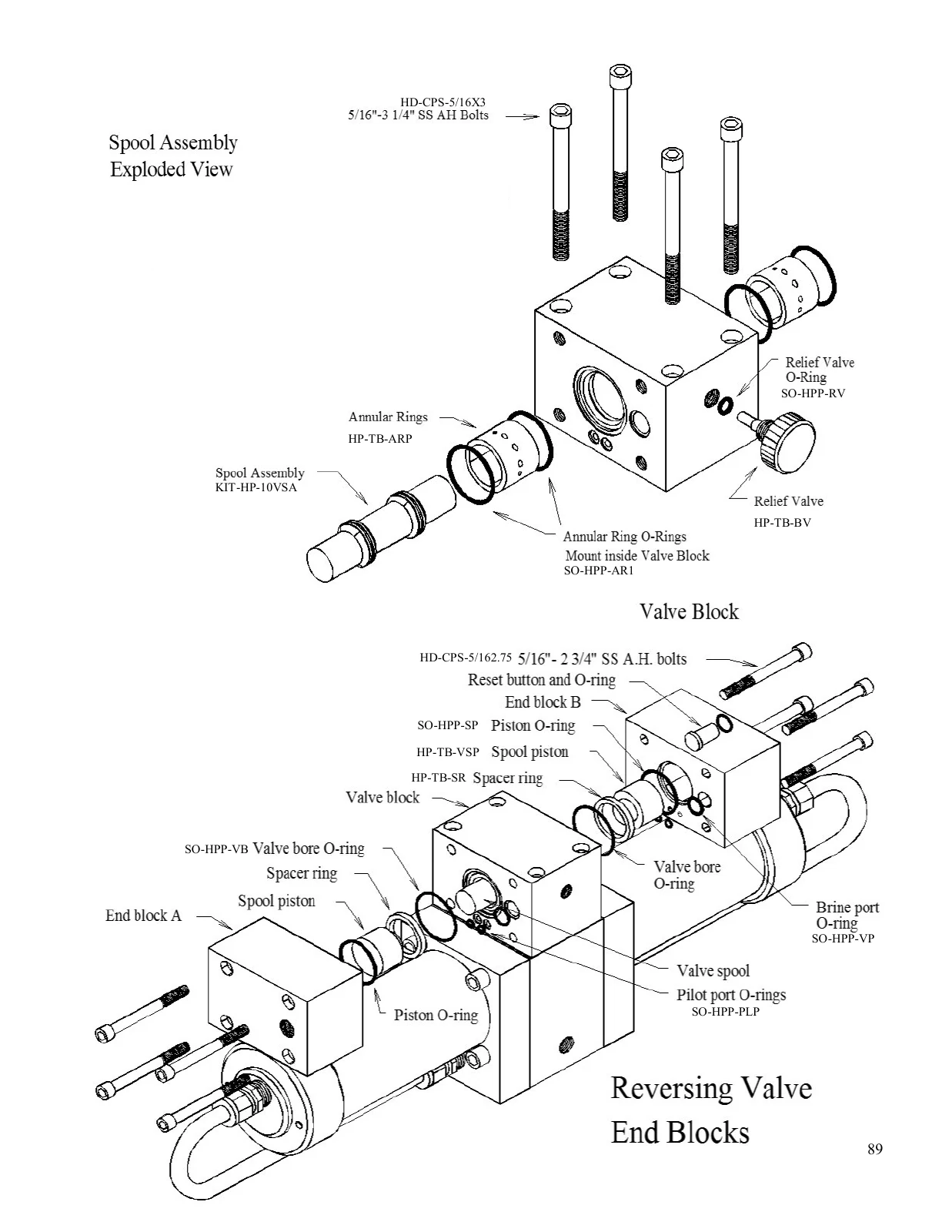

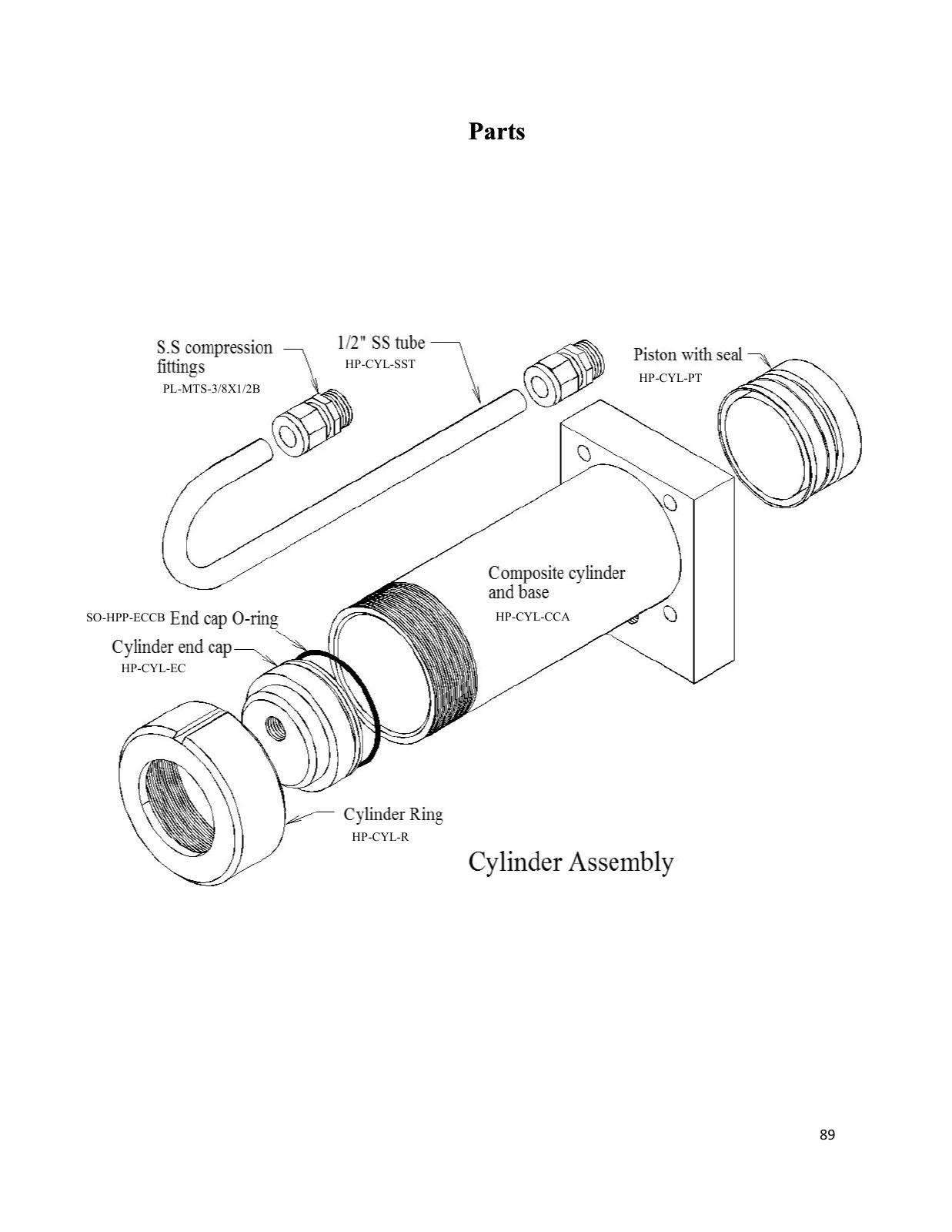

Choose the assembly first, then open the PDF for full-size callouts. The four Clark Pump groups keep the outside and each internal service group easy to find. These are manufacturer identification drawings; no model-specific Catalina CAD reconstruction is claimed.
Showing all assembly drawings.
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Match the installed 10% pump and current block suffix. The old picture abbreviates A/B end-block labels. Current HP-TB-VEB-A and HP-TB-VEB-B catalog records are 1-inch-bore 20% parts and are excluded here. The rebuild manual specifies HP-TB-VEB-A1 and HP-TB-VEB-B1, with 1-1/4-inch bores, for 7% / 10% pumps. Confirm actual revision with Spectra before ordering.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗
Use the original callouts with the installed part label. Older suffixes and replaced hardware require the specific checks in the parts list below.
Open complete labeled drawing ↗ONE LONG ELEMENT IN THIS SCOPE
KIT-MB-40F replaces the original single long element and includes seals. One kit is needed for that documented element. The older 300 spares page also lists a 20-inch element, and the 340Z Z-Brane section uses a shared multi-vessel photograph; neither sets this system’s installed length or quantity.
Match the fitted vessel, ring and end-plug revision before buying hardware. The membrane kit is not a whole vessel or Clark Pump assembly. Compact, twin-short-vessel, modified or 4-inch arrangements need separate identification with Spectra.
MAINTENANCE AND SPARES
Replace dirty elements according to condition and the installed model. Current 5- and 20-micron cartridge pages recommend replacement elements; their historical cleaning advice is not a universal washing recommendation. Replace carbon at least every six months per the model manual.
Model filter maintenance ↗SC-1 storage compound has a different purpose from SC-2 and SC-3 cleaners. Follow installed-equipment storage and recommissioning procedures. Z-Ion, Z-Brane and SC-1 are not freeze protection.
Cruise Kit A and the offshore kit have different scopes. Compare current contents and what is already aboard before buying loose filters, seals or tools.
Original spares reference ↗Inspect the intake, installed filter stages, feed/boost supply and pressure readings using the model manual before concluding that the membrane has failed. A display salinity problem and a flow problem are different diagnoses. Confirm a suspect reading with a calibrated handheld meter and keep automatic diversion protection active.
Probe calibration reference ↗ANSWERS FOR CATALINA OWNERS
These are separate generations. This guide is scoped to Catalina 340Z MPC with the original standard long-vessel layout. Identify Mk II-Z, Connect, Remote or compact hardware using its own manual; do not infer electrical or filter equivalence.
They perform different jobs. Carbon protects the freshwater flush path from chlorine; sediment elements protect the seawater feed path. Similar dimensions do not make their functions interchangeable.
The documented A40 conversion provides a 12V flush output. Identify the actual board output, coil, valve function and body before ordering; vessel voltage is insufficient.
Use the installed vessel and model-specific parts drawing. A broad spares list or a shared Z-Brane installation picture does not establish a compact or multi-element arrangement.
Conditional links carry a specific confirmation note. Confirm that installed label, chip, connection or replacement route with Spectra before ordering; similar wording alone is not verified interchangeability.
MODEL-SCOPED PRODUCT REFERENCES
Manufacturer labels and researched replacement paths appear first. Additional revision/interface checks are grouped below. A link does not establish retrofit eligibility.
132 references.
