The 330R has a remote control panel and an automatic freshwater flush duration. The older CH-330 analog version has different controls. The wiring diagram lists CH-330R-12V, CH-330RS-12V, CH-330R-24V and CH-330RS-24V.
SPECTRA OWNER GUIDE
Cape Horn Extreme 330R
Find filters, membranes, feed-pump and Remote Manual parts for the 12V or 24V Cape Horn 330R. Compare standard and compact vessels, follow the flow path and inspect the Clark Pump before choosing service parts.
12V / 24V DC · Standard / compact · Remote ManualMatch your watermaker
Read the system label and count the membrane vessels.
CHECK THE INSTALLED MODEL
Know what is fitted
Standard or compact
Count the installed vessels: standard has one 40-inch membrane; compact has two shorter 20-inch membranes. A retrofit can change the original configuration.
Spectra also describes the short KIT-MB-20F as 21 inches in some parts listings; identify it by SKU and vessel.
Two parallel feed pumps
Modules A and B each contain a Shurflo pump. One can be run alone for lower output, or both for full production. Match each motor and fan to 12V or 24V.
Check the installed Clark Pump ratio.The manual calls this a 10% pump in its flow-test instructions, yet labels a 7% center block and rod in its parts drawings. Ratio-specific pieces and rebuild paths below are linked with an explicit Spectra confirmation step.
TWO DIFFERENT FILTER PATHS
Filter size, housing & seal
Both replacement cartridges are nominally 10 inches long × 2.5 inches in diameter. They filter different water supplies. Identify the housing and sealing ends as well as cartridge size.
| Stage | Cartridge | Housing | Seal & wrench |
|---|---|---|---|
| Seawater feed | FT-FTC-5 5 micron, 10 × 2.5 in | FT-FTH-10H Black high-pressure housing in Module B | SO-FHS-10H seal FT-FHW-10H wrench |
| Freshwater flush | FT-FTC-CC Carbon block, 10 × 2.5 in | FT-FTH-10L3PCS Clear three-piece housing in Module A | SO-FHS-3PCS10 seal FT-FHW-3PCS wrench |
The five-inch strainer screen and matching strainer seal sit before the pumps. An optional oil/water separator needs an added upstream housing; it does not replace the normal 5-micron cartridge.
Spares table ↗ · Carbon housing and parts ↗ · Prefilter and strainer drawing ↗ · 10 × 2.5 in filter size ↗
FOLLOW THE WATER
Explore the system sections
The diagrams show the manufacturer's 330R module drawings. They identify parts and plumbing; there is no Cape Horn assembly CAD in this release.

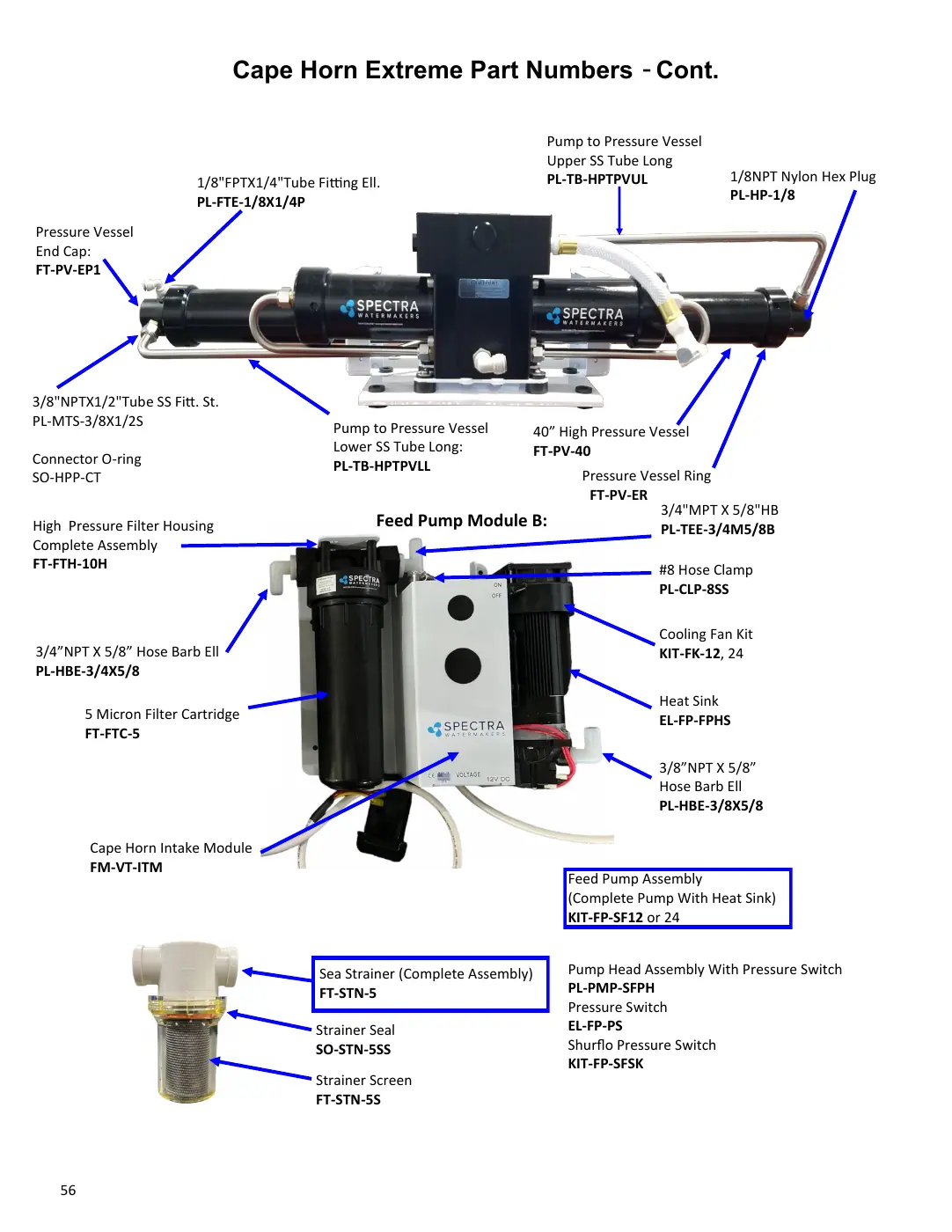

Two Shurflo pump modules
Seawater enters through the sea strainer. Pumps A and B work in parallel; replace the installed voltage, and check head, fan and pressure switch separately.
12V pump · 24V pump · pump head · pressure switch
Module B drawing ↗
Strainer and 5-micron seawater filter
The five-inch strainer screen catches larger debris ahead of the pumps. The high-pressure black housing holds the 5-micron prefilter after the pumps.
strainer screen · 5-micron cartridge · filter-housing seal

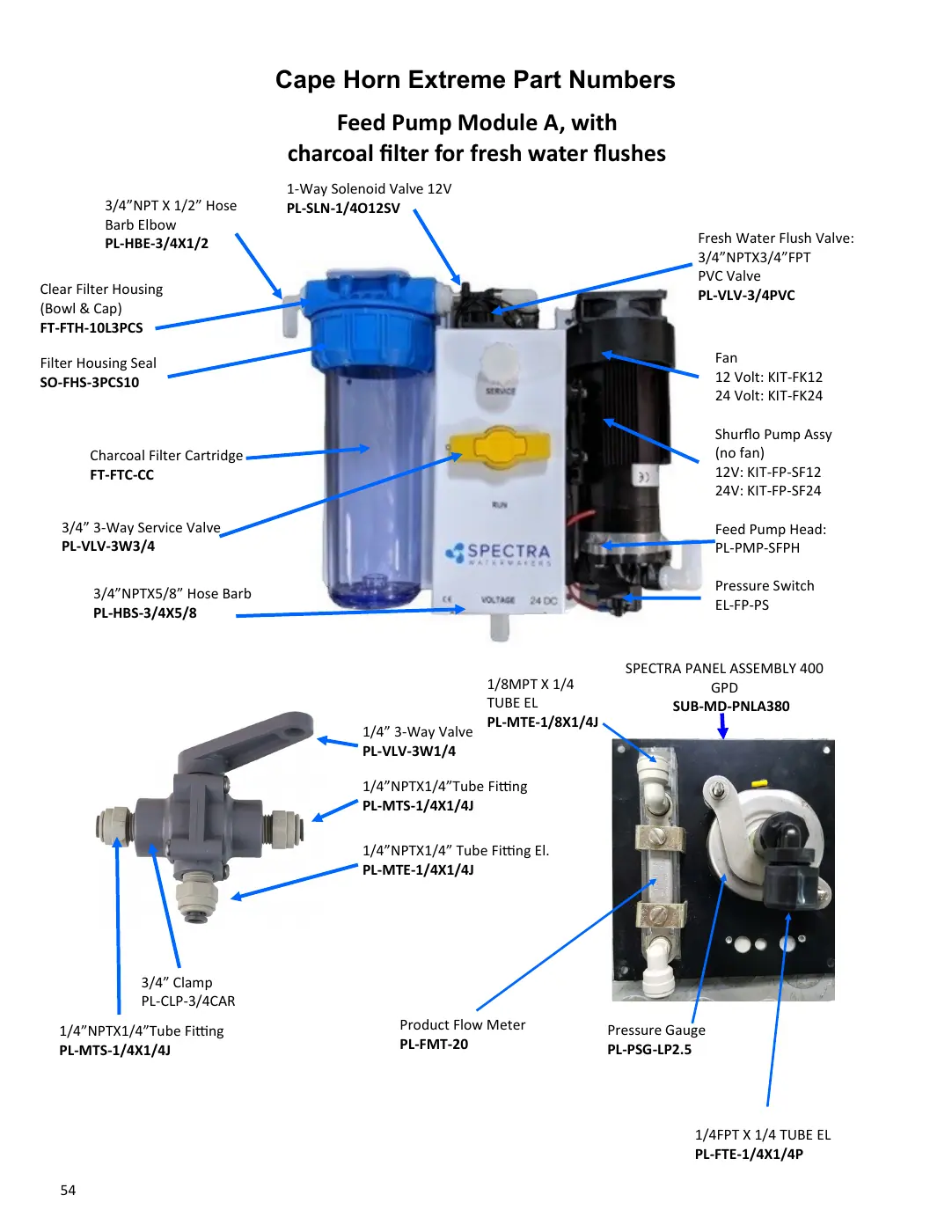

Module B drawing ↗Freshwater flush and Remote Manual
The carbon cartridge in Module A protects the membrane from chlorine during a fresh-water flush. The remote board and panel control pump operation and timed flushing. Match the connector and board revision.
carbon cartridge · Remote Manual circuit board · Remote Manual panel
Module A drawing ↗ · Controller parts ↗

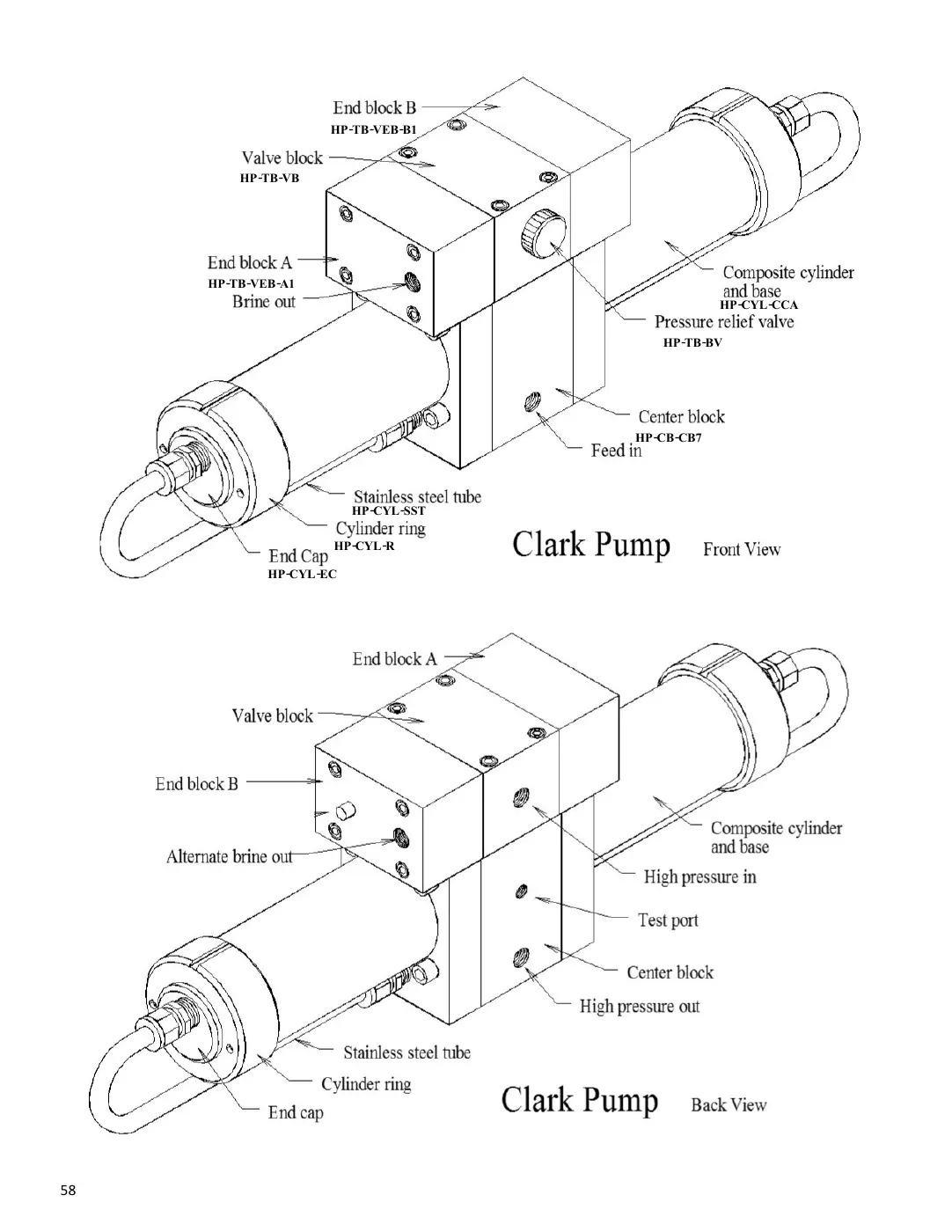

Clark Pump and membrane vessel
The Clark Pump recovers energy from brine pressure. The original standard version has one long membrane; the compact version has two shorter membranes. Identify the installed pump ratio before choosing internal pieces.
standard membrane · compact membrane · Explore Clark Pump internals
Pressure vessel drawing ↗ · 330R plumbing path ↗
INSIDE YOUR CLARK PUMP
Explore a 10% Clark Pump service illustration
Start with the outside, then open the reversing valve, center block or cylinder assembly to identify the parts inside.
The 330R flow-test instructions call this a 10% pump, while the same manual's exploded drawing labels 7% center-block and rod pieces. This 10% illustration is an identification aid only. Reconstructed shapes, threads and separation distances are approximate. Confirm the installed pump ratio, revision and any internal part with Spectra before ordering.
1. Choose a section to explore
SECTION 1 OF 4
Outside
Explore the external parts.
Select “Load 3D” to rotate and separate the pump. The component selectors work without loading the model.
Reset reassembles this section and restores the full view.
Choose a component to see its part reference.
Find a part by name or part number
These component references cover all four views. Open a component in 3D to locate it, then review its product requirements before ordering. Counts in the illustration are not package or order quantities.
10% center block
Center block for the installed 10% Clark Pump, sold without inserts. The center-block bore must match the larger 10% piston rod and SO-HPP-PR10 seals. Check pump ratio and revision after any replacement.
View part & current priceSource drawing ↗Reversing valve block
Contains the annular rings and reversing spool. The pressure-relief valve screws into this block.
View part & current priceSource drawing ↗End block A
One of the two reversing-valve end blocks. A and B are distinct; compare the actual brine-discharge and reset-button arrangement.
View part & current priceSource drawing ↗End block B
End block B has an identifying indentation shown in the rebuild manual. It is not interchangeable by appearance alone with end block A.
View part & current priceSource drawing ↗Composite cylinder & base
Two identical cylinder-and-base assemblies attach to the center block in the documented pump.
View part & current priceSource drawing ↗Cylinder end cap
Closes the outer end of a cylinder. Its seal and retaining ring are separately identified in the drawing.
View part & current priceSource drawing ↗Cylinder retaining ring
The threaded ring retains the cylinder end cap. Thread geometry is simplified in this illustration.
View part & current priceSource drawing ↗Stainless J-tube
The formed tube connects the cylinder-base fitting to the end-cap fitting. Match the installed arrangement and fitting revision.
View part & current priceSource drawing ↗Pressure-relief valve
Located on the reversing valve block. The SO-HPP-RV O-ring is a separate service item.
View part & current priceSource drawing ↗Pressure-relief valve O-ring
Seals the relief valve where it fits into the valve block.
View part & current priceSource drawing ↗Annular ring
Two annular rings sit inside the valve block around the reversing spool. The four annular-ring O-rings are separate items.
View part & current priceSource drawing ↗Annular-ring O-ring
The rebuild guide shows four seals for the pair of annular rings.
View part & current priceSource drawing ↗Reversing spool assembly
The manufacturer service reference labels this assembly KIT-HP-10VSA; the 2024 rebuild sheet uses KIT-HP-VS10 for 7%/10%. These reference labels are not treated as a verified replacement chain or mapped to a bare spool listing.
Reference only; no verified purchase link.Source drawing ↗Spool piston, 7% / 10%
Two spool pistons fit inside the end blocks. The 20% piston and seal are different; they are excluded here.
View part & current priceSource drawing ↗Spool-piston O-ring
O-ring in each end-block bore for the 7%/10% spool piston. Check the pump ratio before ordering.
View part & current priceSource drawing ↗Spool spacer ring
A spacer ring is shown between the valve block and each end-block piston.
Reference only; no verified purchase link.Source drawing ↗Valve-bore O-ring
Large O-ring at each valve-block end face, separate from the spool-piston seal.
View part & current priceSource drawing ↗Valve-port O-ring
Seals the larger valve port at the block interface. The manual also calls this a brine-port seal.
View part & current priceSource drawing ↗Pilot-port O-ring
Small O-rings seal the pilot passages at the block interface.
View part & current priceSource drawing ↗Piston rod, 10% (7/8 inch)
The 10% Clark Pump uses one 7/8-inch piston rod. Pair this replacement with the installed 10% center block and its correct rod seals.
View part & current priceSource drawing ↗Piston-rod lip seal, 10%
Two SO-HPP-PR10 seal locations are shown in the 10% center block. Match the larger 10% rod, and check the product’s supplied quantity before ordering for both locations.
View part & current priceSource drawing ↗Pilot spool
Internal pilot spool in the center block, separate from the larger reversing spool in the top valve block.
View part & current priceSource drawing ↗Pilot-spool O-ring
Four O-rings are shown for the pilot spool, inside the center block.
View part & current priceSource drawing ↗Pilot valve pin
Pin associated with the pilot-spool mechanism. Pin seals and clip rings are separate service items.
View part & current priceSource drawing ↗Pilot valve pin seal
Seal carrier at the pilot pin. The SO-HPP-PS pin O-ring is identified separately.
View part & current priceSource drawing ↗Pin-seal O-ring
O-ring for the pilot-pin sealing assembly.
View part & current priceSource drawing ↗Pilot valve clip ring
Retaining clip for the pilot-pin assembly. The split-ring form is simplified.
View part & current priceSource drawing ↗Check-valve assembly
Complete check-valve assembly reference from the rebuild material. The manufacturer service reference identifies the individual seat, poppet, spring and retainer; no complete-kit shopping match is asserted here.
Reference only; no verified purchase link.Source drawing ↗Check-valve seat
Seat used with the check-valve sealing O-ring. Four check valves are shown in the center block.
View part & current priceSource drawing ↗Check-valve seat O-ring
O-ring fitted to the check-valve seat.
View part & current priceSource drawing ↗Check-valve poppet
Moving valve inside its retainer. The drawing separates it from the complete KIT-HP-CVK assembly.
View part & current priceSource drawing ↗Check-valve retainer
Retainer surrounding the poppet and spring. The rebuild manual distinguishes inlet-side notched retainers; verify the actual revision.
View part & current priceSource drawing ↗Check-valve spring
Spring within the check valve. Its coil pitch and wire size here are illustrative.
View part & current priceSource drawing ↗Check-valve spring washer
Small washer in the check-valve assembly, identified on the rebuild sheet.
View part & current priceSource drawing ↗Check-valve port O-ring
Separate sealing O-ring around a check-valve port at the cylinder interface.
View part & current priceSource drawing ↗Cylinder / end-cap O-ring
The same source part number is shown for cylinder-to-center-block sealing and the cylinder end-cap O-ring. Order for the repair locations you are servicing.
View part & current priceSource drawing ↗Cylinder piston, 7% / 10%
The rebuild guide identifies a one-piece nylon piston for 7% and 10% pumps. The separate 20% piston seal and bushings are not shown here.
View part & current priceSource drawing ↗Cylinder tube fitting
The manufacturer cylinder reference labels PL-MTS-3/8X1/2B; newer high-pressure module drawings use stainless fittings. Match the installed fitting material and revision. This illustrative fitting has no direct purchase link.
Reference only; no verified purchase link.Source drawing ↗Valve-block mounting bolt
The drawing identifies four longer bolts joining the valve block to the center block. Dimensions are omitted because the source annotation and SKU differ.
Reference only; no verified purchase link.Source drawing ↗End-block bolt
The rebuild sheet shows eight shorter bolts for the end blocks. The illustration does not specify installation torque.
Reference only; no verified purchase link.Source drawing ↗Sources: Cape Horn manual, pages 58–61 (drawing ratio conflict); Clark Pump rebuild manual, May 2024. The 10% center block, piston rod and rod seals shown here are conditional. The Cape Horn drawing identifies 7% parts, so confirm the installed pump ratio and revision with Spectra before ordering. The reconstruction remains subject to technician geometry review.
Planning a rebuild?
10% distributor rebuild kit and 7% / 10% seal-and-O-ring kit cover different scopes. Confirm the installed pump ratio with Spectra and review kit contents before buying individual parts as well. Repair-and-return service and Advance-exchange service have return arrangements; they are not ordinary boxed rebuild kits.
REPAIR AND IMPROVE
Choose by control type and revision
Z-Ion on Remote Manual
Automated Z-Ion is shown in the 330R wiring and optional-installation instructions. It uses a generator bowl in place of the ordinary carbon filter bowl and is a different installation from manual Z-Ion, which belongs to analog controls.
The older compact fact sheet describes analog controls and ZION-MAN despite the 330R model name. Follow the installed controller, wiring and current 330R manual for this choice.
Remote Manual controls
Remote board and remote panel are separate items. Read the installed part label and wiring connector before ordering a replacement.
The 12V conversion kit and 24V conversion kit address eligible analog Cape Horn starting systems. They are not repair kits for an existing 330R.
Clark Pump service
7% / 10% seal-and-O-ring kit covers shared seals. The 10% distributor rebuild kit is a conditional link because the 330R manual has contradictory ratio labels. Confirm the installed pump before purchase.
IDENTIFY BEFORE BUYING
Conditional pump and conversion links
These links help identify a possible part. They are not confirmed fits for every 330R. Provide Spectra the serial number, Clark Pump label and a photo of the installed component when checking the issue shown.
8 links requiring confirmation
Center Block 10% (w/o Inserts)
Confirm with Spectra before ordering.The manual calls the 330R a 10% recovery pump on page 41, but its exploded drawing identifies a 7% center block or rod. Confirm the installed Clark Pump ratio and this part number with Spectra before ordering.
Review product & requirementsPiston Rod (10%)
Confirm with Spectra before ordering.The manual calls the 330R a 10% recovery pump on page 41, but its exploded drawing identifies a 7% center block or rod. Confirm the installed Clark Pump ratio and this part number with Spectra before ordering.
Review product & requirementsClark Pump Remaned 10% (core $2,200)
Confirm with Spectra before ordering.Spectra lists Cape Horn among 10% rebuild-kit applications, but the current 330R manual labels 7% hardware in its exploded drawing. Confirm the installed pump label, ratio, revision, service/core terms and exact kit contents with Spectra before ordering.
Review product & requirementsClark Pump Upgrade (org. Cust. Pmp)
Confirm with Spectra before ordering.Spectra lists Cape Horn among 10% rebuild-kit applications, but the current 330R manual labels 7% hardware in its exploded drawing. Confirm the installed pump label, ratio, revision, service/core terms and exact kit contents with Spectra before ordering.
Review product & requirements10% Clark Pump Upgrade Kit Dist.
Confirm with Spectra before ordering.Spectra lists Cape Horn among 10% rebuild-kit applications, but the current 330R manual labels 7% hardware in its exploded drawing. Confirm the installed pump label, ratio, revision, service/core terms and exact kit contents with Spectra before ordering.
Review product & requirementsPiston Rod Seal
Confirm with Spectra before ordering.The manual calls the 330R a 10% recovery pump on page 41, but its exploded drawing identifies a 7% center block or rod. Confirm the installed Clark Pump ratio and this part number with Spectra before ordering.
Review product & requirementsCape Horn REM Upgrade Kit, 12V
Confirm with Spectra before ordering.This kit may convert eligible older analog Cape Horn systems to Remote Manual controls; it is not a replacement kit for a watermaker that already has Remote Manual controls. Confirm the original serial, installed controls, voltage and conversion contents with Spectra.
Review product & requirementsCape Horn REM Upgrade Kit, 24V
Confirm with Spectra before ordering.This kit may convert eligible older analog Cape Horn systems to Remote Manual controls; it is not a replacement kit for a watermaker that already has Remote Manual controls. Confirm the original serial, installed controls, voltage and conversion contents with Spectra.
Review product & requirementsKEEP IT RUNNING
Service and onboard spares
Filter service
Replace dirty 5-micron seawater cartridges as needed; Spectra says not to count on cleaning them for reuse. Replace the carbon flush element at least every six months. Clean the sea strainer separately.
Storage and recommissioning
SC-1 preservative is for storage, while SC-2 and SC-3 serve different membrane-cleaning jobs. Follow the installed Z-Ion or chemical-preservation procedure; Z-Ion is not freeze protection.
Diagnose low output
Check voltage at the pumps, strainer debris, clean prefilters, leaks and flow using one pump and both pumps before buying a membrane. The manual calls a flow test the most useful diagnostic check.
ANSWERS FOR CAPE HORN OWNERS
Common buying questions
What size filters does the 330R use?
The seawater cartridge is FT-FTC-5, 5 micron, nominal 10 × 2.5 inches. The freshwater flush cartridge is FT-FTC-CC, a nominal 10 × 2.5-inch carbon block. They use different housings and seals.
How many membranes are in the compact model?
The original compact model has two short 2.5 × 20-inch membranes. One KIT-MB-20F kit supplies one replacement element, so two kits replace both. The standard model has one 2.5 × 40-inch element.
Is a Cape Horn 330 the same as the 330R?
The 330R has Remote Manual controls and timed freshwater flushing. The older 330 is an analog/manual control system. Match the system label and panel before selecting electrical or upgrade parts.
Does this guide prove that my Clark Pump is 10%?
No. The current 330R manual calls it a 10% recovery pump in the flow-test text but labels 7% pieces in the parts drawings. Check the installed pump label and confirm ratio-specific replacements with Spectra.
Can I use the analog Cape Horn Z-Ion kit?
The 330R Remote Manual wiring and manual show an automated Z-Ion option. ZION-MAN is described for analog controls. Confirm the installed generator bowl and connector when replacing a kit.
Does the 3D picture contain every 330R part?
It is an illustrative 10% Clark Pump service reconstruction, not measured Cape Horn CAD. Use the actual module drawings and installed part labels for ordering; parts with contradictory evidence are marked for confirmation.
YOUR CONFIGURATION REFERENCE
Documented parts & service references
Select voltage and membrane arrangement above. Open each item for its source and restrictions. Review current stock, package contents and price on the linked product page.
No match for this selection. Clear the search or check the configuration above. Unresolved ratio-sensitive links are under Spectra confirmation.
SC-3
View part & current priceAcid Cleaning Chemical
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Acid membrane cleaner for mineral scale, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC3; this catalog listing uses SC-3.
SC-2
View part & current priceAlkaline Cleaning Compound
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Alkaline membrane cleaner for biological fouling, compatible with Spectra systems. Use only when cleaning is indicated and follow your model manual for dose, temperature, circulation and flushing. This is a service consumable; do not mix cleaners. Manufacturer current kit name: KIT-CHEM-SC2; this catalog listing uses SC-2.
SC-1
View part & current priceStorage Compound
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Storage / preservation chemical for Spectra systems. Use the model manual for the required dose, circulation and recommissioning procedure. This is a maintenance consumable, not an installed component or an automatic recommendation to clean. Manufacturer current kit name: KIT-CHEM-SC1; this catalog listing uses SC-1.
PL-SLN-1/4O12SV
View part & current price1/4"FPT 2W Solenoid SPART.12V W/vbd
CH-330R-12 · CH-330R-12S
Requirements & source references
The illustrated 12V flush circuit with complete Spartan valve body. Other output-voltage configurations remain outside this record until the circuit is identified. System input: 12 V; retain the specified component supply and wiring. Match installed valve function, voltage and body/interface. A model connection does not make all valve revisions interchangeable. Match installed valve function, voltage and body/interface. A model connection does not make all valve revisions interchangeable.
Parts diagram / guide, page 54 ↗ · Parts diagram / guide, page 1 ↗ · Manufacturer selection reference ↗
EL-REM-CBA
View part & current priceREM Circuit Board Assembly
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Remote Manual circuit board assembly shown in the 330R electrical parts page. This is not an MPC or Connect controller board.
EL-FP-PS
View part & current priceSHURFLO Pressure Switch
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Spectra Shurflo cutout switch on the PL-PMP-SFPH pump head, identified by the two switch leads. Use this model’s prescribed pressure setting. Bare legacy switch and KIT-FP-SFSK are not treated as identical packages.
Parts diagram / guide, page 54 ↗ · Parts diagram / guide, page 1 ↗
FT-FTH-10L3PCS
View part & current price10" Low Press. Filter Housing 3 Pcs
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Clear three-piece housing in Feed Pump Module A for the carbon freshwater-flush element.
FT-FHW-3PCS
View part & current price3-PCS Std 10" Filter Housing Wrench
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Wrench for the clear three-piece carbon-flush housing FT-FTH-10L3PCS.
SO-FHS-3PCS10
View part & current price3-PIECE Filter Housing 0-RING
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Seal for the clear three-piece freshwater-flush housing FT-FTH-10L3PCS. The seawater prefilter housing uses a different seal.
FT-FTC-5
View part & current price5 Micron Filter
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
One 5-micron seawater prefilter, nominal 10 × 2.5 inches. This is in Feed Pump Module B, after the Shurflo feed pumps.
FT-STN-5
View part & current price5" Strainer (small)
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
FT-STN-5S
View part & current price5" Strainer Screen (small)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Five-inch stainless sea-strainer screen, upstream of both feed pumps. Match the installed strainer before replacing the screen.
FT-FTC-CC
View part & current priceCarbon Filter
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Carbon block cartridge in the freshwater-flush path, nominal 10 × 2.5 inches. Replace at least every six months; it is not the seawater prefilter.
FT-FHW-10H
View part & current priceH. P. Filter Housing Wrench
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Wrench for the high-pressure black seawater prefilter housing FT-FTH-10H.
FT-FTH-10H
View part & current priceHigh Pressure Filter Housing (blk)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
High-pressure black housing around the 5-micron seawater prefilter in Feed Pump Module B. The installed housing must match this revision.
FT-FTC-OW
View part & current priceOil Water Separator Filter
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.
KIT-MB-20F
View part & current price2.5" X 21" Membrane Kit
CH-330R-12S · CH-330R-24S
Requirements & source references
One 2.5 × 20-inch membrane kit per vessel. The original compact system has two short vessels; replacing both membranes requires two kits.
KIT-MB-40F
View part & current price2.5" X 40" Membrane Kit
CH-330R-12 · CH-330R-24
Requirements & source references
One 2.5 × 40-inch membrane for the original standard vessel. Check the installed vessel before ordering.
FT-PV-ER
View part & current priceMembrane Ring
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Parts diagram / guide, page 56 ↗ · Parts diagram / guide, page 57 ↗
PL-TEE-1/2FN
View part & current price1/2" Fpt Tee Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-NP-1/2N
View part & current price1/2" NPT Close Nipple Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-HBS-1/2X5/8
View part & current price1/2" NPT X 5/8" Hose Barb St. Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-HWR-1/2FR
View part & current price1/2" Stainless Ferrule
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-HWR-1/2HN
View part & current price1/2" Tube Ss. Fitting Hex Nut
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-BSH-1/2X1/4N
View part & current price1/2" X 1/4" Hex Bushing Reducer Nyl
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-FTE-1/4X1/4P
View part & current price1/4" Fpt X 1/4"TUBE Fitting Ell
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-VLV-3W1/4
View part & current price1/4" Three Way Valve
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-MTS-1/4X1/4J
View part & current price1/4"NPT X 1/4" Tube Fitting Jg
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-MTE-1/4X1/4J
View part & current price1/4"NPT X 1/4" Tube Fitting Nylon El. Jg.
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-FTE-1/8X1/4P
View part & current price1/8" Female NPT x 1/4" Tube Elbow Fitting
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-HP-1/8
View part & current price1/8" Hex Plug Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-PSG-LP2.5
View part & current price2.5"D,1/4"NPT Gauge 0-200PSI/BAR Uc
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
FT-PV-40
View part & current price2.5"X40" High Pressure Vessel Tube
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-CLP-3/4CAR
View part & current price3/4 in Carlon Clamp
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-VLV-3W3/4
View part & current price3/4" 3-WAY Valve
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-HBE-3/4X1/2
View part & current price3/4" NPT X 1/2"HOSE Barb Ell. Nylon
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-HBE-3/4X5/8
View part & current price3/4" NPT X 5/8" Hose Barb Ell Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-HBS-3/4X5/8
View part & current price3/4" NPT X 5/8" Hose Barb St. Nylon
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-TEE-3/4M5/8B
View part & current price3/4"MPT X 5/8"HB X 5/8" Hb Tee
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-VLV-3/4PVC
View part & current price3/4"NPT X 3/4"FPT 1-WAY PVC Valve
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
PL-HBE-3/8X5/8
View part & current price3/8" NPT X 5/8" Hose Barb Ell Nylon
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-MTS-3/8X1/2SL
View part & current price316L Stainless Straight Fitting, 3/8 in NPT x 1/2 in Tube
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
PL-ACC-TK
View part & current priceAccumulator Tank
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
HP‐TB‐ARP
View part & current priceAnnular Ring (Peek)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
HP‐TB‐BV
View part & current priceBleed Valve
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-INS
View part & current priceCenter Block Insert
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 15 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-CV
View part & current priceCheck Valve
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 47 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-CVP1
View part & current priceCheck Valve Port (viton)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 48 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-CVR
View part & current priceCheck Valve Retainer
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 45 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-CVS
View part & current priceCheck Valve Seat
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 43 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-SPR
View part & current priceCheck Valve Spring
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 46 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-CVSW
View part & current priceCheck Valve Spring Washer
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 46 ↗ · Parts diagram / guide, page 1 ↗
HP‐CYL‐CCA
View part & current priceCylinder Assembly (G‐10 BASE)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 17 ↗ · Parts diagram / guide, page 1 ↗
HP‐CYL‐EC
View part & current priceCylinder End Cap
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 68 ↗ · Parts diagram / guide, page 1 ↗
HP‐CYL‐R
View part & current priceCylinder End Ring
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 68 ↗ · Parts diagram / guide, page 1 ↗
PL-FMT-20
View part & current priceFlow Meter (20GPH)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cape Horn Remote feed A/sample module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only.
KIT-OFFSH
View part & current priceOffshore Kit For 7% & 10%
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 7% or 10% Clark Pump. Not the kit for Newport 700/1000 20% pumps.
Parts diagram / guide, page 5 ↗ · Parts diagram / guide, page 6 ↗
For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.
PL-MTS-3/8X1/2S
View part & current pricePL-MTS-3/8X1/2S
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
HP-CB-PVCR
View part & current pricePilot Valve Clip Ring
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 50 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-PPS
View part & current pricePilot Valve Pin
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 50 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-PVS
View part & current pricePilot Valve Spool
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 50 ↗ · Parts diagram / guide, page 1 ↗
HP‐CYL‐PT
View part & current pricePiston
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 17 ↗ · Parts diagram / guide, page 1 ↗
HD-SPN-MKINS
View part & current pricePlastic Insert For Mount Kit
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
HP-TB-VSP
View part & current priceRev. Valve Spool Piston
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 63 ↗ · Parts diagram / guide, page 1 ↗
HD‐RBP‐RM
View part & current priceRubber Mount
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
KIT-FK-12
View part & current priceSpectra Cooling Fan Kit (12V)
CH-330R-12 · CH-330R-12S
Requirements & source references
12V Spectra Shurflo feed pump only; not for vane pumps.
KIT-FK-24
View part & current priceSpectra Cooling Fan Kit (24V)
CH-330R-24 · CH-330R-24S
Requirements & source references
24V Spectra Shurflo feed pump only; not for vane pumps.
HP-CYL-SST
View part & current priceStainless Tube
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 17 ↗ · Parts diagram / guide, page 1 ↗
HP‐TB‐VB
View part & current priceValve Body
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
HP‐TB‐VEB‐A1
View part & current priceValve End Block A 1 1/4" BORE
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 20 ↗ · Parts diagram / guide, page 1 ↗
HP‐TB‐VEB‐B1
View part & current priceValve End Block B 1 1/4" BORE
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 20 ↗ · Parts diagram / guide, page 1 ↗
KIT-FP-SF12
View part & current price12V Shurflo Feed Pump and Heat Sink Assembly
CH-330R-12 · CH-330R-12S
Requirements & source references
12V Shurflo pump/motor assembly with heatsink; match installed pump voltage.
KIT-FP-SF24
View part & current price24V Shurflo Feed Pump and Heat Sink Assembly
CH-330R-24 · CH-330R-24S
Requirements & source references
24V Shurflo pump/motor assembly with heatsink; match installed pump voltage.
KIT-BCK-A
View part & current priceCruise Kit A
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Cruise consumables kit; confirm current kit contents and installed filter stages. Carry-on spares quantity is not system installation quantity.
EL-FP-DP
View part & current priceFeed Pump Diaphragm Drive Kit
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed Spectra Shurflo feed pump; complete head and diaphragm drive kit are different purchase choices.
For the documented original configuration; match installed filter stages, housing and strainer dimensions if modified. Confirm the quantity needed for your repair.
EL-FP-FPHS
View part & current priceFeed Pump Heat Sink
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Heat sink for the illustrated Shurflo feed-pump motor. This is the heat sink only; check whether a complete replacement pump already includes it.
PL-TB-HPTPVLL
View part & current priceHp Pump To Pv Ss. Tube Long (lower)
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Parts diagram / guide, page 56 ↗ · Parts diagram / guide, page 57 ↗
PL-TB-HPTPVUL
View part & current priceHp Pump To Pv Ss. Tube Long (upper)
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
Parts diagram / guide, page 56 ↗ · Parts diagram / guide, page 57 ↗
EL-FP-12V
View part & current priceShurflo Pump (12V)
CH-330R-12 · CH-330R-12S
Requirements & source references
Installed 12V Spectra Shurflo pump. Confirm package contents: manufacturer descriptions differ on whether the heatsink is included.
EL-FP-24V
View part & current priceShurflo Pump (24V)
CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 24V Spectra Shurflo pump. Confirm package contents: manufacturer descriptions differ on whether the heatsink is included.
PL-PMP-SFPH
View part & current priceShurflo Pump Head Assembly
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Shurflo pump head. The installed system has two parallel feed pumps; verify which head needs service and what the package includes.
SO-FT-STF
View part & current price3/4-16 Straight Thread O-ring
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
SO-STN-5SS
View part & current price5" Strainer Seal (small)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Five-inch sea-strainer housing seal. Match the installed five-inch body, not a larger strainer or filter housing.
SO-HPP-AR1
View part & current priceAnnular Ring O-ring (viton)
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-CVS
View part & current priceCheck Valve Seat Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 44 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-CT
View part & current priceConnector O-ring
CH-330R-12 · CH-330R-24
Requirements & source references
Cape Horn Remote standard long pressure-vessel/feed B module. Match installed assembly, port/thread or tube dimensions, material and pressure duty; documented original arrangement only. Requires long membrane arrangement for the illustrated module.
SO-HPP-ECCB
View part & current priceEnd Cap Center Block Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 52 ↗ · Parts diagram / guide, page 1 ↗
SO-FHS-10H
View part & current priceHigh Pressure Filter Housing O-ring
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
High-pressure seawater prefilter housing seal. Match the installed FT-FTH-10H bowl, not the clear three-piece carbon-flush housing.
SO-HPP-PLP
View part & current pricePilot Ports Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 52 ↗ · Parts diagram / guide, page 1 ↗
HP-CB-PVPS
View part & current pricePilot Valve Pin Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 50 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-PV
View part & current pricePilot Valve Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 43 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-PS
View part & current pricePin Seals
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 50 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-RV
View part & current priceRelief Valve Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
KIT-HP-S&O
View part & current priceSeal and O-ring Kit for 7% and 10% Clark Pump
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Select the installed 7% / 10% Clark Pump. A seal kit is not a pump-ratio conversion.
SO-HPP-SP
View part & current priceSpool Piston Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 62 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-VB
View part & current priceValve Bore Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 19 ↗ · Parts diagram / guide, page 1 ↗
SO-HPP-VP
View part & current priceValve Port Seal
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Installed 10% Clark pump matching the May 2024 rebuild-manual design. component in the cited pump assembly; identify actual ratio and revision after any retrofit. Excludes rare 15% pumps and unverified older revisions.
Parts diagram / guide, page 4 ↗ · Parts diagram / guide, page 52 ↗ · Parts diagram / guide, page 1 ↗
ZION-AUTO
View part & current priceZ-ion For Auto System
CH-330R-12 · CH-330R-12S · CH-330R-24 · CH-330R-24S
Requirements & source references
Optional Z-Ion protection for Remote Manual control. Follow the 330R manual wiring and the installed generator-bowl arrangement; this replaces the standard carbon-filter bowl.
KEEP THE REFERENCES CLOSE
Manuals & drawings
Cape Horn 330R owner manual, May 2025 ↗Standard 330R fact sheet ↗Compact membrane fact sheet ↗Remote Manual plumbing diagram ↗12V / 24V wiring diagram ↗Module A and carbon-flush parts ↗Module B, prefilter and standard vessel ↗Clark Pump parts, ratio labels require verification ↗Clark Pump rebuild manual ↗Cape Horn controller history ↗
Two manufacturer documents contain copied or conflicting labels. This guide flags the affected choices; compare your installed revision before ordering.
