SPECTRA OWNER GUIDE

Ventura 200R-T Remote Manual parts & owner guide

Identify your remote-controlled Ventura, see how the filter, feed pump, Clark Pump and short membrane work together, and find model-specific service parts in Spectra's drawings.

12V or 24V DC · Remote Manual control · 10% Clark Pump · one short membrane

Select your installed voltage

Check the system and pump labels, particularly after a retrofit.

Showing parts common to both voltages. Select a voltage for electrical parts.

CHECK THE NAMEPLATE

Is this your Ventura 200R-T?

Model, controller and voltage

Look for VT-200R-T-12 or VT-200R-T-24 on the system paperwork or label. This guide covers the Remote Manual controller. Deluxe analog, MPC and Connect controls use different electrical parts. 150R Remote Manual guide is a separate output and pump-ratio configuration.

200 GPD rated output

Spectra rates this model at 8.3 US gal/h under 77°F / 25°C and 33,000 PPM baseline feed water. Actual output changes with feed conditions and system health. Manufacturer fact sheet ↗

The Ventura 200R-T is designed for warm seawater above 50°F / 10°C. The current fact sheet table has a generic 36°F minimum and “Analog controls” even though its product description and the dedicated manual identify Remote Manual control and the warm-water limitation. Follow the model-specific warm-water warning. Warm-water note in the manual ↗

10% pump and one short membrane

Use the 10% Clark Pump references for an original arrangement. The vessel houses a single short KIT-MB-20F membrane kit. Spectra calls it 20 inches in the fact sheet and 21 inches in the illustrated parts list. Match the kit SKU and installed vessel.

Shared drawing cautionThe Remote Manual labels a 7% center block and 3/4-inch rod on pages 62 and 64. Those drawings are not an exact 200R-T ratio-specific parts list. The reviewed 200R-T mapping and Spectra 10% Ventura 200 rebuild-kit reference identify HP-CB-CB10, HP-CYL-7/8R and SO-HPP-PR10. Confirm your installed pump identification and revision before ordering. Spectra 10% kit ↗

FOLLOW THE WATER

What each module does

1 · Seawater intake

A dedicated intake and sea strainer admit seawater. Its screen and housing seal are distinct service parts. Keep debris out of the feed circuit.

2 · Feed and prefilter

A voltage-specific 12V/24V feed pump feeds the black housing. The 5-micron seawater element removes fine particles before the Clark Pump. Accumulator dampens the pressure pulses.

3 · Pressure and membrane

The Clark Pump recovers pressure energy. The short membrane separates fresh product water from brine. The vessel retaining ring is separate from the membrane.

4 · Test and divert

The sample valve lets you check product water before diverting it to the tank. Follow the manual for start-up and product testing; do not treat this as a Connect salinity-sensor system.

Freshwater flush is separate

The carbon cartridge protects the freshwater flush path from chlorine. It is not a seawater prefilter. Optional Z-Ion replaces the standard carbon-filter bowl in Spectra’s plumbing drawing.

Understand the layout

Compare the installed plumbing to the Remote Manual plumbing schematic ↗ and the 12V/24V wiring schematic ↗. Replaced or relocated modules can change what you see on board.

ANSWER THE SIZE QUESTION

Filters, housings and seals

The standard seawater prefilter is nominal 10 × 2.5 inches, 5 micron. The separate freshwater-flush carbon cartridge is also nominal 10 × 2.5 inches. Check the installed housing style; nominal cartridge dimensions can differ from measured end-to-end length.

Position	Cartridge	Housing	Housing seal
Seawater feed	FT-FTC-5 · 5 micron	FT-FTH-10H · black high-pressure	SO-FHS-10H · verify seal
Freshwater flush	FT-FTC-CC · carbon	FT-FTH-10L3PCS · clear three-piece	SO-FHS-3PCS10 · verify bowl
Seawater intake	FT-STN-5S · strainer screen	FT-STN-5 · strainer	SO-STN-5SS · check original

Filter and strainer parts drawing ↗ · Cartridge size in fact sheet ↗. The manual lists a shorter sea-strainer seal code and may reflect a different seal package. Confirm its installed part before ordering.

REMOTE MANUAL, NOT CONNECT

Identify the panel and board

The controller operates the unit from a remote panel and supports a timed freshwater flush. A tank-full indication requires a tank switch. The Remote Manual drawing identifies KIT-REM-RPNLA remote panel on page 61 and EL-REM-CBA circuit board on page 58. These are separate service parts. Check the existing panel, connector, harness and board revision with Spectra before ordering; a board alone is not a complete controls conversion.

Voltage and wiring

Use the installed motor and controller labels for 12V versus 24V. The manual’s 200R 24V electrical table has an inconsistent bench-test voltage; the fact sheet lists 24V DC, 5A. Do not size a replacement from that table’s inconsistent line.

Control-box parts ↗ · Remote panel drawing ↗ · Electrical schematic ↗

SEE THE MANUFACTURER DRAWINGS

Locate the assembly before buying

These are labeled pages from the Remote Manual, not a claim that every installed revision is identical. Open the complete drawing for tubing routes and other callouts.

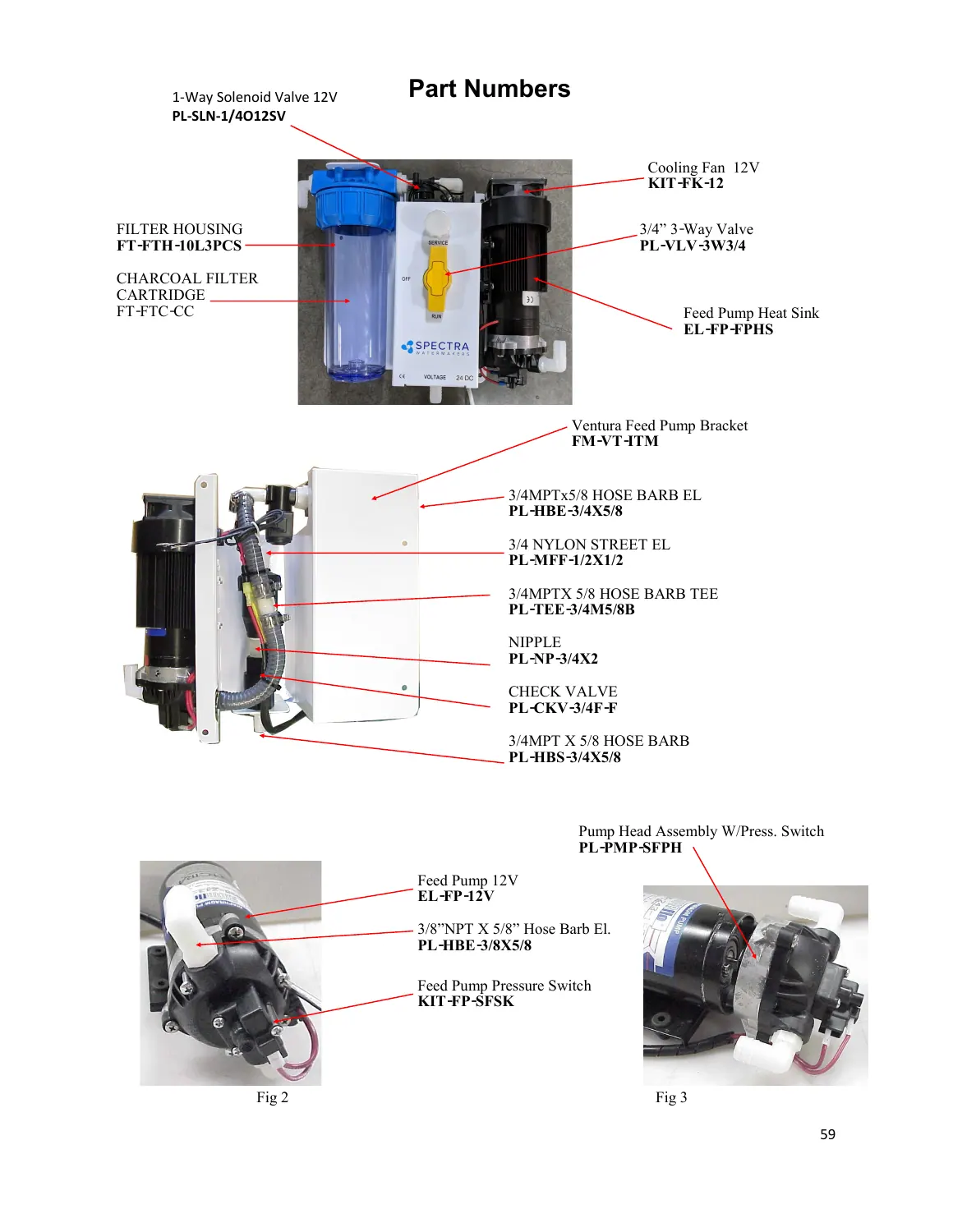

Feed pump and flush bowl

Find the pump head, heat sink, carbon cartridge and flush housing. The illustrated motor is 12V, so use the voltage selector and installed label for 24V.

Open original drawing ↗

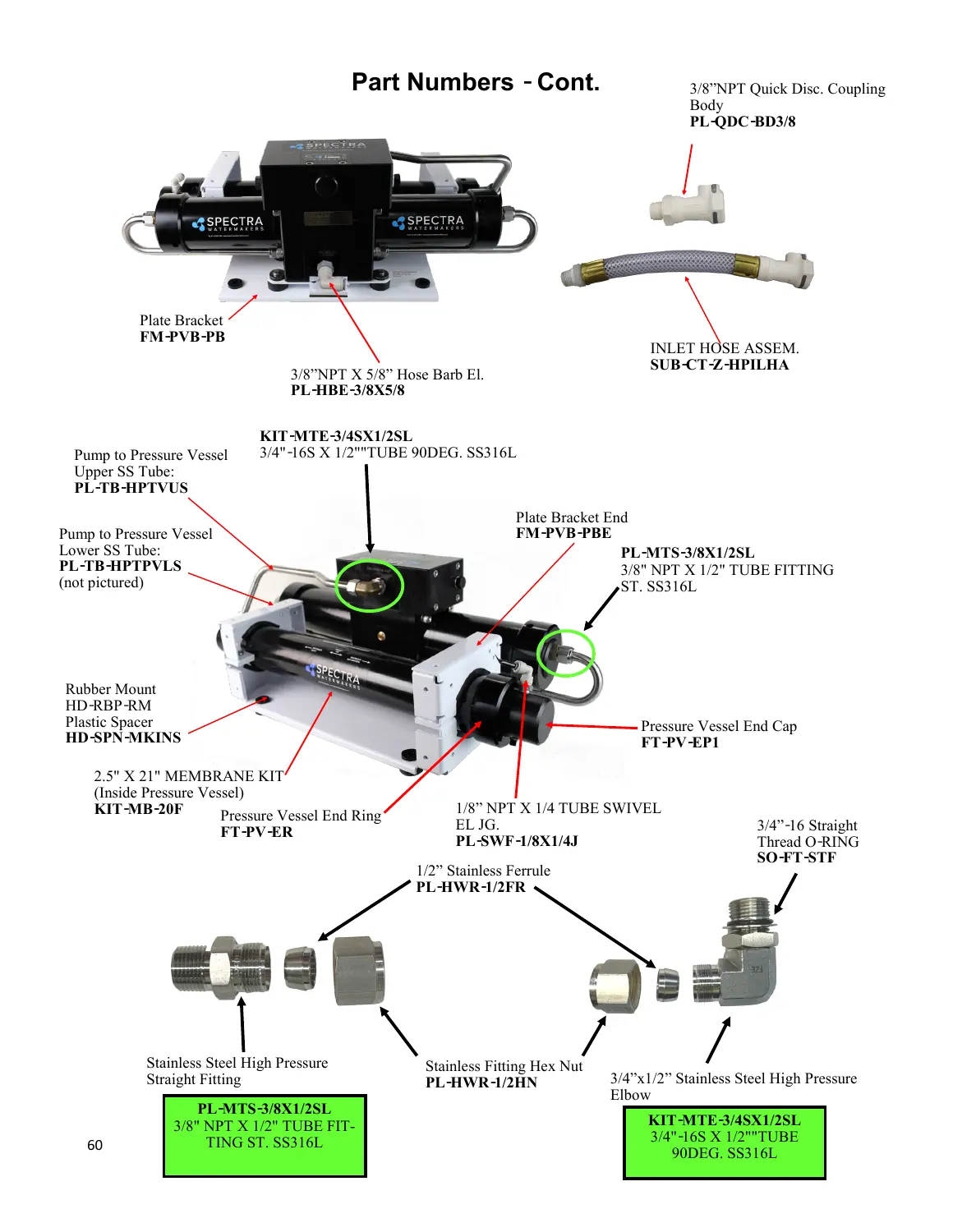

Short membrane and vessel

The membrane kit is inside the short pressure vessel. The retaining ring and stainless upper/lower tubing are separate repairs.

Open original drawing ↗

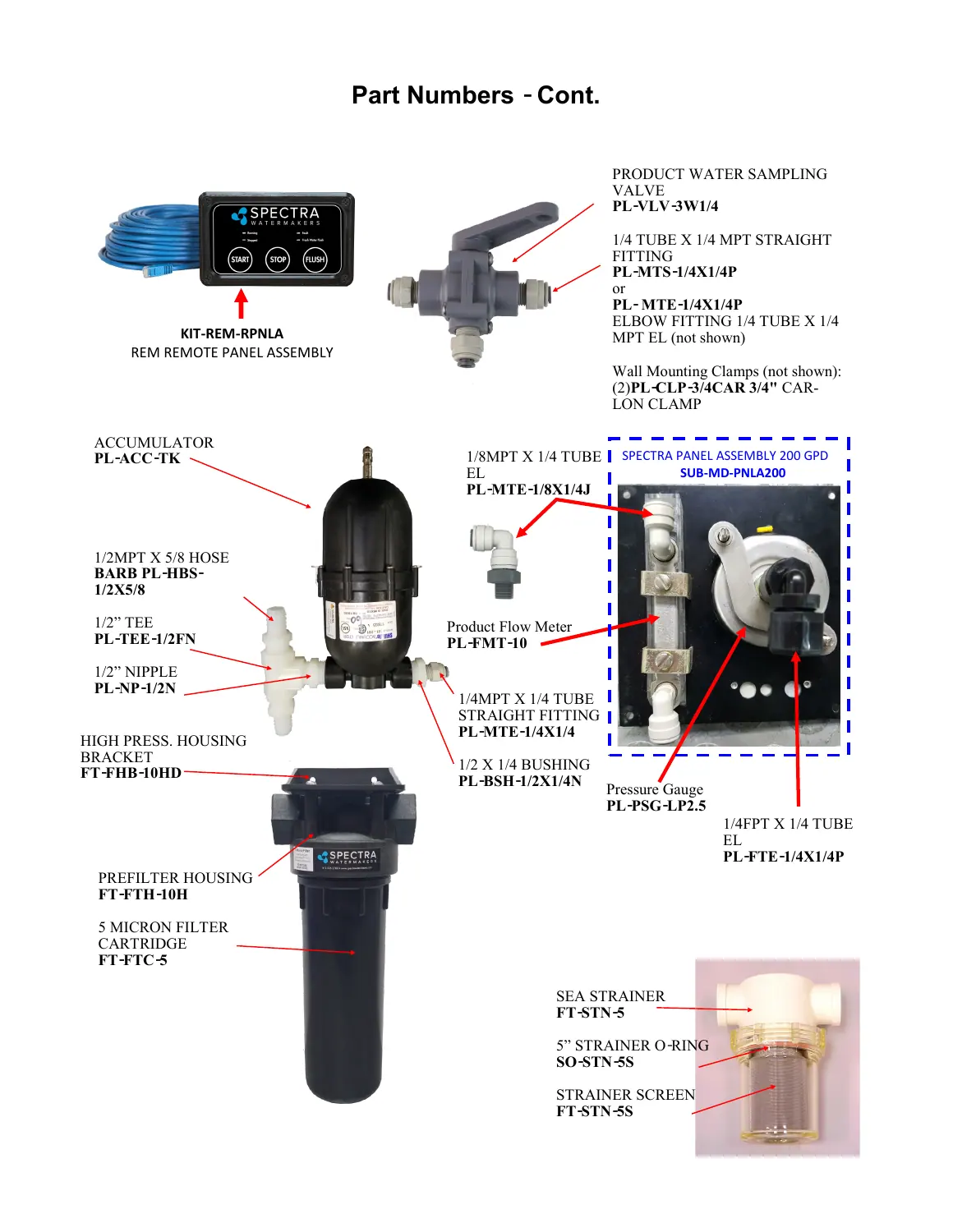

Seawater filter, strainer and panel

Find 5-micron filter, black housing, strainer and remote panel.

Open original drawing ↗

MATCH THE INSTALLED RATIO

10% Clark Pump identification

The center block, piston rod and rod seals must match the actual pump ratio: HP-CB-CB10, HP-CYL-7/8R and SO-HPP-PR10 for the reviewed Ventura 200R-T arrangement. The 10% distributor rebuild kit is a separate service option. The seal and O-ring kit is shared by 7% and 10% pumps; compare kit contents before ordering individual seals.

Explore the 10% mechanical group in 3D. This Deluxe model is a location aid for the Clark Pump only; its controller and exterior modules do not establish Remote Manual fitment.

View the four pump service drawings

The mechanical illustrations are identification aids, not a substitute for the rebuild procedure.

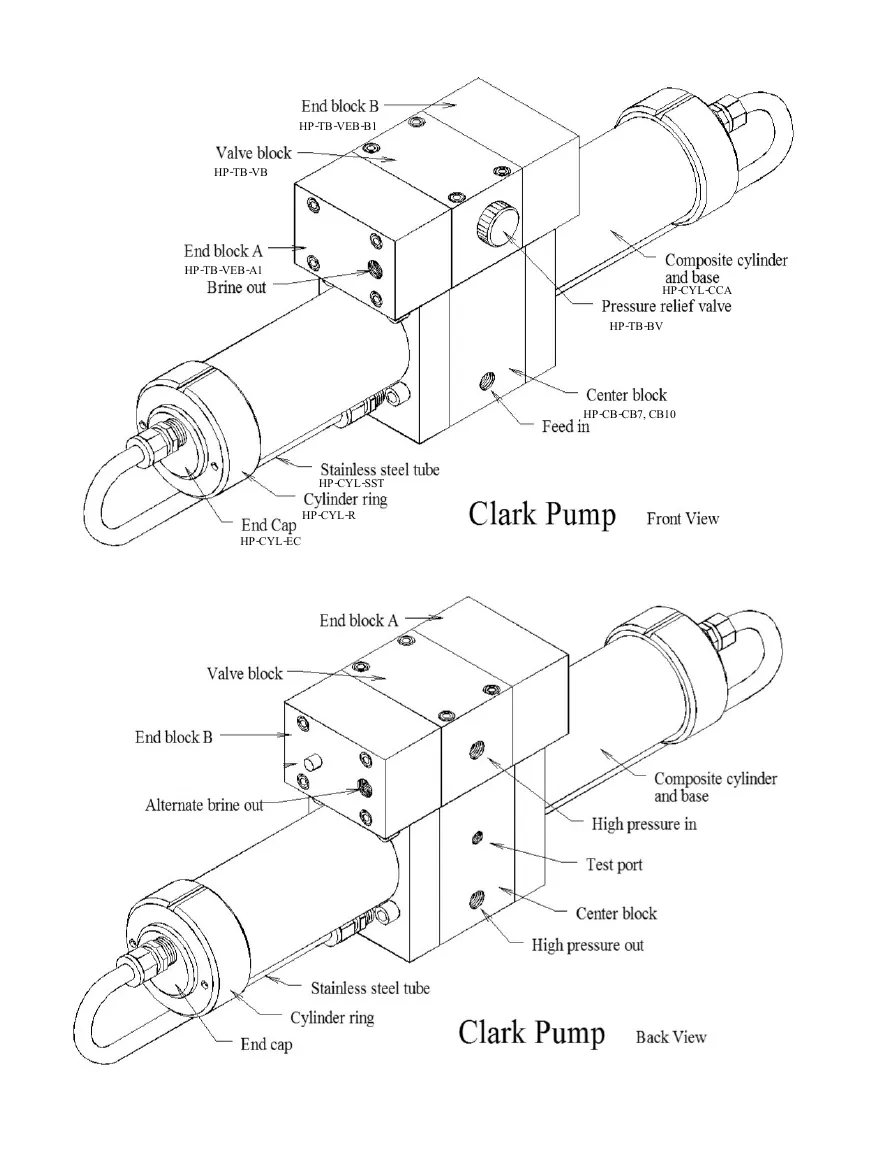

7% / 10% exterior variants

Use the manufacturer drawing to recognize the service group. Match your installed pump ratio and revision before choosing an internal replacement.

Open original drawing ↗

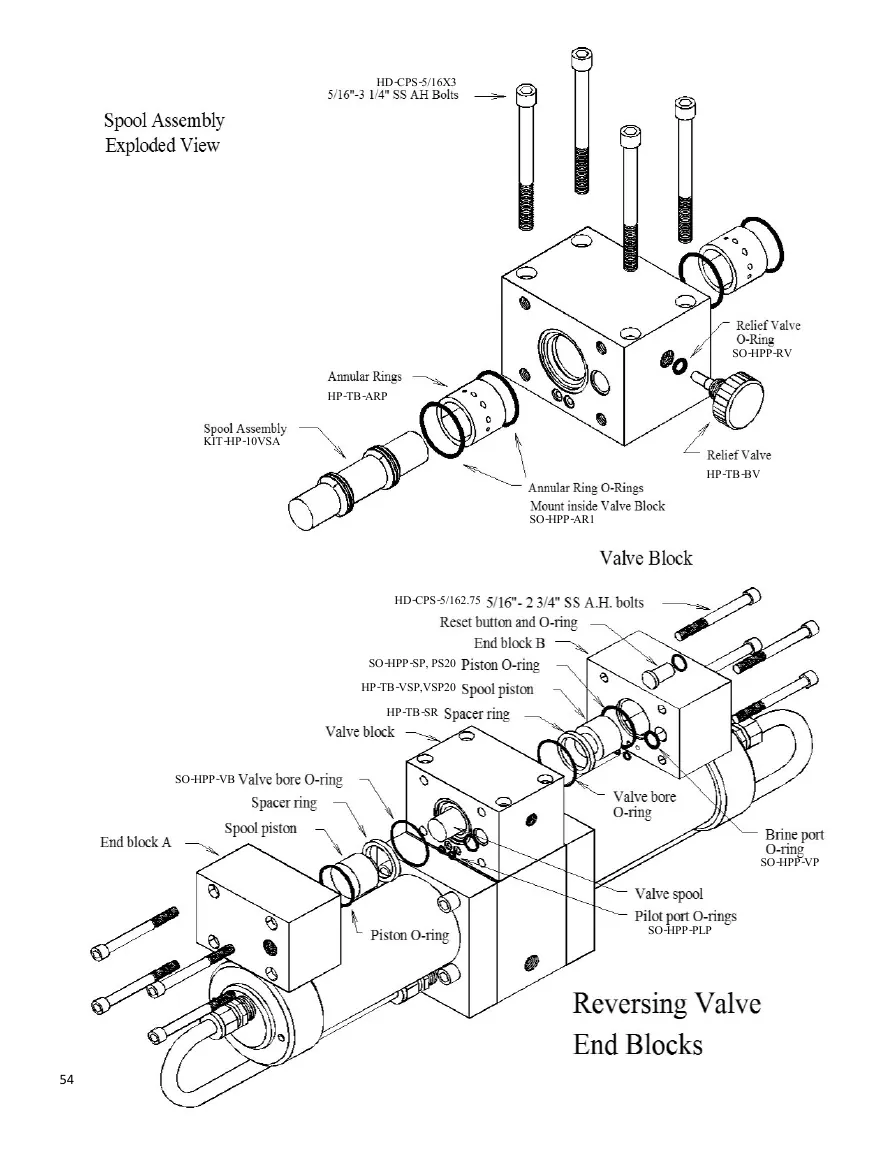

Shared reversing valve

Use the manufacturer drawing to recognize the service group. Match your installed pump ratio and revision before choosing an internal replacement.

Open original drawing ↗

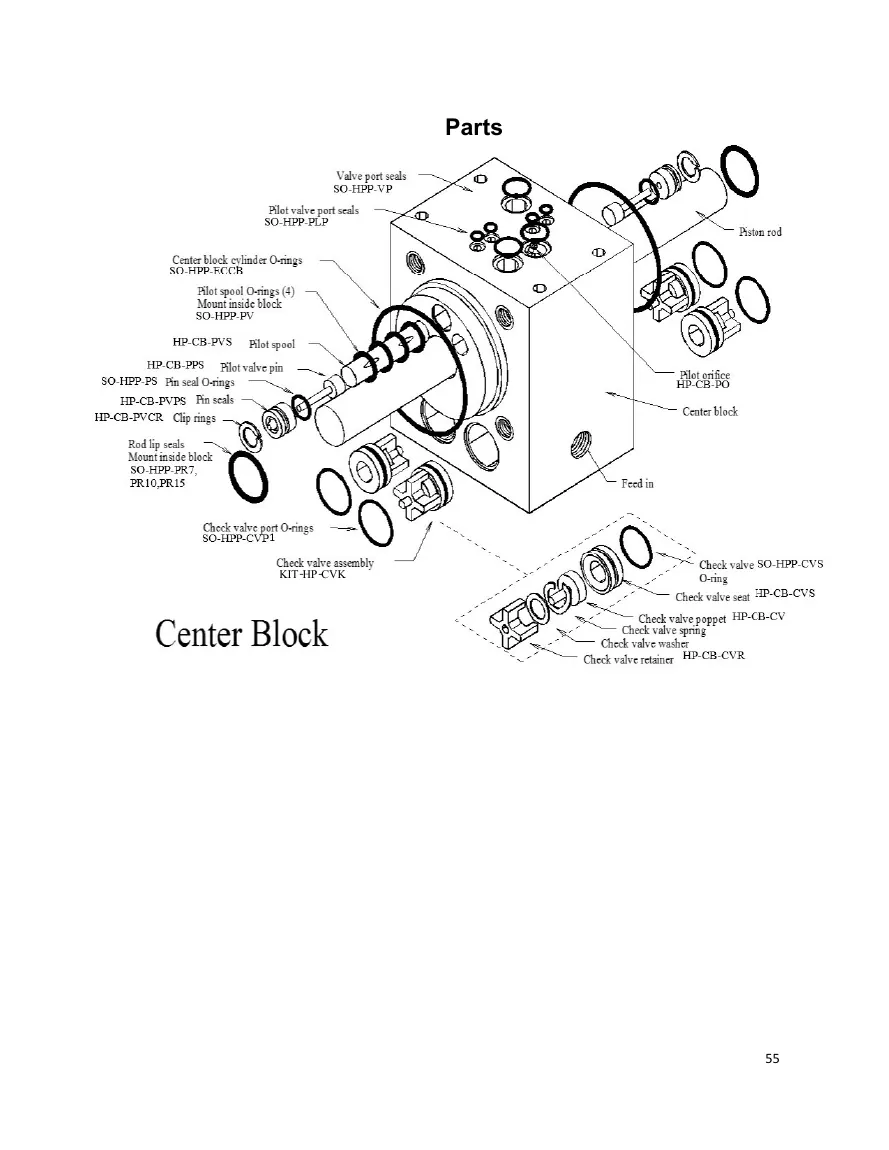

10% rod and center block

Use the manufacturer drawing to recognize the service group. Match your installed pump ratio and revision before choosing an internal replacement.

Open original drawing ↗

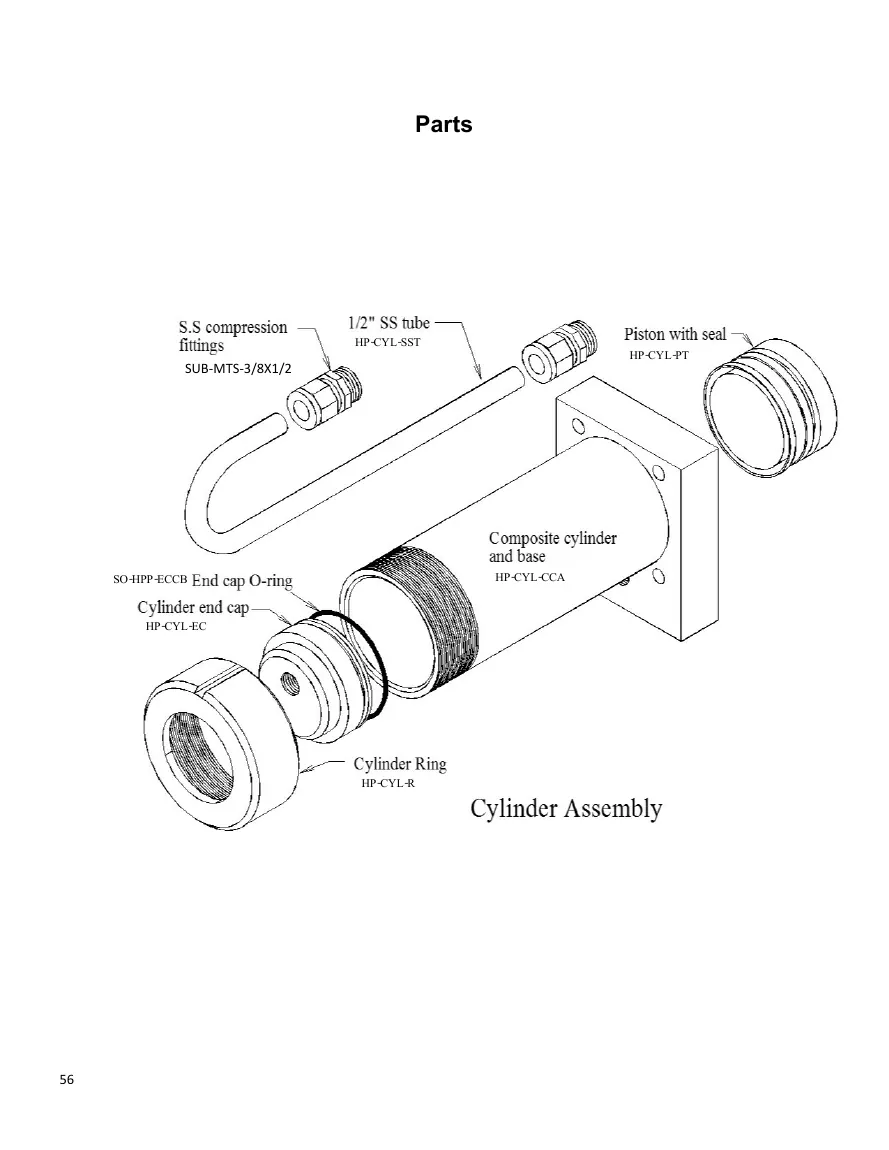

Cylinder assembly

Use the manufacturer drawing to recognize the service group. Match your installed pump ratio and revision before choosing an internal replacement.

Open original drawing ↗

CARE AND TROUBLESHOOTING

Service by task, not just symptom

Replace dirty prefilters

Inspect and replace the 5-micron seawater element when dirty or flow is restricted. Identify the housing before ordering a seal. Prefilter service ↗

Protect the flush path

Follow the manual’s freshwater-flush procedure. Replace the carbon element at least every six months; optional Z-Ion uses a different bowl. Flush filter service ↗

Diagnose low output

Check feed voltage, filter restriction and feed-pump flow before assuming the membrane has failed. The manual calls for a flow test before membrane cleaning. Ventura flow test ↗

Store and clean correctly

SC-1 is for storage. SC-2 alkaline and SC-3 acid are membrane-cleaning agents for diagnosed fouling. Follow Spectra’s dilution, duration and recommissioning directions. Storage procedure ↗ · Cleaning procedure ↗

COMMON BUYING QUESTIONS

What to confirm before an order

Is the Remote Manual panel the same as Connect?

No. This guide covers the basic Remote Manual controller and its remote panel. The Connect display, harness and controls are different.

Does this model use a 20-inch or a 21-inch membrane?

Spectra’s fact sheet says 20 × 2.5 inches, while the parts drawing calls KIT-MB-20F 21 inches. Identify the kit by its SKU and short installed pressure vessel.

Is the carbon cartridge the seawater prefilter?

No. FT-FTC-5 filters seawater before the Clark Pump. FT-FTC-CC filters the freshwater used for flushing.

Can I order a pump internal from the shared drawing?

Confirm the pump identification. The shared Remote Manual illustrates 7% exterior hardware; this 200R-T guide uses 10% ratio-specific references for the reviewed original arrangement. Retrofitted pumps can differ.

Does the 3D model show this exact controller?

No. The earlier Ventura Deluxe 3D pump is a mechanical identification aid only. Use the Remote Manual and installed labels for the controller, wiring and external module details.

FIND A PRODUCT

Parts reference by voltage

Manufacturer drawing labels and documented mechanical references are first. Additional links from the existing parts mapping appear in a review section. The page does not set purchase quantities or guarantee that a retrofit uses original hardware.

Search part number or nameCategory

99 references across both voltages.

Named in the manual or ratio-specific drawing

EL-REM-CBA

REM Circuit Board Assembly

12V / 24V · SKU in Remote Manual

What to check and source

The Remote Manual drawing names the circuit board. Confirm installed controller generation, connector and harness with Spectra before ordering.
