Classic 200c parts & owner guide

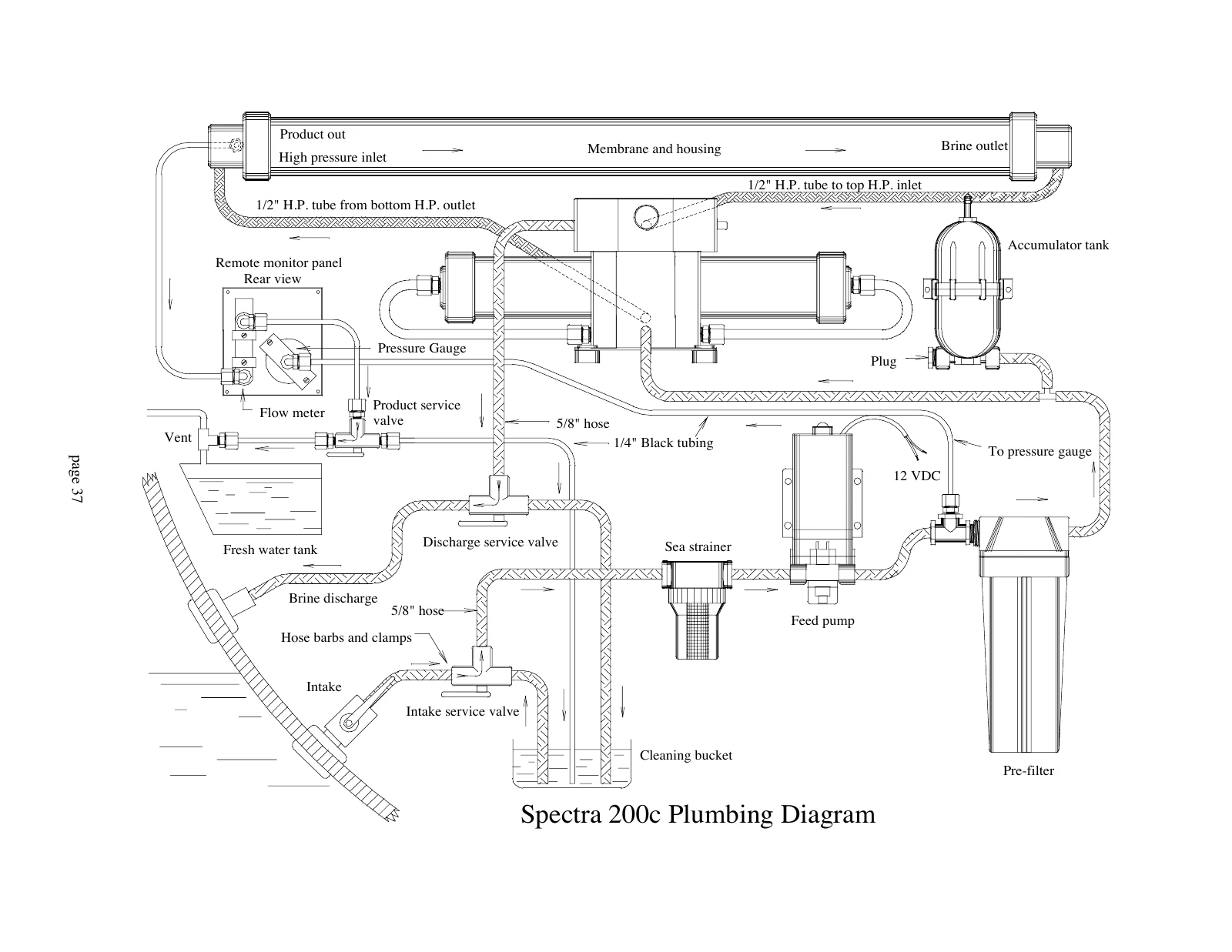

Original single feed circuit

The 2002 manual lists one feed pump with a heat sink, one accumulator and one membrane housing. The cooling fan and extra 20-micron housing are original options. A dual-pump upgrade is not assumed from later systems.

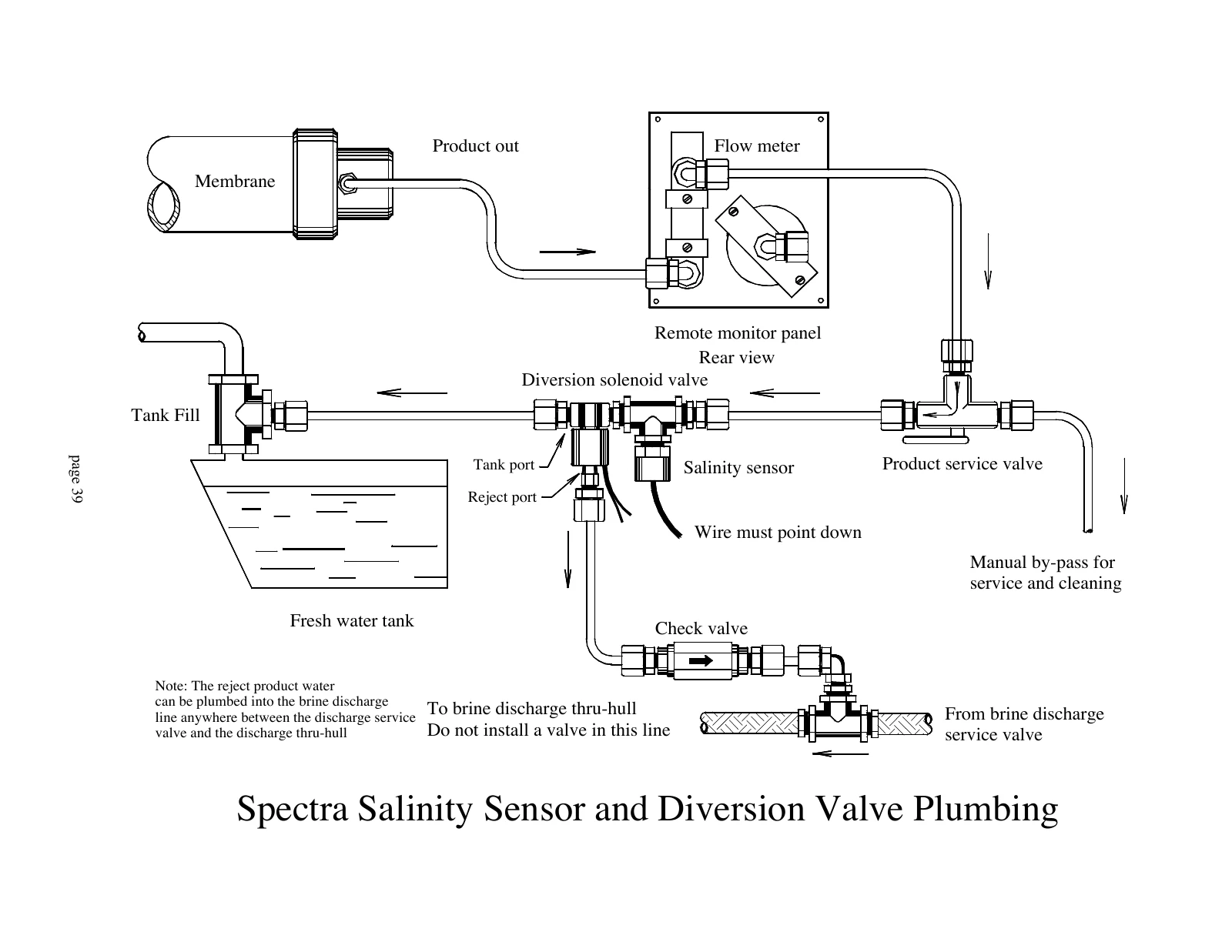

Gauges and remote lamps are legacy hardware

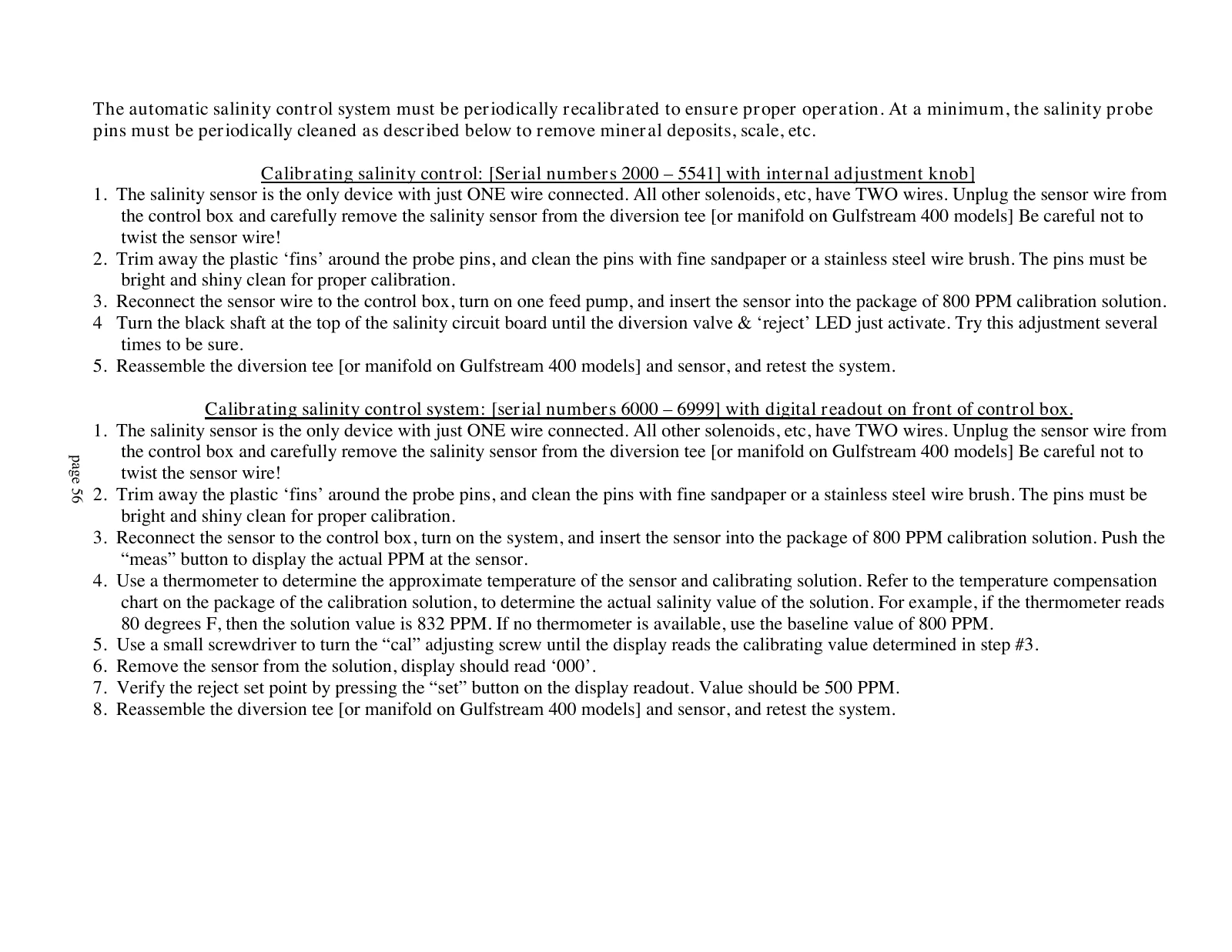

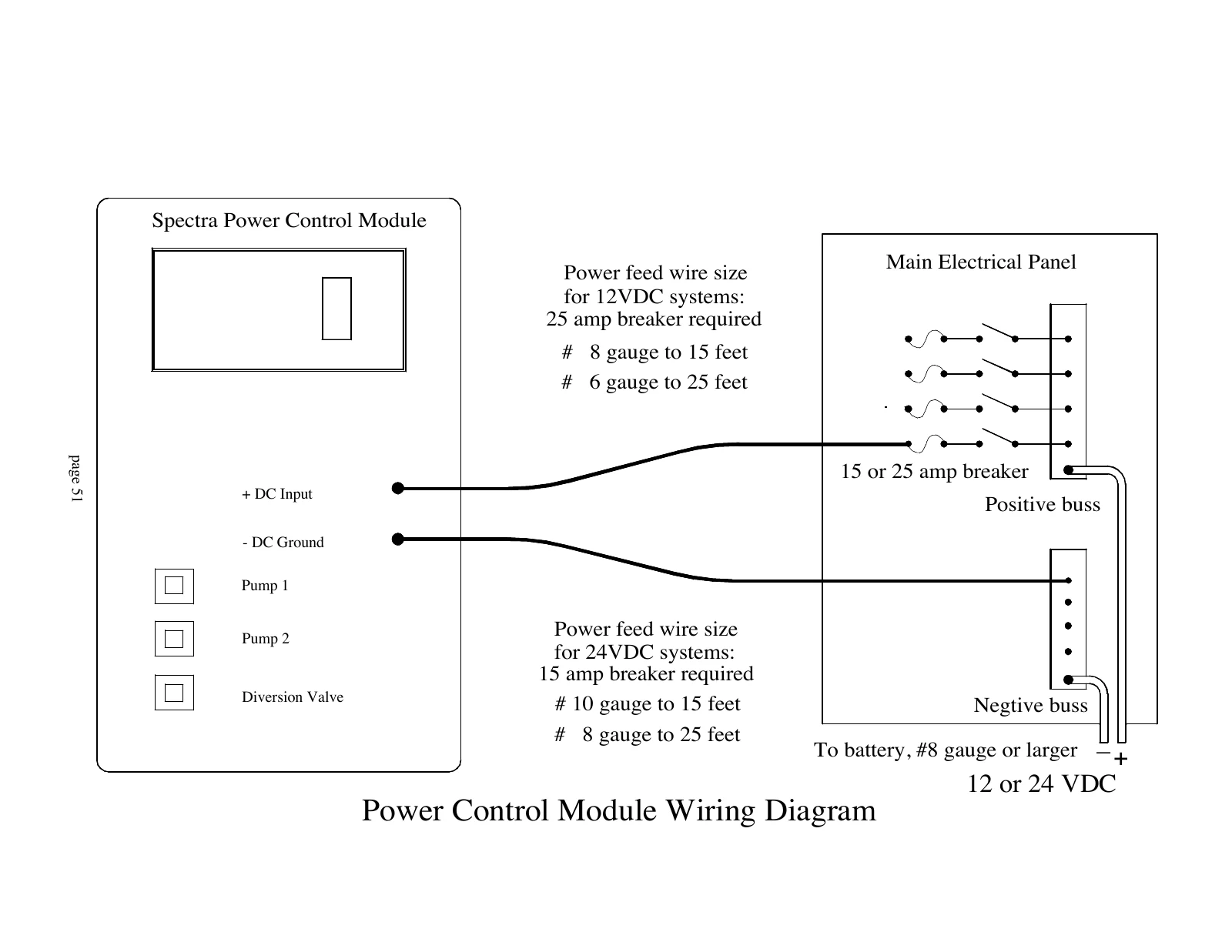

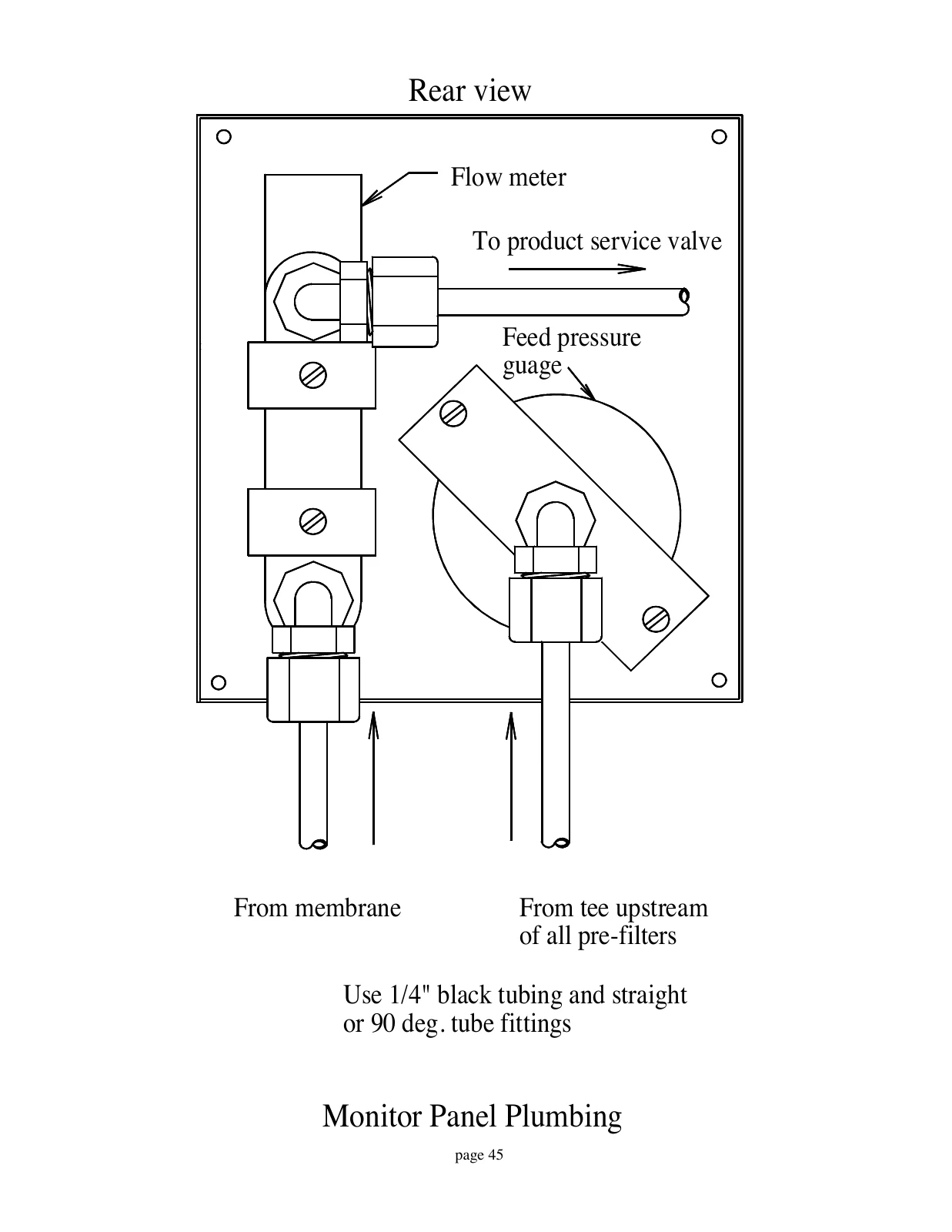

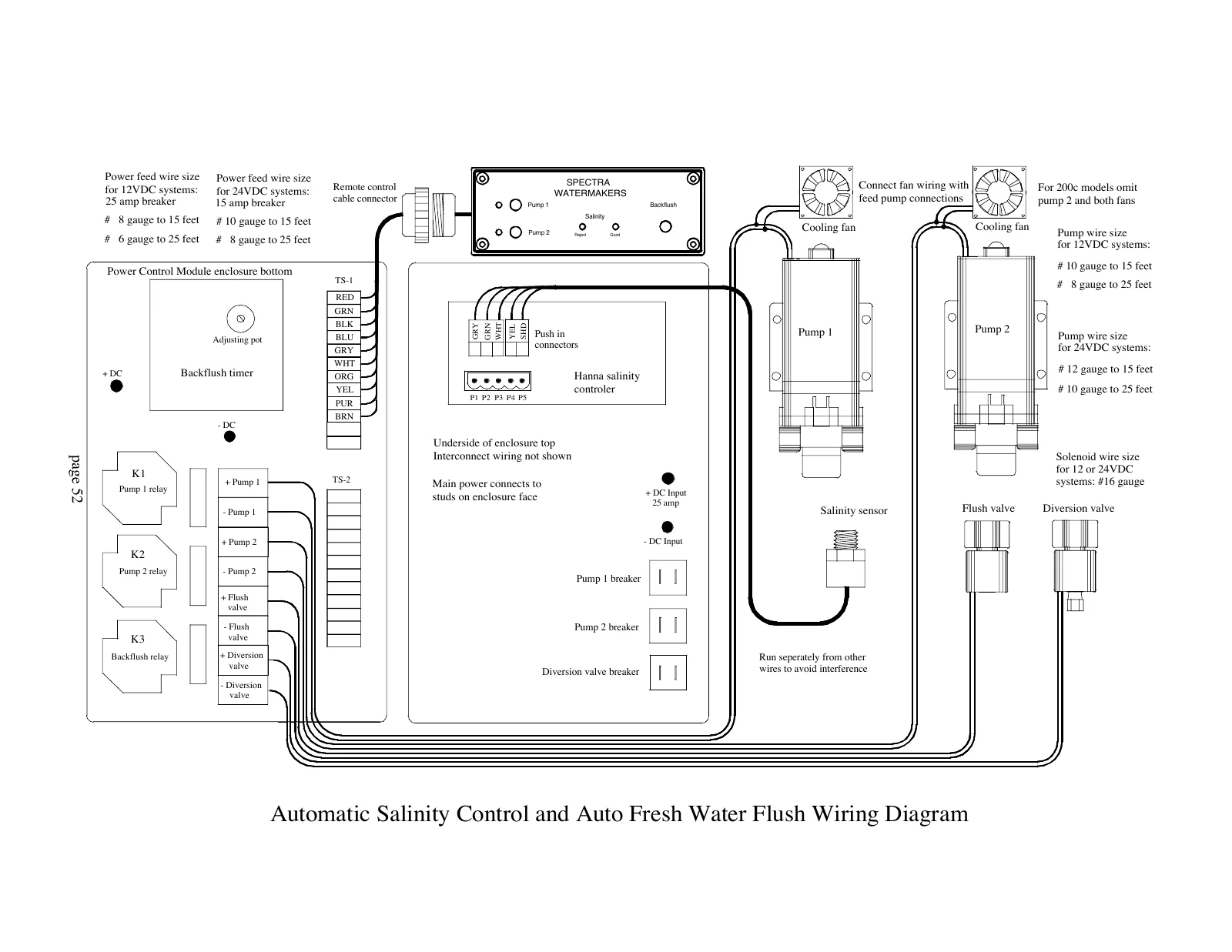

Original controls include a mechanical pressure gauge and vertical product-flow meter. Optional automatic salinity equipment adds a one-wire sensor, diversion valve, power-control box and remote switches/lamps. A small digital salinity readout can also be legacy hardware; neither it nor a remote panel proves MPC.

Read actual labels before ordering

Record model/serial, 12V or 24V pump/fan labels, controller type, Clark Pump ratio, filter bowls, membrane labels and any added flush/Z-Ion equipment. The current parts map supplies identification references; the Classic model name does not certify every modern revision.

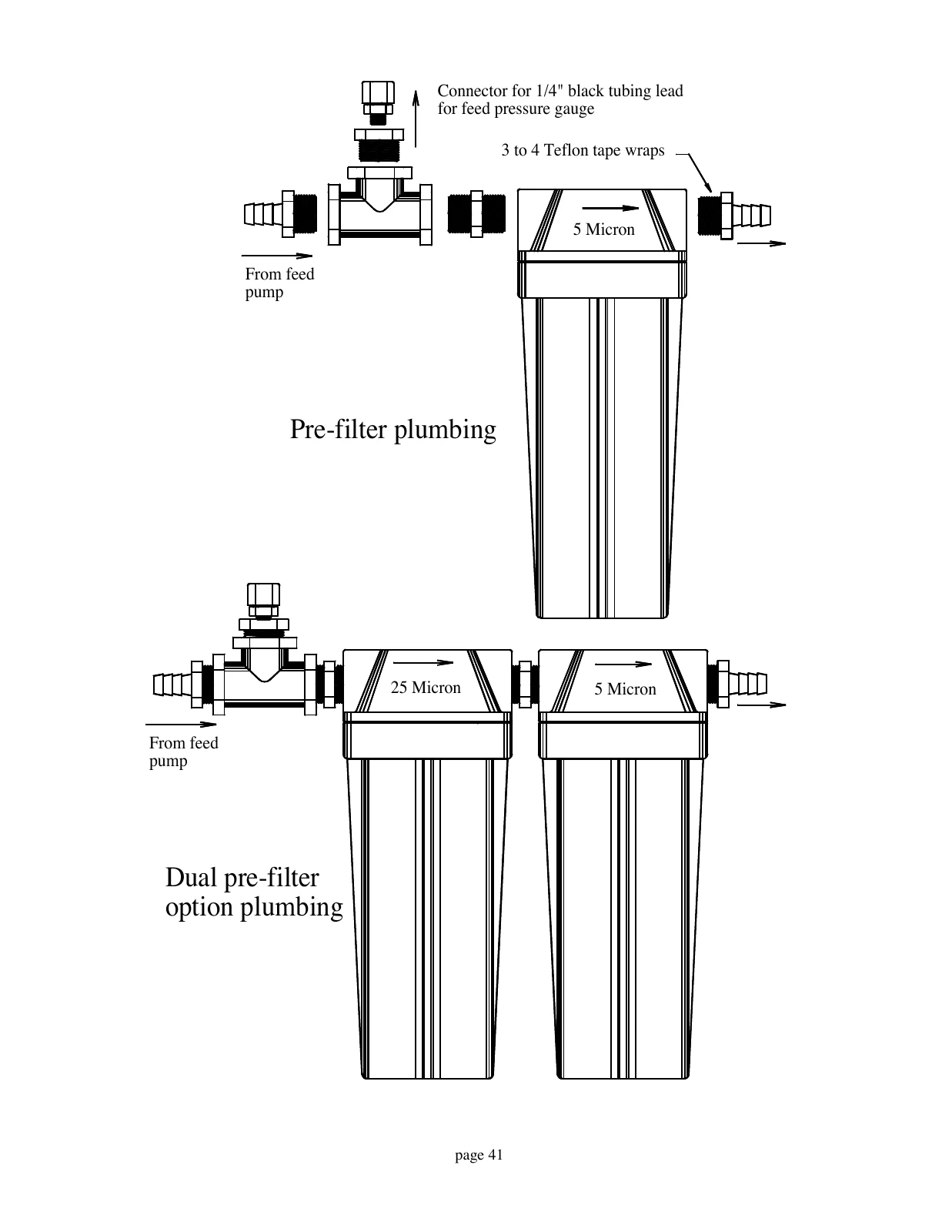

Gauge placement changes diagnosis

The original description, installation step and page 41 drawing place the pressure-gauge tee before the sediment filter. Clogging can raise that feed-pressure reading. Page 30 placement prose conflicts with those references: inspect the actual tee before interpreting pressure or changing plumbing. Newer after-filter diagnosis is not automatically applicable.

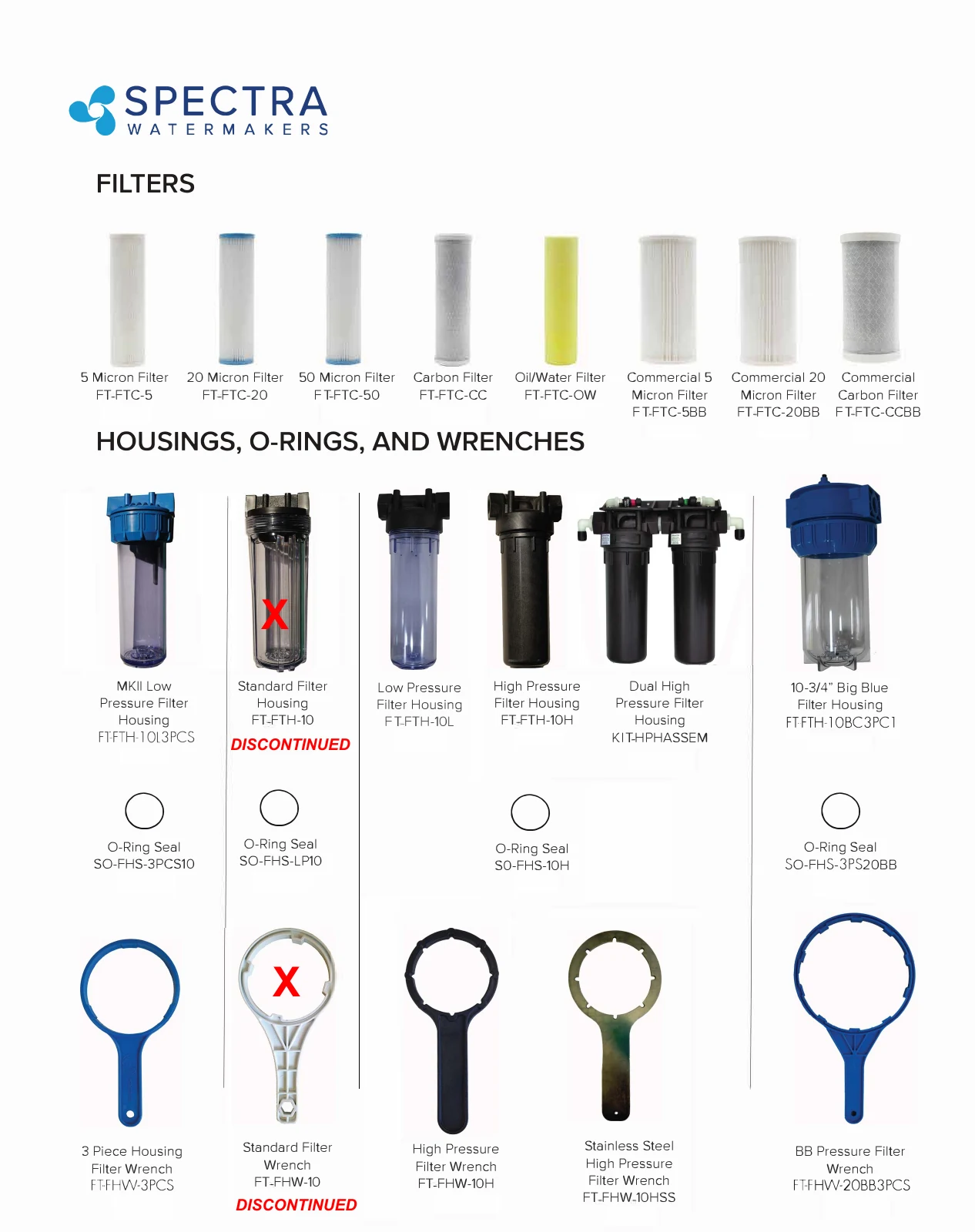

Match the bowl, seal and wrench

Black high-pressure 10H uses 10H seal and 10H wrench family. Small three-piece housing uses 3PCS10 seal and three-piece wrench. These are conditional modern families; the original picture does not identify a code. Compare seal section, pressure rating and engagement before ordering.

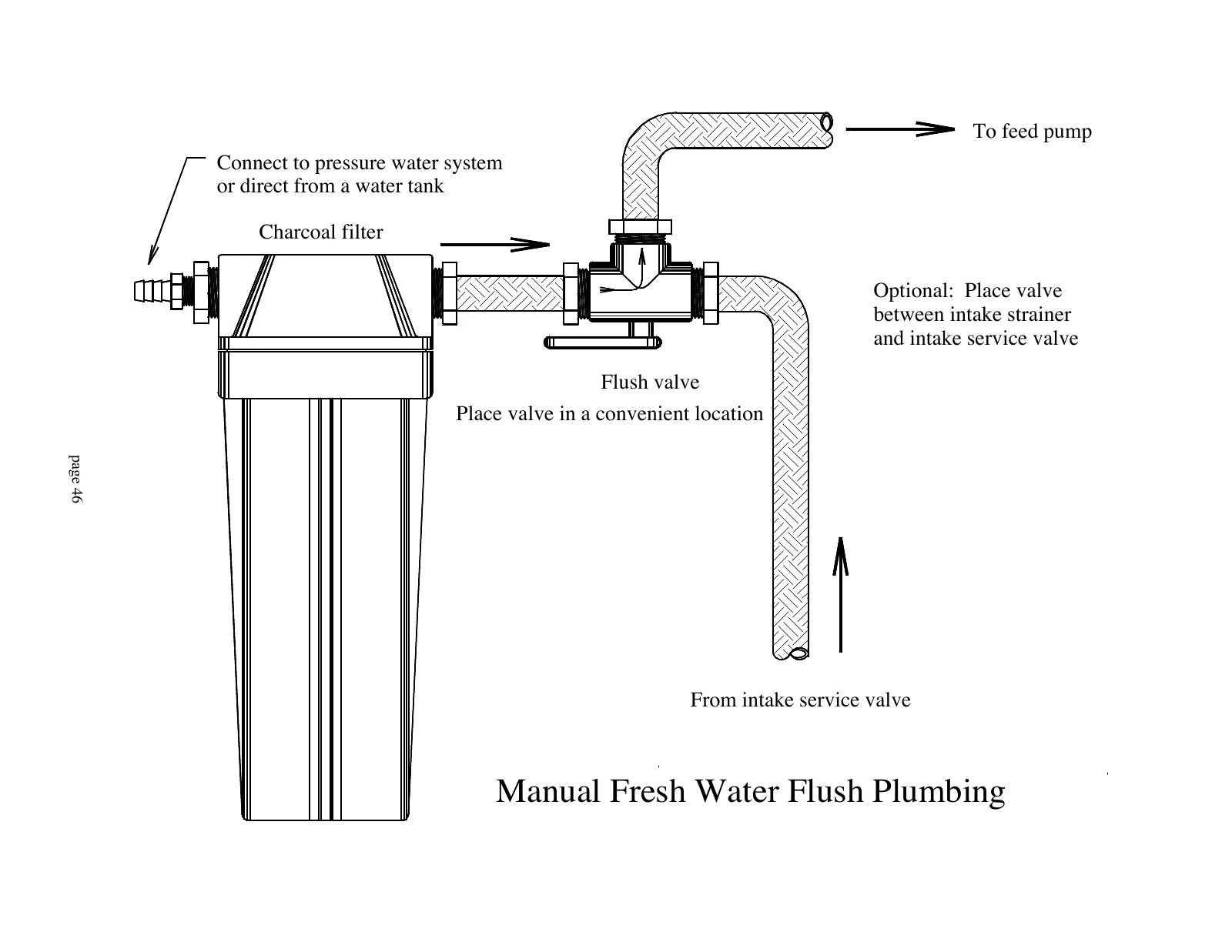

Carbon is a separate service check

Optional manual or timed flush uses domestic water through carbon before the feed circuit. Chlorine damages membranes. Identify the actual carbon element, housing, domestic-water pressure and valve routing; a sediment filter or Z-Ion does not remove chlorine.

One assembly is one pump

Current 12V pump-and-heat-sink kit and 24V kit exclude the cooling fan. Bare EL-FP-12V/24V listings, pump heads, diaphragm drives and heat sinks have separate scopes. Match actual ports, revision, switch and complete supplied contents with Spectra.

The 200c is not explicitly named by the current pump-page compatibility list, so its replacement needs model-specific confirmation.

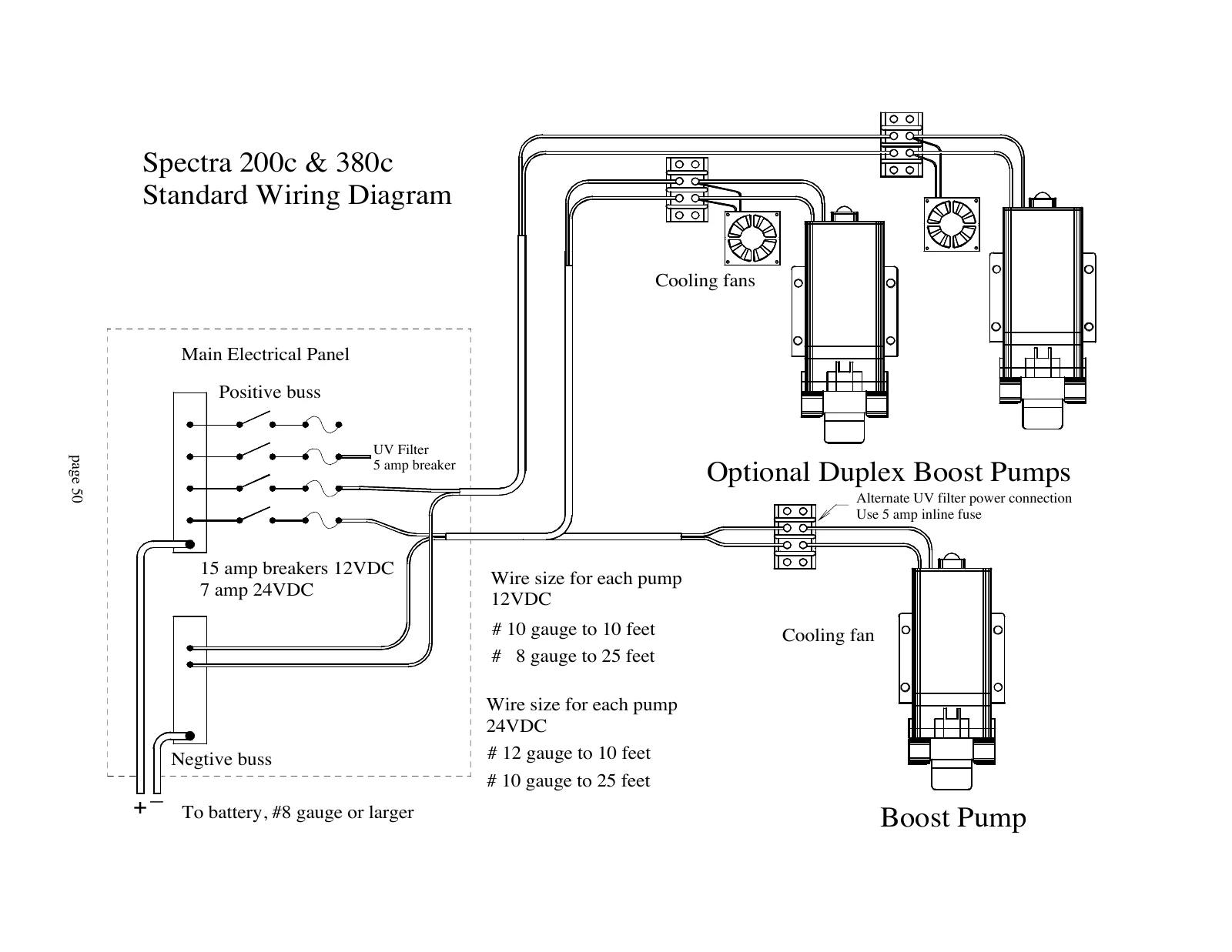

Pressure and voltage under load

Original feed cutout is 125 PSI. Diagnose air, filters, voltage drop, leaks and cycling before changing parts. Confirm actual pump/fan voltage and original circuit arrangement; newer pressure-switch adjustment recipes are not automatically suitable. Wiring, protection and replacement switch settings require the installed diagram and Spectra confirmation.

Optional flushing is not Auto Store

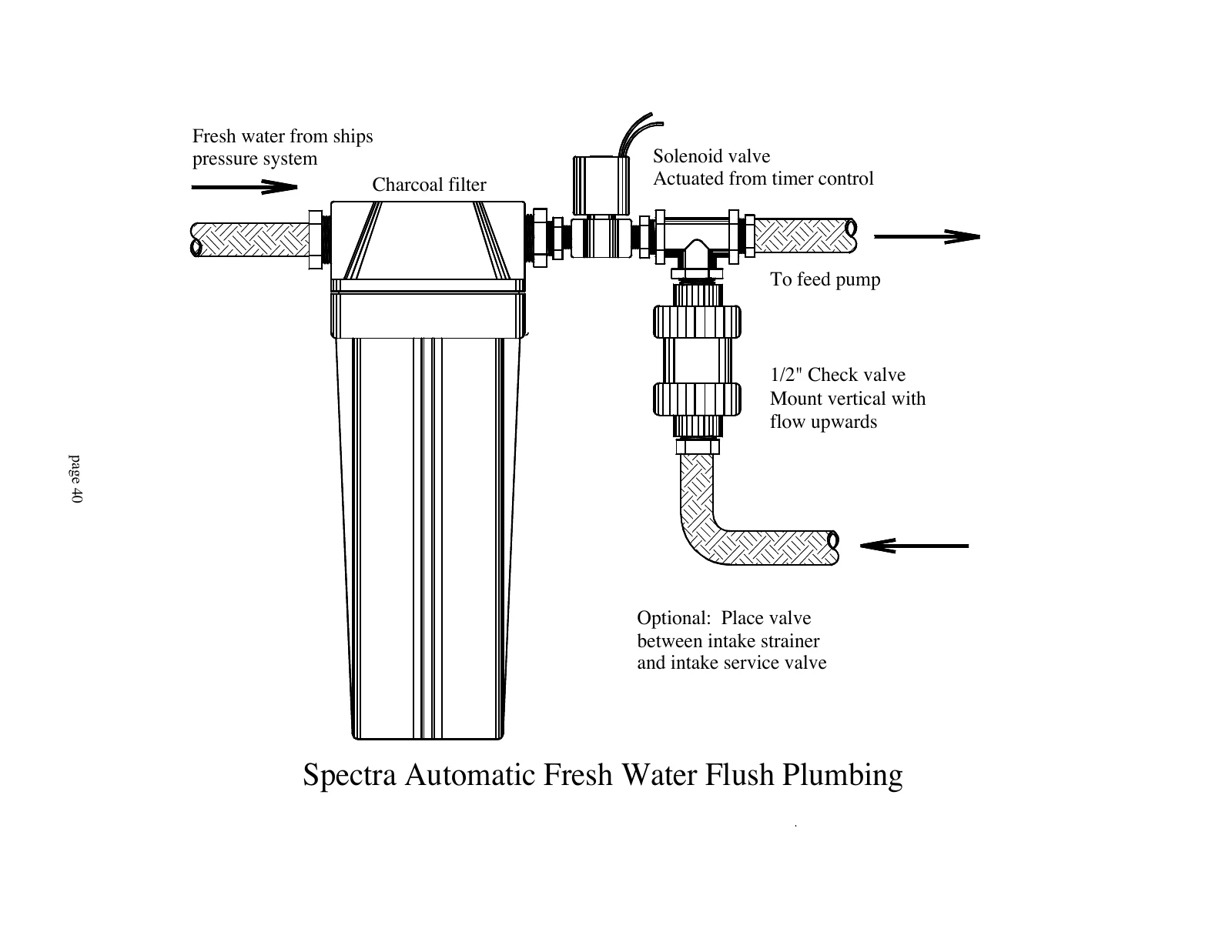

The original manual carbon kit is operated through a service valve. The original automatic option adds timed solenoid/check-valve control and one feed pump. This is not proof of MPC five-day Auto Store. Confirm actual flush controls, timing, chlorine protection, power and available domestic water before relying on storage behavior.

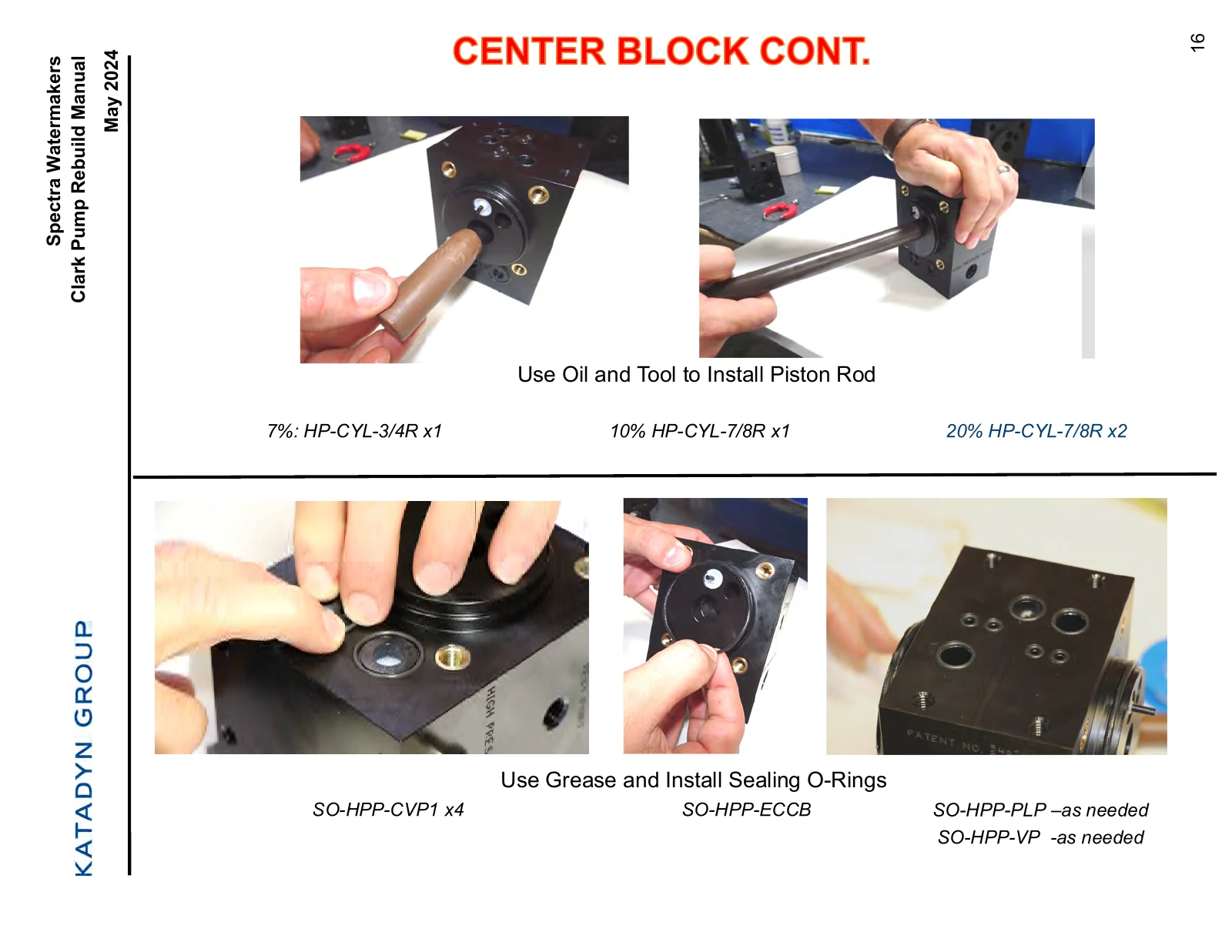

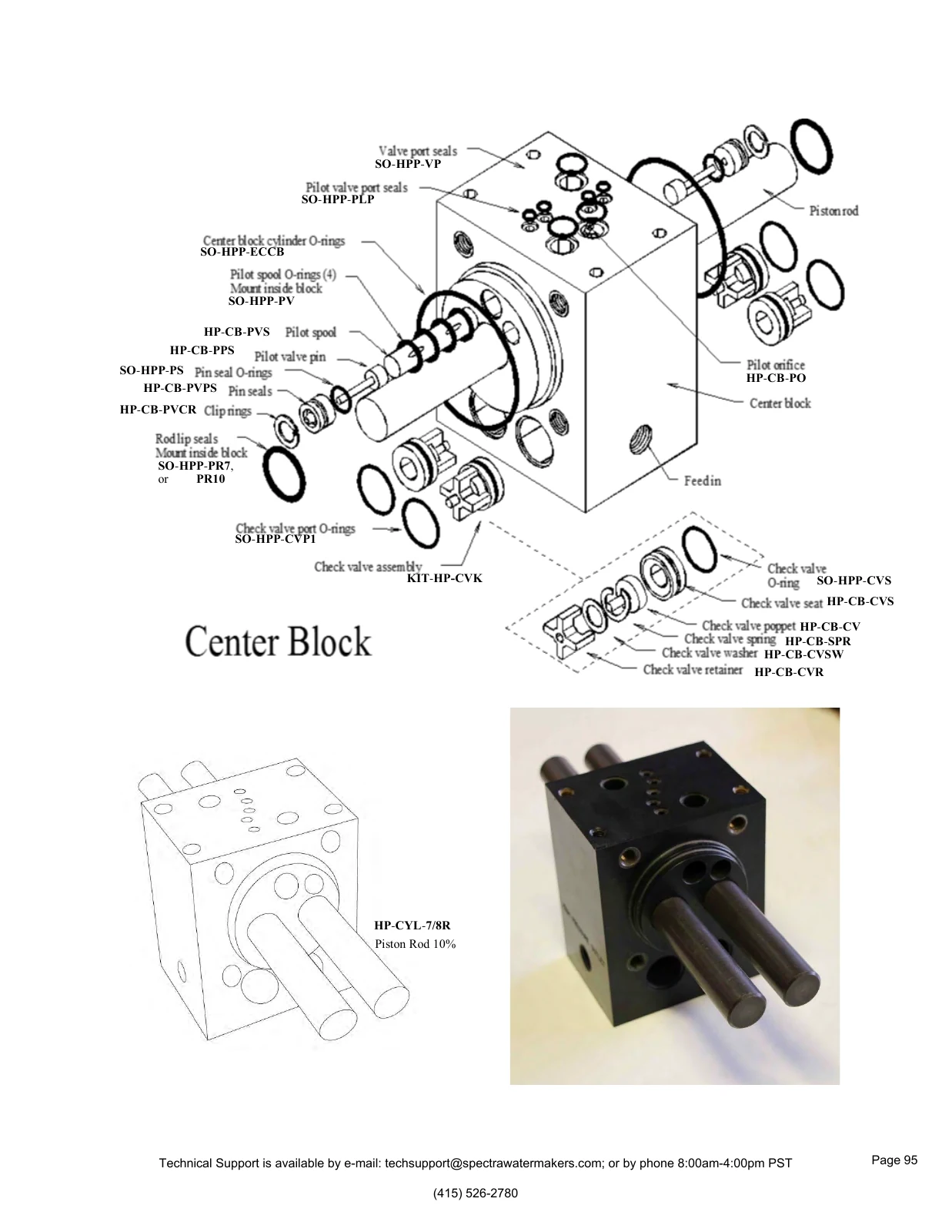

Identify the single-rod pump

The original manual describes 10-to-1 force multiplication. That description does not verify a pump that has been replaced. Select a confirmed 10% pump to show its center block, single 7/8-inch rod and rod seals. A confirmed changed 7% pump uses a single 3/4-inch rod and different block/seals. No 15%, 20% or Pearson family is included.

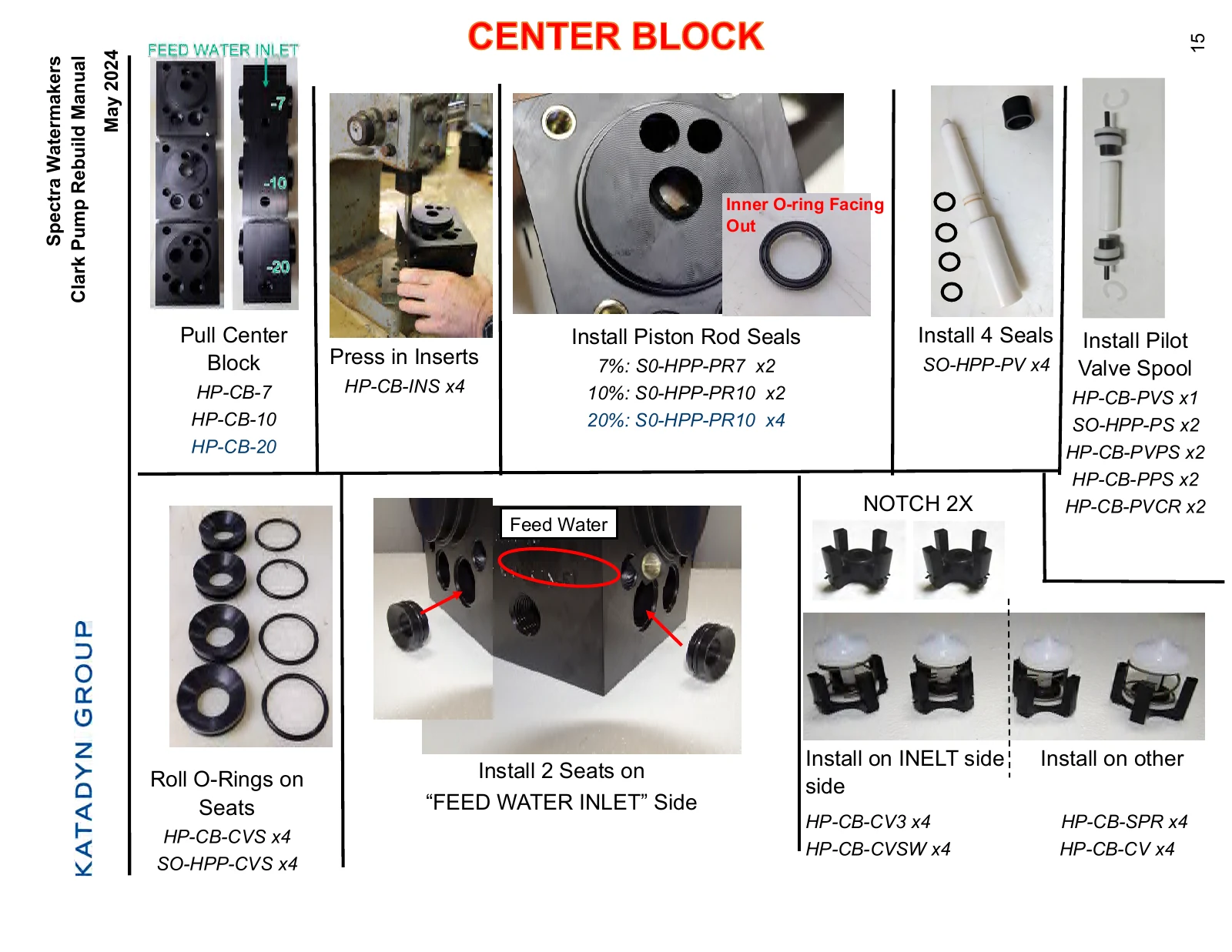

Service kits have different scopes

7% / 10% seal-and-O-ring kit differs from offshore service kit. Current 10% distributor rebuild kit and 7% kit exclude spacer rings and top-end spool pistons; they also exclude tools and instructions. Confirm actual ratio, revision, package contents and overlap.

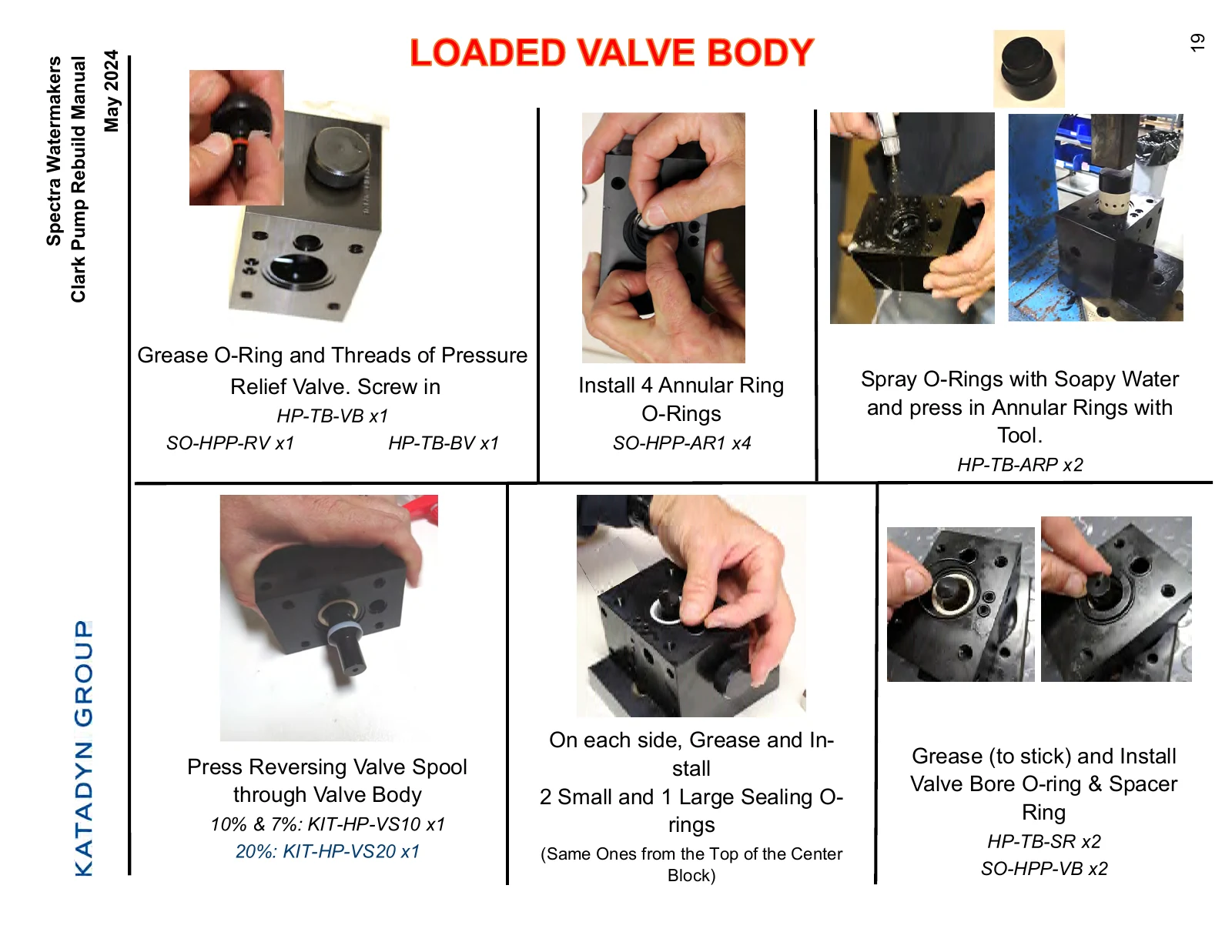

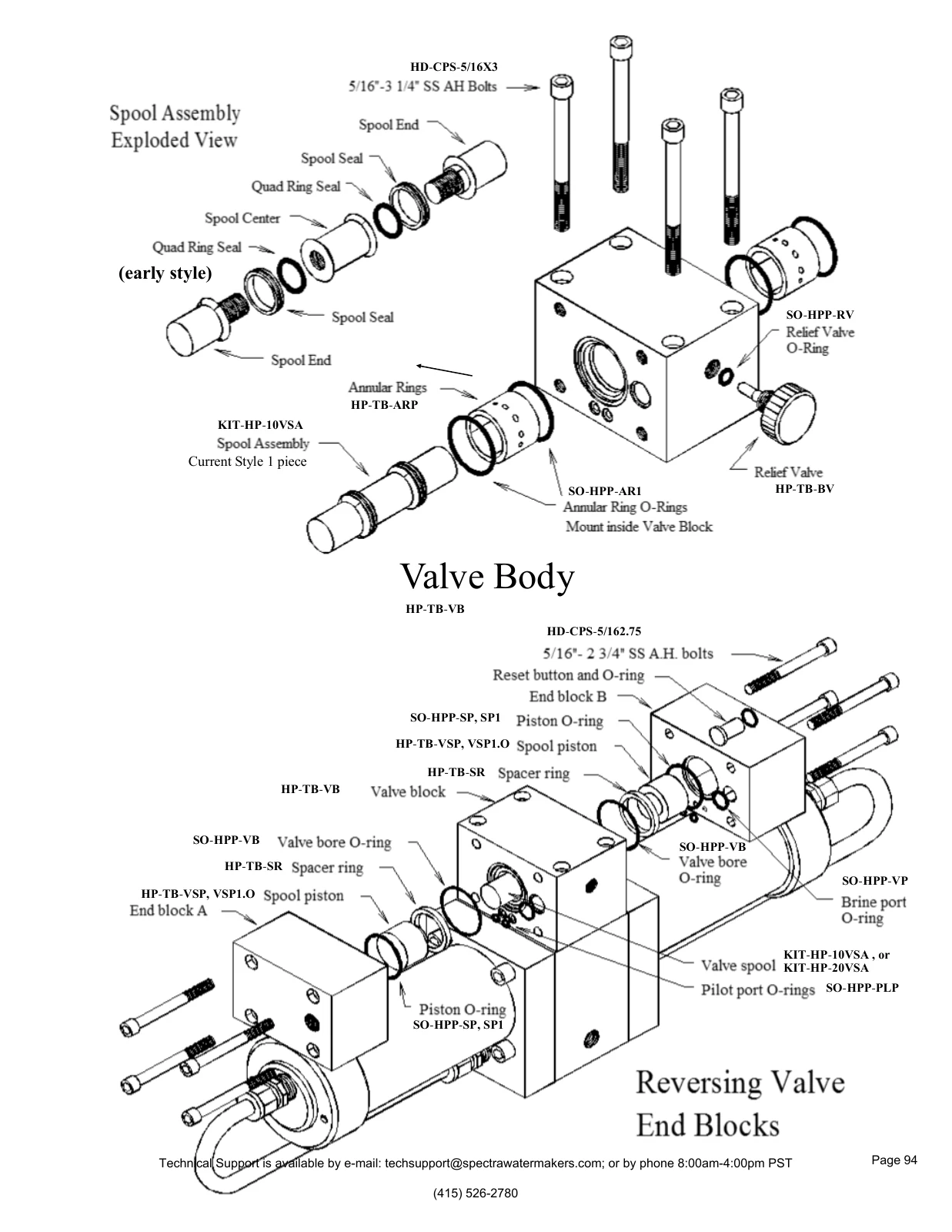

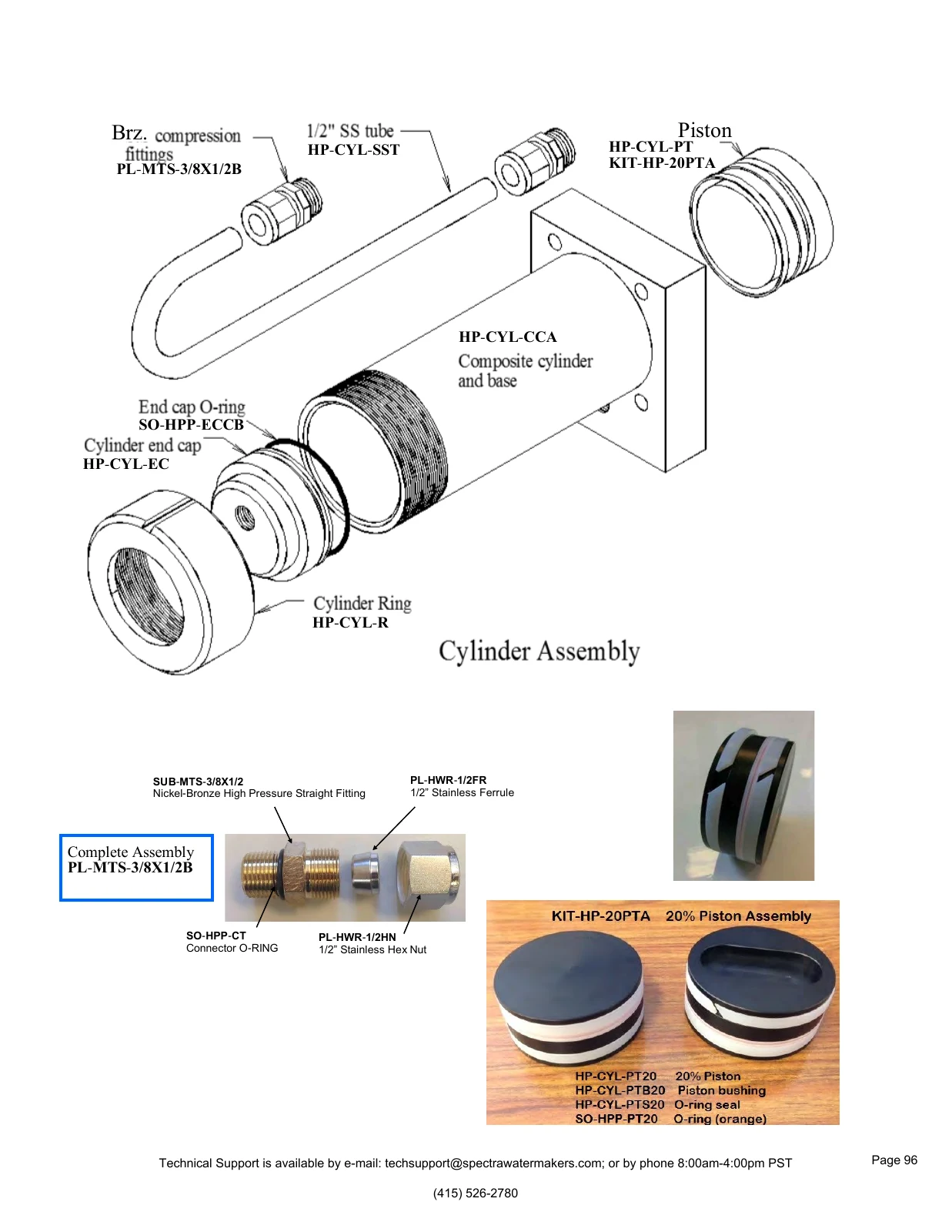

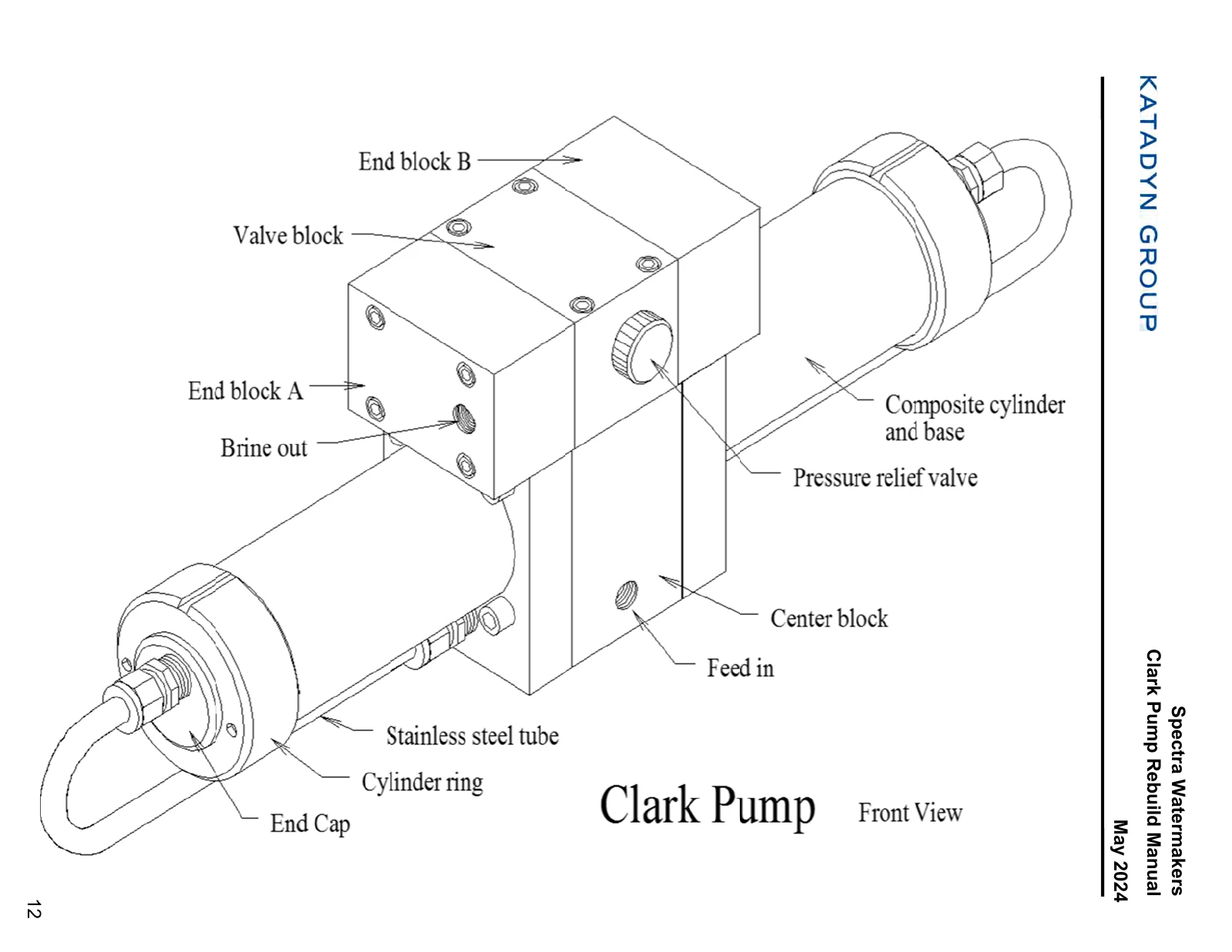

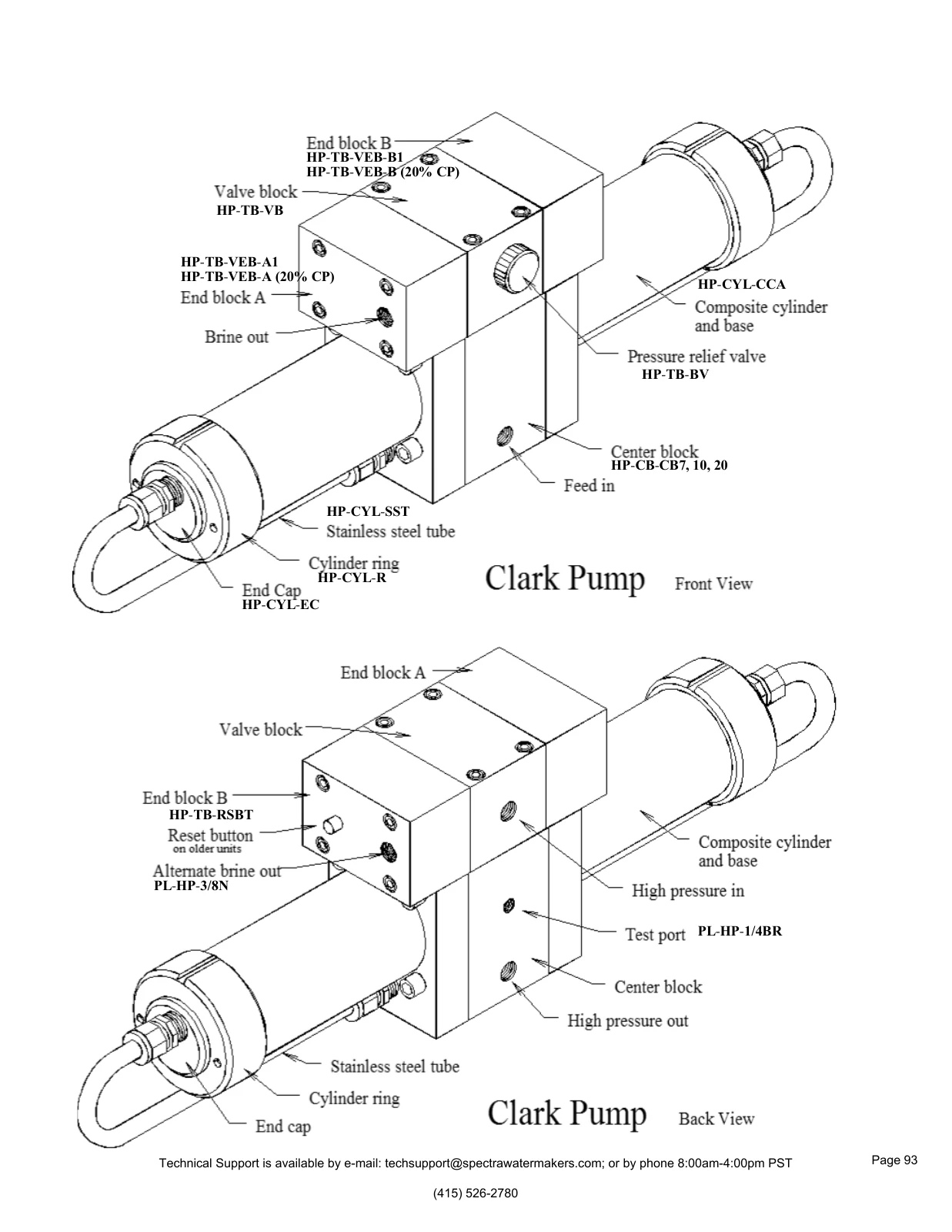

Modern callouts need an old-pump check

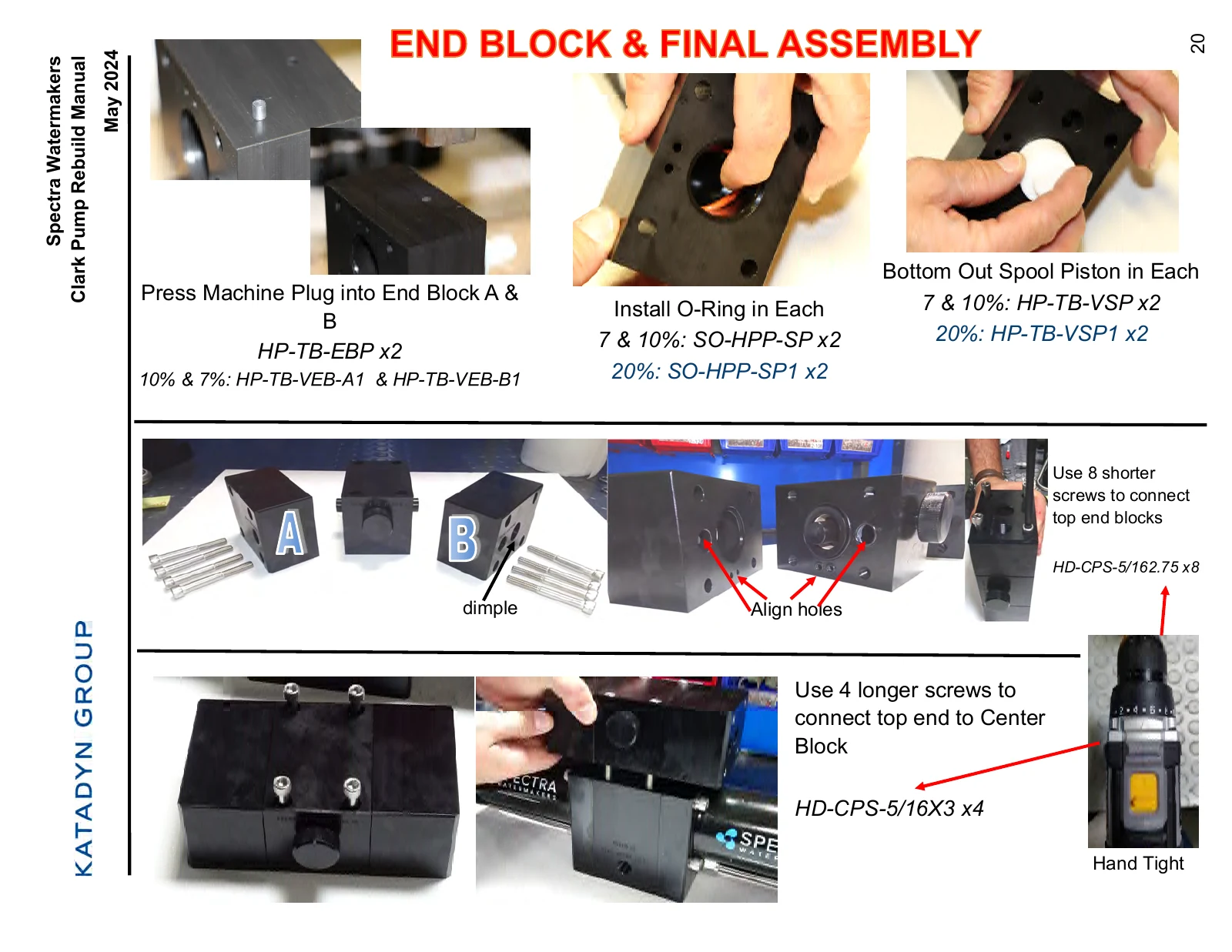

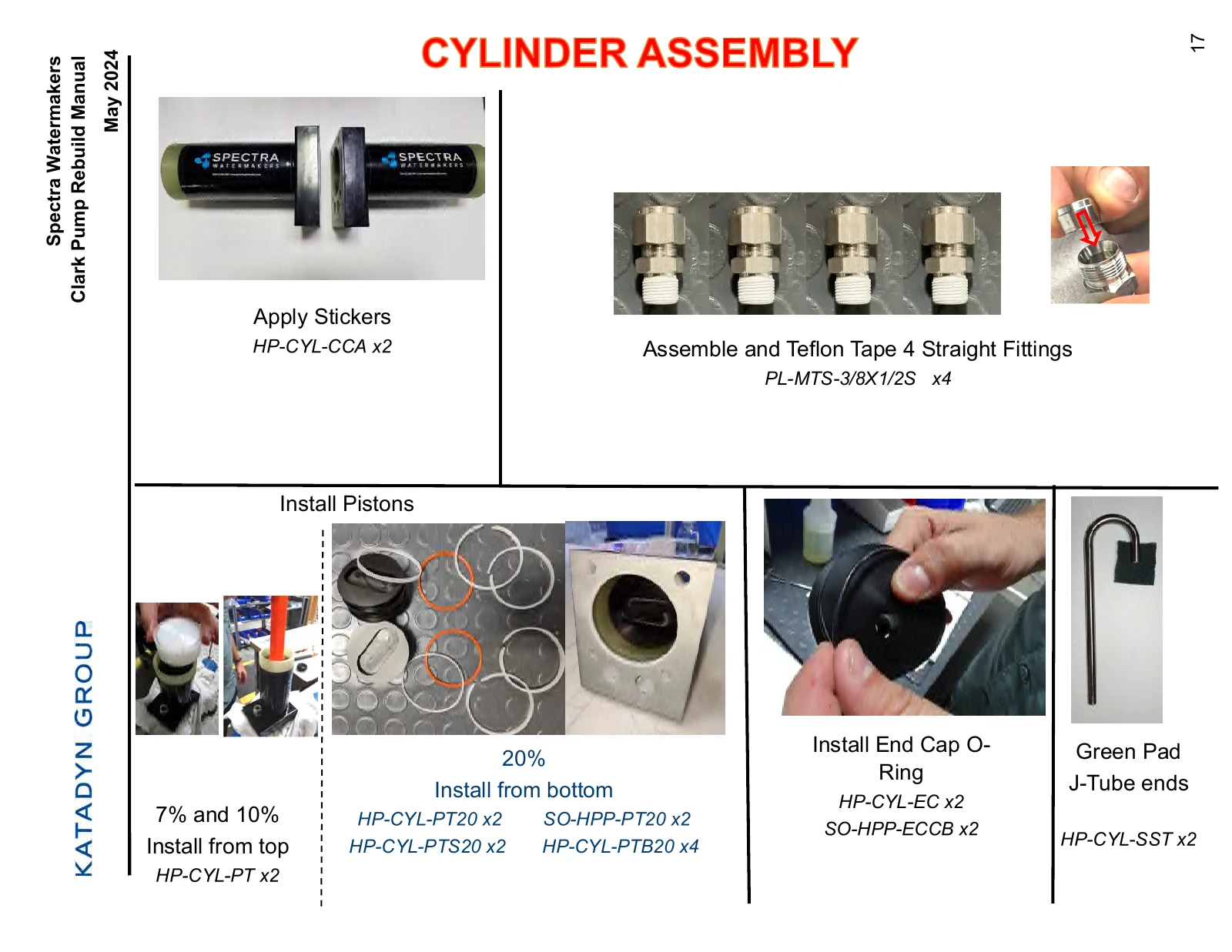

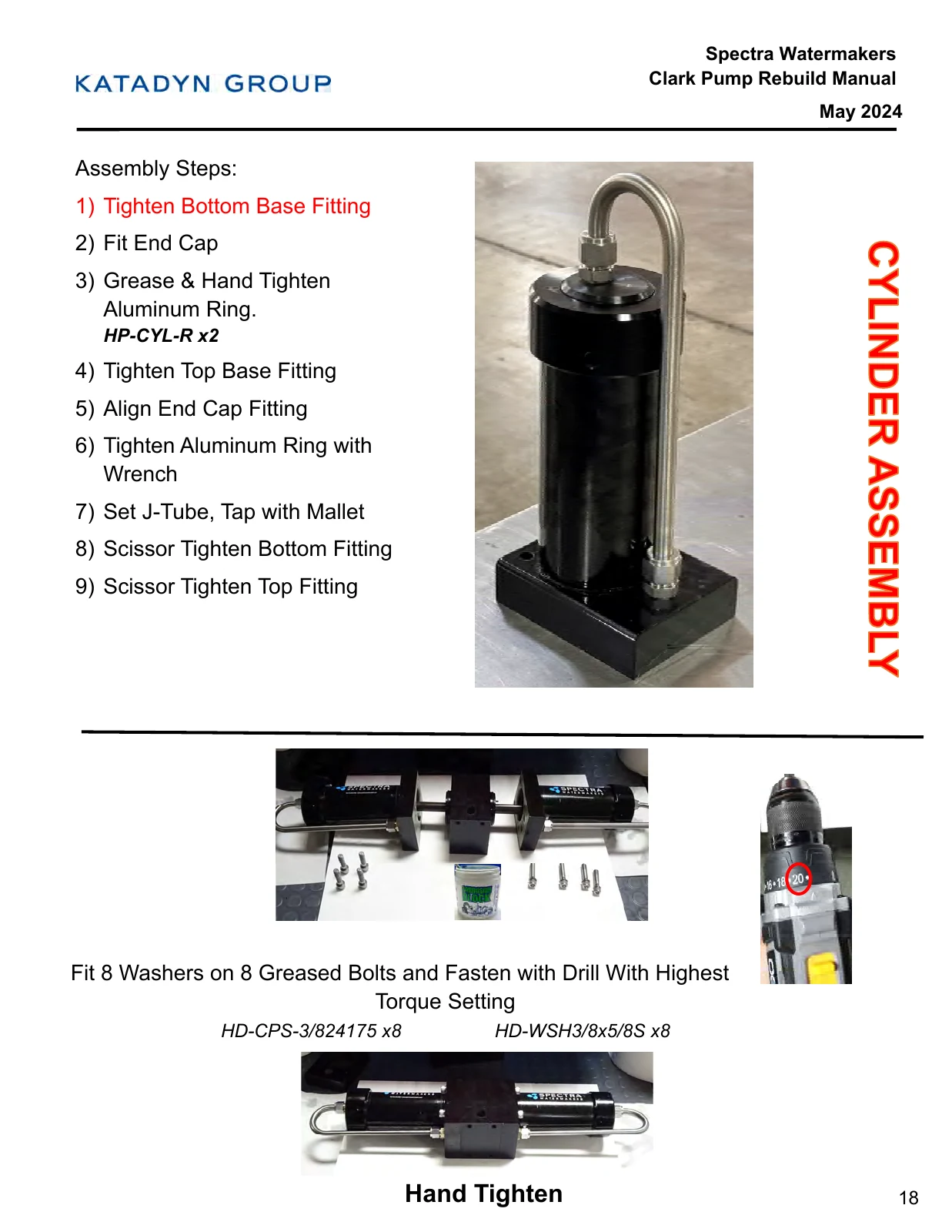

The May 2024 rebuild manual describes improvements to older pumps. Shared exploded maps include different ratio and reversing-valve designs. A current component number does not prove direct replacement for every original Classic assembly; retain the actual part, photos, measurements and serial for factory review.

Measure the actual element

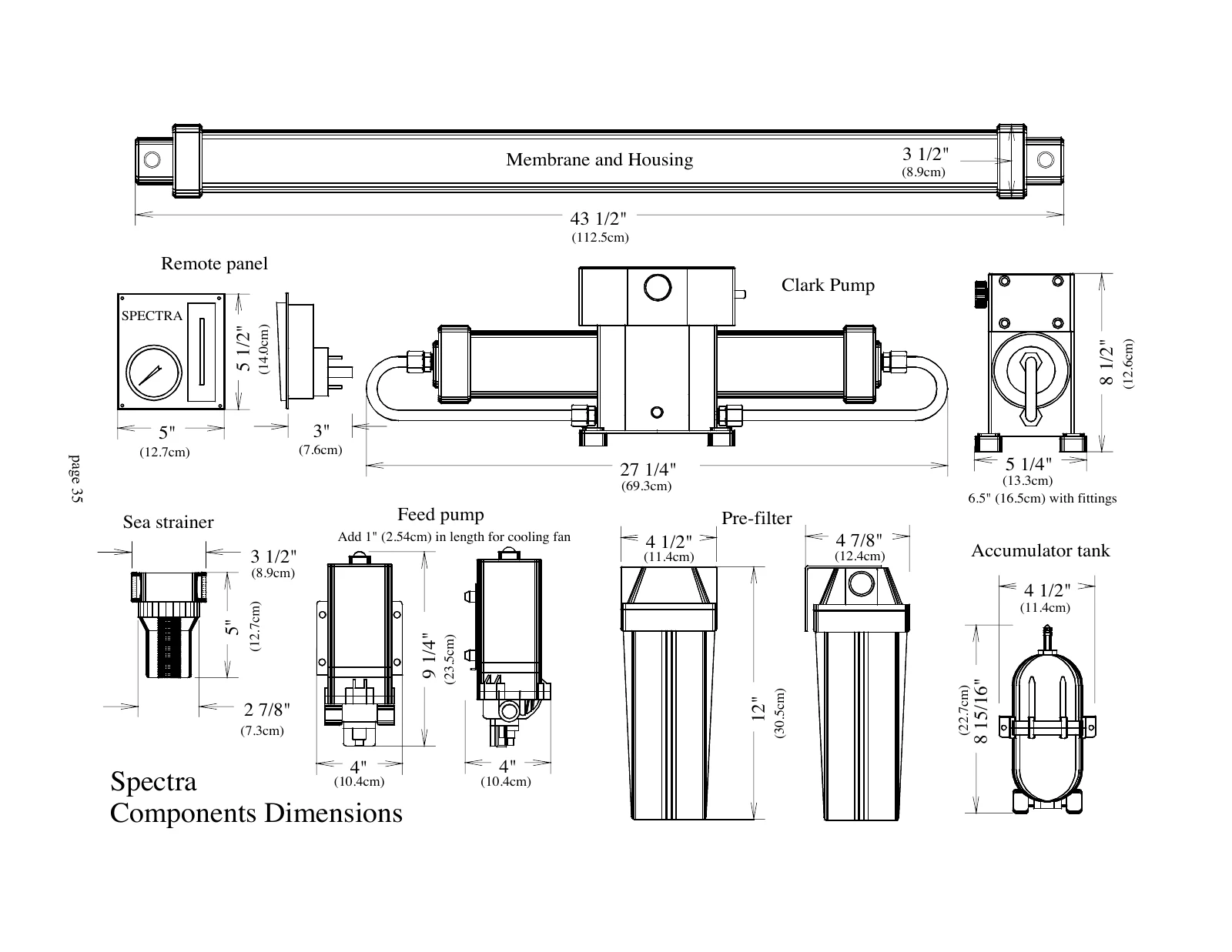

2.5 × 40-inch seawater membrane kit includes a membrane and replacement seals. Show it only after confirming the actual element. The complete housing’s 43.5-inch length does not establish element size. One kit is not a complete vessel or automatic system order quantity.

Preserve the original vent arrangement

The original vessel uses black end caps and threaded aluminum retaining rings. Each cap has three O-rings, with a vent between the two center seals; keep both seals and the vent clear. Current end-plug kit and retaining-ring candidate require actual cap, port, seal and revision confirmation. A new cap code is not automatic interchangeability.

Product routing must remain unrestricted

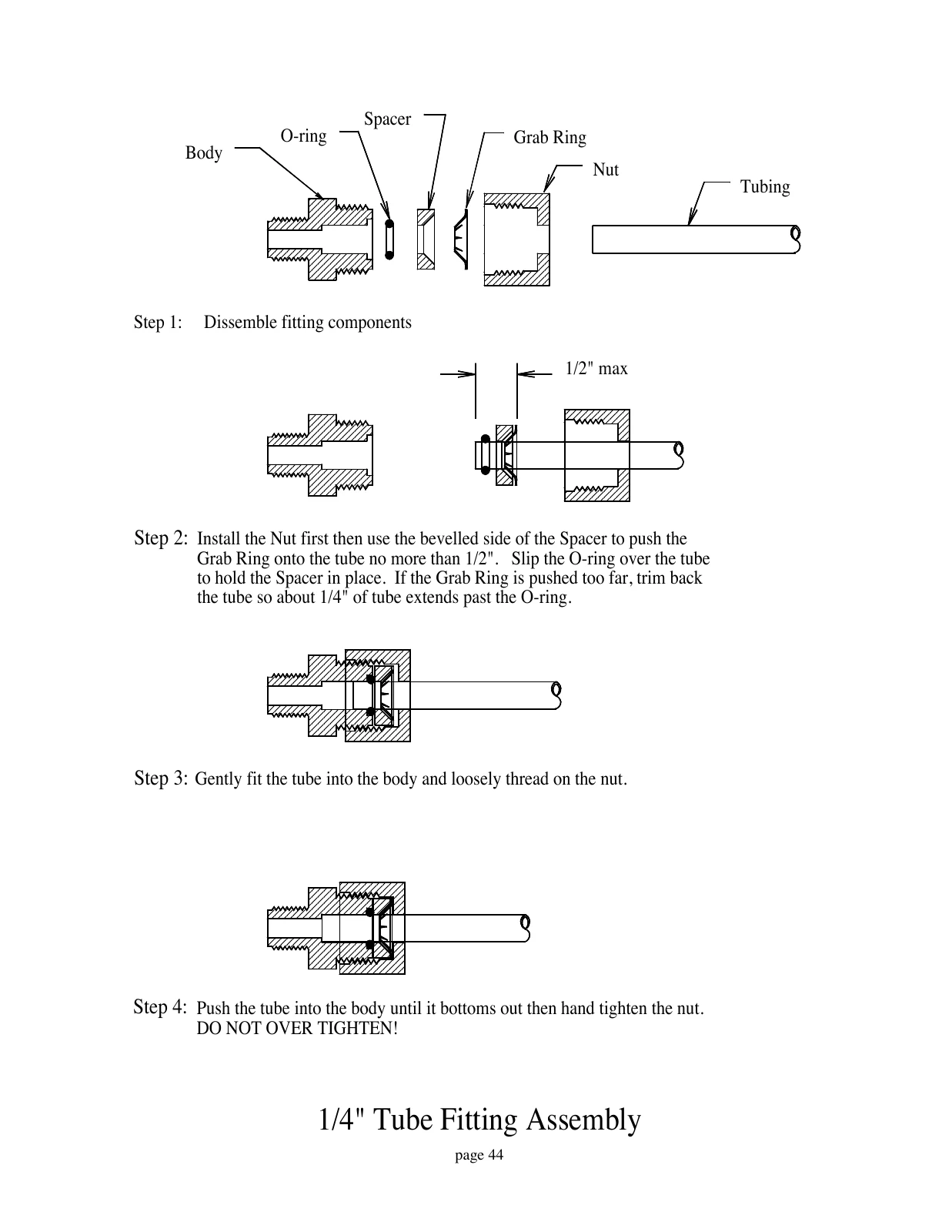

Original product tubing is 1/4-inch outside diameter. Do not block it or connect it to the bottom of a tank/manifold that creates backpressure. The original product service valve is engineered to avoid blocking flow at its middle position. Rejected product joins brine downstream of the brine service valve and must remain unobstructed.

Review an analog Legacy installation

The current manufacturer selector includes analog Legacy systems under manual Z-Ion candidate. Confirm an actual analog installation, suitable flush plumbing, trigger and complete package with Spectra. The existing catalog’s narrower Deluxe/Cape Horn condition is retained in the part row; this guide adds a conditional Legacy review, not verified Classic fitment.

A remote legacy panel does not select AUTO

Automated Z-Ion candidate is reserved here for a positively identified, already installed MPC-5000 system with factory-approved interfaces. Legacy automatic salinity controls and MPC-3000 require factory review; no retrofit kit is selected automatically. Identify an approved 12/24V DC accessory supply separately from the feed-pump rating. Never connect Z-Ion directly to AC or 48V.

Service a fitted generator

Choose installed-generator service only after confirming a generator and control box. Combined bowl and rod assembly differs from loose bowl/rod service. Do not automatically add a separate rod or treat a service assembly as a complete retrofit. Follow the actual commissioned Z-Ion instructions for storage; it does not provide chlorine or freeze protection.

Strainer, sediment filters and pump cooling

Inspect the fine-mesh strainer, replace loaded sediment elements and record normal pressure/flow/voltage under load. Keep heat sinks and fitted fans clear. The original filter wash/reuse and boat-towing advice is not repeated; choose current replacement/service guidance from Spectra. A before-filter pressure gauge and a changed tee have different diagnostic meaning.

Correct the old chemical name

SC-1 is storage chemical; SC-2 is alkaline biological-fouling cleaner; SC-3 is acid mineral-scale cleaner. Page 20 incorrectly calls SC-1 an acid cleaner. Never mix SC-2 and SC-3 or use cleaning compounds for storage. Use nonchlorinated water and the current approved procedure. No unverified numeric dose is supplied.

Storage, purge and freezing

Original storage instructions use SC-1 and reject sodium bisulfite/metabisulfite because of pump damage. Chemicals circulate only under the prescribed depressurized service procedure. Purge stored chemicals and keep product out of the tank as directed before pressurizing and validating water. SC-1 and Z-Ion do not prevent freezing; obtain the current winterizing procedure for the fitted installation.

Diagnose before cleaning

Check voltage under load, air, filters, leaks, pump operation and baseline readings before deciding the membrane needs cleaning. Keep chemical service separate from drinking-water production. The original MPC button wording is not a control-identification shortcut; use the actual installed system’s controls.

Cruise Kit A spare contents

Current Cruise Kit A explicitly supports older 200C/380C systems and contains six final 5-micron elements, one carbon element and two SC-1 bags. Those are spare-stock counts. Optional 20-micron housing needs separate 20-micron spares; changed housings require their own dimensions and seal checks.
