Model and controller
Look for FL-1800C-220 and the Spectra Connect display. An earlier Farallon with MPC controls can share plumbing without sharing electronics. Current model listing ↗
SPECTRA OWNER GUIDE
Farallon 1800C
parts & owner guide
Identify the commercial filters, 2-element membrane array and 20% Pearson Pump. Find service kits, controls and optional protection equipment with the requirements beside each product link.
FL-1800C-220 · Spectra Connect · 20% Pearson Pump · 2 × 4-inch membranesCheck your system supply
This guide links the documented 220V AC configuration. Confirm the installed label before including electrical parts.
Showing mechanical service parts. Select 220V AC for electrical references.
Match each component’s own voltage, frequency, connector and revision. Confirm motor/VFD, booster pump and flush-valve replacements with Spectra.
START WITH THE INSTALLED SYSTEM
Three checks before buying a part
Membrane array
The original Farallon 1800C has 2 vessels containing 4 × 40-inch membranes. Count and identify the installed vessels after any retrofit. Compare original arrays ↗
Pump and drive
The illustrated Farallon 1800C has a 20% SP-5 Pearson Pump. Check its plate and revision before ordering internals. The motor and VFD require their own label check. Pump identification ↗
Rated production: 75 US gallons / 284 liters per hour; 1,800 US gallons / 6,813 liters per day. These are manufacturer ratings at 77°F / 25°C and 33,000 PPM feed water, not a prediction for every installation. Model fact sheet ↗
Older 110V units and changed modules
The shared manual includes a 110V 1800C arrangement. This guide does not extend its 220V electrical links to 110V units. Use the installed model’s manual and confirm the replacement motor, drive and accessory supplies with Spectra.
LENGTH, DIAMETER AND ORDER QUANTITY
2 large-diameter seawater membranes
KIT-MB-4X40SW
4-inch diameter × 40-inch length
Each kit replaces one membrane element and includes replacement seals. The original Farallon 1800C array uses 2 elements. A kit is not the complete vessel, end cap or retaining ring.
2 kitsto replace the full original array
One kit for one element. Count the installed elements before ordering.
“40-inch” is not enough to identify the membrane.
The 2.5-inch-diameter KIT-MB-40F used in many Newport and Catalina installations is a different size. Use the 4-inch diameter, seawater specification and installed vessel identification together.
Model membrane count ↗ · Two versus three vessels ↗ · Membrane kit contents ↗
THE DIMENSIONS CUSTOMERS ASK FOR
Filter sizes and housing hardware
| Position | Existing product | Manufacturer nominal length × diameter | Function |
|---|---|---|---|
| First seawater stage | FT-FTC-20BB | 10 inches × 4 inches | 20-micron pleated polyester Before the 5-micron stage |
| Second seawater stage | FT-FTC-5BB | 10 inches × 4 inches | 5-micron pleated polyester Downstream of the 20-micron stage |
| Freshwater-flush stage | FT-FTC-CCBB | 10 inches × 4 inches | Solid carbon block Separate flush circuit; removes chlorine |
Dimensions follow Spectra’s own nominal descriptions. Measure the installed cartridge if its label is missing; nominal sizes can differ from end-to-end measurements. 20-micron dimensions ↗ · 5-micron dimensions ↗ · Carbon dimensions ↗
Three-piece housing
FT-FTH-10BC3P1 is named in the dual-prefilter and flush drawings. Match the exact body, ports and pressure duty before replacing it. A cartridge size does not identify an interchangeable housing. Dual-prefilter assembly ↗
Seal and opening wrench
The spares list names SO-FHS-3PS20BB. The catalog also has the three-piece Big Blue wrench. Confirm the housing groove and ring profile with Spectra before ordering either. The 20BB code does not make the pictured cartridge 20 inches long. Housing seal reference ↗
Intake screen is separate
6-inch strainer screen and strainer seal belong at the seawater intake. The assembly drawing includes a different screen option; identify the installed strainer. A 6-inch screen size is not a cartridge size. Intake-strainer drawing ↗
The carbon cartridge is not a seawater prefilter.
Replace the two sediment stages in their documented order. Keep carbon in the freshwater-flush circuit. Follow the specific bowl and plumbing instructions if Z-Ion equipment is installed.
HOW THE COMPONENTS WORK TOGETHER
Follow the seawater and flush paths
- Intake and sea strainer
The screen catches larger debris before the booster pump.
- Booster pump and sediment filters
The booster supplies the 20-micron stage, then the 5-micron stage, before the main module.
- Pearson Pump and membrane array
The energy-recovery pump supplies the high-pressure membrane circuit. Product water and concentrated brine leave through different paths.
- Product manifold and diversion
The salinity probe and flow sensor monitor product water. The diversion valve directs acceptable product water to the tank.
Freshwater flushing: the vessel’s pressurized freshwater passes through the separate carbon/flush module and the documented intake path. The April 2025 plumbing revision routes flush water through the strainer; compare older installed plumbing before changing hoses. Current plumbing schematic ↗
A DIFFERENT PUMP FAMILY
Service the 20% Pearson Pump
Seal service kit
KIT-SP5C-20R2K52,500-hour-labelled SP-5 kit supplies seals for the 1800’s documented pump group. Compare the current kit contents with the leak or service task you are addressing. Manufacturer model selection ↗
Internal rebuild kit
KIT-SP5C-20R10K10,000-hour-labelled SP-5 kit contains internal rebuild components for the same 20% group. It has a different scope from the seal kit; avoid ordering overlapping pieces without checking contents. Manufacturer model selection ↗
Revision and location
Use the 20% exploded drawing on page 89 to locate the service group and callout. Match the installed pump revision. These are Pearson parts; the Ventura’s 7%/10% Clark Pump kits are not the Farallon kits. Open pump internals ↗
Do not select 30% seals or a 30R kit for this 20% pump merely because the exploded assemblies look similar. Ratio-specific parts need the installed pump identification.
The manufacturer’s 2,500/10,000-hour names distinguish service-kit packages. They do not by themselves diagnose a fault or require replacing a healthy pump at that hour count.
SEE WHERE THE REPAIR PART BELONGS
Browse the original assembly drawings
Choose a group, then open its original PDF for the complete callouts. Reset returns to all drawings.
Showing all assembly drawings.
Main Pearson Pump and motor
Locate the belt-driven Pearson Pump and main motor. The photo labels 20% for the 1800; verify the actual pump plate and motor/VFD labels.

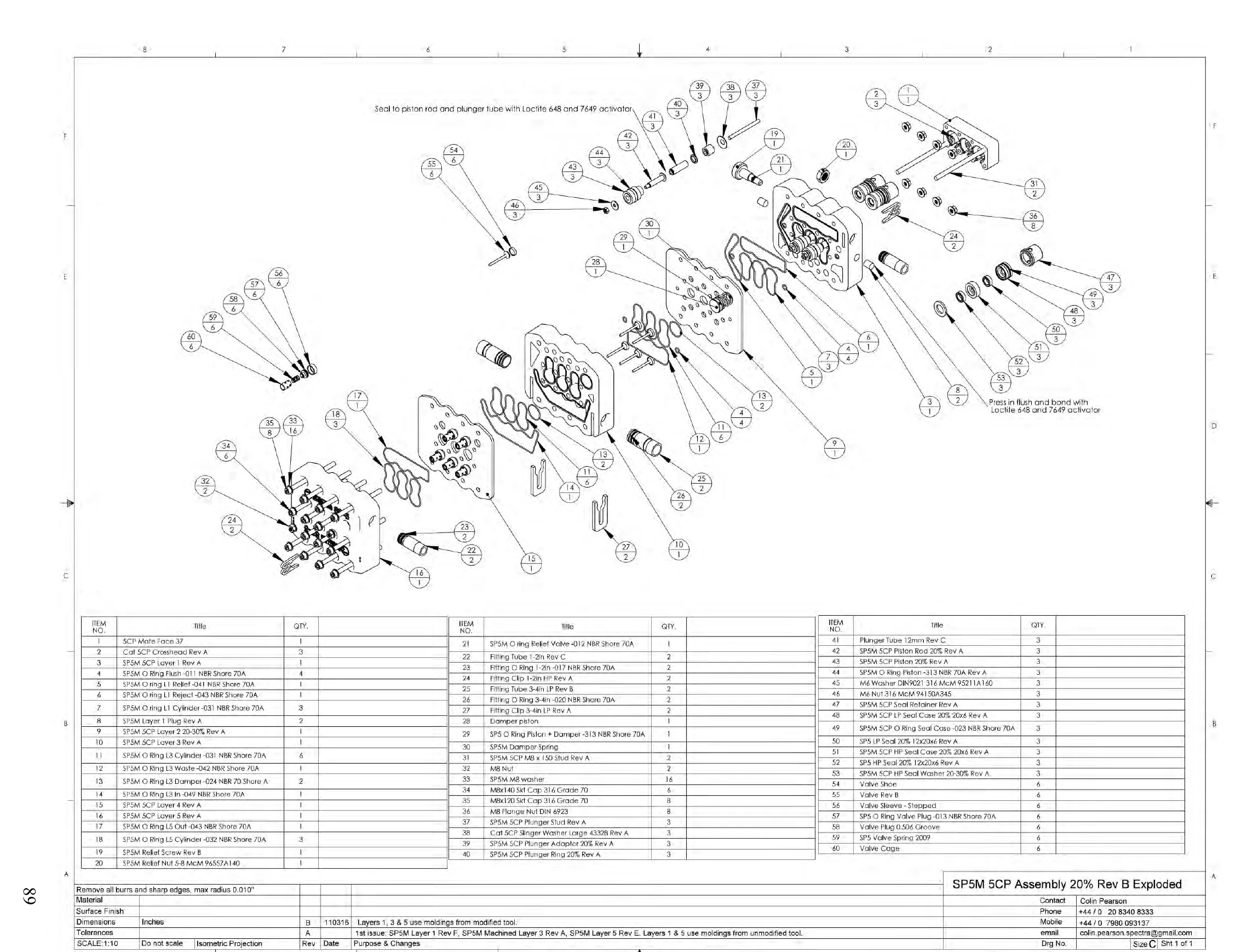

20% Pearson exploded service drawing
Use the original numbered callouts and parts table to identify the internal layer or seal. Open the full-size PDF for small text. This is the manufacturer’s reference drawing, not a new 3D model or a disassembly instruction.
Dual seawater prefilters
Two separate housings: 20-micron first stage, then 5-micron second stage. Both use the manufacturer nominal 10 × 4-inch cartridge class.
Freshwater-flush module
Identify the carbon cartridge, housing, check valve and flush solenoid. The drawing’s coil callout needs a component-label check; 220V system input does not become the solenoid rating.
Intake booster pump
EL-FP-BP8GPM220 is the illustrated 220V / 60Hz booster. Match the installed frequency and connections with Spectra before ordering.
Sea strainer and intake check valve
The strainer screen, seal and spring check valve are distinct from the cartridge stages. View intake check valve. Identify the actual screen variant.
Connect panel and controls
Identify the power breaker, display and manual/auto/service selector. The page labels different breakers for 110VAC and 220VAC arrangements; use the installed configuration.
Product-water manifold and sensors
The salinity probe and 150-PSI transducer are separate devices. The pictured inline flow-sensor suffix is not established as an interchangeable catalog SKU.
SYSTEM VOLTAGE AND COMPONENT VOLTAGE
Identify the motor, controller and sensors
Motor and drive are a pair
The parts pages show a 2 HP three-phase motor plus 1 HP and 2 HP drive variants. Confirm the installed motor nameplate and VFD before ordering. Shared manual coverage does not make these drives interchangeable. Motor photo ↗ · Drive variants ↗
Booster and accessory supplies
The illustrated booster is 220V / 60Hz. The enclosure includes a 24V fan, and the flush photo labels a 12V solenoid. Identify each component and its circuit. Confirm frequency and actual accessory supply with Spectra. Booster photo ↗ · Flush coil ↗ · Full electrical schematic ↗
Probe, flow and pressure
The manifold names an SP4 salinity probe, a 150-PSI transducer and an inline flow sensor with a specific suffix. Match generation, range and connector. A shorter probe cable or similar flow-sensor name is not proof of interchangeability. Sensor locations ↗
Breaker replacement needs circuit context.
EL-BRK-15ADP is the 220V enclosure callout on page 73. Vessel supply protection is discussed elsewhere in the manual with different figures. Confirm the actual replacement circuit and rating with Spectra; do not size a new installation from this product link.
Supply wiring section ↗ · Enclosure breaker callouts ↗ · Model electrical figures ↗
OPTIONAL EQUIPMENT WITH ITS OWN REQUIREMENTS
Protection, tank sensing and cruising spares
Z-Ion retrofit selection
Connect is in Spectra’s ZION-AUTO control group. This catalog also retains ZION-FL and Z-ION-FAR. Confirm the Farallon-specific bowl, plumbing, trigger, accessory supply and exact package with Spectra before ordering. No equivalence or supersession between these three listings is asserted. Control-group selection ↗ · Farallon installation reference ↗
Tank-level sensing
Spectra Connect tank sensor kit is listed in the 2800C fact sheet. The shared manual explains tank-level inputs. Confirm tank geometry, sensor type, controller revision and calibration with Spectra, especially for a retrofit. Tank inputs ↗ · 2800C optional equipment ↗
Cruise Kit D
KIT-BCK-D is the Farallon cruising-kit reference. It covers a different task from a pump rebuild kit. Compare current contents with your onboard sediment filters, carbon element and storage chemicals before adding individual duplicates. Suggested spares ↗
Z-Ion is not freeze protection. Follow the installed system’s storage instructions for longer idle periods or freezing conditions; do not remove carbon or change flush plumbing based only on an accessory name.
SERVICE SUPPLIES BY THE JOB
Routine care, oil and storage
Replace dirty sediment filters
Service the pair when the controller’s filter indication rises. Keep the 20-micron stage first and 5-micron second. Clean the housing and inspect seals separately; Spectra’s procedure replaces dirty cartridges. Filter service ↗
Carbon and flushing
The standard flush cartridge is replaced at least every six months. Use the installed flush/Z-Ion procedure and maintain the freshwater supply required for automatic flushing. Carbon service ↗ · Autostore ↗
Pearson crankcase oil
The manual specifies 5W-30 synthetic oil and calls for replacement at 5,000 hours or annually, whichever comes first. Inspect level and condition; milky oil needs attention. Follow the complete drain/refill procedure and avoid overfilling. Oil maintenance ↗
Low output needs diagnosis
Check sediment restriction, booster pressure and pump operation before replacing or cleaning membranes. Water temperature and salinity affect output too. A handheld salinity meter checks a different issue: product quality. Membrane diagnosis ↗ · Fault diagnosis ↗
Storage supplies
SC-1 storage compound preserves an idle system; it is not a cleaner or freeze protection. Use the storage and return-to-service procedure for the installed system. Long-term storage ↗
Cleaning supplies
SC-2 alkaline cleaner and SC-3 acid cleaner address different diagnosed fouling. Follow Spectra’s sequence, dilution and purging procedure; do not mix them or clean solely because output is low. Membrane cleaning ↗
ANSWERS BEFORE YOU ORDER
Membranes, filters and service-kit questions
Which membrane and how many kits?
The original Farallon 1800C uses 2 4 × 40-inch seawater elements. KIT-MB-4X40SW replaces one; the complete original array needs 2 kits. Verify installed vessels after a retrofit.
Are these the same 40-inch membranes as a Newport?
The length can be the same while diameter differs. These Farallon elements are 4-inch diameter; the common Newport KIT-MB-40F is 2.5-inch diameter.
What size are the filters?
The documented FT-FTC-20BB and FT-FTC-5BB sediment elements and FT-FTC-CCBB carbon element are manufacturer nominal 10 inches long × 4 inches in diameter. The two sediment stages and carbon flush stage serve different circuits.
Is the Farallon pump a Clark Pump?
No. The original Farallon 1800C uses a 20% SP-5 Pearson Pump. Use its ratio-specific service kits and exploded drawing, not Ventura Clark Pump internals.
Can a 20R kit and 30R kit be swapped?
No interchangeability is established. Spectra lists 20R kits for Farallon 1800 and 30R kits for Farallon 2800. Confirm the installed pump ratio and revision.
Is 220V the rating of every electrical part?
No. The main supply, motor/VFD, booster, sensors and low-voltage accessories have separate requirements. Read actual component labels; confirm voltage, frequency and connectors with Spectra.
Which Farallon Z-Ion listing should I buy?
The Connect control group uses ZION-AUTO in Spectra’s current selection guidance. Farallon-specific package listings still need confirmation of bowl, plumbing, trigger and accessory supply. Their names alone do not establish interchangeable kits.
LINKS TO EXISTING STORE PRODUCTS
Parts reference for this system
Read the part-specific requirement beside each link. Electrical references appear after selecting 220V AC; current prices, contents and purchase availability are on the product page.
53 scoped product references.
No matching references. Clear search, change category or select 220V AC for electrical parts.
Manual and manufacturer references
EL-MPC-SP4
View part & current priceSalinity Probe 4Th Generation 15'
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
Fourth-generation salinity probe named in the product-water manifold and spares list. Match the actual probe generation, cable and controller connection; a Connect system name does not make every SP4 cable variant equivalent.
EL-SC-3CPCBL
View part & current price3' Cat-5 Patch Cable
220V AC system reference · Named in the Farallon manual
What to check and source
3-foot CAT-5 patch cable inside the illustrated Connect control enclosure. Check required reach and connector location; this is not a complete remote display or controls conversion.
EL-SC-48JSTSC
View part & current price48 in Shielded 4-Pin JST Cable, Male to Male
220V AC system reference · Named in the Farallon manual
What to check and source
48-inch shielded JST four-pin cable named on the control-enclosure page. Confirm endpoints, shielding and pinout; it is distinct from the unshielded M-M cable shown alongside it.
EL-SSR-150
View part & current pricePressure Transducer (150 Psi)
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
150-PSI pressure transducer named on the manifold. This low-range sensor is not interchangeable with a high-pressure membrane sensor. Identify the actual sensing port, range and connector.
EL-SWT-TG-DPDT
View part & current priceToggle Switch DP/DT
220V AC system reference · Named in the Farallon manual
What to check and source
Run Manual / Run Auto / Service System selector switch on the control enclosure. Match pole arrangement, terminals and panel revision before replacement.
EL-TM-1/4PPCP
View part & current price1/4" Cable Cap Stud Insulator (Black)
220V AC system reference · Named in the Farallon manual
What to check and source
Stud-insulator cable cap named in the control enclosure. The adjacent red cap has a separate SKU. Match the installed stud and cap size.
PL-SLN-1/4O12SV
View part & current price1/4"Fpt 2W Solenoid Spart.12V W/Vbd
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
12V solenoid-only callout in the freshwater-flush assembly. The manual also shows other valve and relay supplies. Confirm the actual coil voltage, connector and valve body with Spectra; do not apply 220VAC directly to this part.
FT-FHB-10HD
View part & current priceHigh Pressure Housing Bracket Duplex
220V AC system reference · Named in the Farallon manual
What to check and source
Bracket named on the sea-strainer assembly drawing, page 80. The dual-prefilter mounting plate is separately labeled FT-FHB-20BB3PCS. Similar bracket names do not establish interchangeability.
FT-FTC-20BB
View part & current price20 Micron Big Blue Filter Cartridge (10")
220V AC system reference · Named in the Farallon manual
What to check and source
First seawater sediment stage: 20-micron pleated polyester. Manufacturer nominal cartridge size is 10 inches long × 4 inches in diameter. The 5-micron cartridge follows it in the second housing.
FT-FTC-5BB
View part & current price5 Micron Big Blue Filter Cartridge (10")
220V AC system reference · Named in the Farallon manual
What to check and source
Second seawater sediment stage: 5-micron pleated polyester, downstream of FT-FTC-20BB. Manufacturer nominal size is 10 inches long × 4 inches in diameter. It is not the narrow FT-FTC-5 cartridge.
FT-FTC-CCBB
View part & current priceCarbon Big Blue Filter Cartridge (10")
220V AC system reference · Named in the Farallon manual
What to check and source
Solid-carbon-block cartridge in the separate freshwater-flush module. Manufacturer nominal size is 10 inches long × 4 inches in diameter. The spares list uses FT-FTC-CCBB10, while the assembly drawing and current manufacturer product use FT-FTC-CCBB. Follow the installed standard or Z-Ion flush arrangement.
FT-FTH-10BC3P1
View part & current price10" 3-Pc Big Clear Filter Hous. 1"P
220V AC system reference · Named in the Farallon manual
What to check and source
Clear three-piece Big Blue housing labeled in both the original flush and dual-prefilter drawings. Match installed body, ports, ring and pressure duty; nominal cartridge length does not establish housing interchangeability.
FT-STN-6S
View part & current price6" Strainer Screen (Large)
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
Stainless 6-inch sea-strainer screen named in the spares list. The assembly photo also names a plastic-screen option; check the installed strainer and screen type before choosing a replacement.
EL-BRK-15ADP
View part & current price15A Double-Pole AC/DC Breaker
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
15A double-pole breaker shown on the 220VAC control enclosure. This is a component-replacement reference, not a prescription for the vessel supply breaker: the manual’s wiring and parts sections give different context. Confirm the installed circuit and rating with Spectra.
EL-FN-24V
View part & current priceCooling fan, 24V
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
24V cooling fan named inside the control enclosure. The watermaker’s 220VAC input does not rate this fan. Check the actual fan label, connector and accessory supply.
EL-TM-RJ12COUP
View part & current priceRJ-12 Modular Coupler Panel Mount
220V AC system reference · Named in the Farallon manual
What to check and source
RJ-12 modular panel coupler named on the control-enclosure page. Do not substitute an RJ-45 Ethernet pass-through merely because both are modular sockets.
KIT-HHM
View part & current priceHand Held Meter Kit
220V AC system reference · Named in the Farallon manual
What to check and source
Handheld salinity-meter kit in the spares list. Useful for an independent product-water check; it does not replace the controller probe or calibration procedure.
PL-BSH-3/4X1/4N
View part & current price3/4" X 1/4" Hex Bushing Reducer Nyl
220V AC system reference · Named in the Farallon manual
What to check and source
Nylon 3/4-inch × 1/4-inch reducer bushing in the flush module. Match both thread sizes and the correct fluid circuit.
PL-CKV-1M3/4FWS
View part & current priceSpring Check Valve, 1 in MPT x 3/4 in FPT
220V AC system reference · Named in the Farallon manual
What to check and source
Spring check valve labeled on the intake-strainer module: 1-inch male × 3/4-inch female pipe thread. Identify flow direction and spring specification; other check valves appear elsewhere.
PL-FHB-3/4X3/4
View part & current price3/4" Fpt X 3/4 Hose Barb St. Nylon
220V AC system reference · Named in the Farallon manual
What to check and source
3/4-inch female-pipe-thread × 3/4-inch straight hose barb on the booster-pump drawing. Confirm thread standard and hose inside diameter.
PL-HBA-1/2TX1/2
View part & current price1/2" Tube X 1/2"Hb Adaptor
220V AC system reference · Named in the Farallon manual
What to check and source
Adapter between 1/2-inch tube and 1/2-inch hose barb in the manifold arrangement. Tube outside diameter and hose inside diameter are different sizing conventions.
PL-HBE-3/4X3/4
View part & current price3/4" Npt X 3/4" Hose Barb Ell Nylon
220V AC system reference · Named in the Farallon manual
What to check and source
Nylon 3/4-inch NPT × 3/4-inch hose-barb elbow in the manifold/service plumbing. Check orientation, hose diameter and installed pressure duty.
PL-HBS-3/4X3/4
View part & current price3/4" Npt X 3/4" Hose Barb St. Nylon
220V AC system reference · Named in the Farallon manual
What to check and source
Nylon straight 3/4-inch NPT × 3/4-inch hose barb in the flush drawing. It is the straight connection, separate from the elbow form.
PL-HP-3/8N
View part & current price3/8 in Black Nylon Plug
220V AC system reference · Named in the Farallon manual
What to check and source
3/8-inch black nylon plug named on the manifold. Confirm which unused port is being sealed and its pressure duty.
PL-MFF-3/4X3/4
View part & current price3/4"Mpt X 3/4" Fpt Elbow Fitt. Nylon
220V AC system reference · Named in the Farallon manual
What to check and source
Nylon 3/4-inch male-pipe-thread × 3/4-inch female-pipe-thread elbow in the flush/service modules. Match the male and female ends to the installed fittings.
PL-MTE-3/4X5/8P
View part & current pricePl-Mte-3/4X5/8P
220V AC system reference · Named in the Farallon manual
What to check and source
3/4-inch NPT × 5/8-inch tube elbow named on the manifold. Confirm tube outside diameter; it is not the same connection as a hose-barb elbow.
PL-MTS-3/8X3/8J
View part & current price3/8"Npt X 3/8" Tube St Jg.
220V AC system reference · Named in the Farallon manual
What to check and source
Straight 3/8-inch NPT × 3/8-inch John Guest tube connection named on the manifold. Identify thread end and tube outside diameter.
PL-NLT-1/2HP
View part & current price1/2" High Pressure Tube (Dayco) (Per Foot)
220V AC system reference · Named in the Farallon manual
What to check and source
Half-inch high-pressure tube named in the main module. It is sold per foot in this listing and differs from low-pressure polyethylene tubing. Verify pressure rating and approved end fittings for the installed circuit.
PL-NLT-1/2LP
View part & current price1/2" Low Pressure Tube (Per Foot)
220V AC system reference · Named in the Farallon manual
What to check and source
Half-inch low-pressure tubing named on the membrane product-water arrangement. It is sold per foot; it is not a substitute for the high-pressure feed/brine hose or tube.
PL-NP-1/4N
View part & current pricePl-Np-1/4N
220V AC system reference · Named in the Farallon manual
What to check and source
1/4-inch nylon close nipple in the freshwater-flush module. Match the installed thread and length.
PL-NP-3/4N
View part & current price3/4" Npt Close Nipple Nylon
220V AC system reference · Named in the Farallon manual
What to check and source
3/4-inch nylon close nipple on the intake-strainer assembly. This is plumbing hardware, not a filter-stage cartridge.
PL-SWF-1/2X1/2
View part & current price1/2"Npt X 1/2" Tube Swivel Fitt Ell
220V AC system reference · Named in the Farallon manual
What to check and source
1/2-inch NPT × 1/2-inch tube swivel elbow on the manifold/product-water plumbing. Use in its documented pressure circuit; low-pressure tube fittings are not high-pressure hose replacements.
PL-SWF-3/8X1/2T
View part & current price3/8"Npt X 1/2"Tube Swivel Elbow Pp
220V AC system reference · Named in the Farallon manual
What to check and source
3/8-inch NPT × 1/2-inch tube swivel elbow on the manifold. Thread size and tube size differ; check both.
PL-VLV-3/4PVC
View part & current price3/4"Npt X 3/4"Fpt 1-Way Pvc Valve
220V AC system reference · Named in the Farallon manual
What to check and source
3/4-inch PVC one-way valve in the flush circuit. Identify flow direction and position in the flush assembly.
PL-VLV-3W3/4
View part & current price3/4" 3-Way Valve
220V AC system reference · Named in the Farallon manual
What to check and source
3/4-inch three-way service valve used to switch the service inlet/brine path. Match the port layout and installed module; it is not the powered diversion valve.
EL-FP-BP8GPM220
View part & current priceFarallon 1800/2800 Booster Pump
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
Separate intake booster pump labeled 8 GPM, 220V / 60Hz. Check voltage, frequency, ports and installed revision. A 50Hz or 110V pump is not established by this listing.
EL-MTR-2HP220AC
View part & current price2 H.P. Motor 220 Ac 3 Ph, 1750 Rpm
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
2 HP, 220V, three-phase, 1750-RPM motor identified in the illustrated main module. The adjacent controller page includes both 1 HP and 2 HP drive variants. Confirm the installed motor nameplate and matching VFD with Spectra; the system input label alone is insufficient.
KIT-BCK-D
View part & current priceCruise Kit D
220V AC system reference · Named in the Farallon manual
What to check and source
Farallon basic cruising spares kit named on page 50. Compare current package quantities against the manual’s suggested supplies and what you already carry before ordering individual filters and chemicals too.
EL-SWT-TSBHC
View part & current priceToggle Switch Boot Seal
220V AC system reference · Named in the Farallon manual
What to check and source
Boot seal for the illustrated selector toggle. It is separate from the electrical switch; compare thread and boot dimensions to the installed panel.
SO-FHS-3PS20BB
View part & current price3-Pcs 20" Big Blue Housing O-Ring
220V AC system reference · Named in the Farallon manual
Confirm with Spectra before ordering.
What to check and source
Housing O-ring named in the spares list for this three-piece Big Blue arrangement. Despite the 20BB wording in the SKU, the depicted cartridges are 10-inch. Match the actual sealing groove and housing design with Spectra before ordering.
SO-STN-6SS
View part & current price6" Strainer Seal (Big)
220V AC system reference · Named in the Farallon manual
What to check and source
6-inch sea-strainer seal named in the spares list. This is the intake-strainer seal, separate from the Big Blue filter-housing O-ring.
SC-1
View part & current priceStorage Compound
220V AC system reference · Specific manufacturer reference
What to check and source
Storage/preservation compound. The manual uses KIT-CHEM-SC1; the store retains this SC-1 listing. It is not a membrane cleaner or freeze-protection product.
SC-2
View part & current priceAlkaline Cleaning Compound
220V AC system reference · Specific manufacturer reference
What to check and source
Alkaline cleaner for diagnosed biological/organic membrane fouling. The manual uses KIT-CHEM-SC2. Follow the manufacturer cleaning sequence; low output alone is not proof of membrane fouling.
SC-3
View part & current priceAcid Cleaning Chemical
220V AC system reference · Specific manufacturer reference
What to check and source
Acid cleaner for diagnosed mineral scaling. The manual uses KIT-CHEM-SC3. Keep it separate from the alkaline cleaner and follow the complete cleaning procedure.
KIT-MB-4X40SW
View part & current price4 x 40 in Seawater Membrane and Seal Kit
220V AC system reference · Specific manufacturer reference
What to check and source
Original FL-1800C-220 array: 2 4-inch diameter × 40-inch seawater membranes. One KIT-MB-4X40SW kit replaces one element and includes seals; replacing the whole original array takes 2 kits. The narrow 2.5-inch KIT-MB-40F is not this arrangement.
KIT-SP5C-20R10K
View part & current priceSpp5Mcp-20 Rebuild Kit 10K
220V AC system reference · Specific manufacturer reference
What to check and source
20% SP-5 Pearson kit for Farallon 1800, verified by the manufacturer model list. The 10,000-hour-labelled kit supplies internal rebuild components. These labels identify different service-kit scopes; diagnose the pump and compare current contents before choosing a kit. Match the installed pump ratio and revision.
KIT-SP5C-20R2K5
View part & current priceSpp5Mcp-20 Rebuild Kit 2K5
220V AC system reference · Specific manufacturer reference
What to check and source
20% SP-5 Pearson kit for Farallon 1800, verified by the manufacturer model list. The 2,500-hour-labelled kit supplies seals. These labels identify different service-kit scopes; diagnose the pump and compare current contents before choosing a kit. Match the installed pump ratio and revision.
ZION-AUTO
View part & current priceZ-Ion For Auto System
220V AC system reference · Specific manufacturer reference
Confirm with Spectra before ordering.
What to check and source
Manufacturer selection for automated Connect controls. The Farallon-specific bowl, plumbing, trigger and accessory power package still need confirmation. This general listing is not proven equivalent to ZION-FL or Z-ION-FAR.
Additional links that need confirmation
Confirm the exact installed SKU, revision and package with Spectra before ordering these items.
ZION-FL
View part & current priceFarallon Z-Ion System Kit
220V AC system reference · Installed-hardware review
Confirm with Spectra before ordering.
What to check and source
Farallon Z-Ion package from the catalog’s conditional review. Confirm bowl, plumbing, controller trigger and accessory supply with Spectra; a Farallon name alone does not establish the right retrofit package.
EL-MPC-SP4N
View part & current priceSP4 Salinity Probe with 3 ft Cable
220V AC system reference · Installed-hardware review
Confirm with Spectra before ordering.
What to check and source
Short-cable SP4 listing from the conditional review records. Confirm cable reach, connection and installed probe/controller revision with Spectra before substituting it for the illustrated SP4.
KIT-SC-TNKSS
View part & current priceSpectra Connect Tank Sensor Kit
220V AC system reference · Installed-hardware review
Confirm with Spectra before ordering.
What to check and source
Optional Spectra Connect tank-level sensor kit named on the current 2800C fact sheet. The shared manual explains tank inputs, but the exact kit revision and tank installation still need confirmation with Spectra.
FT-FHW-20BB3PCS
View part & current price3-Pc Style Big Blue Filter Wrench
220V AC system reference · Installed-hardware review
Confirm with Spectra before ordering.
What to check and source
Catalog wrench for the three-piece Big Blue housing family. Confirm the ring profile and installed housing with Spectra; the manual does not print this exact wrench SKU. It is not a cartridge or an O-ring.
Z-ION-FAR
View part & current priceZ-Ion Protection for New Farallon Systems
220V AC system reference · Installed-hardware review
Confirm with Spectra before ordering.
What to check and source
Earlier Farallon Z-Ion listing retained for identification. Confirm current replacement/package identity with Spectra before ordering; no supersession or equivalence with ZION-FL or ZION-AUTO is asserted.
OPEN THE COMPLETE MANUFACTURER REFERENCE
Manuals, diagrams and specifications
Farallon 1800C / 2800C Connect manual, May 2025 ↗Farallon 1800C fact sheet ↗Plumbing and membrane-array schematic, April 2025 ↗Complete electrical schematic with 110/220V variants ↗20% Pearson exploded drawing ↗Ratio-specific SP-5 seal-kit selection ↗Ratio-specific SP-5 internal-kit selection ↗4 × 40-inch membrane kit ↗20-micron cartridge dimensions ↗5-micron cartridge dimensions ↗Carbon cartridge dimensions ↗Z-Ion controls selection ↗
The 1800C manufacturer product page currently links the 2800C fact sheet. This guide uses the separately named 1800C sheet from Katadyn for the 1800C membrane count. Original diagrams are identification aids; use the complete manufacturer instructions for service.
